Low Price CNC Wood Furniture Carving Router, CNC Router Machine
Jinan Firm CNC Equipment Co., Ltd.- Type：Engraving Router
- Spindle Layout：Spindle Over
- Spindle Number：Single-Spindle
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE, ISO
Base Info
- Model NO.：FM2040
- Customized：Customized
- Condition：New
- Color：Customized
- Product：Woodworking Machinery
- Working Area：2000*4000*200mm
- Spindle：3kw Water Cooling Spindle
- Inverter：Fuling Inverter
- Mototr and Driver：Leadshine Stepper Motor and Driver
- Table：T-Slot, Vacuum
- Structure：6mm Welded Steel Tube Structure
- X Y Axis Transmission：Xinyue Helical Rack and Gear, Hiwin Square Rail
- Z Axis Transmission：Taiwan Tbi Ball Screw, Hiwin Rail
- Lubrication System：Manual Lubrication
- Transport Package：Plywood
- Specification：CE, ISO, SGS
- Trademark：FIRM
- Origin：Jinan, China
- HS Code：84649012
- Production Capacity：350sets,Month
Description
Basic Info.
Model NO. FM2040 Customized Customized Condition New Color Customized Product Woodworking Machinery Working Area 2000*4000*200mm Spindle 3kw Water Cooling Spindle Inverter Fuling Inverter Mototr and Driver Leadshine Stepper Motor and Driver Table T-Slot/ Vacuum Structure 6mm Welded Steel Tube Structure X Y Axis Transmission Xinyue Helical Rack and Gear, Hiwin Square Rail Z Axis Transmission Taiwan Tbi Ball Screw, Hiwin Rail Lubrication System Manual Lubrication Transport Package Plywood Specification CE, ISO, SGS Trademark FIRM Origin Jinan, China HS Code 84649012 Production Capacity 350sets/MonthProduct Description

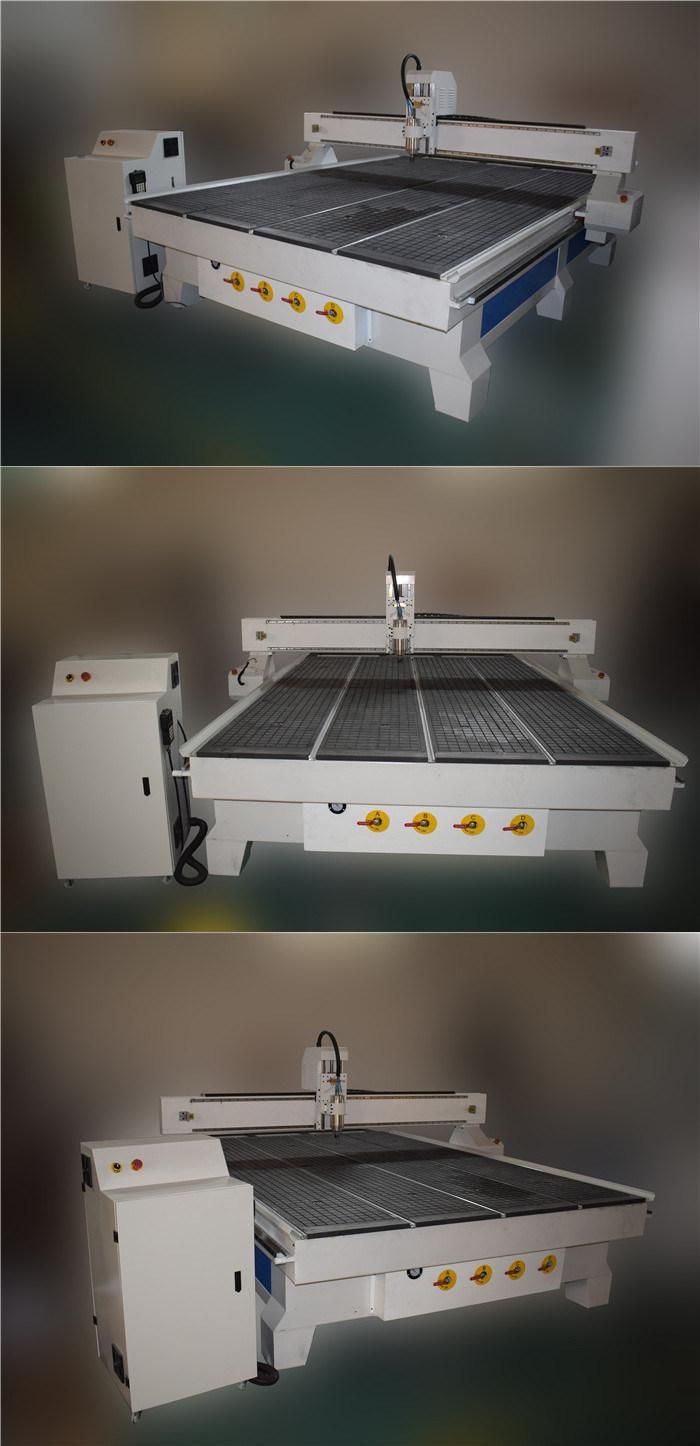

Low price cnc wood furniture carving router, CNC router machine

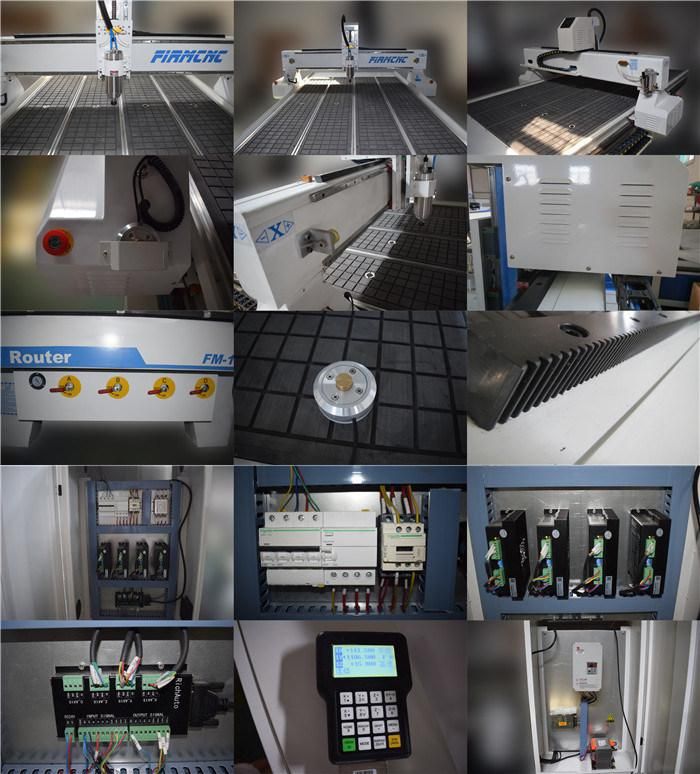

Configuration
CNC Router FM2040Working Area: 2000*4000*200mm
3kw HQD water cooling spindle
Chinese Fuling inverter
450B stepper motor
Leadshine driver
25 Hiwin square guide rail for XYZ axis
DSP control system
Welded steel tube structure
XY axis with helical rack and pinion transmission, Z axis with Taiwan TBI ball screw
Vacuum and T-slot table
lubrication system
France Schneider contactor and leakage protector
Tool sensor
Woodworking machinery features
1. The famouse brand HQD water cooling spindle, adopt water cycle to cooling the spindle, so the cooling effect is very good. Almost no noise, long life.2. We adopt the world famouse rail and guide manufacturer Taiwan Hiwin square rails, self-lubricating sliding block. This ensures equal force in all directions and accuracy and strength of the machine.
3. Leadshine stepper motor and driver, won't lose step when it work, guarantee the positional accuracy of the motor. Speed performance increased about 30%, improve the equipment speed heavily. Motor heat fell down 30%, prolong the life time of the motor.Vibration phenomenon significantly reduced, motor run more smoothly. Adopted the current control system technology, save power consumption.
4. Taiwan TBI ball screw, ball screw is widely used in all kind of engraving equipment and precision instruments. Suitable for classical annatto furniture and antique furniture carving processing, wood carving craft, gift box, such as mahogany casket products, inkstone head carved processing, decorative products carving art.
5. Rack transmission is through the precision rack control accuracy of gear drive a way of transmission of the equipment operation. Carpentry industry: board plane, three-dimensional wave board processing, screen, process window processing, cabinet door, solid wood doors, craft wooden door, avoid lacquer engraving, cutting, hollow out of the door, punching processing , etc.
6. DSP control system don't need connect to PC. It include three parts, control card, U disk, and handle controller.When you set the toolpath by the software (Artcam, Type3,etc) then copy it to U disk, then inset U disk to control card, the toolpath will show in the hand controller. You can control the tool cut or engrave.
7. Vacuum and T-slot table, No need human fix the material, absorb the material automatically, more efficent than T-slot table. But vacuum table limited by thickness of the material, so we add the T-slot, meet your all kind of work need.
woodworking machinery parameters
| No. | Description | Parameter |
| 1 | X,Y,Z Working Area | 2000x4000x200mm |
| 2 | X,Y,Z Traveling Positioning Accuracy | ±0.03mm |
| 3 | X,Y,Z Repositioning Accuracy: | ±0.03mm |
| 4 | Table Surface | Vacuum and T-slot table |
| 5 | Frame | Welded steel Tube Structure |
| 6 | X, Y Structure | Rack and Pinion Drive |
| 7 | Z Structure | Taiwan TBI Ball Screw |
| 8 | Max. Rapid Travel Rate | 40000mm/min |
| 9 | Max. Working Speed | 30000mm/min |
| 10 | Spindle Power | 3KW |
| 11 | Spindle Speed | 0-24000RPM |
| 12 | Working Voltage | AC220V/60HZ ,1PH (Option:380V) |
| 13 | Command Language | G Code |
| 14 | Operating System | DSP Control System |
| 15 | Computer Interface | USB |
| 16 | Collet | ER25 |
| 17 | X,Y Resolution | <0.03mm |
| 18 | Running Environment Temperature | 0 - 45 Centigrade |
| 19 | Relative Humidity | 30% - 75% |
| 20 | Packing Size | 4660X2260X1630mm |
| 21 | N.W. | 1600KG |
| 22 | G.W. | 1800KG |

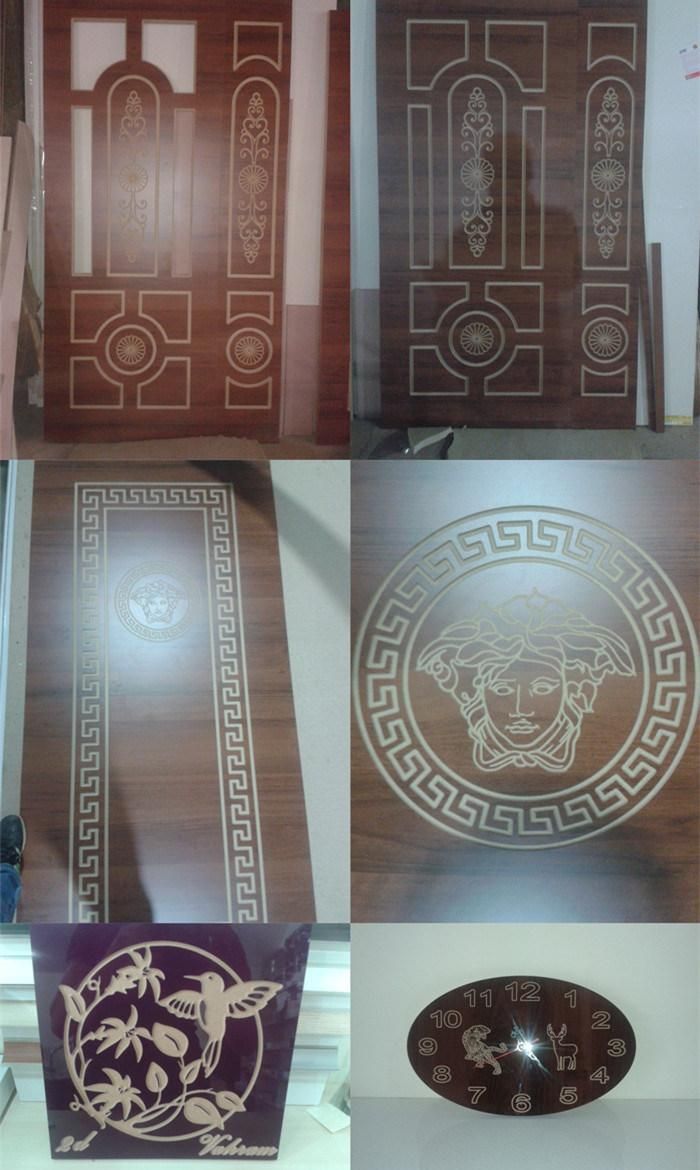

Woodworking machinery application:
1. The advertising industry
wood cnc machine can engrave all kinds of signage, trademark, nameplates, badge, decorative gift, embossed medal, certificate, souvenir, photo frame, furniture decoration.2. woodworking industry
wood cnc machine can be used for solid wood furniture, mahogany furniture, MDF paint door, solid wood door, omposite door, cupboard door and window, bedside cabinet, folding screen etc.3. Artwork industry
wood cnc machine can process wooden craft, mural art of wood, artwork embossed, jewelery, cosmetics package, musical instrument.4. Soft metal processing
wood cnc machine can process aluminum front panel, pop can, aluminum honeycomb panel, train car and aircraft interior decoration, bronze medal, copper mold.5. Electronic industry
wood cnc machine can engrave electronic component, integrated circuit, electronic plastic case, electronic product model, circuit board, electronic light box, computer and mobile phone keyboard, engraving a varity of electronic products.

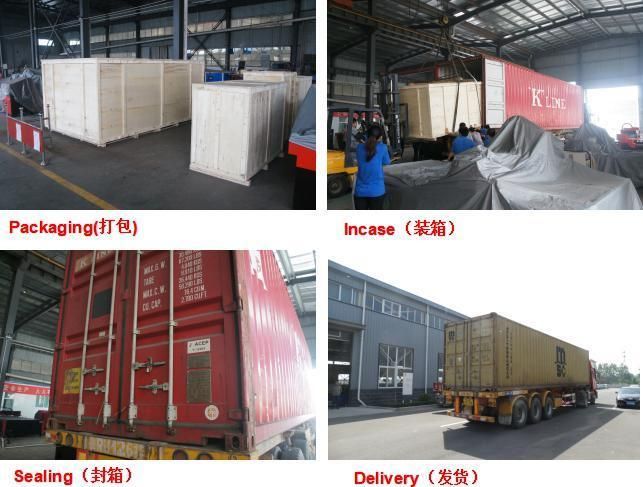

Woodworking machinery Packaging and Shipping
Water-proof plastic film package with foam protection in each corner.Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Our Service for woodworking machinery
Certification
Our Company
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificateThe aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.
FAQ
Question 1:How long about the machine's guarantee ?Answer :1 year
Question 2:How about your after service ?
Answer :Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer :Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer:30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question 5: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
