Basic Info.

Model NO. FM1325 Customized Customized Condition New Color Yellow Table Size(mm) 1600*3100 Engraving Area 1300*2500*200 Motor Driver Stepper Motor Engraving Speed(mm/Min) 8000~12000mm/Min Machine Structure Industry Square Tube Structure Support Format G Code or Hpgl Working Voltage AC220V/50Hz or 380V/50Hz Working Form Full-Automatic Transport Package Wooden Box Specification CE SGS ISO Trademark FIRMCNC Origin Shandong, Jinan HS Code 8465990000 Production Capacity 30 Sets/ Month

Product Description

Vacuum Table CNC Engraving Machine High Quality Wood cnc router

This machine is from Jinan Firm CNC Equipment Co., Ltd. It is a type of woodworking machine, which is equipped with aluminium profile table. It has the T-solt, using the material holders to fasten the mould on the table. There are many occasions it can work: Cutting or engraving on the MDF, soild wooden door, computer desk, cupboard door and window, bedside cabinet, furniture decoration, , wood board, acrylic and so on.

Features:
1. Robust square steel machinery body, stiff not deforming and tempering aging treatment, reasonable & advanced welding procedure, ensure stability of machine.
2. The special instruments to eliminate welding stress, high precision machining planer ensure the precision and no deformation.
3. The major machine body makes stability and no shacking high speed.
4. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
5. The professional mechanical design, scientific a structure and generous appearance, gantry height 200MM can ensure Z axis working size...
6. XYZ axis use anti-dust system, prevent dust working, make sure the long lifespan of spare parts.
7. High quality drive motors, spindle motors, cables inverters, etc.
8. Powerful dust extraction system to prevent no dust In the process of machining.
9. Strong adsorption system to ensure the efficiency is greatly improved in the process of machining.
10. The advanced professional control system compatible with many instructions
Formats, may achieve process function in interruption of power supply, breakpoint
And next day which is more convenient and save labor.
11. Professional CNC control system, can compatible with many kinds CAM software, such as: TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.

Technical specification

Brand	Firm
Model	FM-1325
Machine Size (mm)(W*L*thickness)	1900*3100*1800
Table size(mm)	1600*3100
Engraving area (W*L*thickness)(mm)	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.0KW water cooling spindle
Spindle Rotate(rpm)	6000~24000
Motor Driver	Stepper motor (Chinese servo motor or imported servo motor  is optional)
Tool Diameter(mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Transmission System	Imported ball screw or high accuracy gear rack
X,Y,Z Rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
Engraving Speed(mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
Support Format	G Code or HPGL
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1200Kg

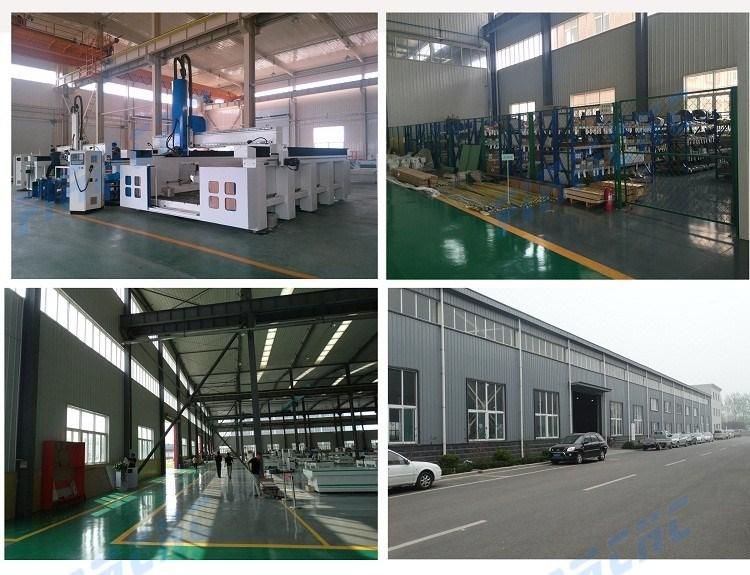

Company profile
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate. Products are packed and loaded.




Packaging & Shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

Service
# One year warranty for the machine
# Replacing all parts for free during warranty
# If nessessary, provide door to door service to your country
# 24 hours on line service
# Replying your email and offer tecnical service within 24 hours.


FAQ
How about the payment terms of horizontal spindle cnc router 1325 machine?
30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Do You Arrange Shipment For The Machines of horizontal spindle cnc router 1325 machine?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
How about Guarantee & After Sales Service of high speed advertising cnc router?
The machine guarantee is 12 months. 2) 24 hours technical support by phone, email or msn, skype etc.

And the last I really want to tell you we also can produce the machine as your requested including the brand of the parts, the color of the machine body...If there are any questions please let us to answer
