• Model NO.：MJ6132S
• Certification：CE, ISO, SGS
• Customized：Customized
• Condition：New
• Color：Customized
• Lifting：Electric
• Tilting：Electric
• Transport Package：Wooden Case
• Specification：3200mm
• Trademark：OSETMAC
• Origin：China
• HS Code：8465910000
• Production Capacity：5000pieces,Year

Basic Info.

Model NO. MJ6132S Certification CE, ISO, SGS Customized Customized Condition New Color Customized Lifting Electric Tilting Electric Transport Package Wooden Case Specification 3200mm Trademark OSETMAC Origin China HS Code 8465910000 Production Capacity 5000pieces/Year

Product Description

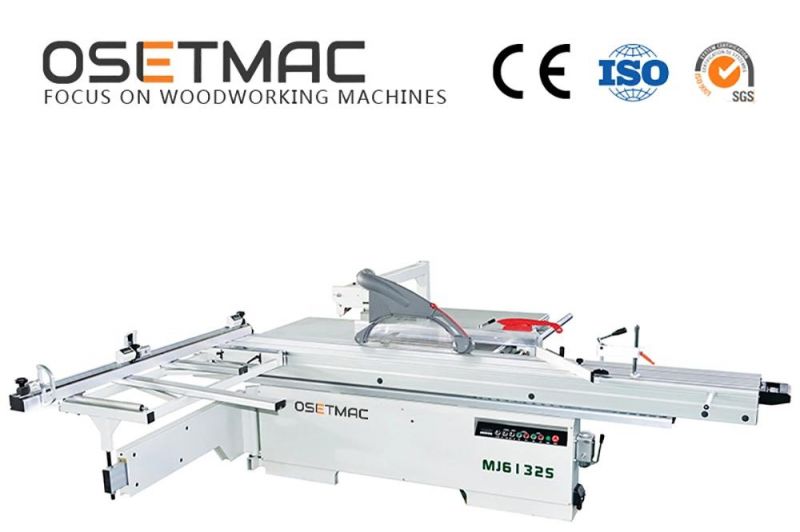

OSETMAC Electric Lifting Sliding Table Panel Saw MJ6132S


Sliding Table Saw MJ6132S Specifications

Sliding Table Dimension	3200*380mm
Cast Iron Table Dimension	910*620*80mm
length extension table	905*680*70mm
width cutting extension table	640*680*70mm
Main Saw Diameter	300mm
Main Saw Blade Diameter Maximum	350mm
Main Saw Bore Diameter	30mm
Max. Cutting Height With Bade at 90	80/100mm(φ300/350)
Max. Cutting Height With Bade at 45	50/70mm(φ300/350)
Main Motor Power	5.5KW
Main Blade Speed	4000/6000RPM
Scorning Saw Blade Diameter	120mm
Scorning Saw Bore Diameter	20mm
Scorning Saw Motor Power	1.1KW
Scorning Blade Speed	8000RPM
Max. Cutting Width	1250mm
Max. Cutting Length	3100mm
Blade Tilting Adjustment	0-45°
Main Saw Height Adjustment	Electric
Scorning Saw Height Adjustment	Electric
Angle Tilting Adjustment	Electric
Dust Guard Outlet Diameter	80mm
Dust System Outlet Diameter	100mm
Wood Packing Dimension Main Crate and Sliding table	2250*1200*1100mm 3400*450*290mm
Dimension	3250*3450*900mm
G.W.	900KG

Sliding Table Saw MJ6132S Details Show

Inner Structure
This machine uses linear guideway to lift the saw blade which is more smooth and more durable. Aluminum shell motor makes sure its good heat dissipation. 25mm metal plate guarantees the compressive strength and the high precision of the inter-machine, which can also reduce the shock of the machine.

Main Saw and Scorning Saw Spindle
After the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and motor, this sliding table saw has lower noise, higher precision and higher efficiency of power transmission.



SKF Bearing
All bearings in this sliding table saw are all imported SKF brand, which has lower sliding resistance and power consumption comparing with ordinary bearings.

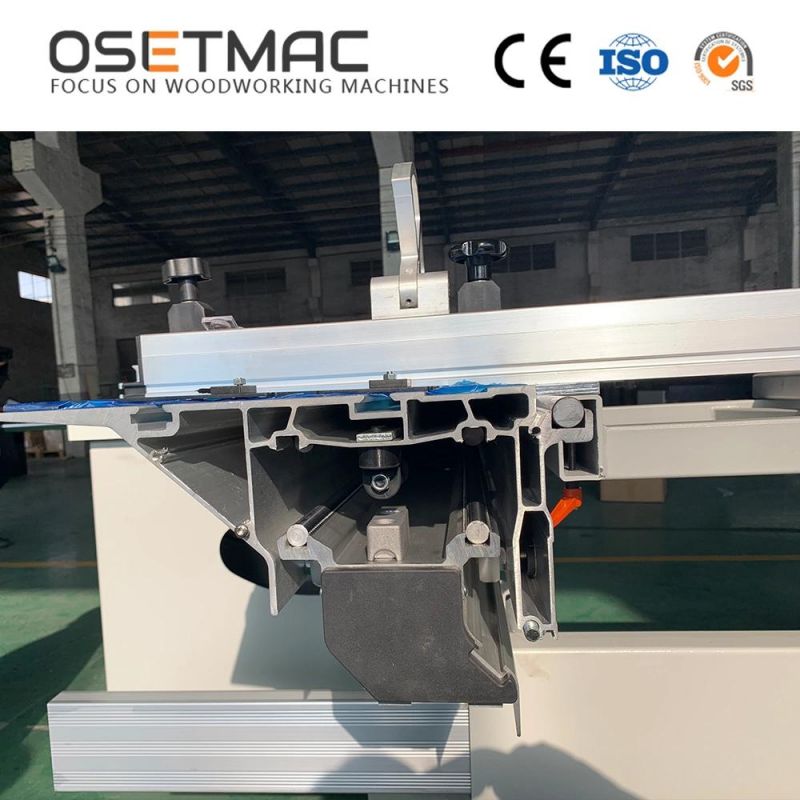

Sliding Table Structure and Feature
Our sliding table supplier is the same as SCM. Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The  guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock on the table makes it convenient to stop anywhere.

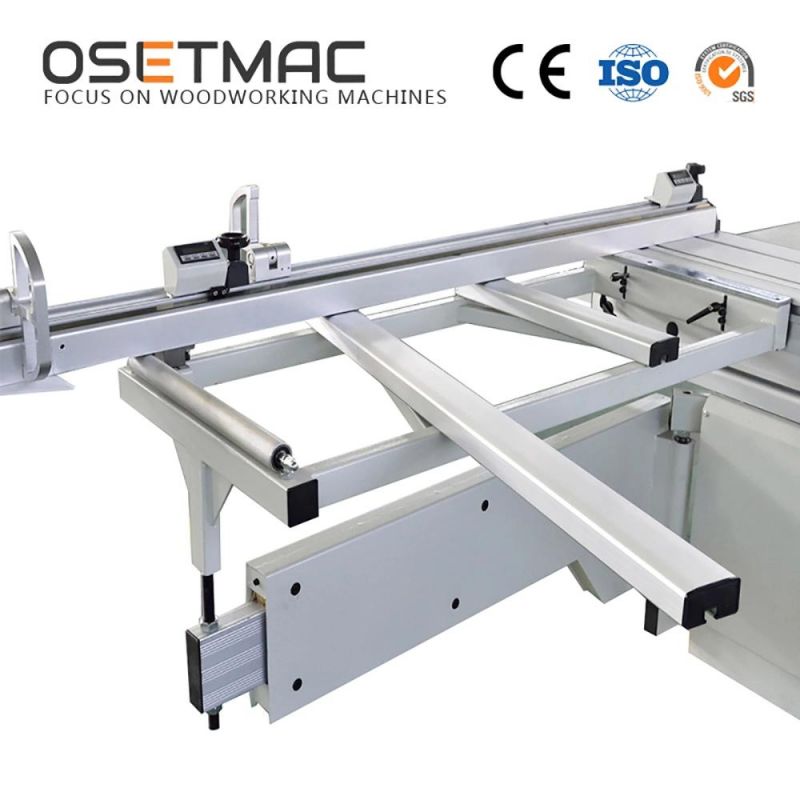

Supporting Arm and Cross Cut Table
Our support arm uses 2.5mm square steel tube, which insure the stationary movement of sliding table when the machine has heavy loading.

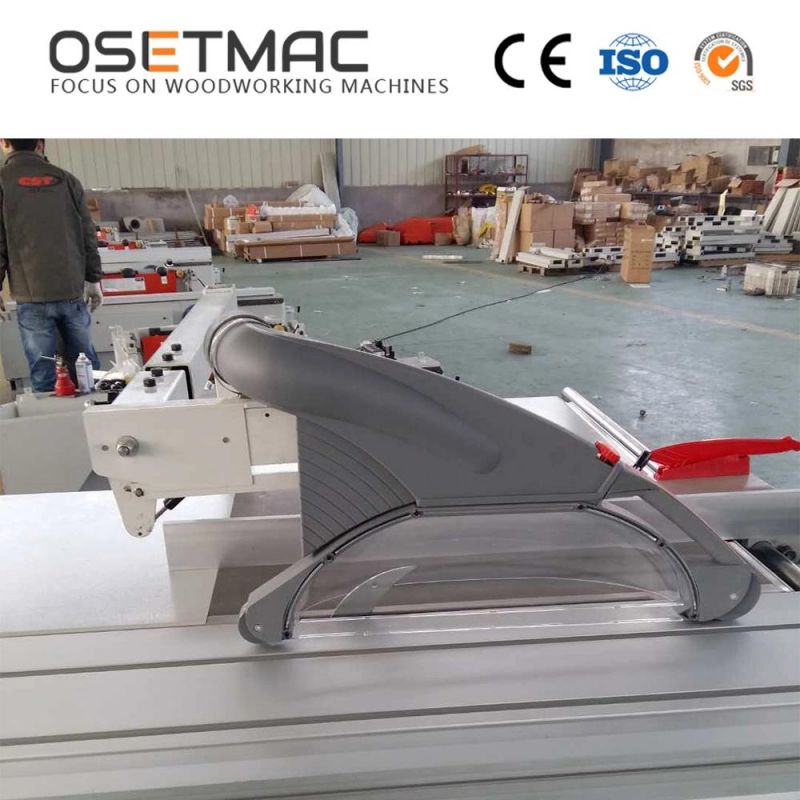

Altendour-structure Dust Cover
This device can make sure better dust collection effect, which is suitable for main saw blade diameter 400mm and maximum cutting height 120mm. It's position is flexible, and it's very safe for the operator.

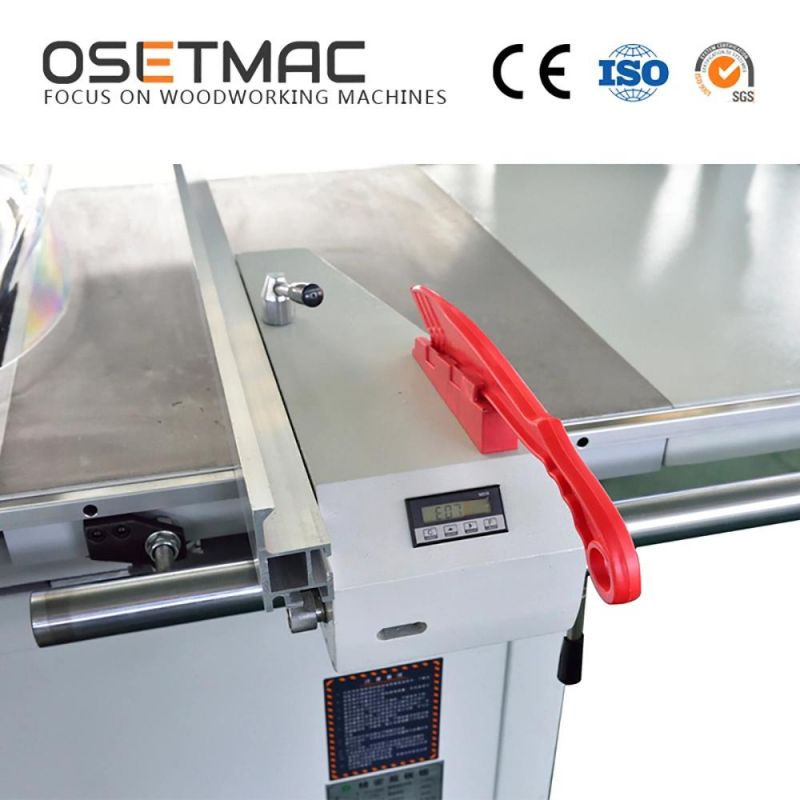

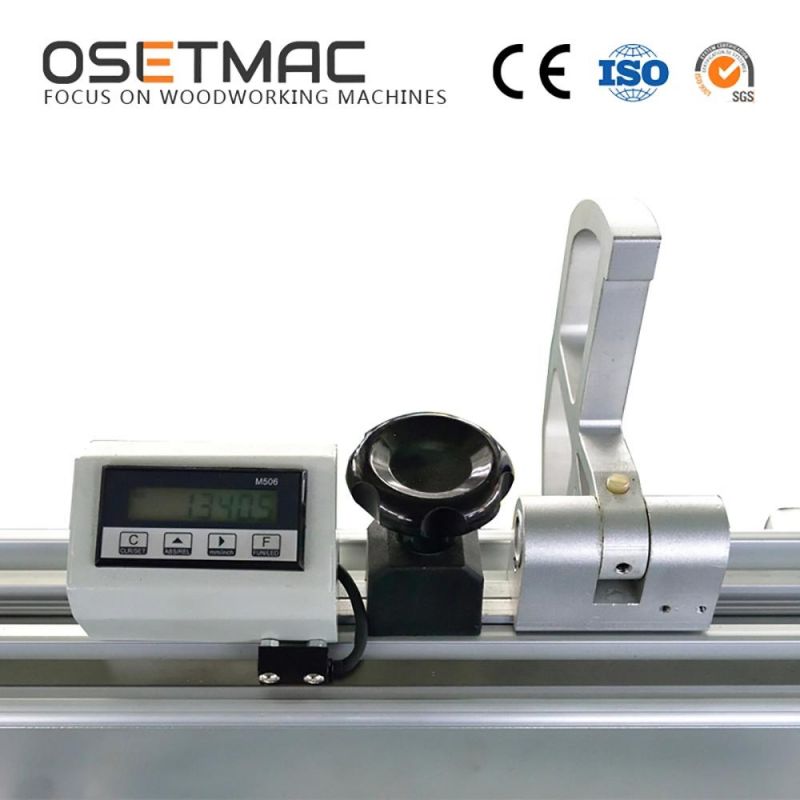

Digital Readout

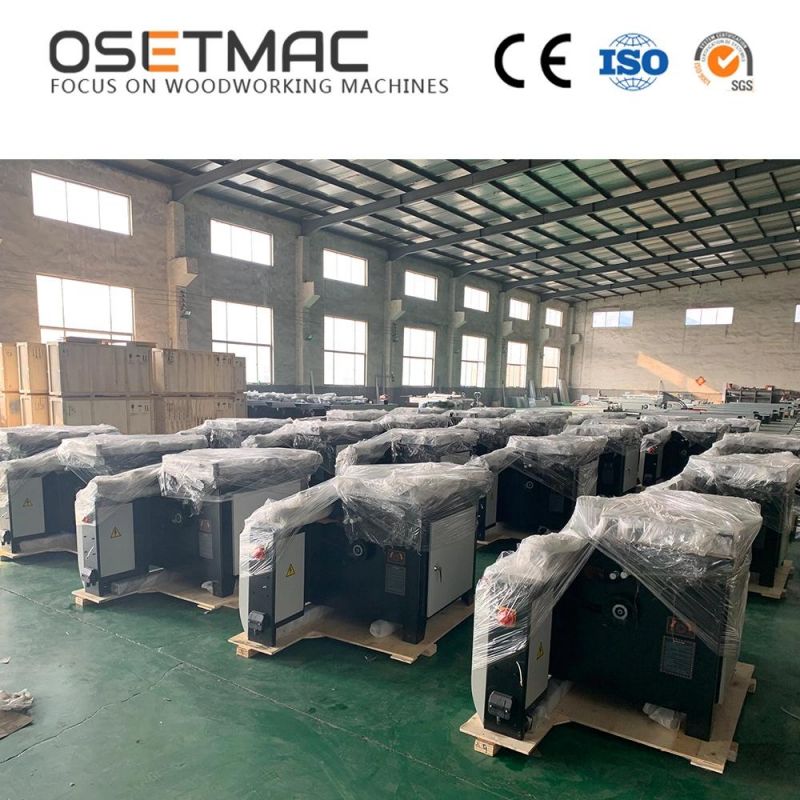

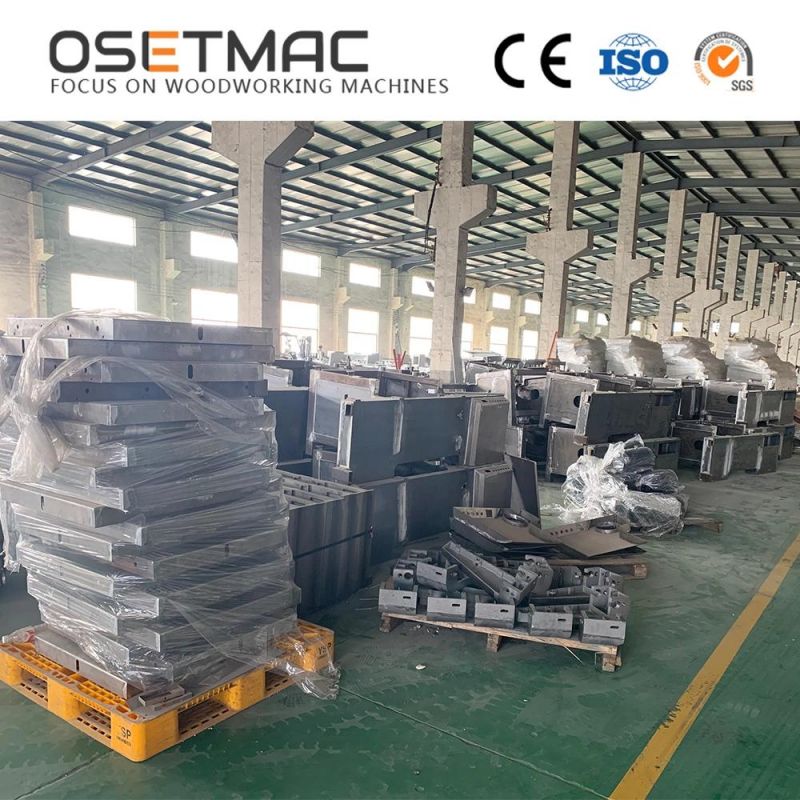

Sliding Table Saw Production Line
