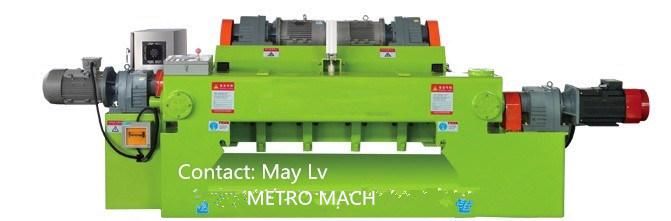

Automatic CNC Plywood Hard Wood Spindleless Veneer Peeling Lathe Woodworking Machine
Linyi Sin San Lin Smart Machinery Co., Ltd.- Type：Veneer Peeling Machine
- Automatic：Automatic
- Certification：CE, ISO, FDA
- Voltage：380V,415V
- Control：PLC Control
- Max. Wood Diameter：500mm
Base Info
- Model NO.：RBS1400
- Min.Wood Diameter：30mm
- Max. Wood Length：2600mm
- Precision：High Precision
- Setting Mode：Floor-Type
- Peeling Speed：40-120 M,Min
- Transport Package：Standard Export Packing
- Specification：5600mm x 1700mm x1600mm
- Trademark：METRO MACH
- Origin：Linyi City, China
- HS Code：8465960000
- Production Capacity：1000 Sets, Year
Description
Length of the peeling wood1970mm-2540mm-2600mm max log diameter max500mm min 30mm roller power double roller motor 7.5kw x 2 single roller motor 7.5kw x 2 feed motor (servo motor) 11kw cutting motor (servo motor) 4kw conveyor motor ( a-c motor) 4kw peeling thickness range 0.2mm--4.0mm peeling output speed constant speed 45m/min (adjust speed 40m-120m ) reducer modle R87 helical gear reducer size of machine 5600mm x 1700mm x1600mm weight 10000kg production eficiency (8 Hour) 0.3mm Peeling Veneer 10 m³
0.5mm Peeling Veneer 12 m³
1.0mm Peeling Veneer 30m³
3.6 mm Peeling Veneer 100 m³
3. More About Machine
