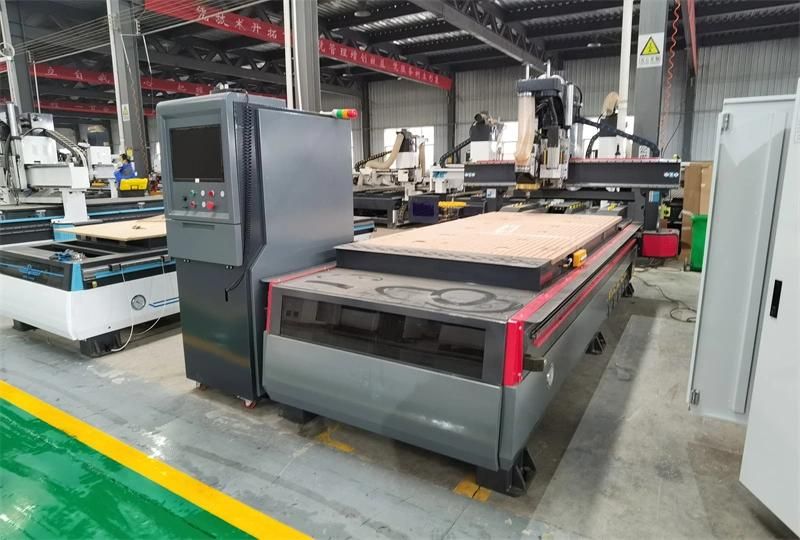

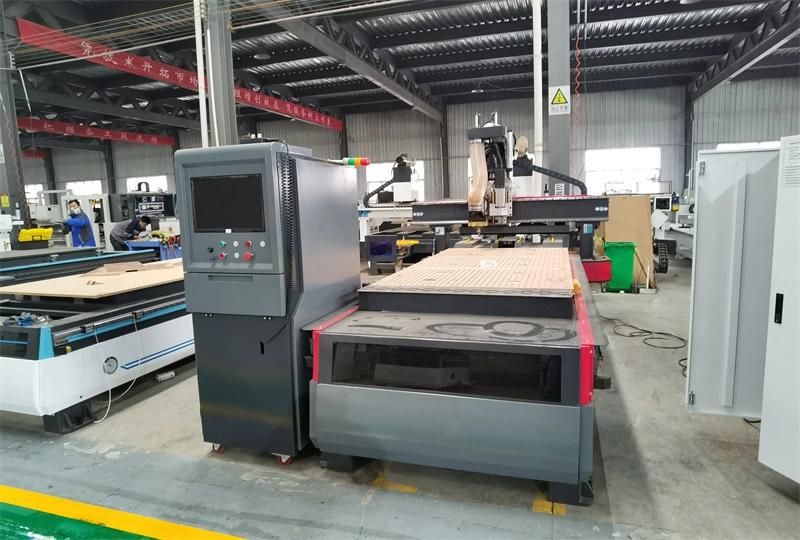

Auto Tool Changing CNC Router Atc Wood Engraving Machine
Jinan Zhongke CNC Equipment Co., Ltd.- Warranty：1 Year
- Type：Engraving Router
- Spindle Layout：Vertical
- Spindle Number：Single-Spindle
- Feed Mode：Manual
- Controlling Mode：CNC
Base Info
- Certification：CE, ISO
- Customized：Customized
- Condition：New
- Color：White and Green
- After-sales Service：24 Hours Service
- Working Area：1300*2500mm
- Spindle：China 9kw Air Cooling Spindle
- Spindle Speed：0-24000rpm
- Table：Vacuum Table
- Transmission：Helical Rack
- Motors：Leadshine Brand Servo Motor and Driver
- Control System：Taiwan Syntec Control System
- Inverter：Fuling Inverter
- Delivery Time：25 Working Days
- Transport Package：Exporting Plywood Package
- Specification：CE
- Trademark：ZHONGKE
- Origin：China
- HS Code：8465990000
- Production Capacity：100 Sets,Month
Description

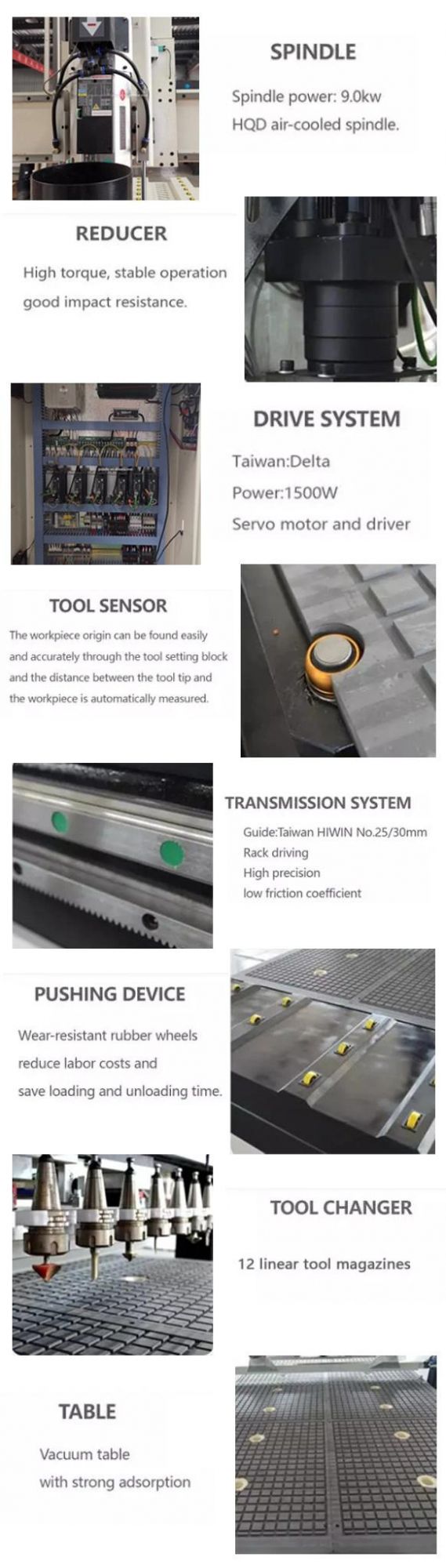

Spindle
9KW Air Cooling Spindle
Top brand of the world. Spindle speed: 0-24000RPM.
Inverter
SHANGHAI FULING Inverter
It can output 150% of rated torque at zero speed, and it can have "point to point" and relative distance control functions for position control.
Motor
China FULING servo motor.
high working efficiency and stable running promised
Control system
SYNTEC Controller

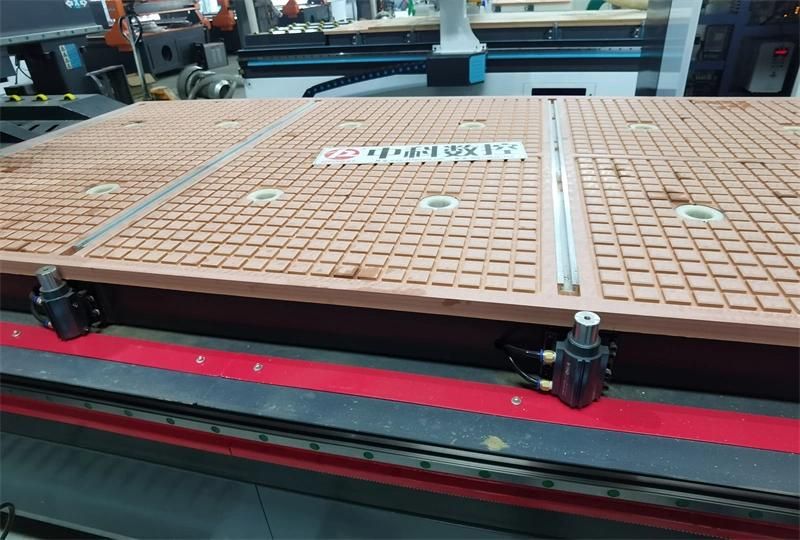

Working table
Vacuum Table
Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you to clamp the workpiece in place.
Tool magazine
Carousel 20 PCS Tool Magazine
The use of an 20 Tool Rotary Caro
Technical parameter
NO
Description
Parameter
1
Positioning Accuracy
±0.03/300mm
2
Max. Rapid Travel Rate
80000mm/min
3
Max. Working Speed
45000mm/min
4
Spindle Speed
0-24000RPM
5
Command Language
G Code
6
Flash Memory
512M
7
Collet
ER32
8
X,Y Resolution
<0.03mm
9
Running Environment Temperature
0 - 45 Centigrade
10
Relative Humidity
30% - 75%
11
Packing Size
3520*2280*2100mm
12
N.W.
1800KG
13
G.W.
2000KG
What is the benefit of our ATC CNC Wood Router Carpentry Machine ?
1. Furniture industries: cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.
2. Decoration industries: screens, wave boards, large-size wall hangings, advertising boards and sign making.

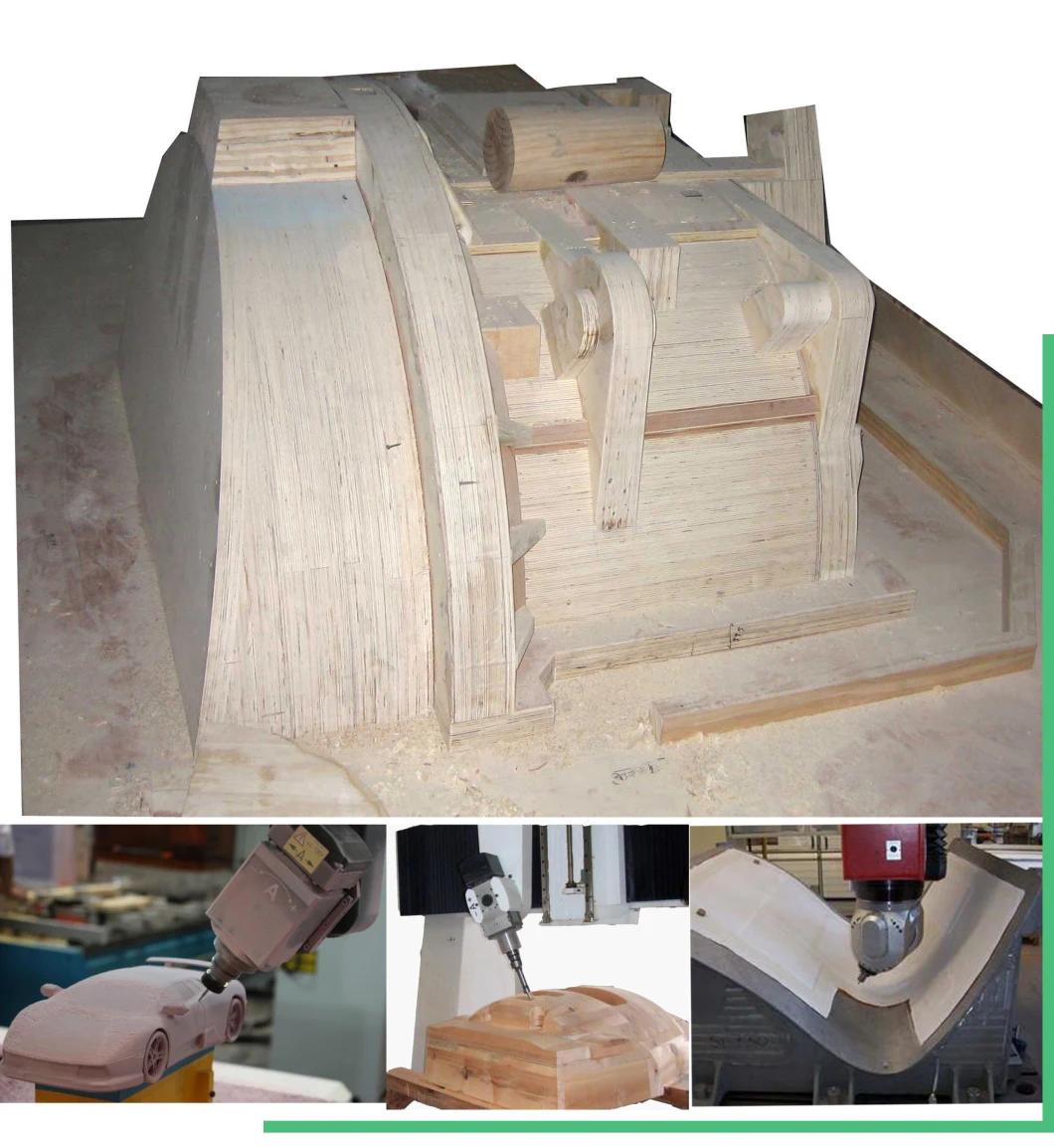

3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.
4. Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards,
artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum
