Biomass Pellet Mill
Shandong Kingoro Machinery Co., Ltd.- Type：Ring Die
- Voltage：380V
- Automatic Grade：Semiautomatic
- Controlling Mode：Artificial
- Energy Saving：Energy Saving
- Certification：CE, ISO
Base Info
- Model NO.：SZLH700
- Warranty：1 Year
- Customized：Non-Customized
- Condition：New
- Color：Multi Color
- Application：Biomass Fuel
- Ideal Moisture：10-15%
- Capacity：1.8-2.5t,H
- Transport Package：Seaworthy Packaging
- Specification：2514*1527*1995
- Trademark：Kingoro
- Origin：China
- HS Code：8479300000
- Production Capacity：100,Pieces
Description
Basic Info.
Model NO. SZLH700 Warranty 1 Year Customized Non-Customized Condition New Color Multi Color Application Biomass Fuel Ideal Moisture 10-15% Capacity 1.8-2.5t/H Transport Package Seaworthy Packaging Specification 2514*1527*1995 Trademark Kingoro Origin China HS Code 8479300000 Production Capacity 100/PiecesProduct Description

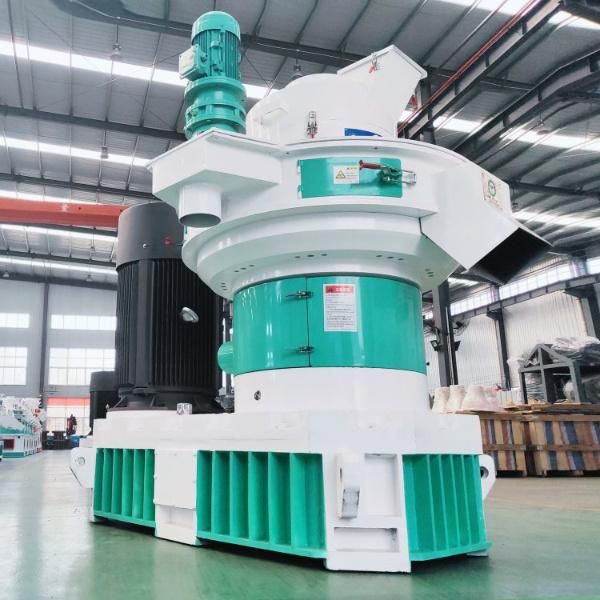

Biomass Pellet Mill
Specification
| Model | Power (kw) | Capacity (t/h) | Size (mm) |
| SZLH470 | 55 | 0.8-1.0 | 2000x1550x1680 |
| SZLH560 | 90 | 1.2-1.5 | 2600x1300x2300 |
| SZLH660 | 132 | 1.5-2 | 2500x1300x1900 |
| SZLH700 | 160 | 1.8-2.5 | 2514x1527x1995 |
| SZLH860 | 220 | 2.5-3.5 | 3780x1700x2950 |

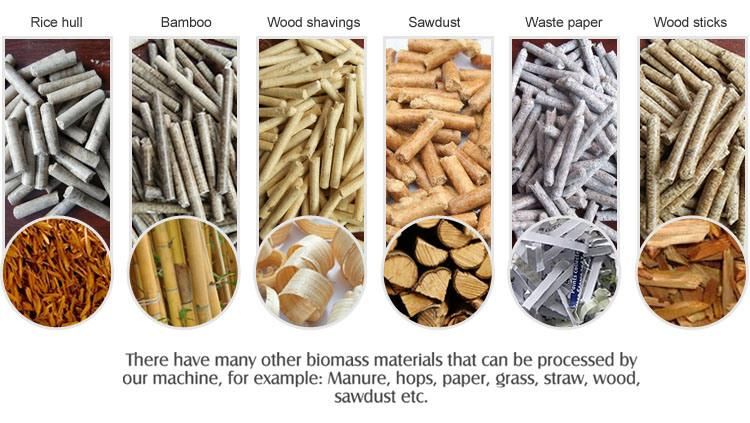

Raw Material
Application
Through the method of physical extrusion, the vertical ring die pellet machine can make all kinds of biomass raw material into pellet. Raw material is feeding vertically and is directly in place, with stationary die and rotary pinch roller. Double ring type, can use both. The mould is in vertical structure, which is good for heat dissipation. With independent lubricating, no need to stop machine for special maintenance. It is widely used in biomass burning factory, power plant, wood processing plant, chemical plant, food products factory, winery plant etc.
Advantage
Customer
Certification
