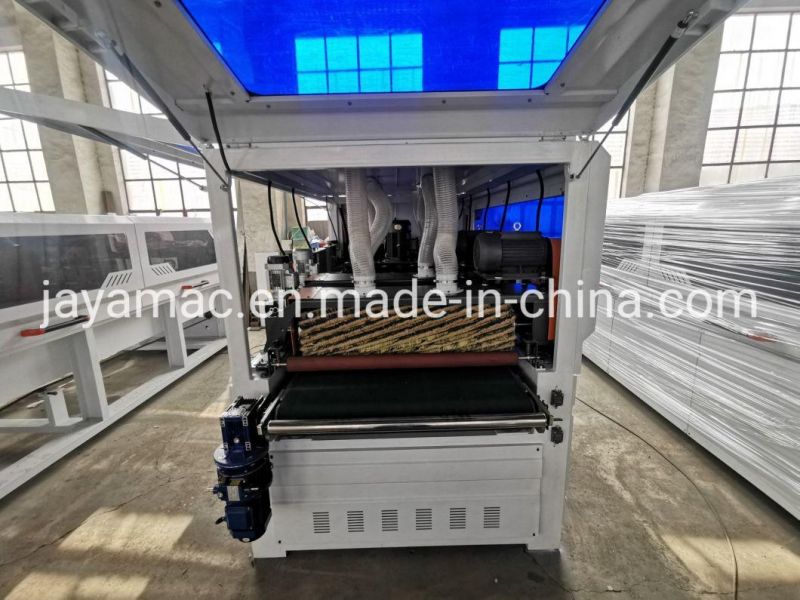

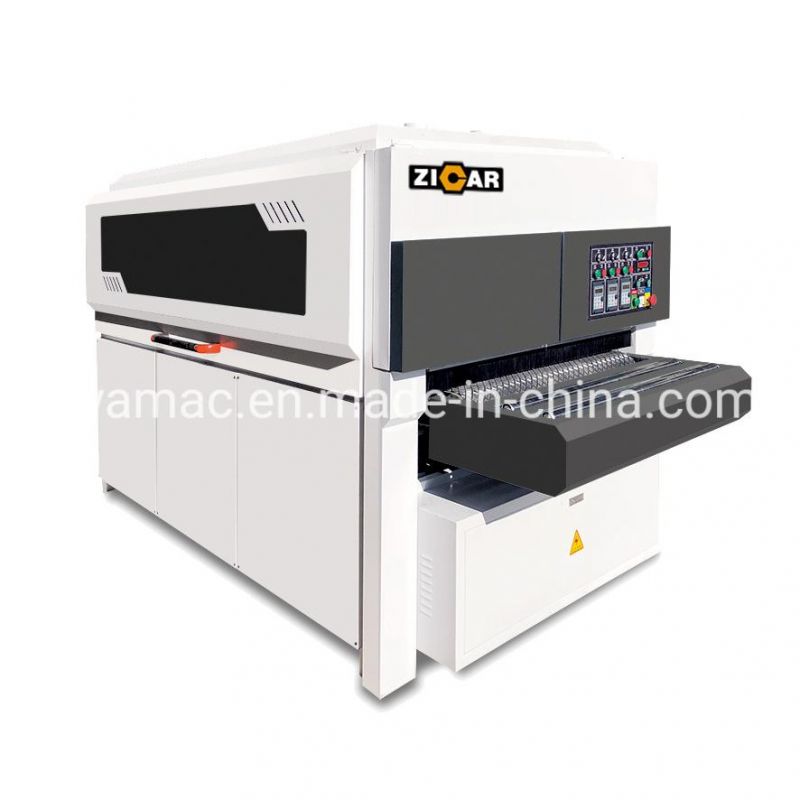

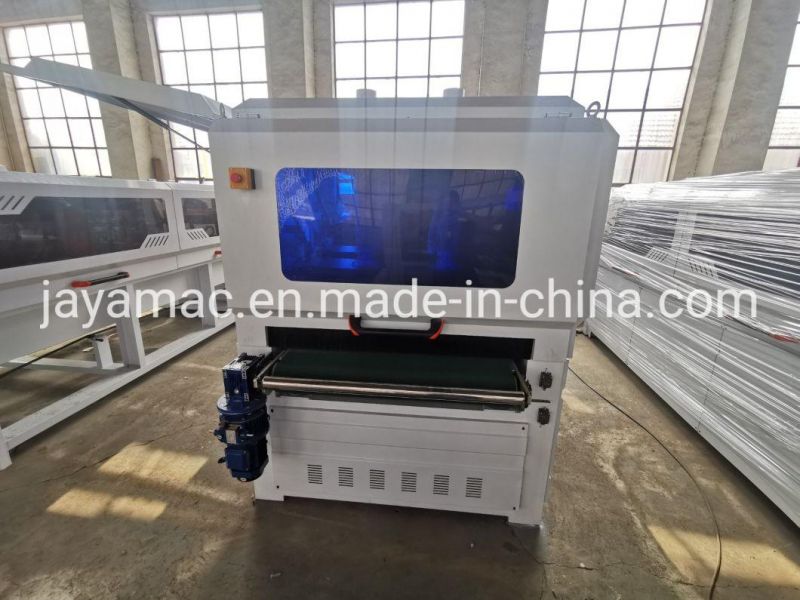

ZICAR High quality wood sanding and polishing machine SR-6SL-1000
JAYA INTERNATIONAL CO., LTD.- Type:Belt Wood Sander
- Automatic Grade:Automatic
- Variable Speed:Variable Speed
- Certification:CE, ISO
- Customized:Customized
- Condition:New
Base Info
- Model NO.:SR-6SL-1000
- Color:White
- Max working width:1000mm
- Min.working length:400mm
- Maximum processing thickness:100mm
- Reducer motor power:1.1kw
- Total power:10.44kw
- Horizontal roller motor power:2*1.5kw
- Disc brush motor power:1.5kw
- Screw roller motor power:2*1.5kw
- Lifting motor power of horizontal roller:0.55kw
- Lifting motor power of disc brush:0.37kw
- Lifting motor power of screw roller:0.55kw
- Lifting motor power of transport bed:0.37kw
- conveyor speed:6-30m,min
- conveyor belt size:5970*1000mm
- Screw roller diameter:300mm
- Specification:3950× 1750× 1900mm
- Trademark:ZICAR
- Origin:China
- HS Code:8465990000
- Production Capacity:50sets,Month
Description
Basic Info.
Model NO. SR-6SL-1000 Color White Max working width 1000mm Min.working length 400mm Maximum processing thickness 100mm Reducer motor power 1.1kw Total power 10.44kw Horizontal roller motor power 2*1.5kw Disc brush motor power 1.5kw Screw roller motor power 2*1.5kw Lifting motor power of horizontal roller 0.55kw Lifting motor power of disc brush 0.37kw Lifting motor power of screw roller 0.55kw Lifting motor power of transport bed 0.37kw conveyor speed 6-30m/min conveyor belt size 5970*1000mm Screw roller diameter 300mm Specification 3950× 1750× 1900mm Trademark ZICAR Origin China HS Code 8465990000 Production Capacity 50sets/MonthProduct Description
ZICAR Wood Sanding Machine SR-6SL-1000Production Parameter
Model | SR-6SL-1000 |
Max working width | 1000mm |
Min.working length | 400mm |
Maximum processing thickness | 100mm |
Reducer motor power | 1.1kw |
Total power | 10.44kw |
Horizontal roller motor power | 2×1.5kw |
Disc brush motor power | 1.5kw |
Screw roller motor power | 2×1.5kw |
Lifting motor power of horizontal roller | 0.55kw |
Lifting motor power of disc brush | 0.37kw |
Lifting motor power of screw roller | 0.55kw |
Lifting motor power of transport bed | 0.37kw |
conveyor speed | 6-30m/min |
conveyor belt size | 5970×1000mm |
Screw roller diameter | 300mm |
Dunction dust hood | 6×100mm |
Overall dimension | 3950×1750×1900mm |
Horizontal plate diameter | 260mm |
Horizontal plate number | 7pcs |
screw roller number | 2pcs |
Brush plate number | 9pcs |
Brush plate diameter | 180mm |
Our Company
FAQ1.Our Payment Way?
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationshipwith each other,so there is no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situationduring warranty period, and all the round-trip courier transportation cost of damaged/repairedreplacement parts in warranty period should be borne by the buyer. Wearing parts are notincluded.
(3)24 hour technical support by email or calling
(4)User-friendly English manual for machine using and maintaining
4.Our srvices?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.(4)After sale Service: experienced and knowledgeable team of technical support , provideengineer oversea service.
