• Model NO.：CNC32-TA
• Precision：High Precision
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：24 Hours on The Line
• Function：Furniture Making
• Control：Automatic
• Motor：5.5 +1.1 Kw
• Using：Woodworking Cutting
• Body：Heavy Duty
• Voltage：220V,380V
• Style：Horizontal
• Main Spindle Diameter  ：30mm
• Tilting Saw Blade ：0-45 and 90 Degree
• Structure：Heavy Duty
• Transport Package：Wooden Package
• Specification：3350*3150*900mm
• Trademark：sosn
• Origin：China
• HS Code：84659100
• Production Capacity：500sets,Month

Basic Info.

Model NO. CNC32-TA Precision High Precision Certification CE, ISO Customized Customized Condition New Color Customized After-sales Service 24 Hours on The Line Function Furniture Making Control Automatic Motor 5.5 +1.1 Kw Using Woodworking Cutting Body Heavy Duty Voltage 220V/380V Style Horizontal Main Spindle Diameter   30mm Tilting Saw Blade  0-45 and 90 Degree Structure Heavy Duty Transport Package Wooden Package Specification 3350*3150*900mm Trademark sosn Origin China HS Code 84659100 Production Capacity 500sets/Month

Product Description

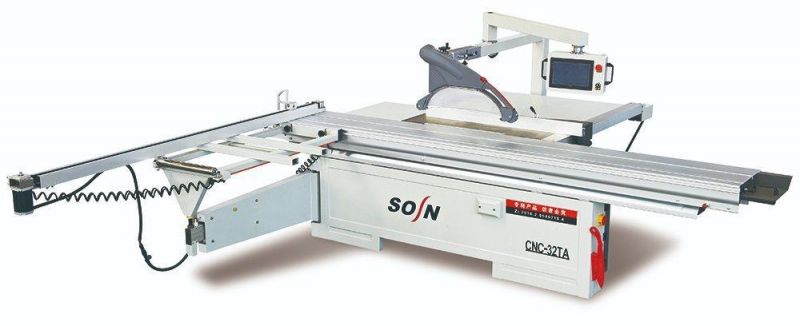

CNC precision panel saw sliding table panel saw

Function:

1) Sliding table saw with Altendorf structure .

2) The spare parts are made from imported machining centers with leading precision in the domestic.
3) The sliding table is made from imported precision cylindrical guide, higher accuracy and longer life
4) It is using spray outside, laser cutting and welding, so it with more stable and reliable performance

5)  High precision sliding table guide rail.

6) The sliding table is made of high-strength extruded aluminum alloy, with the characteristics of high-strength and without deformation.

7) The sliding table is beautiful and enduring

8) Tilting saw blade : 0-45-90 degree

Feature:
1) Automatic control for saw blade up and down.
2) Automatic control for saw blade tilt angle.
3) Automatic rip fence
4) Automatic control for big guide ruler
5) Linear guide inner structure,stable and precision.
6) Altendorf type sliding table,3200*410mm.
7) European dust cover ,Freud saw blade
8) CE standard

Function of the panel saw :

1) Apply to processing all kinds of density boards,shaving boards,wood-based panels,ABS panels,PVC panels,organic glass plates and solid wood and others with wood structure and similar hardness.

2) movable table guide track is plating chromium steel bar structure ,exact and durable.

3) Made of high-strength extruded aluminum alloy,movable table is high in strength and will not bend.

4) With oxidation treatment,movable table surface is beautiful and hadwearing,

5) LED control panel can accurately display 3 axis of blade height,tilting angle and rip fence position.


Machine parameters

Model	CNC-32
Dimension of sliding table	3200x410mm
Gross cut capacity	3200mm
Width of cut between saw blade and rip fence	1250mm
Saw blade diameter	300(250-400)mm
Height of cut (300mm)	90mm
Height of cut with saw blade300mm at45 degree	60mm
Speed of main saw spindle	4500/6000rpm
Main spindle diameter	30mm
Tilting saw blade	0-45 and 90 degree
Main motor	5.5kw
Scoring saw blade diameter	120mm
Speed of scoring saw blade	7000-8000rpm/min
Scoring spindle diameter	20mm
Scoring motor	1.1kw
Gross weight (with wooden package)	1000kg
Overall dimension	3300*3150*900mm
Packing size of the machine body(L*W*H)	2200*1150*1100mm
Packing size of the sliding table(L*W*H)	3350*480*320mm

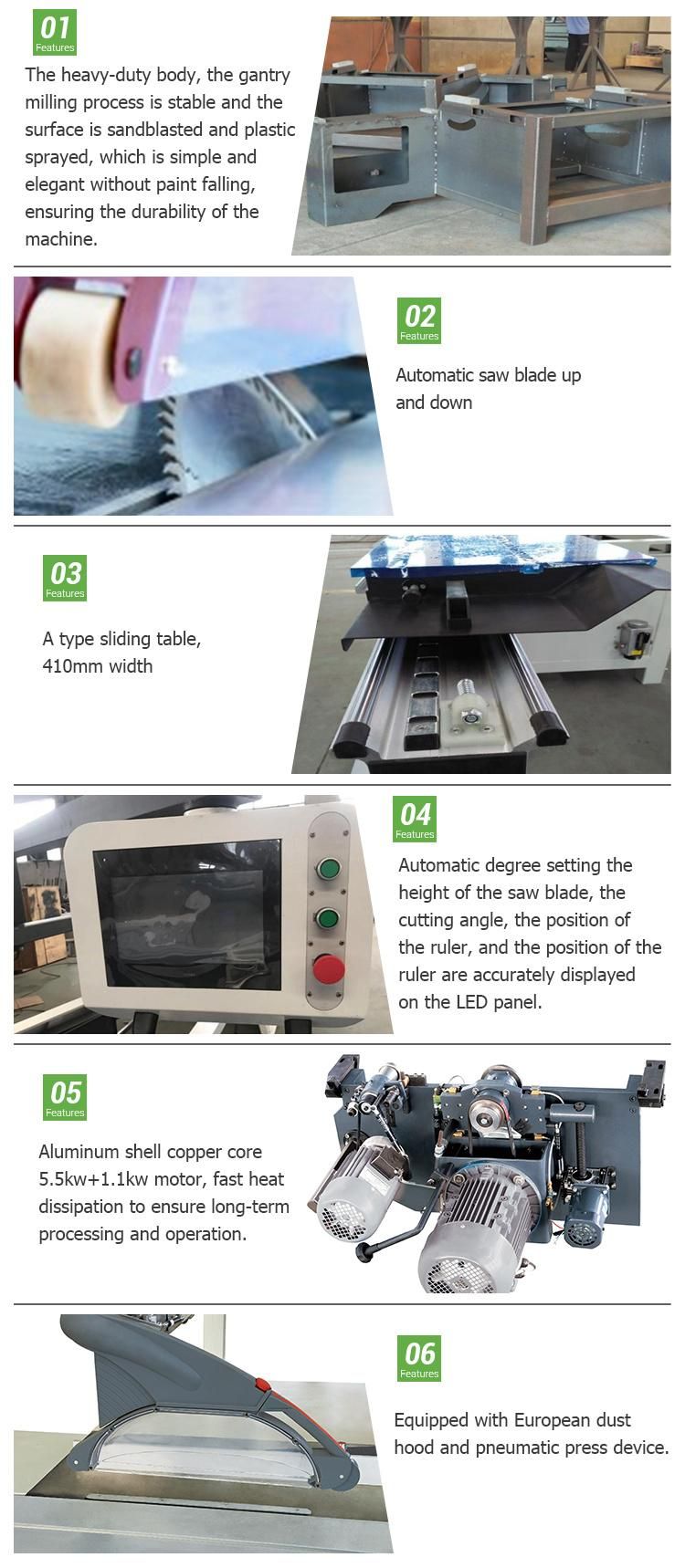

Machine details

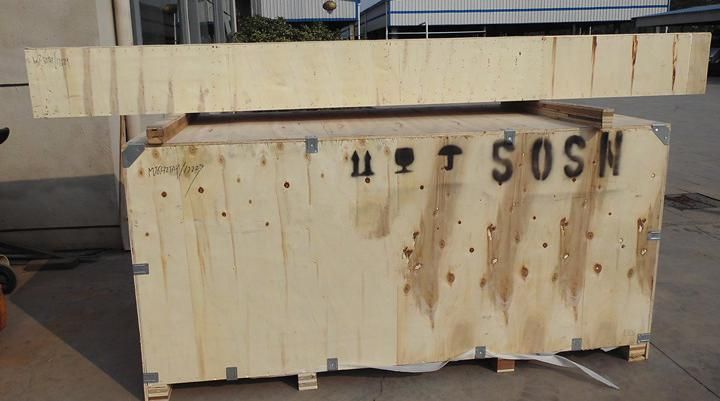

Package

Should you have any need of the machine , please feel free to contact with me
