• Model NO.：R7A
• Panel Thinkness：10-60mm
• Min.length panel：100mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• Heating Power：1.8kw
• Feeding Motor Power：2.2kw
• Glue Spreading Motor Power：0.75kw
• End Trimming Motor Power：0.5kw*2
• Rough Trimming Motor Power：0.75kw*2
• Fine Trimming Motor Power：0.75kw*2
• Polishing Motor Power：0.37kw*2
• Air Pressure：0.8MPa
• Overall Dimension：4570*850*1520mm
• G.W：2100kgs
• Transport Package：Wooden Case
• Specification：3CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659400
• Production Capacity：500sets

Basic Info.

Model NO. R7A Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Manufacturing Principles Glue Tank Overhead Customized Customized Heating Power 1.8kw Feeding Motor Power 2.2kw Glue Spreading Motor Power 0.75kw End Trimming Motor Power 0.5kw*2 Rough Trimming Motor Power 0.75kw*2 Fine Trimming Motor Power 0.75kw*2 Polishing Motor Power 0.37kw*2 Air Pressure 0.8MPa Overall Dimension 4570*850*1520mm G.W 2100kgs Transport Package Wooden Case Specification 3CBM Trademark QDZD Origin Qingdao HS Code 84659400 Production Capacity 500sets

Product Description

R7A Automatic Edge Banding Machine

Type	R7A
Banding tape thickness	0.4-3 mm
Banding tape width	10-60 mm
Work piece thickness	10-60 mm
Work piece length	>=100 mm
Work piece width	>=50 mm
Heating power	1.5 KW
Feeding motor power	2.2 KW
Glue spreading power	0.37 KW
Rough trimming power	0.75 KW x 2
End trimming power	0.55 KW x 2
Fine trimming power	0.75 KW x 2
Polishing motor power	0.18 KW x 2
Feeding speed	13 m/min
Air pressure	0.7 Mpa
Total Power	10.63 KW
Overall dimension	4940x900x1500 mm
Packing size	5000x1000x1600 mm
N.W.	1600 KGS
G.W.	1870 KGS

Feature:
  1.The glue mechanism adopts a special structure to gelatinize the plates and costing materials uniformly, ensure a more solid conglutination.
  2.End trimming mechanism through a precise guide track movement; adopt automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.
  3.Rough/fine trimming mechanism is used for repairing the excess edge materials, adopt automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly.
  4.Scraping unit is for a perfect finishing of the applied edge.
  5.The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a more smooth surface.

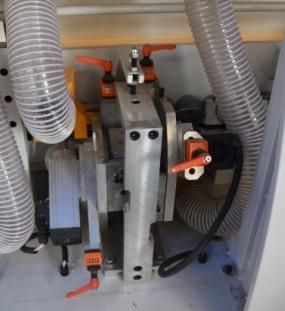

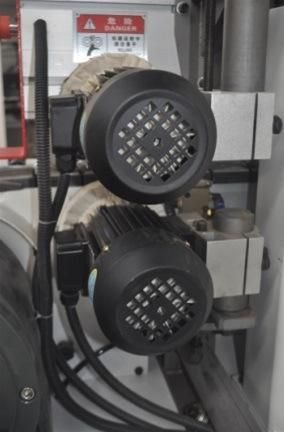

Product details:







Other information:
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659400
8) Certificate: CE&ISO 9000 Certificate
