Rmz-4cl 2 Lines Boring Machine
Qingdao Samac International Trading Co., Ltd.- Structure：Deep Hole Boring Machine
- Precision：High Precision
- Controlling Mode：Artificial
- Automation：Semiautomatic
- Coordinate Boring Machine Location Type：N,a
- Coordinate Boring Machine Location Way：N,a
Base Info
- Model NO.：RMZ-4CL
- Diamond Boring Machine Layout：N,a
- Diamond Boring Machine Spindle Configuration：N,a
- Diamond Boring Machine Spindle Number：N,a
- Certification：CE, ISO
- Delivery Time：25 Days
- Transport Package：Wooden Case
- Specification：CE Standard
- Trademark：SAMACH
- Origin：China
- HS Code：84659500
- Production Capacity：50sets,Month
Description
Basic Info.
Model NO. RMZ-4CL Diamond Boring Machine Layout N/a Diamond Boring Machine Spindle Configuration N/a Diamond Boring Machine Spindle Number N/a Certification CE, ISO Delivery Time 25 Days Transport Package Wooden Case Specification CE Standard Trademark SAMACH Origin China HS Code 84659500 Production Capacity 50sets/MonthProduct Description

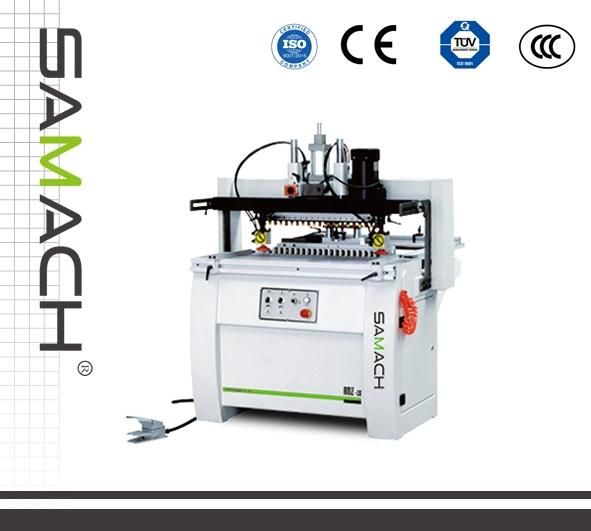

CE Certification Woodworking Two Lines Boring Machine
RMZ-2B RMZ-2C RMZ-2Fwoodworking machinery
woodworking tools are single row drilling machine, 2 lines boring machine, automatic feedbing
boring machine(Chain),PTP6 sides drilling machine, automatic feeding boring machine(belt),
CNC borning machine, automatic boring line, hinge drilling machine, bore and dowel machines.Following
is good quality competitive price row drilling machine.
| NO. | 2B | 2C | 2F |
| Max center distance between holes | L*W=600mm*640mm | L*W=600mm*640mm | L*W=1000mm*640mm |
| Min center distance between holes | L*W=50mm*32mm | L*W=50mm*32mm | L*W=220mm*32mm |
| Workpiece thickness | 8-50mm | 8-50mm | 8-80mm |
| Total quantity of spindles | 21*2=42 | 21*2=42 | 21*2=42 |
| Total quantity of drill lines | 1+1=2 | 1+1=2 | 1+1=2 |
| Max drilling diameter | 35mm (single bit) 13mm(multi bits) | 35mm (single bit) 13mm(multi bits) | 35mm (single bit) 13mm(multi bits) |
| Max drilling depth | 50mm | 50mm | 50mm |
| Dia of drill bit shaft | 10mm | 10mm | 10mm |
| Installtion tool length | 57/70mm | 57/70mm | 57/70mm |
| Spindle speed | 2840rpm | 2840rpm | 2840rpm |
| Total power | 3kw | 3kw | 3kw |
| Net weight | 650kg | 500kg | 750kg |
| Overall dimensions | 1300*1200*1650mm | 1200*950*1450mm | 2000*2500*1650mm |
Reasons to choose Samac:
1: good resources with No.1 quality in China
2: quick delivery
3: excellent after-sale services
4: 24 hours technical support through email or calls.
5: freind partner relationship.
Get the maximum return on your investment with Samach's affordable, flexible and user-friendly machines, designed to help you succeed by delivering maximum performance!
