Two Spindle Wood Door Plastic Engraving Cutting Carving Router
Jinan Firm CNC Equipment Co., Ltd.- Type：Engraving Router
- Spindle Layout：Spindle Over
- Spindle Number：Four
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE
Base Info
- Model NO.：FM1325
- Customized：Customized
- Condition：New
- Color：Customized
- Spindle Rate：1.5kw,2.2kw,3.5kw,4.5kw
- Control System：DSP or Ncstudio System
- Transmit Way：Taiwan Imported Ball Screw
- Motor Type：Stepper,Servo Motor
- Working Speed：8-15m , Min
- Transmission Way：Rack Gear
- Working Area：2500* 1300mm
- Software：Artcam , Type3
- Table：Vacuum and T-Slot Table
- Inverter：Fuling , Detal Inverter
- Transport Package：Standard Export Wooden Case
- Specification：CE, SGS
- Trademark：FIRMCNC
- Origin：Shandong, China
- HS Code：8465990000
- Production Capacity：100sets,Month
Description
Basic Info.
Model NO. FM1325 Customized Customized Condition New Color Customized Spindle Rate 1.5kw/2.2kw/3.5kw/4.5kw Control System DSP or Ncstudio System Transmit Way Taiwan Imported Ball Screw Motor Type Stepper/Servo Motor Working Speed 8-15m / Min Transmission Way Rack Gear Working Area 2500* 1300mm Software Artcam / Type3 Table Vacuum and T-Slot Table Inverter Fuling / Detal Inverter Transport Package Standard Export Wooden Case Specification CE, SGS Trademark FIRMCNC Origin Shandong, China HS Code 8465990000 Production Capacity 100sets/MonthProduct Description
Two Spindle Wood Door Plastic Engraving Cutting Carving RouterMain features
1. HIWIN square orbit, double slippers, bearing heavy, working steadily, high precision, and long life time, import ball screw, high precision for cutting.
2. High speed stepper motor and drivers, and tow motors for Y axis. Max speed is 25M/MIN. With water cooling spindle highly upgrade the processing speed.
3.The optional equipment for spindle is Japan imported high power water cooling motor (Japan NSK bearing) high speed spindle, stable capability.
4. Unique intelligent budget principle, fully develops the potential of the motor and lead to high processing speed, the synchronization of curves and straight lines, smooth curves.
5. Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/Castmate/Ucancam etc.
Technical specification
| Description | Parameter |
| X,Y,Z working area | 1300x2500x200mm |

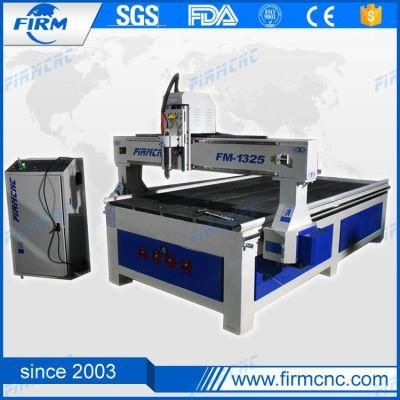

| Model | FM1325 |
| Resolution | ±0.03/300mm |
| Repeatability | ±0.03mm |
| Table Structure | Vacuum table |
| Lathe Structure | Welding steel structure |
| X,Y structure | Rack pinion, Hiwin linear rails |
| Z structure | TBI Ball screw, Hiwin square rails |
| Rated power | 3Kw (without spindle) |
| Max. rapid | 32000mm/min |
| Max. Working speed | 25000mm/min |
| Spindle power | 3.0kw warter cooling spindle |
| Spindle speed | 0-24000RPM |
| Working mode | Stepper or servo |
| Working voltage | AC380V/50/60Hz,3Ph(Option 220V,3Ph) |
| Command code | G code |
| Operating system | Mach3 system (Ncstudio, Syntec,DSP ) |
| Interface | USB |
| Memory | 128M |
| Tool holder | ER25 |
| X,Y working accuracy | <0.03mm |
| Software | Artcam, Type3 UcancameV9 |
| Working temperature | Temperature:0 degree-45 degree Humidity:30%-75% (No Condensation) |
| Packing size | 3300X2100X2300mm |
| Net weight | 1200KG |
| Gross weight | 1500KG |
| Optional Spare Parts | Air-cooling spindle |
| Double bag dust collection,vacuum pump | |
| rotary |

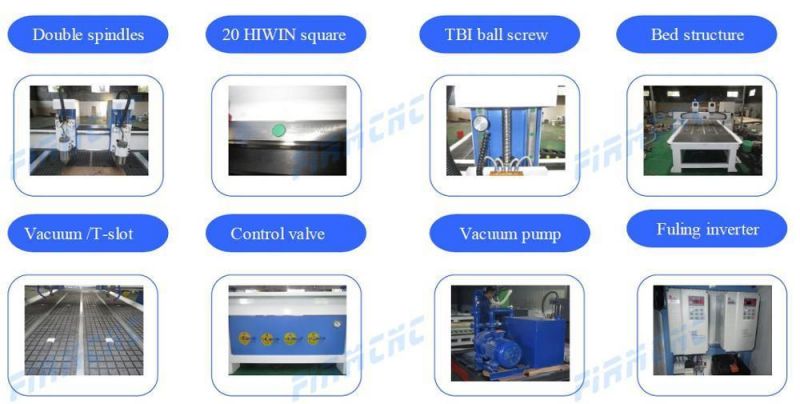

1.Double heads 3.0KW Spindle, high efficiency, time saving.
2. DSP Control System, not need connect to PC,be easily operate and learned
3.Transmission, X Y gear and rack transmission, Z Taiwan TBI ball screw transmisson.
4.Guide Rail for X Y Z,TAIWAN HIWIN Square Rail
5.Stepper motor and Leadshine drivers, high positioning accuracy;good reliability;save power consumption
Application
Furniture industry: wooden doors, windows, folding screens, tables, chairs, and many other materials such as plastic board, PVC sheet, dual color board, aluminum, etc.
Mainly for the production of cupboard door, real wooed, the furniture and so on, also can be used in the production of MDF cutting.

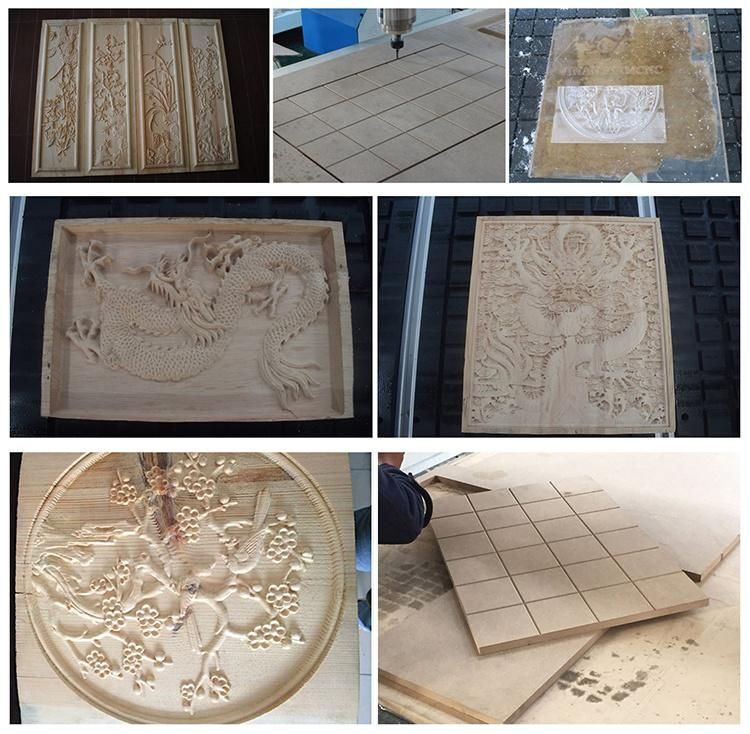

Sampels

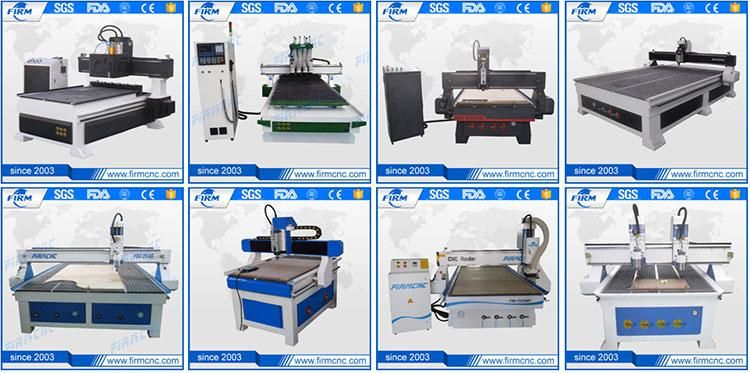

Other type wood cnc router machines for your reference
# Linear or Circular type ATC wood cnc router
# Pneumatic 4 head ATC cnc router
# Wood cnc router with air cooling spindle
# Wood cnc router with water cooling spindle
# Mini cnc router for wood advertising
# Double heads wood cnc router
Inner control system
1. In the process of production, our professional technical engineers inspect the process to ensure the quality of products.
2. Each link is strictly controlled to ensure the machine clean and beautiful.
3. 48 hours continuous working test before the machine leaving factory, ensure the high quality of each machine.
Every step strict test, make sure high precision, best quality
Our Services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.

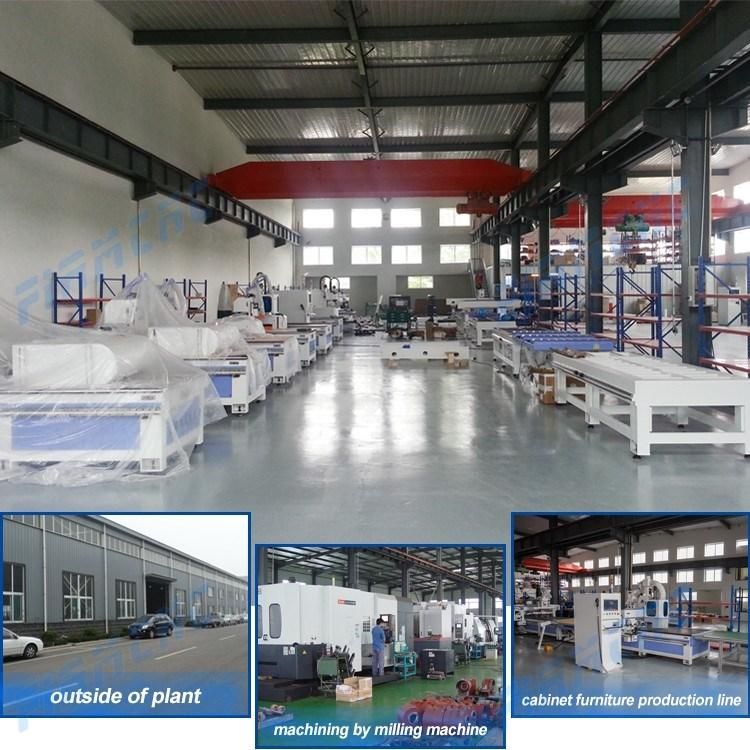

Company Information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc router appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on cnc router appliances.

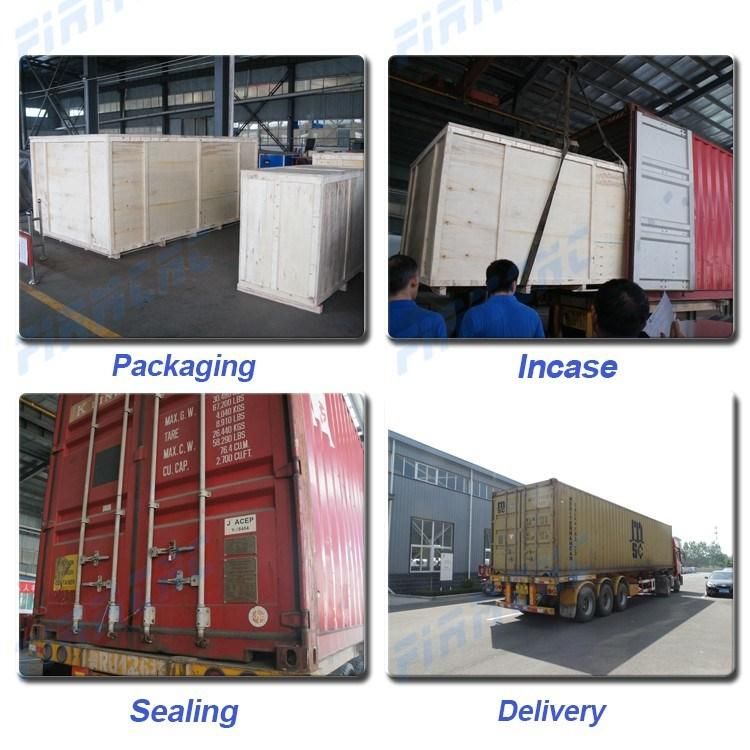

Packaging & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information
FAQ
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What's the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,
we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.
