Factory price Shovel handle making machine/Machine making wooden stick broom handle/Wood pole machine
Zhengzhou Hento Machinery Co., Ltd.- Warranty：2years
- Type：round bar cutter
- Voltage：380V
- Tool Holder：Single-tool Holder CNC Lathe
- Automatic Grade：Semiautomatic
- Precision：Precision
Base Info
- Setting Mode：Table
- Controlling Mode：CNC
- Power Source：Electric
- Processing Accessory：Centre CNC Lathe
- Certification：CE
- After-sales Service：on line
- Transport Package：Wooden Box
- Specification：1200*56*1100
- Trademark：hento
- Origin：China
- Production Capacity：3-5m,Min
Description
We also provide Max. Processing diameter: 100mm,120mm, 150mm and 200mm

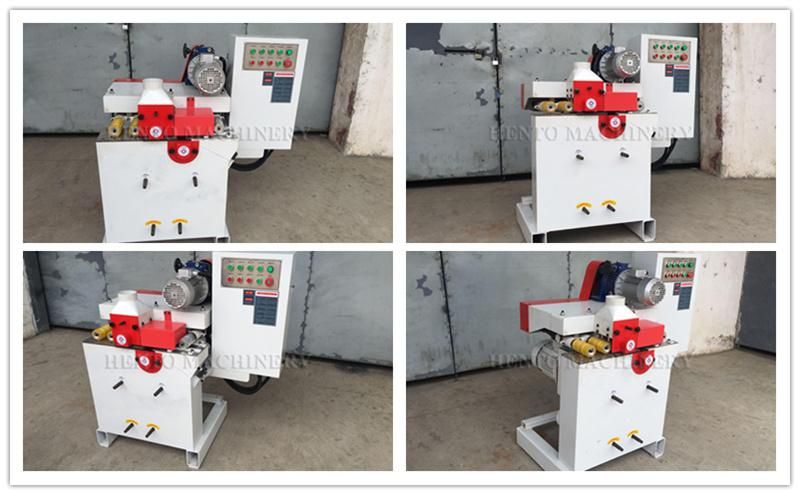

3.Equipment picture :
Type two: Single round bar forming machine (makes one round bar at a time)
1.Product introduction:

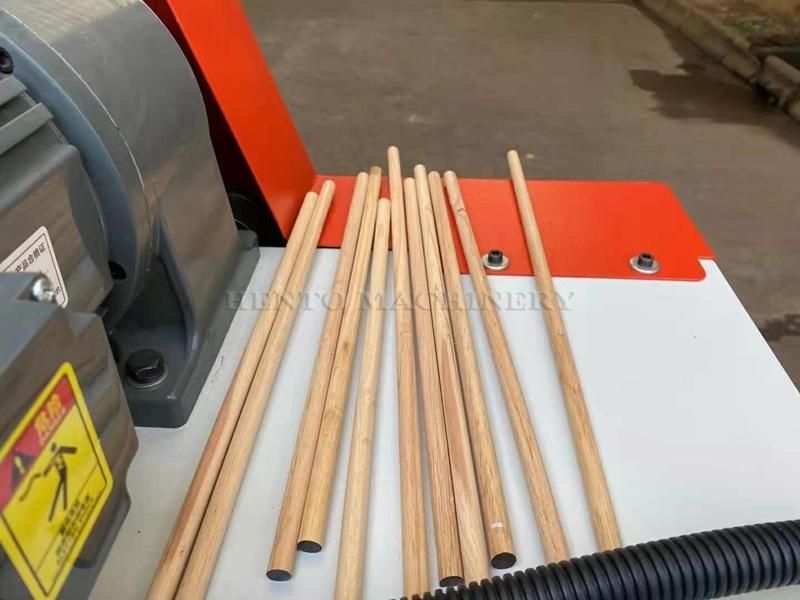

The machine is used for making the wood broom handle,it can produce 1-8 sticks/tim e.We will assemble and test the machine well before delivery, you just need connect t he electric wire, it can be used. We will send you a simple instructions with the machi ne.
Product Feature
1.materials widely, can process square stock and round stock embryo.
2.smooth surface, the output round stick close to sanding effect, saves sanding process by changing speed.
3.high productivity, the fastest feed can reach 18m/min, we can also design output mo re round sticks at one time according to customer's need
2.Technical parameters & Quotation

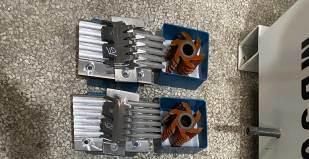

3.Details picture
Type three:packing and delivery
Type four : Certificate
3.Equipment picture :
Type two: Single round bar forming machine (makes one round bar at a time)
1.Product introduction:
The machine is used for making the wood broom handle,it can produce 1-8 sticks/tim e.We will assemble and test the machine well before delivery, you just need connect t he electric wire, it can be used. We will send you a simple instructions with the machi ne.
Product Feature
1.materials widely, can process square stock and round stock embryo.
2.smooth surface, the output round stick close to sanding effect, saves sanding process by changing speed.
3.high productivity, the fastest feed can reach 18m/min, we can also design output mo re round sticks at one time according to customer's need
2.Technical parameters & Quotation
| Model | HT-MB9010T | HT-MB9010C | HT-MB9015C |
| Minimum Length | 250mm | 250mm | 250mm |
| Maximum Length | 6000mm | 6000mm | 6000mm |
| Maximum Width | 120mm | 120mm | 150mm |
| Thickness | 4-100mm | 4-100mm | 4-100m |
| Wooden Rod Diameter | Φ4-38mm | Φ4-50mm | Φ6-70mm |
| Feed Motor Power | 1.1kw | 1.5kw | 2.2kw |
| Feed Speed | 6-30m/min | 6-30m/min | 6-30m/min |
| 1st Lower Shaft | 5.5kw | 7.5kw | 11kw |
| 2nd Upper Shaft | 5.5kw | 7.5kw | 11kw |
| Lifting Motor Power | / | 0.37kw | 0.37kw |
| Maximum Cutter Diameter | 100mm | 100mm | 120mm |
| Extraction Outlet Size | 100mm | 100mm | 120mm |
| Spindle Diameter | 30mm | 30mm | 35mm |
| Total Power | 12.5kw | 18.37kw | 25.37kw |
Type three:packing and delivery
Type four : Certificate
