• Model NO.：ZT3232
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• Total Motor Power：21kw,27kw
• Net Weight：6600kgs
• Overall Dimensions：6100*6200*1700mm
• Transport Package：Plywood Box
• Specification：2.8CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659100
• Production Capacity：500sets,Year

Basic Info.

Model NO. ZT3232 Certification CE, ISO Customized Customized Condition New Color Customized Total Motor Power 21kw/27kw Net Weight 6600kgs Overall Dimensions 6100*6200*1700mm Transport Package Plywood Box Specification 2.8CBM Trademark QDZD Origin Qingdao HS Code 84659100 Production Capacity 500sets/Year

Product Description

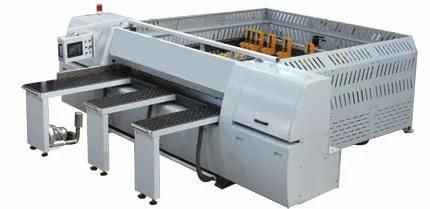

ZT3232 Panel Saw


Basic Info

Model NO.: ZT3232                                                                                               Certification: CE, ISO
Customized: Customized                                                                                      Condition: New
Color: Customized                                                                                                  Main Saw Motor Power: 11kw/18kw
Weight: 6600 Kgs                                                                                                   Overall Dimension: 6100X6200X1700 mm
Trademark: QDZD                                                                                                  Transport Package: Plywood Box
Specification: 2.8CBM                                                                                           Origin: Qingdao
HS Code: 84659100




Technical Data:

Cutting length	3250 mm
Cutting thickness	85/100/120 mm
Diameter of main saw blade	355/400/460 mm
Diameter of scoring saw blade	180 mm
Speed of main saw blade	3950/4500 r.p.m
Speed of scoring saw blade	6300 r.p.m
Main saw motor power	11/18 kw
Scoring saw motor power	1.5 kw
Pusher motor power	2 kw
Total motor power	21/27 kw
Feeding speed	0-120 m/min
Air pressure	5-7 kg
Net weight	6600 kg
Overall dimension	6100*6200*1700 mm























Other information:
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659100
8) Certificate: CE&ISO 9000 Certificate

Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system. Our company takes the principle of quality first and customer foremost and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
  Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.

This is Carrie:+8618363917183
