• Model NO.：BSGR-R-P
• Color：Customized
• Transport Package：Standard Export Packaging or as Per Your Request
• Specification：3140x2770x2440mm
• Trademark：METRO MACH
• Origin：Shandong, China (Mainland)

Basic Info.

Model NO. BSGR-R-P Color Customized Transport Package Standard Export Packaging or as Per Your Request Specification 3140x2770x2440mm Trademark METRO MACH Origin Shandong, China (Mainland)

Product Description

The roller's diameter is much bigger and the rollers have been run-balanced precisely , which makes running smoothly and improves the sanding power.




Technical Parameters


Working Width	40~1300mm
Working thickness	2.5~110mm
Working Length	≥750mm
No.1 Abrasive belt speed	20m/s
No.2 Abrasive belt speed	20m/s
No.3 Abrasive belt speed	24m/s
Power Supply	380V  50HZ
Feed speed	13~100m/min
Size of abrasive belt(W x P)	1300x2620mm
Total motor power	79.5kw
Main motor power	22kw,30kw,18.5kw
Working air pressure	0.55Mpa
Consumption of compressed air	0.1m³/min
Volume of sucked air	7900m3/h
Speed of sucked air	25-30m/s
Overall dimension (L x W x H)	3140x2770x2440mm
Net Weight	9800kg

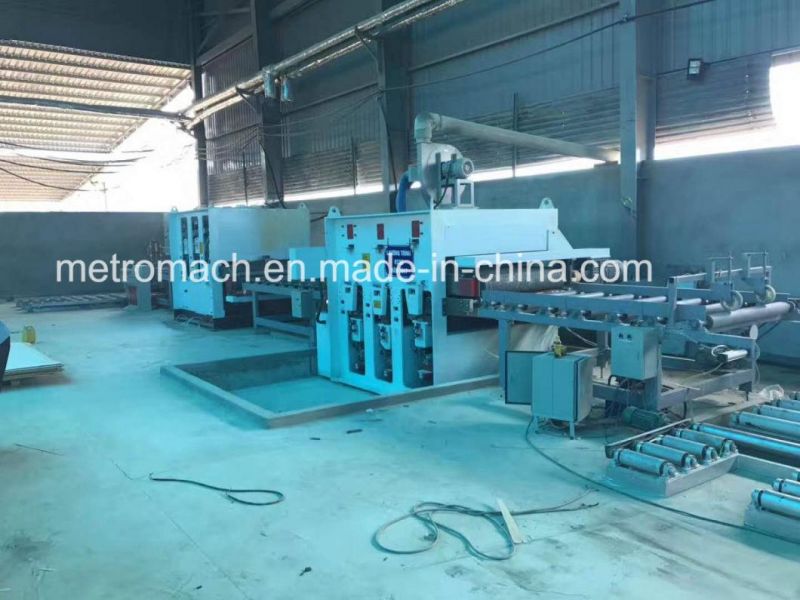

Customer working machine photos

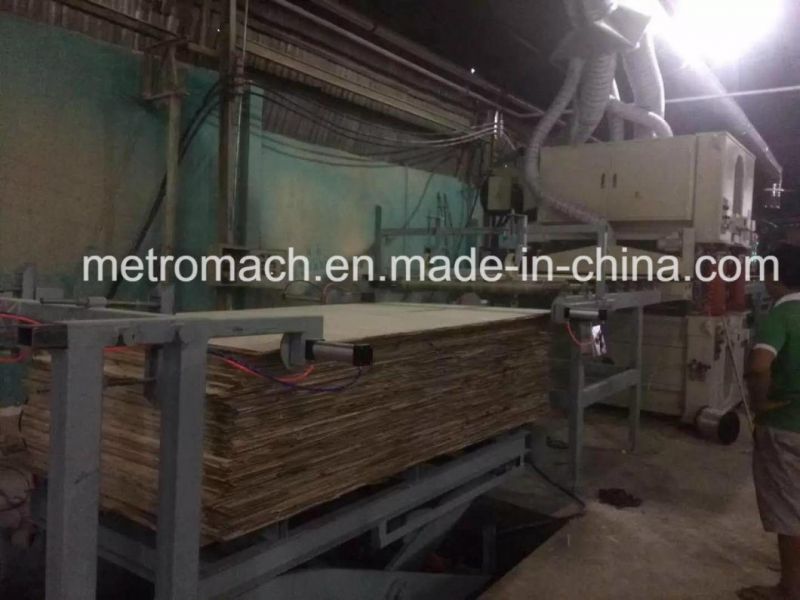

Customer install  machine photos








Shipping & Packaging





Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the video  with Install and debug the equipment
3) Provide technical exchanging
