• Model NO.：CK1325
• Trademark：CHANKE
• Origin：Shandong China
• HS Code：8465990000
• Production Capacity：50 Set,Year

Model

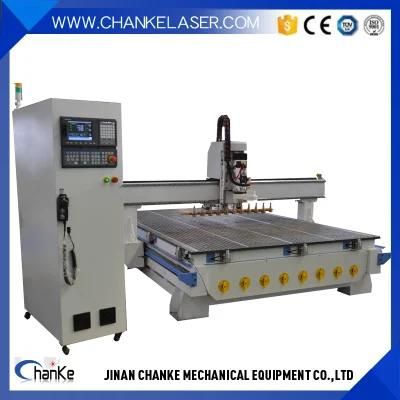

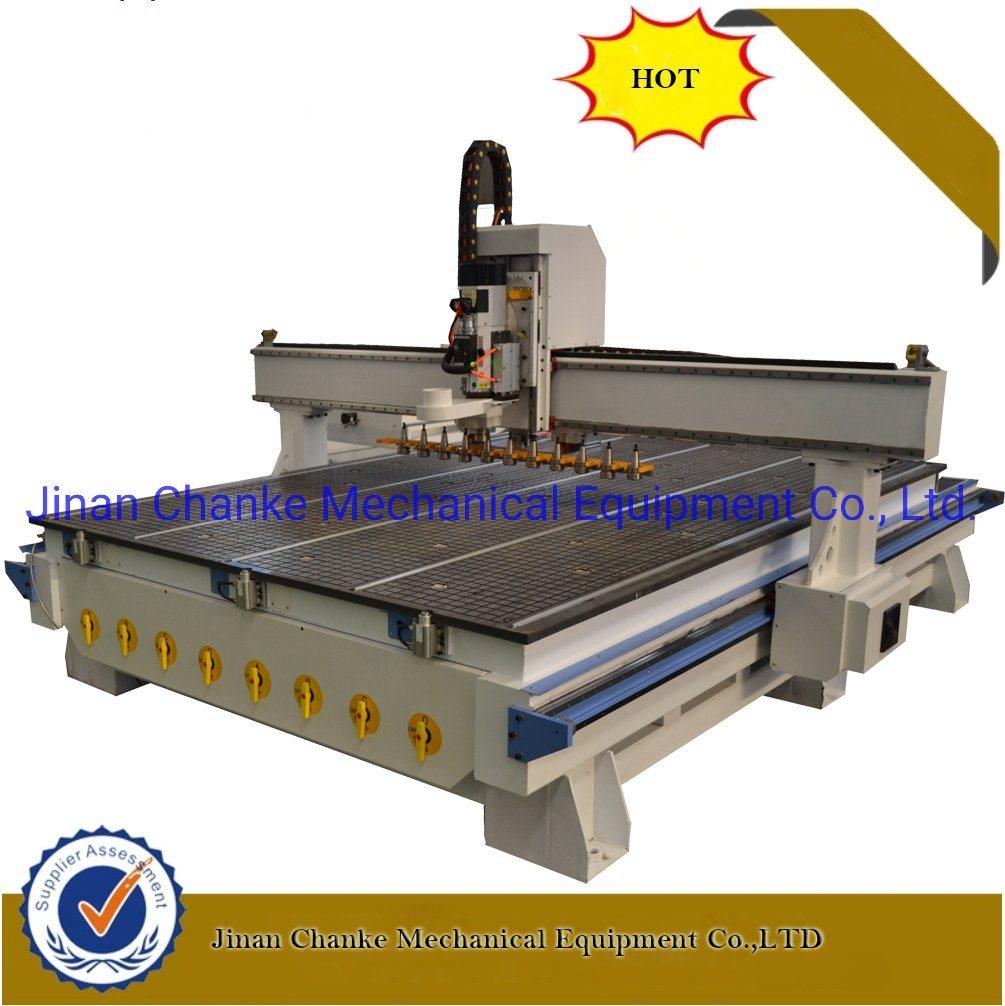

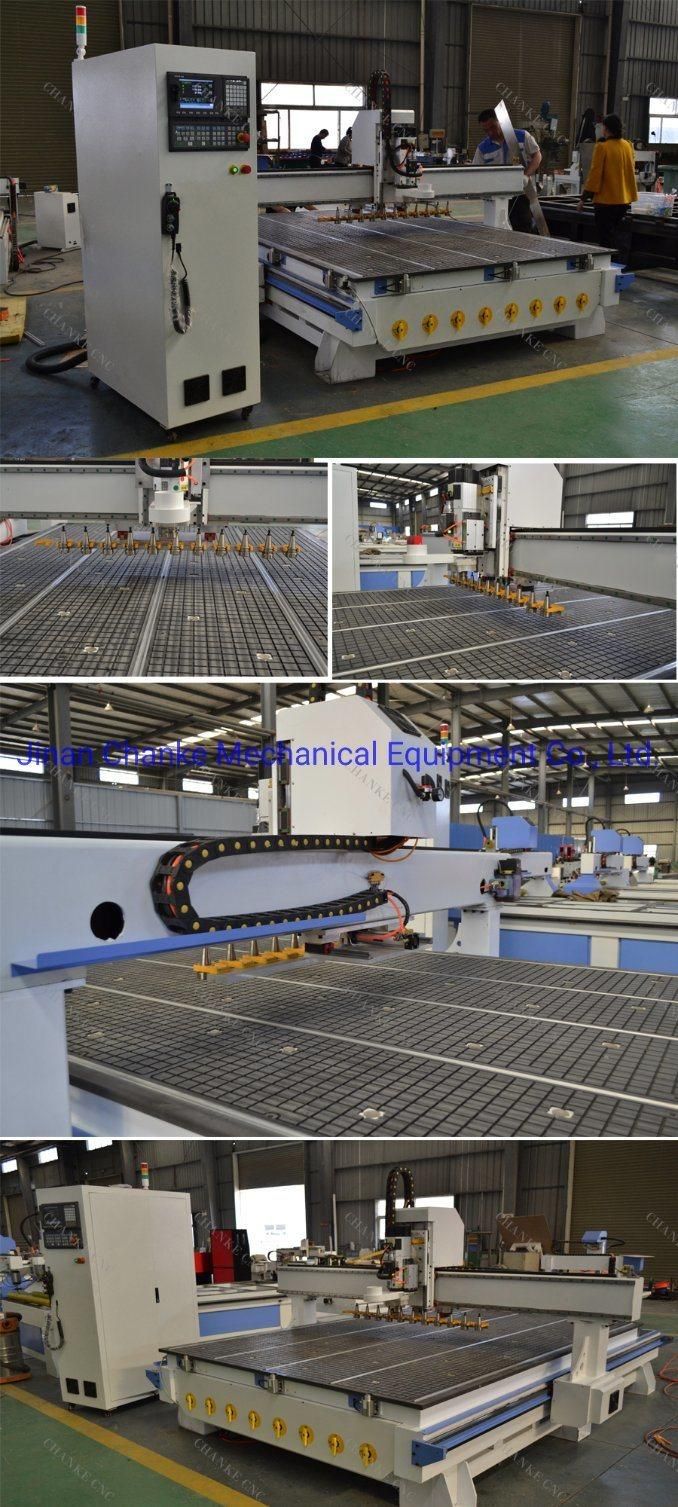

chanke-1325 ATC cnc router

X, Y Working size

1300*2500mm

Z feed Height

200mm/300mm

Table Surface

Vacuum table+ T solt

X, Y Structure

Rack and Pinion, Taiwan 25 Linear Square Guide Rail

Max. Power Consumption

(Without spindle) 2.0Kw

Max. Rapid Travel Rate

35000mm/min

Max. Working Speed

25000mm/min

Spindle Power

9 KW HQD air cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

xinjie brand servo motor or leadshine servo motor

Working Voltage:

AC 380V /50/60Hz

Command Language

G code

Control System

SYNTEC 11MA/march 3 /NC studuio

X,Y,Z repositioning Accuracy

±0.01mm

X,Y Resolution

 <0.01mm

Software

Artcam

Running Temperature

0 degree - 45 degree

Relative Humidity

30% - 75%

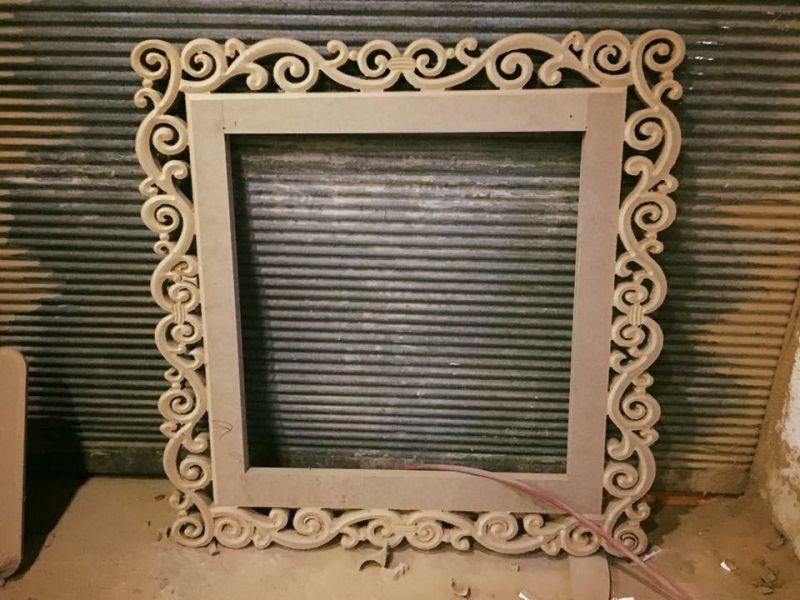

3. Applicable materials of cnc router wood price
1) Furniture: plate, office furniture, doors, cabinets.
2) Wood products: speakers, games cabinets, computer tables, sewing machines,
musical instruments.
3) Board processing: insulation, plastic chemical components, PCB, car body,
bowling track, ABS, PP, PE, etc.

4) Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper
and aluminum.

4. How to Order Our Machine?

Before we can recommend you the best suitable machine, please kindly tell us:
1)  What materials will you work on?
2)  What is your Max.size of your processing materials? ( Length & Width )
3)  Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
4)  Does your materials are cylinder? If YES, what's the Max. Diameter of it?
5)  If it is possible, could you send us your product samples' picture? It will
help us better to understand.
5. Trade Items of MachineMOQ1 setPackageStandard Plywood BoxDelivery TermsFOB, CIF, EXW, Door to Door ect.Delivery Time15 working days after receiving paymentPayment TypeT/T, Paypal, Western Union and othersSupply Ability200 sets/monthPortQingdao, China.
6. Packing of Machine
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.


7. Guarantee & service of Machine
Guarantee:
Two years quality guaranty, the machine with main parts(excluding the
consumables) shall be changed free of charge when if any problem during the warranty period.
Service: ( Provide whole life technical support, 24h online )
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here;
After sale:
1) We would provide English Version working manual.
2) If you have any questions during using and maintaining, our engineers who could speak very good English would answer you online or by calls.
3) Machine warranty is one year. So if your machine has any unintentionall damages, we would provide parts for free.
4) If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.
5) Could be remote control if needed.
