• Model NO.：BY214×8,6-10IId
• Work Mode：Continuous
• Controlling Mode：CNC
• Automatic Grade：Semiautomatic
• Certification：CE, ISO, FDA
• Transport Package：Standard Export Packing
• Specification：about 40000 kg
• Trademark：metro
• Origin：China
• HS Code：847930000
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. BY214×8/6-10IId Work Mode Continuous Controlling Mode CNC Automatic Grade Semiautomatic Certification CE, ISO, FDA Transport Package Standard Export Packing Specification about 40000 kg Trademark metro Origin China HS Code 847930000 Production Capacity 500 Sets/Year

Product Description

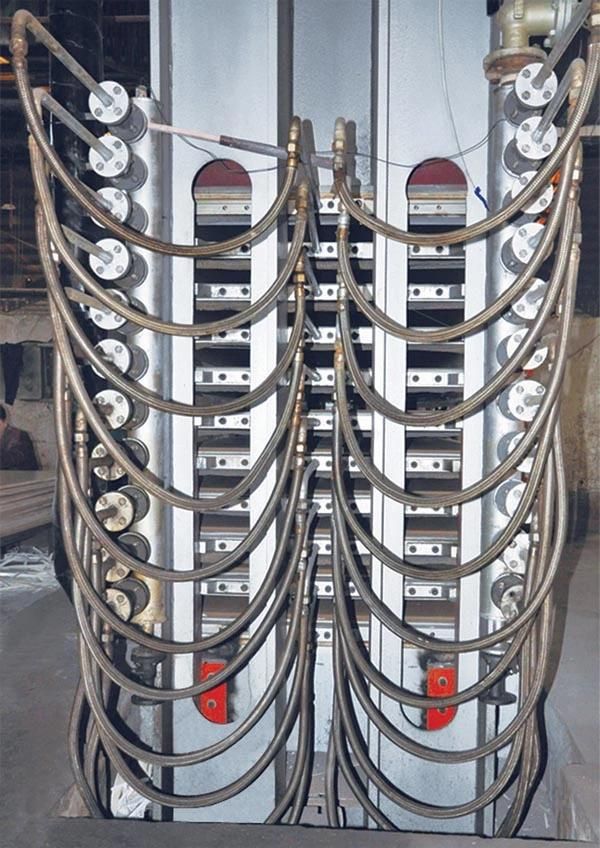

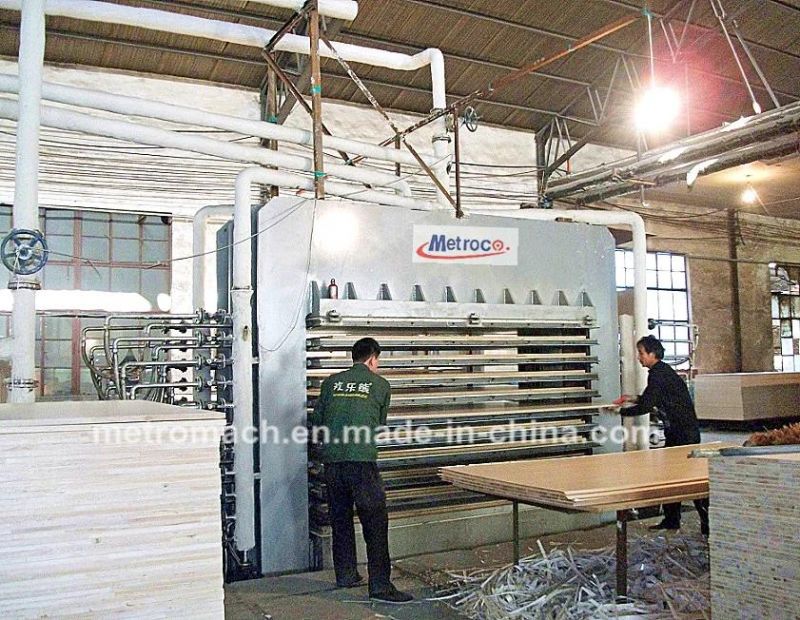

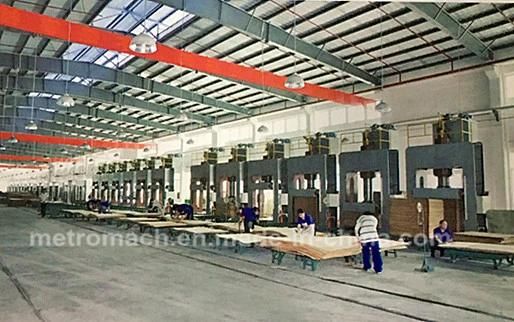

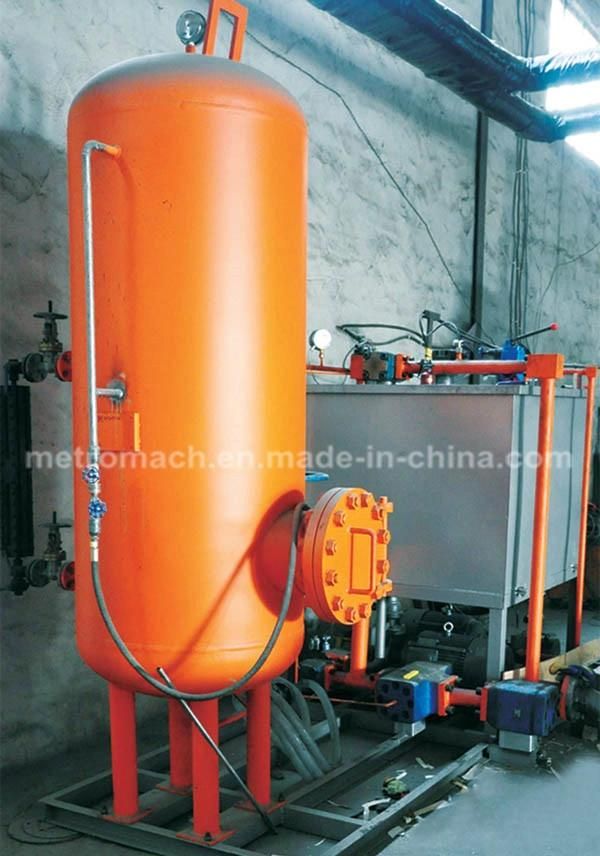

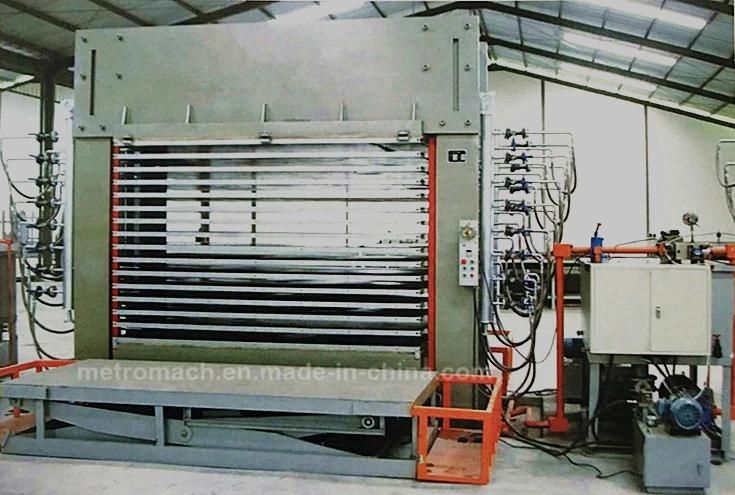

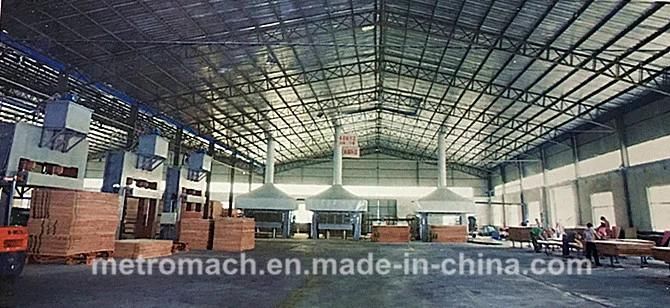

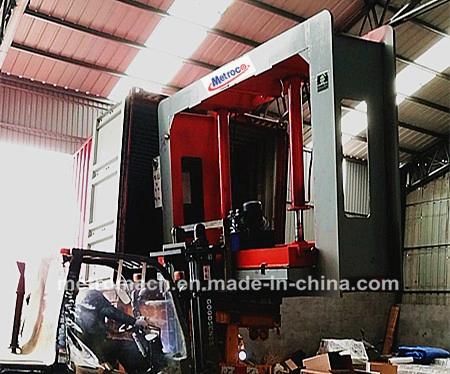

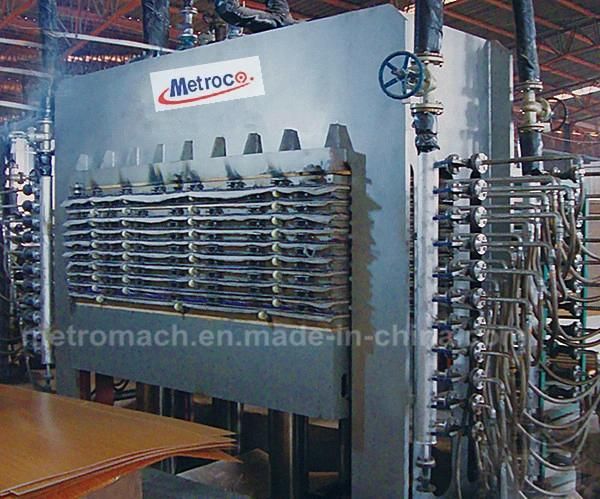

PHOTOS SHOW:








PRODUCTS INTRODUCTION:

1.The machine adopts gantry frame design, made of high quality steel welding, stress points rigorously calculate, no distortion and high stability; hydraulic system for fast pumping stations, advanced structure, low failure rate, arge flow, pressure quickly, improve production efficiency.

2.Simple operation, reliable performance, double inlet steam piping, automatic temperature control to ensure the hot plate temperature uniformity.

3.This machine is widely used in decorative plywood, block board, melamine lamination etc.

 SPECIFICATION:


Model	BY214×8/6-10IId
Nominal gross pressure	6000 KN
Direction of feeding plate	horizontal
Layer counting	10
Diameter of cylinder	Φ22mm(shanghai)
Numbers of cylinder	6pcs
stroke of cylinder	1000mm
Pressurization	≤25mpa
power	15kw x 3
high pressure pump flowing	about 89 L/min
low pressure pump flowing	355 L/min x 3
empty closing time	about 17 s
distance between hot platens	100 mm
dimention of hot platens	1400×2700×52 mm (double inlet and outlet pipes)
Pressure of unite plate blank	20Kgf/cm²
Dimensions of the board	1240x2460mm
Allowed pressure	≤5Mpa
Net weight	about40000kg
Overall dimensions	about 3590x1400x4070mm
Control method	automatic pumping station
Thickness of upper and lower crossbeams	900,1000mm
Thickness of steel plate	30,25,16mm
Thickness of active crossbeam	400mm
Thickness of steel plate	optioned
Position of cylinder	upside
thickness of steel plate	30,20mm

CERTIFICATES:






SERVICES:

PRE-SALE SERVICES:

1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory

SERVICES DURING THE SALE:

1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.

AFTER SALE SERVICES:

1) 24 hours online service
2) Provide the video  with Install and debug the equipment
3) Provide technical exchanging
