• Model NO.：BY814x8,5Z
• Work Mode：Continuous
• Controlling Mode：CNC
• Automatic Grade：Semiautomatic
• Certification：CE, ISO, FDA
• Transport Package：Standard Export Packing
• Specification：about 3600x1380x370mm
• Trademark：metro
• Origin：China
• HS Code：847930000
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. BY814x8/5Z Work Mode Continuous Controlling Mode CNC Automatic Grade Semiautomatic Certification CE, ISO, FDA Transport Package Standard Export Packing Specification about 3600x1380x370mm Trademark metro Origin China HS Code 847930000 Production Capacity 500 Sets/Year

Product Description

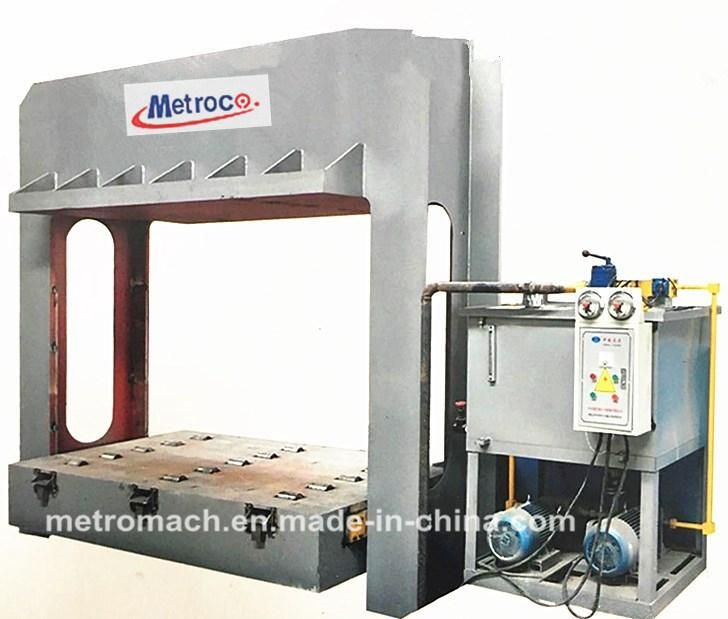

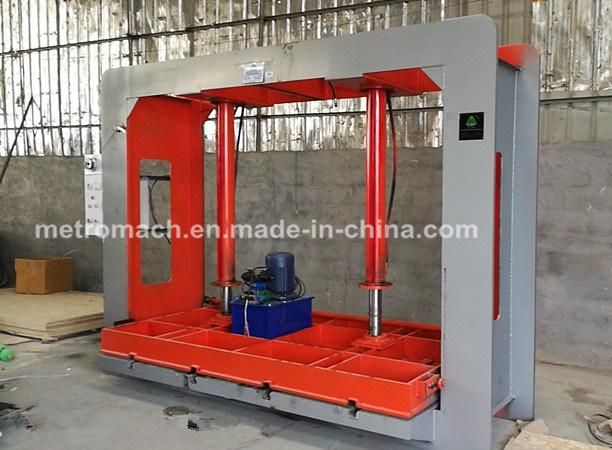

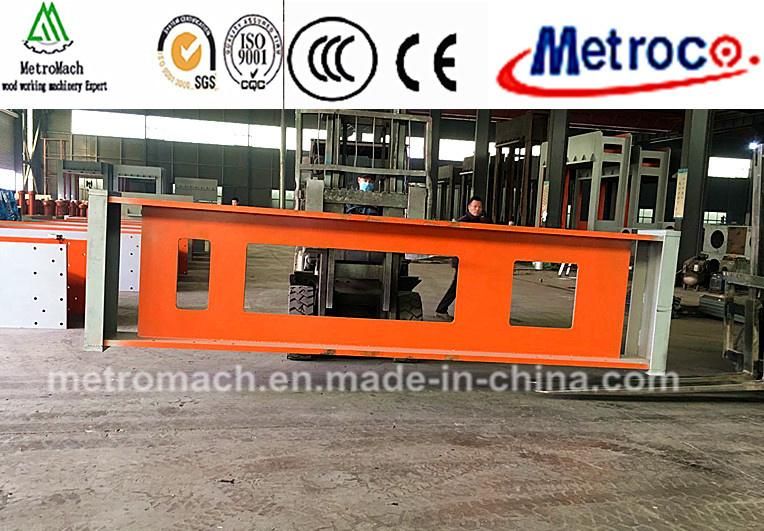

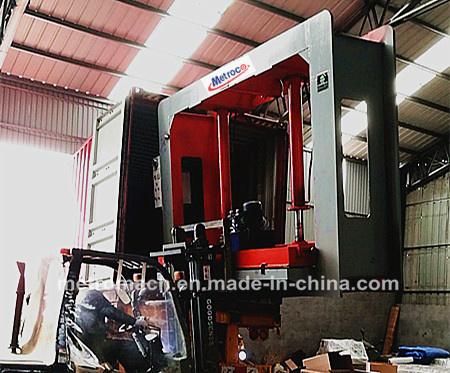

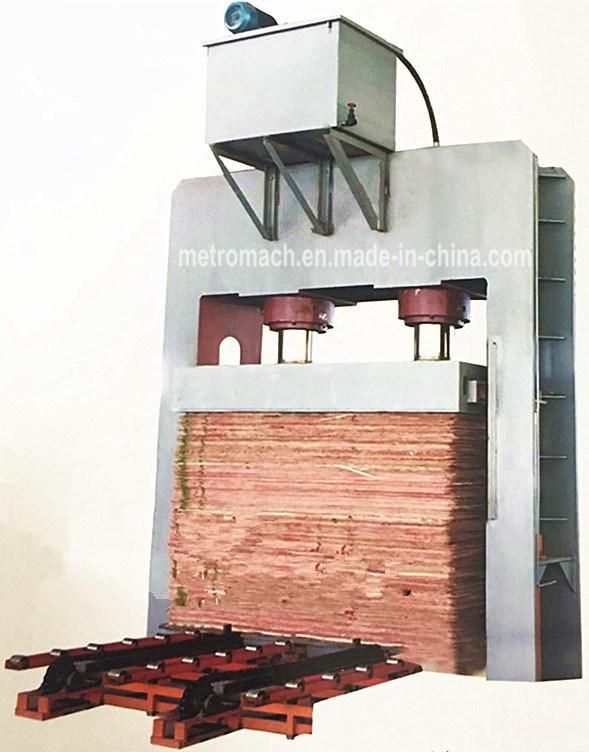

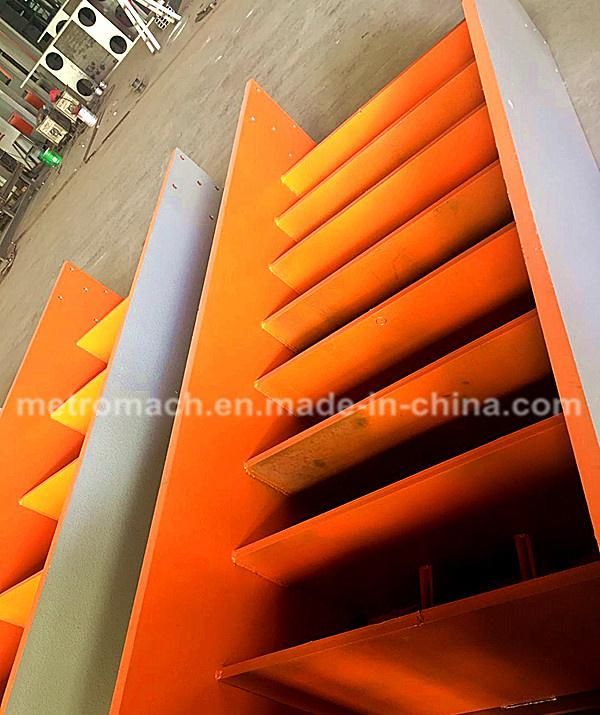

PHOTOS SHOW:










SPECIFICATION:


Model	BY814x8/5Z
Nominal gross pressure	5000 KN
Direction of feeding plate	horizontal
Max opening	1200mm
Dimension of workingbench	2700x1400mm
Diameter of cylinder	Φ360mm(Wuxi)
Numbers of cylinder	2pcs
Side helpful cylinder	Φ63mmx2
Pressurization	≤25mpa
Stroke of cylinder	1000mm
Pressure of unite plate blank	15Kgf/cm²
Dimensions of the board	2560x1280mm
Allowed pressure	≤25Mpa
Net weight	19000kg
Overall dimensions	about 3600x1380x370mm
Control method	automatic pumping station
Thickness of upper and lower crossbeams	900mm
Thickness of steel plate	40mm
Thickness of active crossbeam	22mm
Thickness of steel plate	optioned
Position of cylinder	upside

CERTIFICATES:








Services:

Pre-sale services:

1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory

Services during the sales:

1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.

After sale services:

1) 24 hours online service
2) Provide the video  with Install and debug the equipment
3) Provide technical exchanging
