• Model NO.：JDZ1325
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. JDZ1325 Trademark Mars Origin China HS Code 8465990000 Production Capacity 300 Sets/Month

Product Description

Wood Working CNC Engraving Machine/Cabinet CNC Cutting Machine
Keywords:15 years experience of production
                   ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                   Three Brand: Mars, Golden Eagle,Borio


Description:
JDZ1325 Woodworking Single Spindle CNC Router machinery is MARS featured machine for processing classical mahogany furniture, white wood European furniture, carved antique furniture, wall hollow, solid wood doors, craft doors, Paint-free doors, cabinet doors, craft windows, variety of tables, sofas, panel furniture, advertising signs, sign making, acrylic cutting, blister light boxes, curtain walls, aluminum, copper, composite board and other non-ferrous metals.Now popular in the market.
Functions:
The functions of this machine include cutting,milling,drilling and slotting.

Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.


Application Scope:
Classical mahogany furniture, white wood European furniture, carved antique furniture, wall hollow, solid wood doors, craft doors, Paint-free doors, cabinet doors, craft windows, variety of tables, sofas, panel furniture, advertising signs, sign making, acrylic cutting, blister light boxes, curtain walls, aluminum, copper, composite board and other non-ferrous metals.


Parameters:

Model	1325(Can be customized as your needs)
Working Stoke	1300*2500*160mm
Feeding Height	160mm-250mm
Table Structure	T-slot aluminum
Body Structure	Thick steel tube welded, w/ tempering
Max Motion Speed	20m/min
Max Processing Speed	10m/min
Spindle Power	2.2KW ~ 9KW frequency water-cooling spindle (Air-cooling motor, or Italy imported HSD motor is optional)
Spindle Speed	0 ~ 24000 rpm/min
Control System	NC Studio
Drive System	Stepper motor for all 3 axis
Lubrication System	Manual/ Automatic
Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan rectangular linear rail
Max Travelling Speed	20m/min
Max Working Speed	10m/min
Engraving Tool	¢3.175/ 4/ 6/ 12.7mm
Dictate Format	G code/ HPGL
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm

 Accessories:

Performance Features:
1. Standard imported linear guide rail, strong loading capacity, smooth operation, high accuracy.
2. Z-axis ball screw drive, high-precision, high wear resistance.
3. Equipped with automatic lubrication system, centralized lubrication. Reduce customer maintenance workload, greatly extend the rail life.
4. Adopt famous brand frequency water-cooling spindle, great performance, big torque, high efficiency.
5. Adopt brand stepper motor and driver, Y-axis double-motor drive, with faster speed and better stability.
6. Compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JDPaint/ Wentai, etc..

Samples:


Pack and delivery:


Warranty Information:
1.Warranty and Service:
Guarantee:12 months for the whole machine.
Within 12 months under normal use and maintenance, if something is wrong with machine, you will get spare part for free.
Out of 12 months, you will get spare part at cost price.
Technical support: You will also get technical support and service all the lifetime.
(1).Technical support by phone, email or Whatsapp/Skype around the clock.
(2).Friendly manual and operation video online.
(3).Engineer available to service machinery overseas.
2.After sales Services:
(1).Normal machine is properly adjusted before dispatch. You will be able to use the machines immediately.
(2).You will be able to get free training advice towards our machine in our factory.
(3).You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
3.Quality control:
(1).Skilled and Strict Quality Inspection Team is available during the material purchasing and production procedure according to ISO 9001:2015.
(2).All finished machine we shipped out are 100% strictly tested by our QC department and engineering department.

FAQ Before Ordering:
Q 1. I have no idea which machine can meet my need,what should I do?
A: Please tell the what's material you want to working on ?
     What's the MAX size of these material ?( length ? Width ? Thickness ?)
     Then I will recommend the most suitable machine for you.

Q 2. I do not know how to handling CNC Router,what should I do?
A: We will supply you a training video and English handbook to teach you how to operate.Or we will welcome you to arrive China to field-based learning .

Q 3. If my machine has some problems in the warranty period,what should I do?
A: If the machine part broken within warrantry time,we will send new part to you for free.

Q 4.How about your after-sales service ?
A: Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock. And we can arrange technician go to your company to solve problem if neeeded.

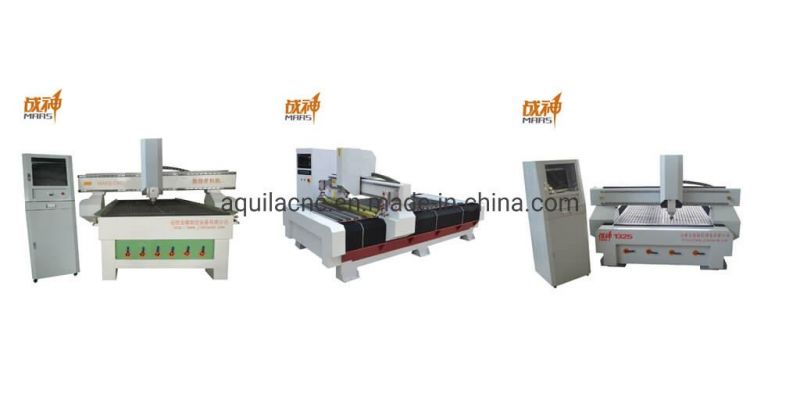

Similar products:


Our company:
Our company is 15 years professional manufacturers of panel furniture production line equipment, CNC cutting machine, five surface drilling, PTP machine, CNC machining center, wood carving machine, stone carving machine, jade carving machine, three-dimensional carving machine, mold machine.


Our certifications:


Why choose Hefei Aquila CNC Equipment Co., Ltd?
1.Our company has 15 years experience of production, and is a set research and development, manufacturing, sales,and has the national certification of  "High-tech enterprises."
2.With over 15 years experience and dozens of national patents, our company has passed the ISO9001:2008 Quality Management System and CE Certificate, and is also entitled as the AAA Level Enterprise which Honors Contract and Keeps Promise.
3.We have the professional R&D team and quality control system, to provide you with the most valuable products and services.
4. Our sales& service network has covered all dometic major cities and overseas markets, such as the USA, European, Southeast Asia, Middle East etc.Let you have the most perfect after-sales service.

Our Services:
1. Convenient: 24th Hours sales/After-sales Service online or on the phone.
2. Quality Assurance: We will discuss with you and supply you the best quality comfortable to your market.
3. Quick delivery: Time is money, we promise we always will deliver the goods quicker than others.
4. According to customers' drawing,customized specifications are welcomed.
5. Low MOQ,small orders can be accepted.

We are searching distributors all over the world. If you have any demands, welcome to contact us and visit our factory.
