• Model NO.：BSG130R-P
• Color：Customized
• Max Working Width：1300mm
• Working Thickness：2.5-85mm
• Min Working Length：200mm
• Feed Speed：3-30m,Min
• Total Motor Power：27.12kw
• Nw：2600kg
• Transport Package：Plastic Film
• Specification：1460*1100*1760mm
• Trademark：HZH
• Origin：Qingdao
• HS Code：84659600
• Production Capacity：100sets,Month

Basic Info.

Model NO. BSG130R-P Color Customized Max Working Width 1300mm Working Thickness 2.5-85mm Min Working Length 200mm Feed Speed 3-30m/Min Total Motor Power 27.12kw Nw 2600kg Transport Package Plastic Film Specification 1460*1100*1760mm Trademark HZH Origin Qingdao HS Code 84659600 Production Capacity 100sets/Month

Product Description

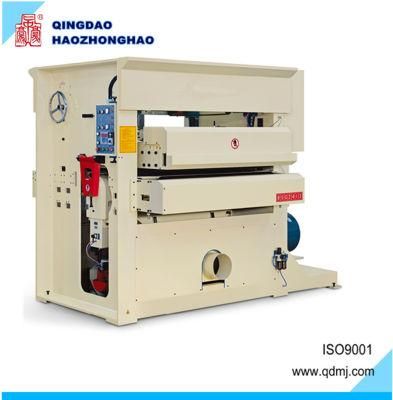

Lacquer sanding machine

Specifications	BSG130R-P	BSG100R-P	BSG630R-P
Max Working Width	1300mm	1000mm	600mm
Working thickness	2.5-85mm	2.5-85mm	2.5-85mm
Min working length	200mm	200mm	200mm
Speed of abrasive belt	20m/s	20m/s	20m/s
Polish Roller Diameter	Ф240mm (3M roller)	Ф240mm (3M roller)	Ф240mm (3M roller)
Feed speed	3-30m/min	3-30m/min	3-30m/min
Size of abrasive belt	1320*2200mm	1020*2200mm	620*2200mm
Total motor power	27.12kw	23.62kw	7.92KW
Power of abrasive belt	15Kw	15Kw	15Kw
Power of Polish roller	4Kw	4Kw	4Kw
Conveyor Motor	4Kw	4Kw	4Kw
Lift motor power	0.37Kw	0.37Kw	0.37Kw
Dust brush roller power	0.25Kw	0.25Kw	0.25Kw
Working pressure	0.5Mpa	0.5Mpa	0.5Mpa
Compressed air volume	≥5000M3/h	≥5000M3/h	≥5000M3/h
Dimensions	2000*1980*2100mm	2000*1560*2100mm	1460*1100*1760mm
NW	2600kg	2100kg	1200kg

Packing&Delivery
Packaging:The normal package is PLASTIC FILM also we can packing with your requirements



Delivery:About 30 days after receive the down payment delivery

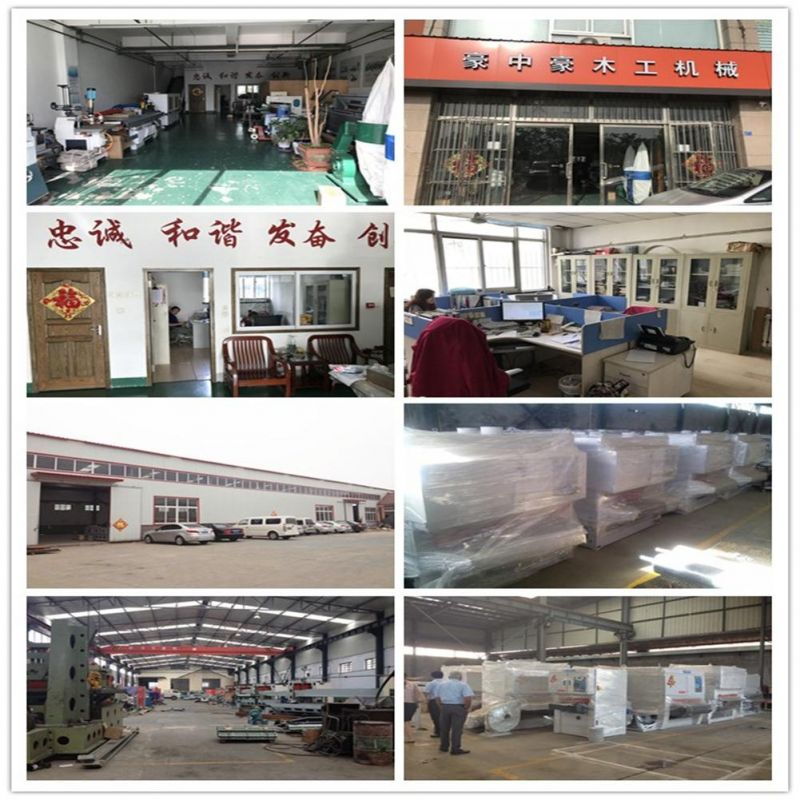

Our company&factory


Our Certifications

FAQ
What is the Warranty of machine?

Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.

Why choose HAOZHONGHAO?

1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Panel Saw, Veneer Slicer and Grinder.

2,Excellent: Established in 1958, ISO9001 certificated, CE certificate

3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.

4 Location: One hour reach Qingdao sea port
