• Model NO.：CF420B
• Warranty：3 Years
• Customized：Customized
• Condition：New
• Color：Multi Color
• Raw Material：Wood, Tree Branches, Straw
• Size：Below 5cm
• Capacity：100-500kg,H
• Transport Package：Plywood Box
• Specification：small model for family use
• Trademark：chengda
• Origin：China
• HS Code：8479820090
• Production Capacity：1000 Pieces ,Month

Basic Info.

Model NO. CF420B Warranty 3 Years Customized Customized Condition New Color Multi Color Raw Material Wood, Tree Branches, Straw Size Below 5cm Capacity 100-500kg/H Transport Package Plywood Box Specification small model for family use Trademark chengda Origin China HS Code 8479820090 Production Capacity 1000 Pieces /Month

Product Description

Product Feature:

1. Simple and Automatic Operation;
2. Easy Maintain;
3. It can be combined according to your requests, no limitation on the places;
4. It realizes the perfect combination on the chipping and crushing.





The Introduction of the  Hammer Mill





1.Hammer Mill is used for crushing small diameter raw materials, which are no more than 100mm such as corn straw,tree branches and so on. after crushing, the diameter of the final products could be 3-5mm



2.This hammer mill is mainly composed of casing, rotor, hammers and bars. The case is divided into two parts: up and down, which is connected by welding the cut steel; other parts are connected by screws. The one inside of case is high manganese steel lining board, which is easy to change when wore out.



 3. In order to avoid clogging, humidity of crushed material should below 10%-50%.





the Hammer Mill is the most ideal milling equipment of all kinds of wood pieces, straw, grass, stalk, tree branches, waste cardboard, bamboo, wood scrap, corn stalk, peanut shell, wheat stalk, wood fuel, cotton stalk, biomass shell and so on, which can crush the raw material into small particles with size 3~5mm.

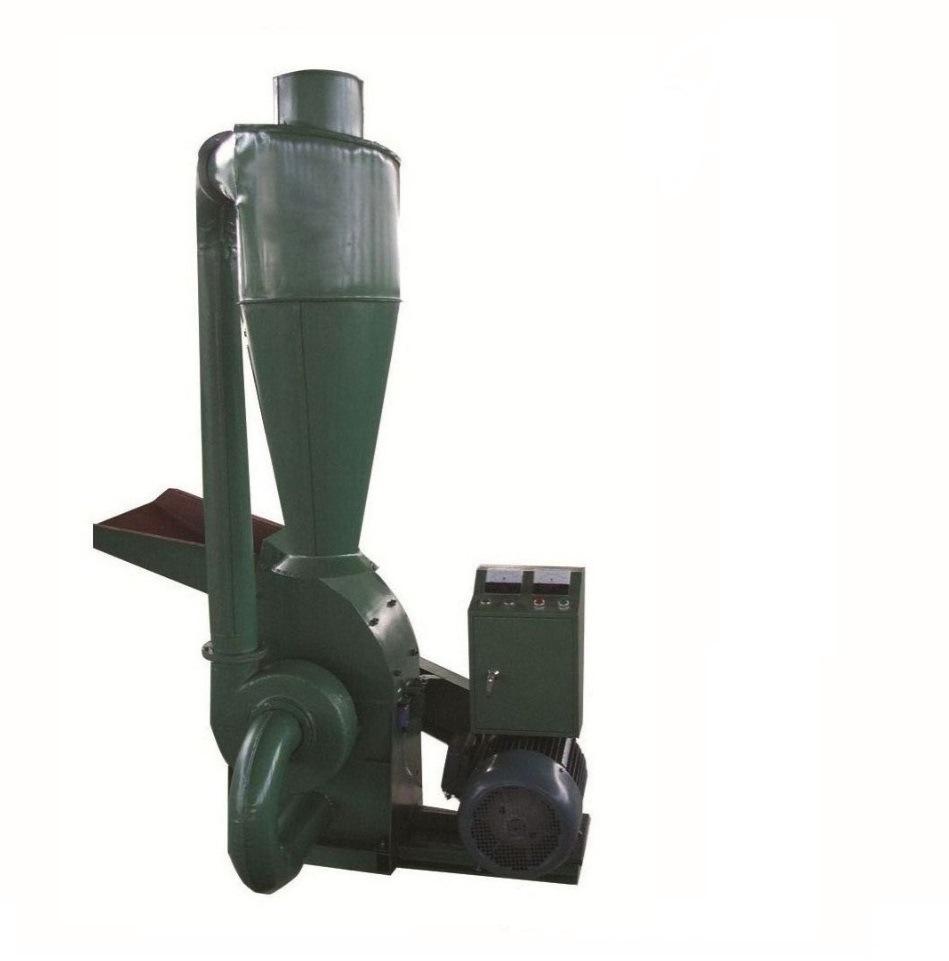

The machine includes airlock, blower, cyclone. It is equipped with high carbon steel blade and works with high efficiency and gains more good reputation from European users.

Hammer Mill Introduction

To reduce the size of wood chips and other suitably sized biomass raw materials to the correct particle size, a hammer mills is used. A hammer mill works on the principle of attrition. A rotating centre with a collection of flailing hammers impact at high speeds, shattering the material into particles. A screen with the desired particle size ensures the correct particle size is produced.

Post Particle Size Reduction and Cyclone Separation
Once particle size reduction has taken place, a fan is used to extract the particles from the based of the hammer mill. However the particles are now mixed in the air stream, and need to be separated. To separate the particles from the air stream, a cyclone separator is used.

The cyclone has a vertical position, and the air stream and particles are injected into the top of the cyclone. The gas stream, due to the shape of the cyclone is sent into a spiral. During the spiral action, the particles are separated from the air stream and leave the based of the cyclone. The separated air then leaves the cyclone through a central pipe through the top. The particles are now a suitable size for briquette or pellet compression, depending they have a suitable moisture content of around 12% for briquette compression, and 15% for the pellet mill.

Specification:



Model No.	Power	Output(kgs/h )	NW/GW(kg)	Packing size(cm)	Remark
CF158	2.2kw/220V	50-80	75/95	48*58*63	CE motor
CF158	3 kw/380V	50-180	75/95	48*58*63	CE motor
CF198A	7.5HP	150-450	120/140	90*58*102	gasoline engine
CF198B	4kw/380V	150-450	120/140	90*58*102	CE motor

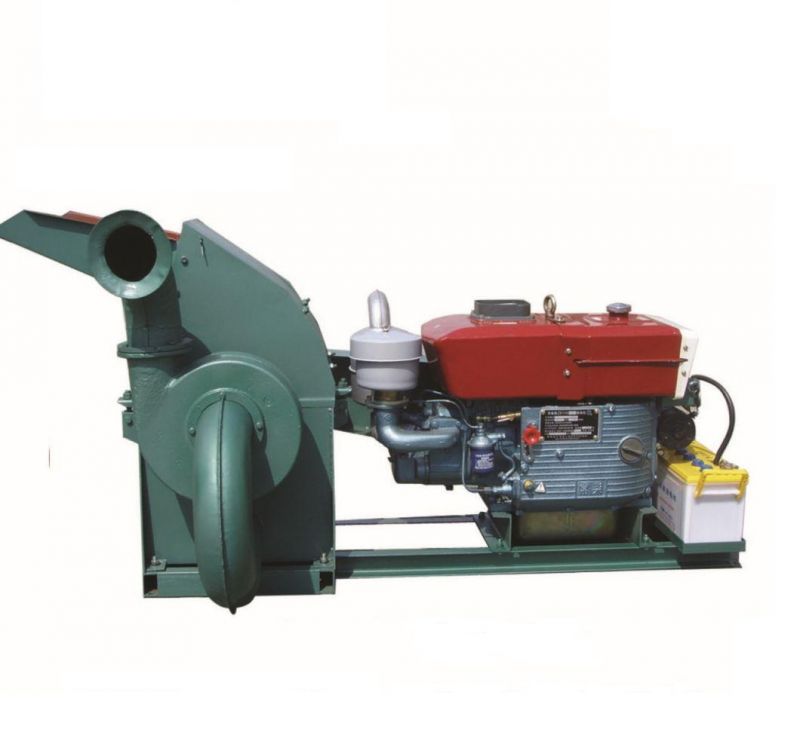

CF420A	15HP	360-650	330/360	147*73*109	diesel engine
CF420A	22HP	400-850	330/360	147*74*111	diesel engine

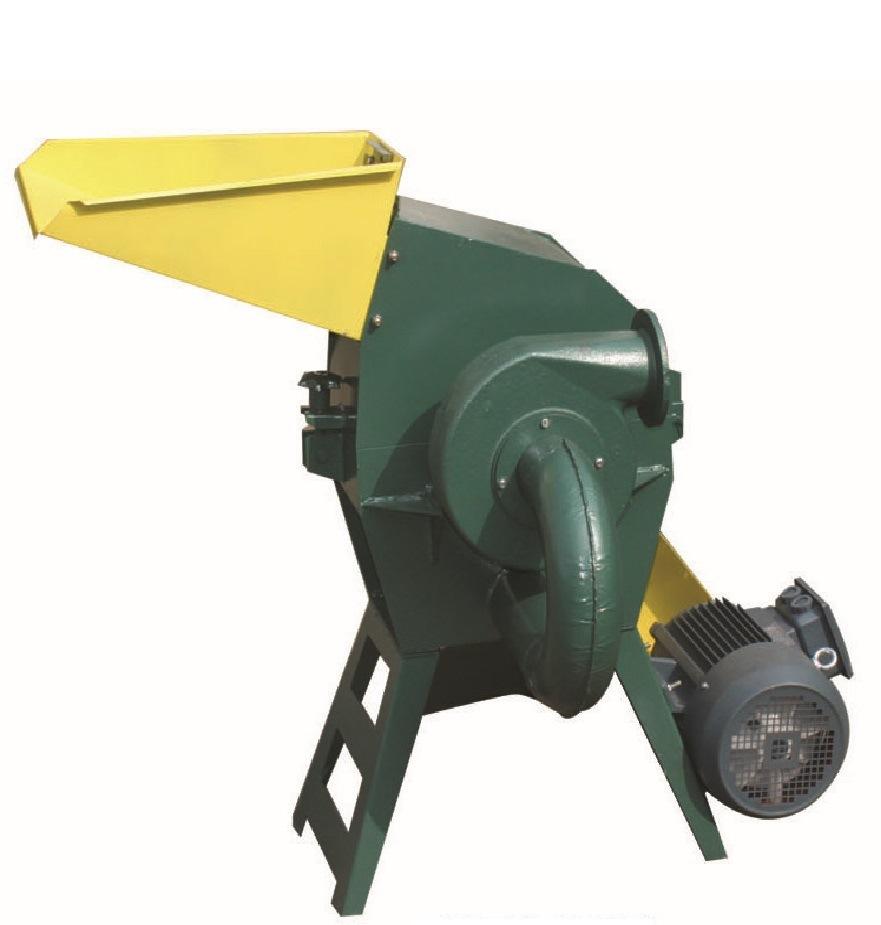

CF420B	7.5kw/380V	350-650	260/320	112*82*107	CE motor
CF420B	11kw/380V	300-800	320/360	112*82*107	CE motor

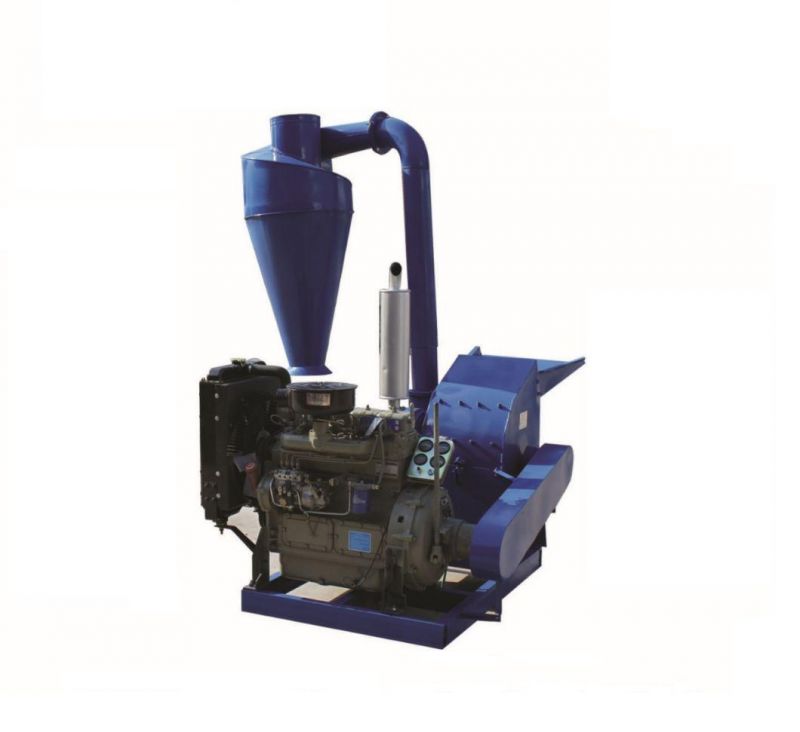

CF500A	55HP	850-1500	800/840	150*142*123	diesel engine
CF500B	22kw/380V	800-1200	600/630	124*97*106	CE motor

we also have other model for your choose.please let me have your raw material, size, moisture, your final use of them,I will suggest you the best model.

please feel free to left message to me I will send more useful information to you .
