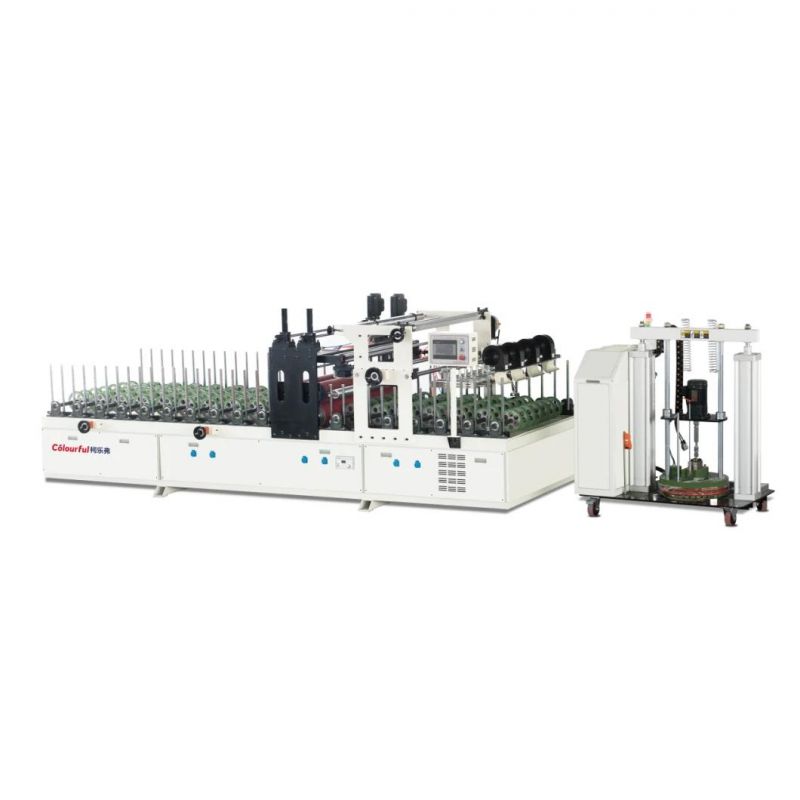

MDF Plywood Pb Sticking PVC Film Multiple Purpose PUR Laminating Machine with Good Price
Qingdao Colourful Machinery Co., Ltd.- Warranty：1 Year
- Certification：CE, ISO
- After-sales Service：Field Installation, Commissioning and Training
- Model No.：Clf-PUR1300
- Voltage：380V
- Power(W)：20kw
Base Info
- Model NO.：CLF-PUR1300
- Width of Lamination：1300mm
- Speed of Lamination：3-25m,Min
- Lamination Height：125mm
- Preheating Power：3kw
- Transmission Power：2.2kw
- Glue Machine Power：18kw
- Air Gun Power：10kw
- PUR Barrel Capacity：55gallon (200kg)
- Condition：New
- Control System：PLC
- Glue Type：PUR Hot Melt Glue
- Transport Package：Pree Film Package for Machine Body
- Specification：4900*2000*1800mm
- Trademark：COLOURFUL
- Origin：Qingdao, Shandong, China
- HS Code：8477599000
- Production Capacity：30 Set,Sets Per Month
Description
This series of plate lamination machines are suitable for the surface of the MDF board, particleboard, particleboard, calcium silicate board, glass magnesium board, PVC foam board, aluminum board, wood plastic door, and other boards with PVC film and bag. Paper, veneer, CPL, leather, aluminum foil, copper foil, and other roll fabrics.This series of coating machines use PUR reactive hot-melt adhesive. The coating method can be applied to the front and two sides of the board. The production speed is fast, the fastest is 25 meters per minute. The solvent resistance and weather resistance are good. , The material does not open the glue at the temperature of -40 ~ 140 °; the glue coating amount is controlled by PLC, which is accurate and saves glue.

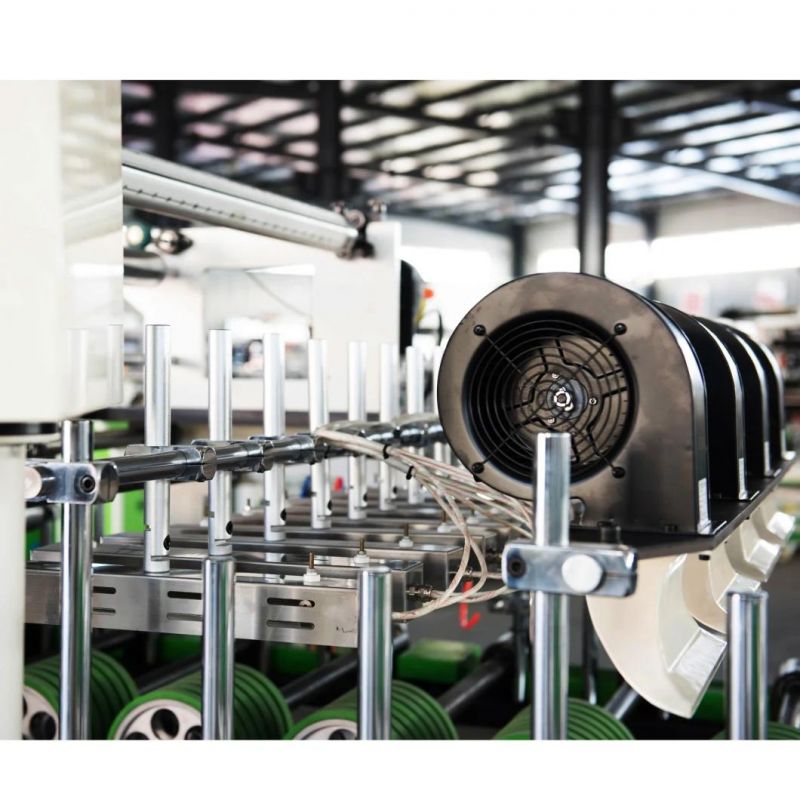

Blow off some of the difficult-to-treat dust on the surface of the profile. The blowing device adopts the universal connection. The blowing angle can be adjusted according to the actual situation.

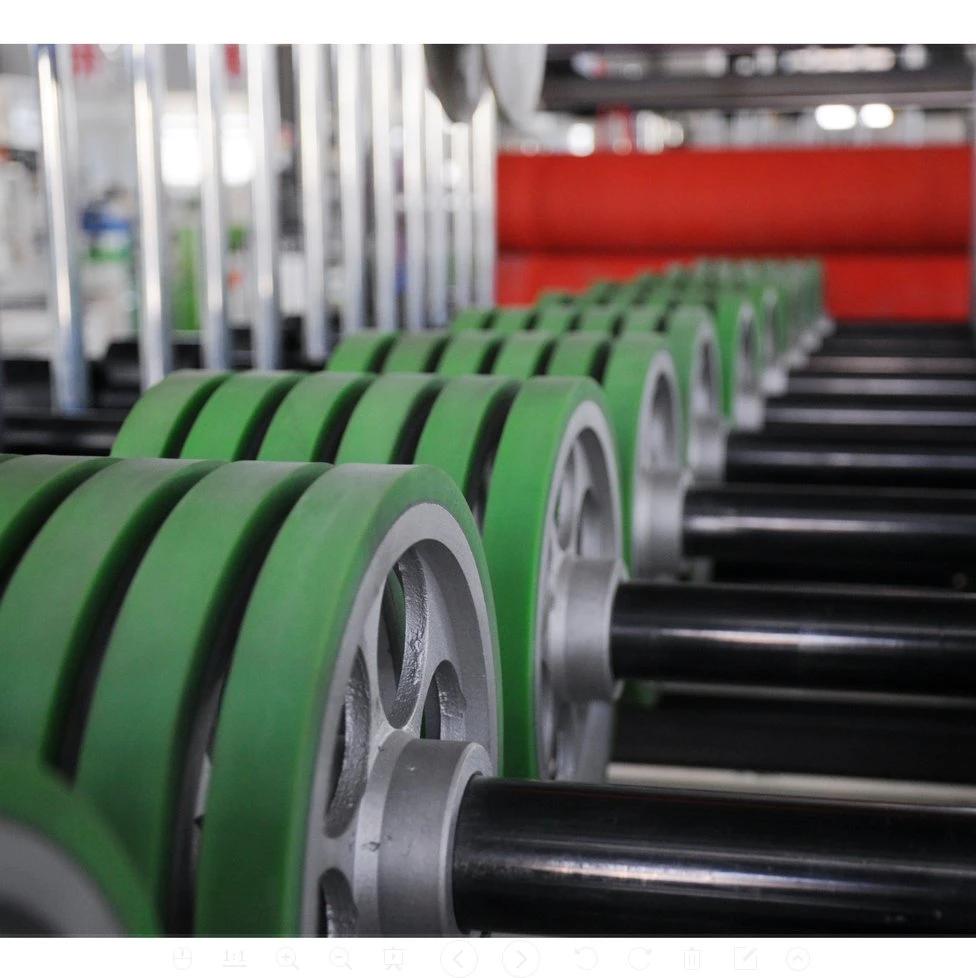

The transmission method is a worm gear. The diameter of the transmission shaft is φ40mm and the distance between the shafts is 250mm. Each transmission shaft contains 9 transmission wheels with a diameter of 200mm. The surface has silicone. Dow Corning Silicone, imported from the United States, is equipped with various specifications of pressure wheels to meet the adjustment of different materials. The column is treated with 45 # steel with a diameter of 25mm. Quickly change the shape of the profile, greatly improve work efficiency

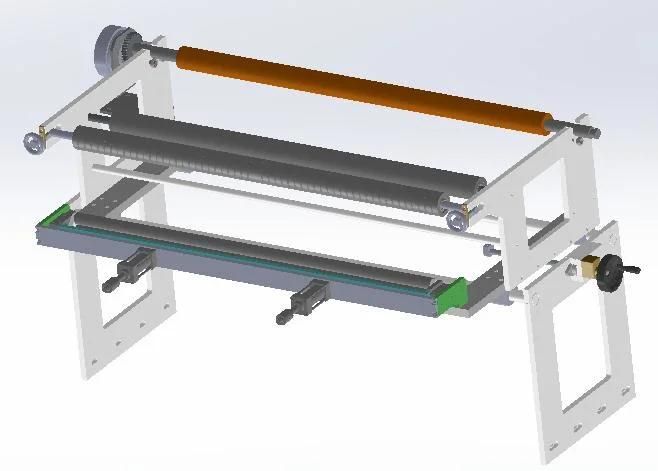

Pneumatic unwinding, the air expansion shaft penetrates into the paper tube of the cut PVC film, and then inflates to fix the PVC film on the air expansion shaft, magnetic powder brake; the machine is equipped with a PVC film correction mechanism, and the left and right distances of the film are adjusted by turning the wheel. To achieve the left and right movement of PVC film or veneer, reasonable design, high accuracy and sensitivity, digital display of adjusted size, deviation correction ≤ 0.2mm; unwinding device is equipped with a meter counter function, which is convenient for counting the length of the processed film; Left and right spiral method, effectively flatten the film before entering the scraper and evenly scrape the glue

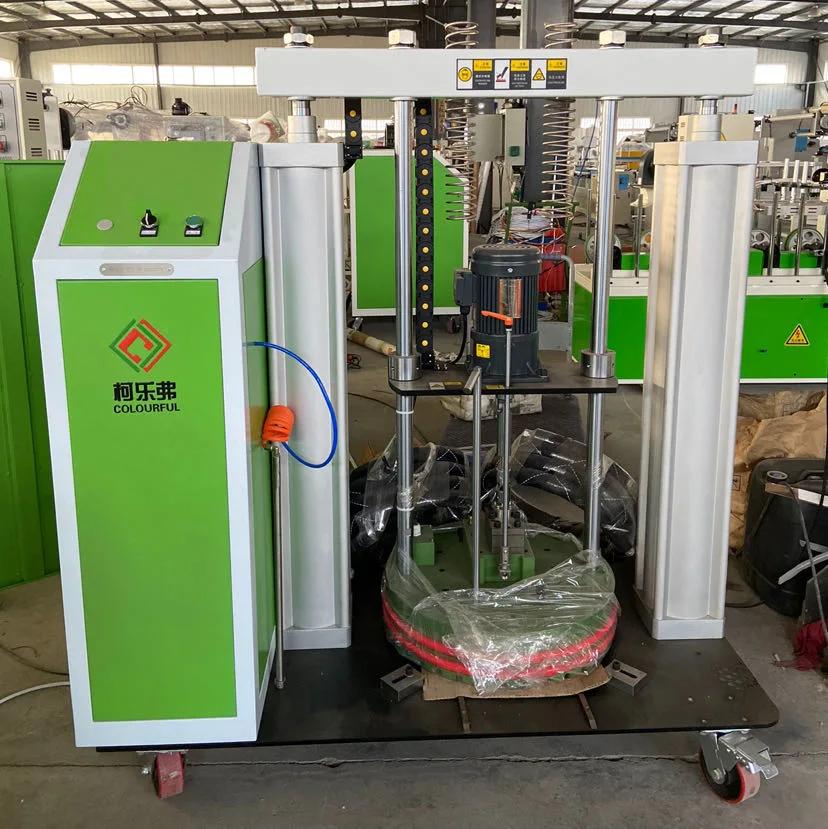

The 55 gallon PUR hot plate melter is equipped with a temperature control meter to control the system temperature to save customer costs. The PUR hot melt machine has multi-stage temperature control. Complete mechanical protection function, hot melt glue sol temperature setting upper and lower limit alarm, hot melt glue machine temperature sensor damage alarm, PUR hot melt glue machine heater damage alarm, precise and stable control of hot melt glue machine work

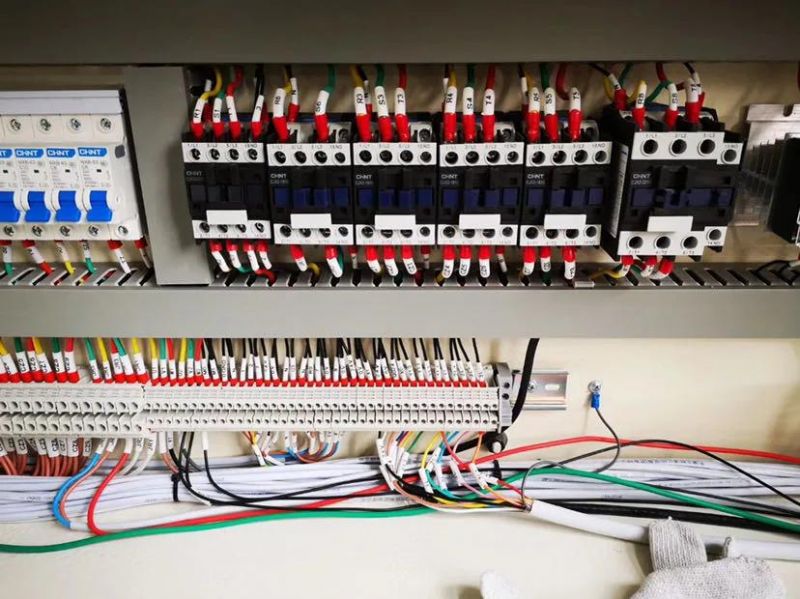

Low voltage electrical appliances adopt the Schneider brand, PLC, inverter and touch screen adopt Taiwan Delta brand, and the main drive motor adopts Xiamen Dongli or Taibang.
The main pressure roller is lifted by a lift with a linear guide rail adjustment (PLC control). Its height is flexible and convenient to achieve synchronous lifting. The lifting error can be controlled within 0.05mm and the pressing force is strong.
