• Model NO.：MTPB4-4
• Speed：0-35m,Minute(Adjustable)
• Rotary Actuator：Festo(Germany)
• Veneer Thickness：1.0-3.6mm
• Clutch：Chain Tail(Taiwan)
• Transport Package：Nude Packing
• Specification：12000*2600*2500mm
• Trademark：METRO
• Origin：Shandong, China
• HS Code：8465990000
• Production Capacity：300set,Year

Basic Info.

Model NO. MTPB4-4 Speed 0-35m/Minute(Adjustable) Rotary Actuator Festo(Germany) Veneer Thickness 1.0-3.6mm Clutch Chain Tail(Taiwan) Transport Package Nude Packing Specification 12000*2600*2500mm Trademark METRO Origin Shandong, China HS Code 8465990000 Production Capacity 300set/Year

Product Description

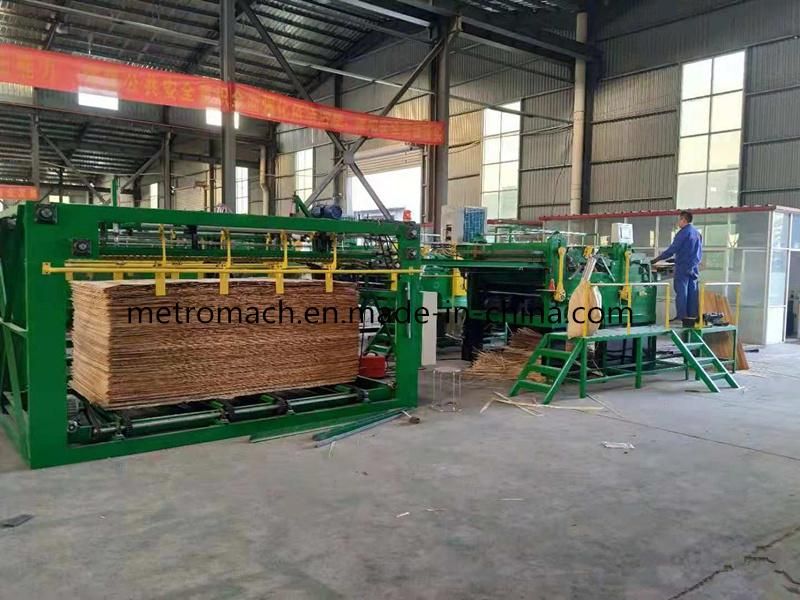

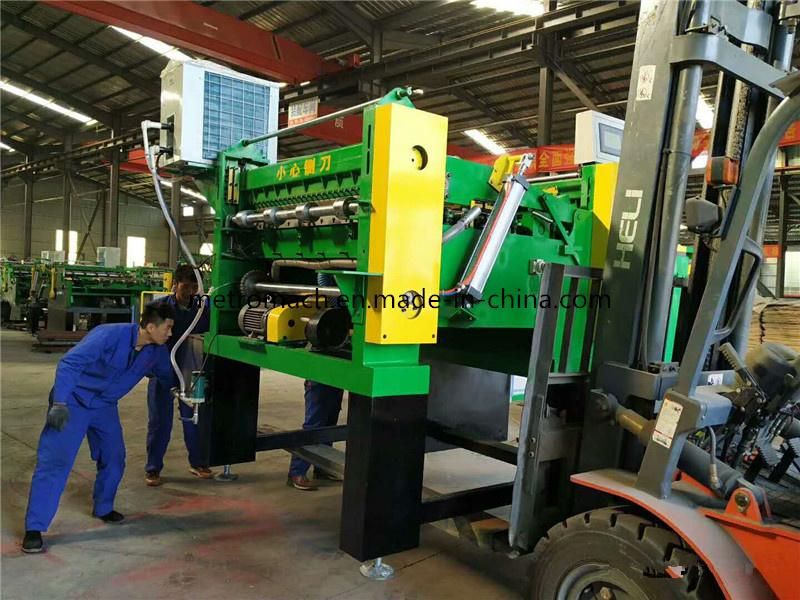

Automatic Woodworking Plywood Core Veneer Composer Machine

This machine is mostly used lateral composing, automatic rolling, automatic laying of the veneer with thickness of 1.0-3.6mm (commonly known as sandwich skin),in the production of laminated wood, LVL, multilayer board, flooring substrate, furniture board, plywood, container board, melamine board, block board. In the area of international and domestic plywood production process ,it is the first program designer and implementer using the rolled veneer, change the traditional manual planking process, to achieve the plywood planking automation, continuous and economizing









Advantage:
1.One operator, no overlap and seamless, no break;
2. Save 70% of core finishing
3.Save 80% assembling workers
4.Save 50% puttying workers

Working principle:
core veneer (1.2-3.6mm thickness) after dying may have different length and thickness, and the shapes may get irregular. This machine can detect the width, thickness, cavities of the panels, and have them rimmed, glued, spliced, cut to length and stacked automatically. with this machine, customized board of different sizes an be spliced.
