Dowel Inserter- Bore and Dowel Machines
Qingdao Samac International Trading Co., Ltd.- Precision:High Precision
- Controlling Mode:CNC
- Automation:Automatic
- Certification:CE, ISO
- Max Drilling Depth:50mm
- Transport Package:Soft Package
Base Info
- Model NO.:R-S1,R-S2
- Specification:R-S1,R-S2
- Trademark:SAMACH
- Origin:China
- Production Capacity:100sets,Month
Description
Basic Info.
Model NO. R-S1/R-S2 Specification R-S1/R-S2 Trademark SAMACH Origin China Production Capacity 100sets/MonthProduct Description
Bore and Dowel Machine R-S1/R-S2Function introduction
This is made for the automatic board side processing machining center, integrated side drilling, milling slot, doweling (auxiliary automatic glue), it supports the processing of bar code scanning import and manual import
1 Dowels automatic indentation
Precision wood glue into the pressure, to ensure that the pin fastening; high-speed nail into the shock plate for rapid feeding, free waiting; auxiliary silo automatic feeding, to solve the frequent artificial feeding troubles
2 One click glue gun cleaner
One click, easy to achieve the glue gun move to the designated location of automatic cleaning.
Multi-work processing
According to the length of the plate, up to four processing areas can be independently processed to reduce processing waiting
3 Reliable positioning precision
There's 3 stop device at the left,middle,right of X-axis direction,Y axis direction positioning wheel and correlation fiber positioning,clamping cylinder press in the Z-axis direction.
4 Processing file is loaded by code scanned
Through the scanning gun to load the file quickly, sEerial communication to ensure reliable and efficient data transmission
5 Easy to edit processing documents
Processing documents using plain text numerical editing, simple and easy to operate.
6 Security
Emergency Stop Switch,pull switch,threshold switch.
Parameter
Model | R-S1/R-S2 |
Spindle power | 1.5KW |
Spindle RPM | 0--24000r/m,adjusted by VFD knob control |
Speeds &stroke for X | 40M/min&2440 mm |
Speeds &stroke for Y | 10M/min&80 mm |
Speeds &stroke for Z | 10M/min&50 mm |
Capacity of bore and insertion | 60 insert/min |
Max drilling depth | 50mm |
Maximum dowel insertion depth | 40mm |
Packing size | 3462*1133*2015mm |
Weight | 1615Kg |

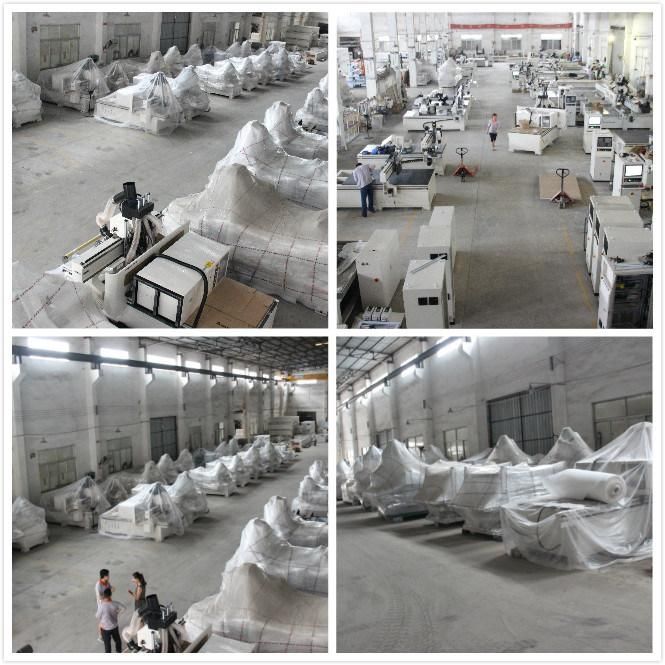

Factory Photos:
Exhibition Photos:

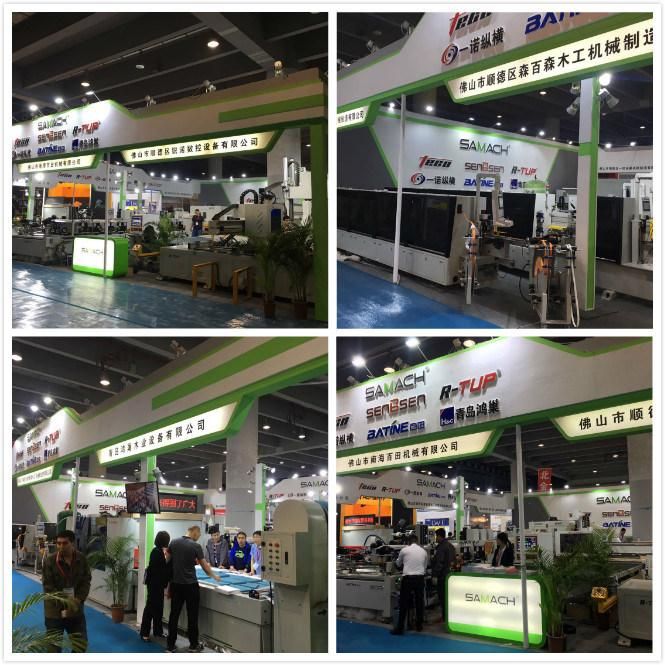

2018 Guangzhou Fair

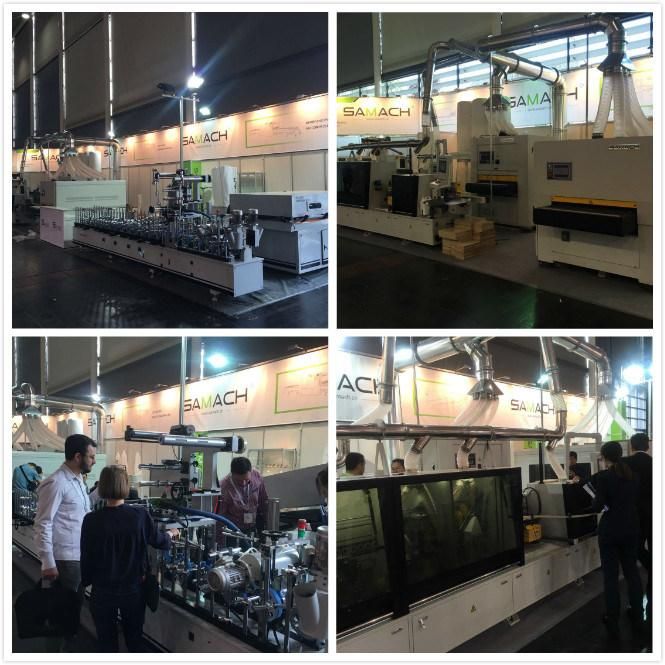

2017Ligna
