• Model NO.：MJ6116TY
• Certification：CE, ISO, SGS
• Customized：Customized
• Condition：New
• Color：Customized
• Main Saw Motor：4.0,5.5kw
• Scoring Saw Motor：0.75,1.1kw
• Transport Package：Wooden Case
• Specification：1600MM
• Trademark：OSETMAC
• Origin：Qingdao, China
• HS Code：8465910000
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. MJ6116TY Certification CE, ISO, SGS Customized Customized Condition New Color Customized Main Saw Motor 4.0/5.5kw Scoring Saw Motor 0.75/1.1kw Transport Package Wooden Case Specification 1600MM Trademark OSETMAC Origin Qingdao, China HS Code 8465910000 Production Capacity 3000 Sets/Year

Product Description

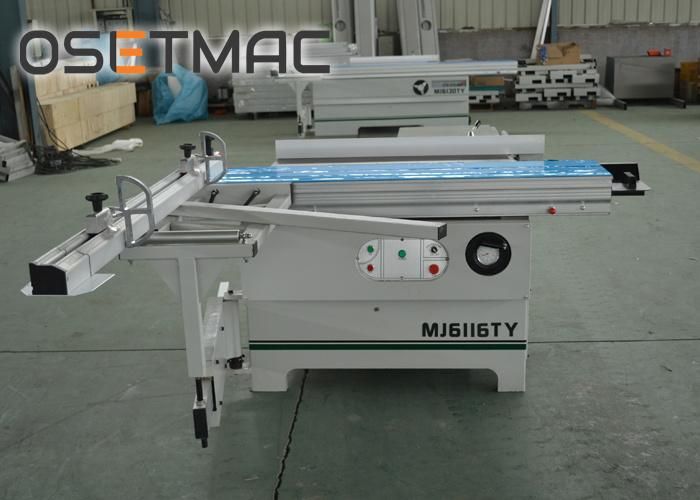

Sliding Table Saw MJ6116TY with 1600mm Table



Specifications

Sliding Table Dimension	1600*375mm
Main Saw Diameter	300mm
Main Saw Blade Diameter Maximum	315mm
Main Saw Bore Diameter	30mm
Max. Cutting Height With Bade at 90	80mm(φ300)
Max. Cutting Height With Bade at 45	50mm(φ300)
Main Motor Power	4.0/5.5KW
Main Blade Speed	4000/6000RPM
Scorning Saw Blade Diameter	120mm
Scorning Saw Bore Diameter	20mm
Scorning Saw Motor Power	0.75/1.1KW
Scorning Blade Speed	8000RPM
Max. Cutting Width	1250mm
Max. Cutting Length	3100mm
Blade Tilting Adjustment	0-45°
Main Saw Height Adjustment	Manual
Scorning Saw Height Adjustment	Manual
Dust Guard Outlet Diameter	80mm
Dust System Outlet Diameter	100mm
Dimension	1650*3150*900mm
N.W.	550KG

Sliding Table Saw MJ6116TY Details Show

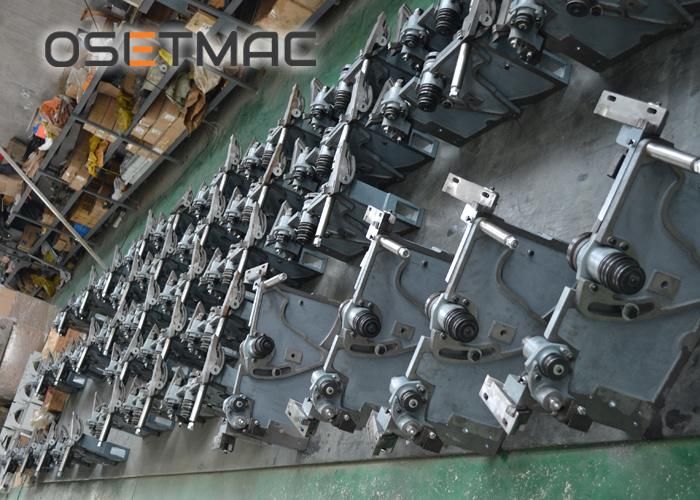

 Inner StructureThis sliding table saw uses 25mm metal plate which guarantees the compressible strength and the high precision of the inter-machine, which can also reduce the shock of the machine.

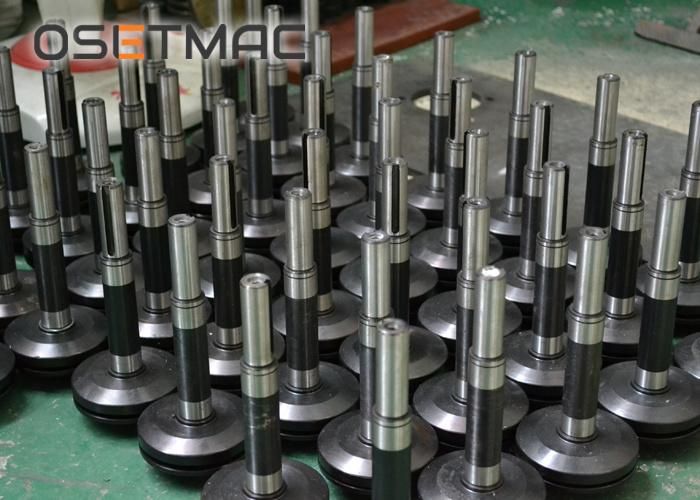

 Main Saw and Scorning Saw SpindleAfter the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and motor, this sliding table saw has lower noise, higher precision and higher efficiency of power transmission.

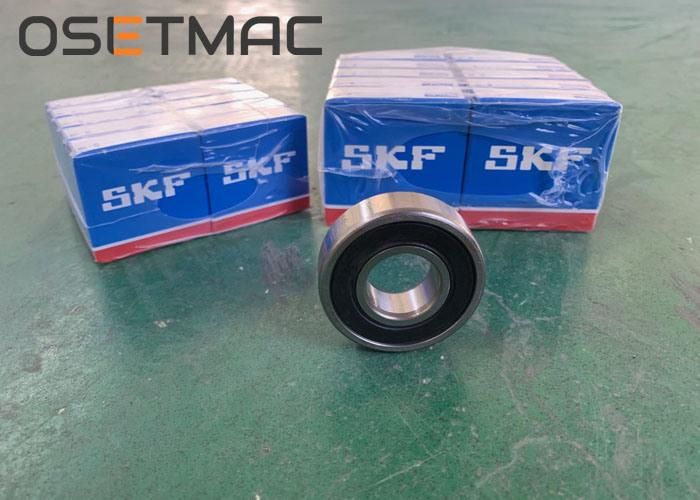

 SKF BearingAll bearings in this slidint table saw are all imported SKF brand, which has lower sliding resistance and power consumption comparing with ordinary bearings.

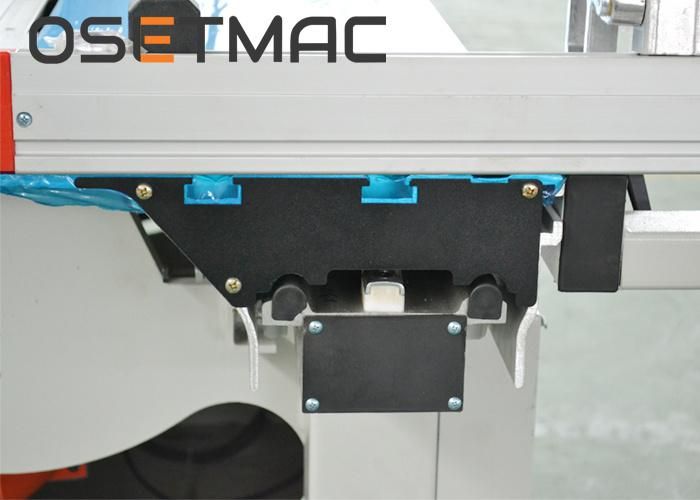

 Sliding Table Structure and FeatureOur sliding table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock on the table makes it convenient to stop anywhere.

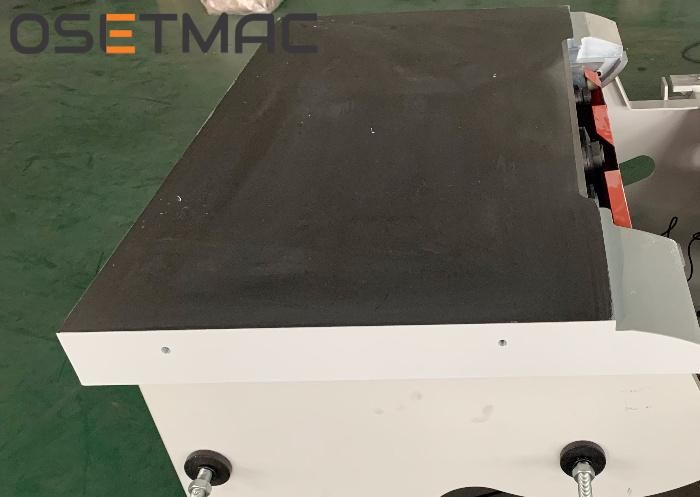

 Cast-iron Main Table and Extension Table After precision casting and flat grinder treatment, our cast-iron table greatly reduces the friction between the workpiece and the table, which makes sure of the cutting accuracy.

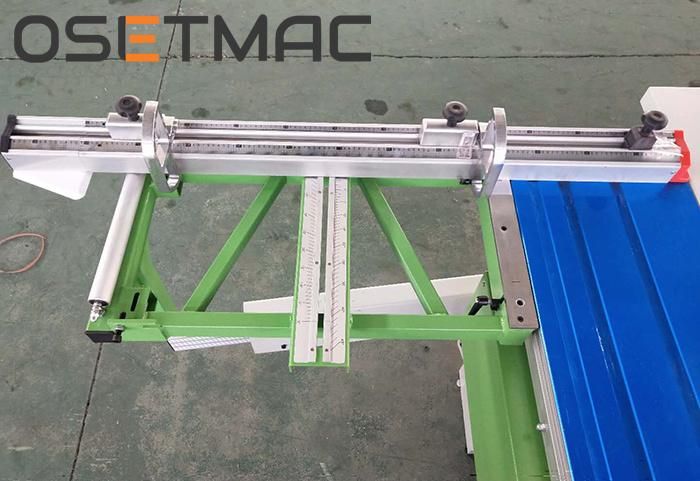

 Supporting Arm and Cross Cut TableThe suppoprt arm in this sliding table uses 2.5mm square steel tube, which insure the stationary movement of sliding table when the machine has heavy loading. It also has angle ruler in the cross cut table.

Controlling BoardThe controlling board is easy to operate. The rotation of hand wheel for saw blade tilting is very light and handy.

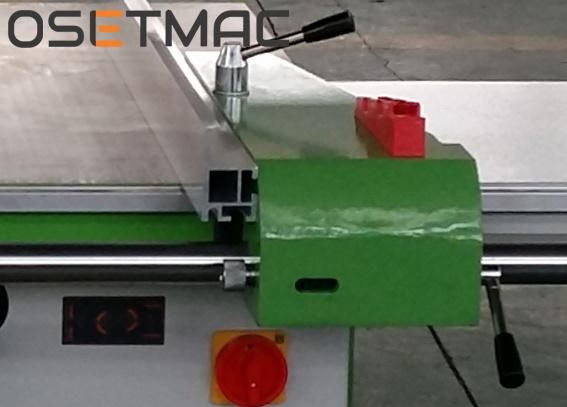

 Rip Fence Fine AdjustmentFine adjustment range is between 0-10mm, which makes the saw cutting size more precise. It is also very easily to adjust. Orange Dust Hood and Riving KnifeThe orange dust hood is fixed on the riving knife, which is very easy to adjust. It also has the fuctions of warning, protection and dust absorption.
