• Model NO.：215
• Warranty：3 Years
• Customized：Customized
• Condition：New
• Color：Multi Color
• Name：Malaysia Wood Pallet Crusher Machine
• Materials：Wood Pallet
• Feature：Malaysia Wood Pallet Crusher Machine
• Final Product：Wood Shavings
• Capacity：1-10t,H
• Transport Package：Nude Package or Wooden Case
• Specification：4800*580*1420mm
• Trademark：Gofine
• Origin：China
• HS Code：8465960000
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. 215 Warranty 3 Years Customized Customized Condition New Color Multi Color Name Malaysia Wood Pallet Crusher Machine Materials Wood Pallet Feature Malaysia Wood Pallet Crusher Machine Final Product Wood Shavings Capacity 1-10t/H Transport Package Nude Package or Wooden Case Specification 4800*580*1420mm Trademark Gofine Origin China HS Code 8465960000 Production Capacity 10 Sets/Month

Product Description

Malaysia wood pallet crusher machine
Introduction of wood pallet crusher machine
Wood chipper is mainly made of the airframe, knife roll, the upper and under feed roller, conveyor and hydraulic system. According to the different thickness of the cutting material, the upper feeding roller assembly can use hydraulic system to float up or down in a certain range. The qualified wood chips material will drop down through screen mesh, then discharge out from the bottom, large size chips material will be return into the machine cutting again.
Wood chipper is mainly used to process the raw materials including wood logs, tree branch, bamboo, brushwood and veneer stalk into 1-5cm wood chips. Wood chipper is widely used in the production of paper making, sawdust, edible fungus, shaving board, fiber board, high density board and biomass pellet production plant.

Advantages of wood pallet crusher machine
1. Compact structure, reasonable design, easy to operate and maintain.
2. Wear-resisting materials for mat, high quality steels for knife roll.
3. Wood chipper flexible adaptability, it can be equipped with electric motor or diesel engine. optional
    conveying system and feeding style.

Technical datas of wood pallet crusher machine

Model	BX215	BX216	BX218
Inlet Size (mm)	170×430	230×500	300×680
Max Dia of raw material (mm)	170	230	300
Knife roller rotate speed (r/min)	590	590	650
Feeder Motor Power (kw)	3-4	3-4	4-5
Oil Pump Motor Power (kw)	1.1×2	1.5×1	1.5×1
Main Motor Power (kw)	37	55	110
Wood chips size (mm)	25-35	25-35	25-35
Capacity (t/h)	3-5	5-8	8-12
Weight (kg)	2000	4070	7000
Overall Dimension (mm)	1540×1240×1420	1800×1900×1210	2200×2150×1500

About Service
1. We devote to all-round service of all products from producuction to maintenance.
2. Our professional service includes: free training, guidance, installation and debugging.
3. After selling, we provide the warranty of one year.
4. If you have any problems, we will try our best to help you at the first time to sovle it.

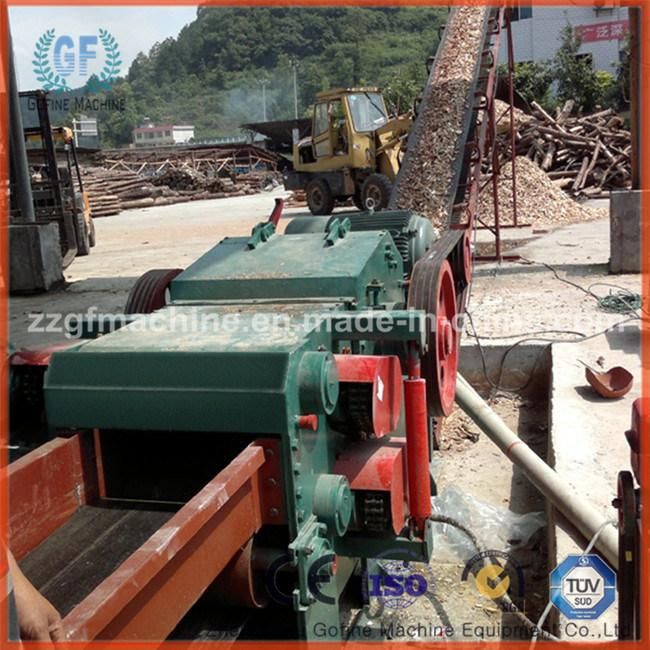

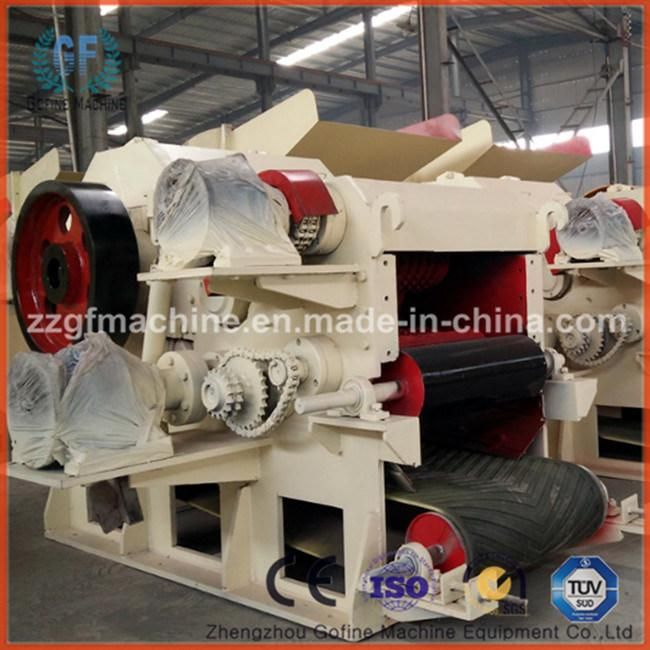

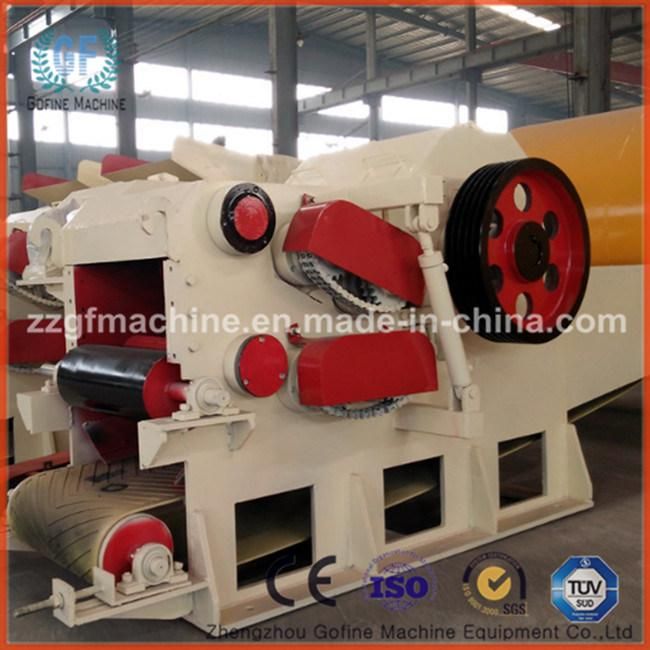

Product pictures of heavy duty wood chipper machine
