1325 Atc Woodworking CNC Router Cutter Oscillating Knife Cutting Machine

Jinan Zhongke CNC Equipment Co., Ltd.
  • Type：Engraving Router
  • Spindle Layout：Vertical
  • Spindle Number：Four
  • Feed Mode：Manual
  • Controlling Mode：CNC
  • Certification：CE, ISO

Base Info

  • Customized：Customized
  • Condition：New
  • Color：Customized
  • Spindle Power：Air Cooling Spindle
  • Inverter：Sunfar
  • Control System：Weihong Control System
  • Table：Vacuum Adsorption Table
  • Motor：Hybrid Servo Motor
  • Transmission：Helical Rack
  • Guide Rail：Taiwan Hiwin Square Guide Rail
  • Spindle Speed：6000-18000
  • Application：Wooden Industry
  • Bed Structure：Welded Bed Structure
  • Transport Package：Plywood Package
  • Specification：1300*2500mm
  • Trademark：ZK
  • Origin：Jinan Shandong
  • HS Code：8465990000
  • Production Capacity：100

Description

ModelZK1325X,Y,Z axis working area1300*2500*200mmWhole structureWelded Steel gantry structureTable surfacevacuum table with 5.5KW vacuum pumpX,Y,Z structureTaiwan PMI/HIWIN Square linear guide railX,Y structureRack and pinion transmission, high speed and more stable;
Y -double motor driveZ structureImported ball screw, high precisionMax. idling speed50m/minMax. working speed25m/minRepositioning Accuracy±0.05mmX Y Z working Accuracy< 0.02mmSpindleAir cooling spindle(Optional:water cooling spindle)Spindle rotating speed6000-18000rpm/minDiameter of toolsΦ3.175 -Φ20Collect sizeER 25Operation languageG code (plt, mmg, uoo, bmp)Driving systemHybrid servo motorOperating systemNcstudio control systemWorking voltage 380V/3phaseSoftwareUcancamV8 / Type3 / Artcam software (option)

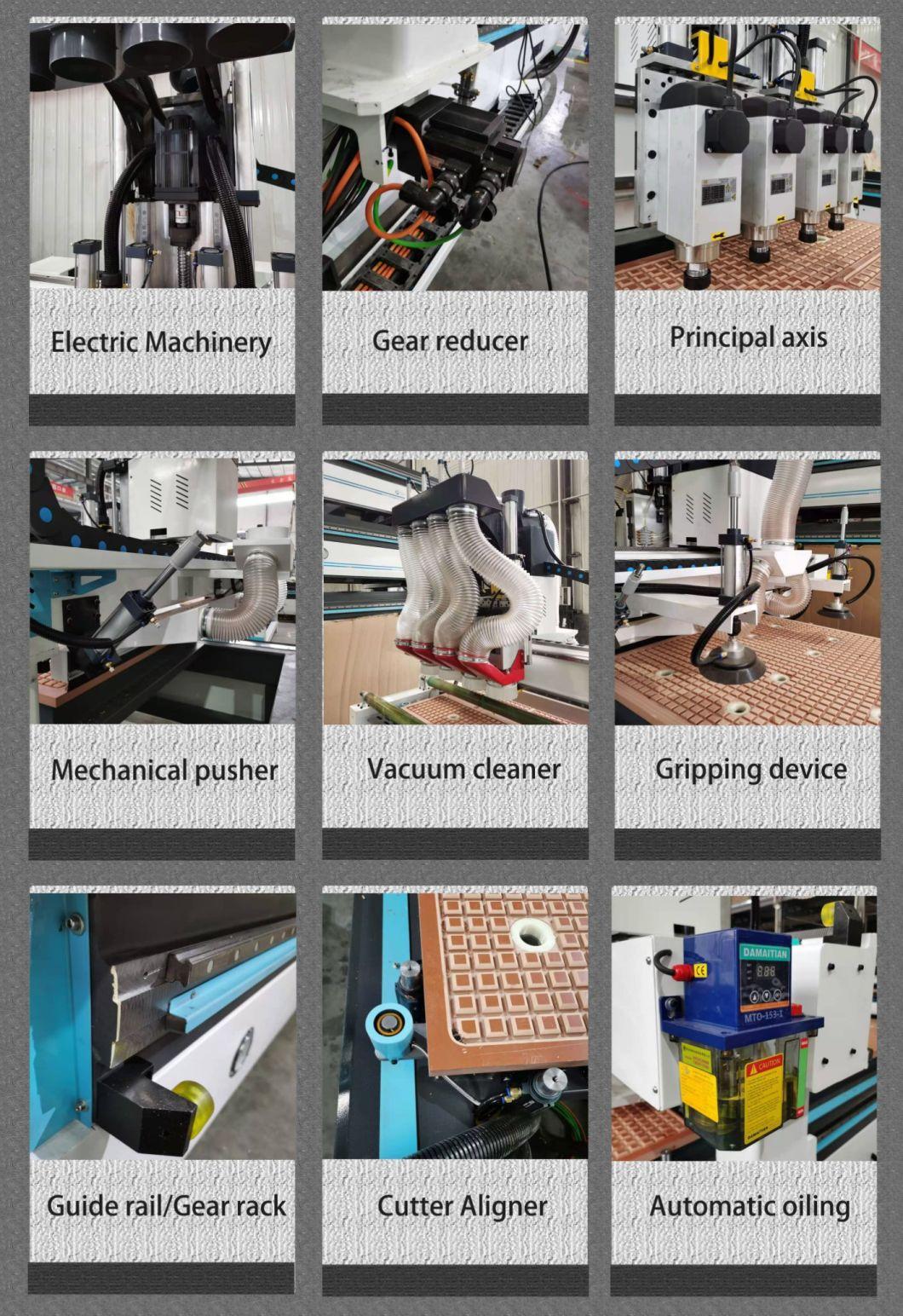

kConfiguration:

1325 Atc Woodworking CNC Router Cutter Oscillating Knife Cutting Machine

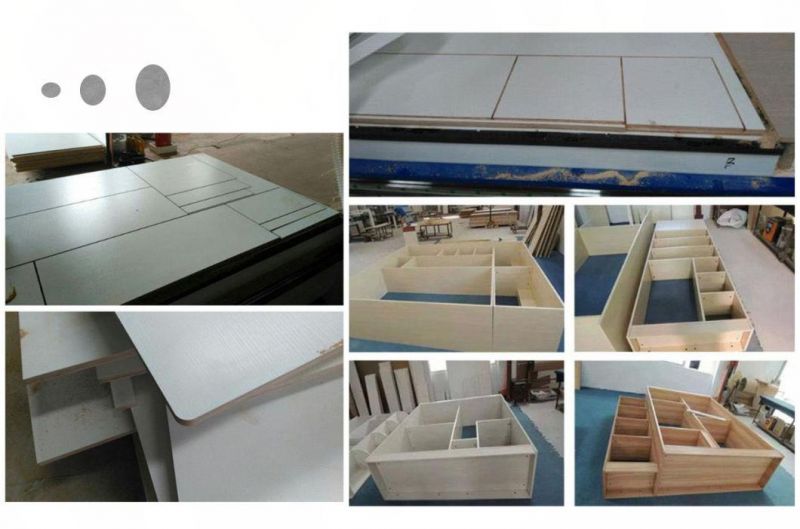

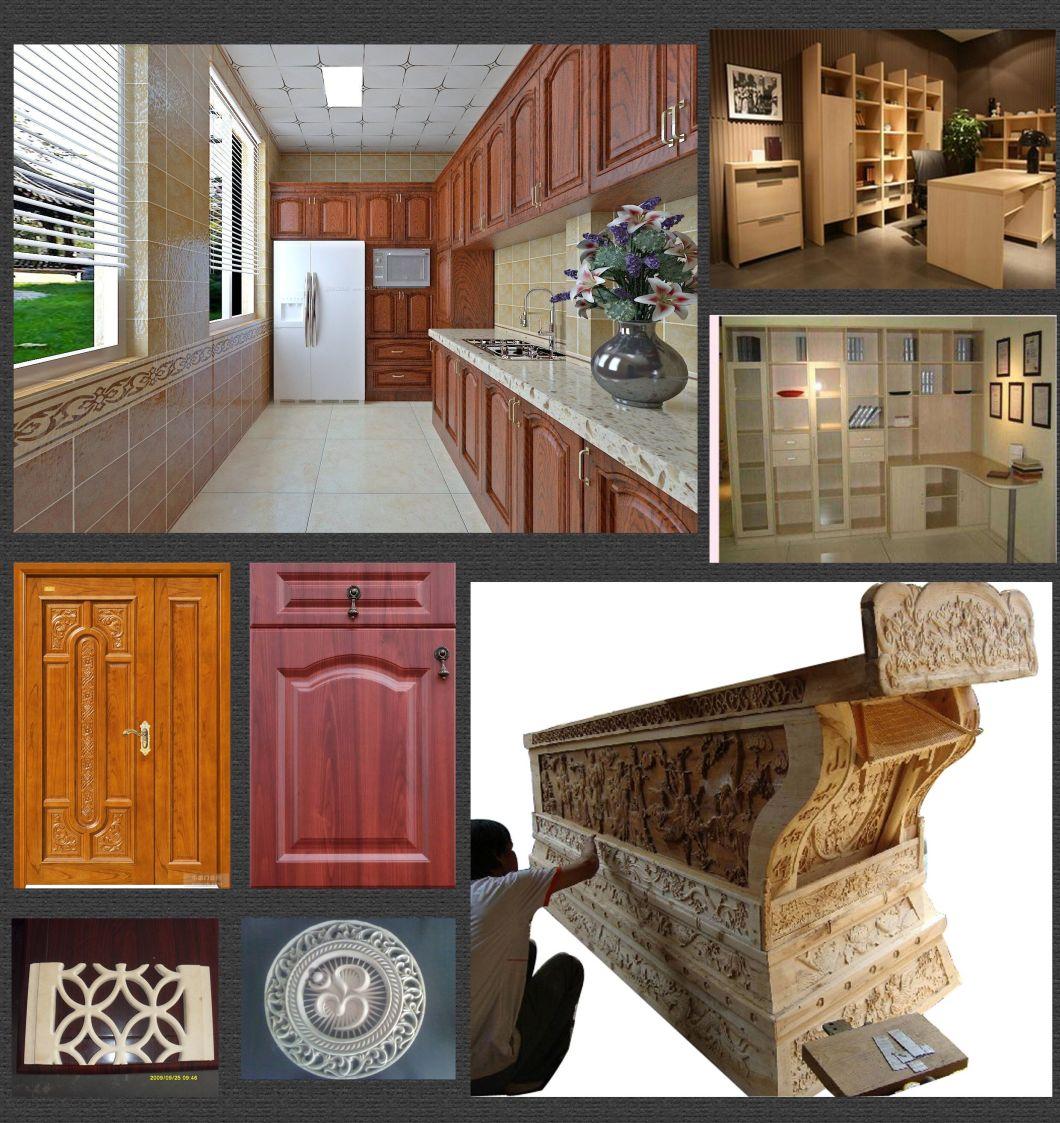

Samples

1325 Atc Woodworking CNC Router Cutter Oscillating Knife Cutting Machine

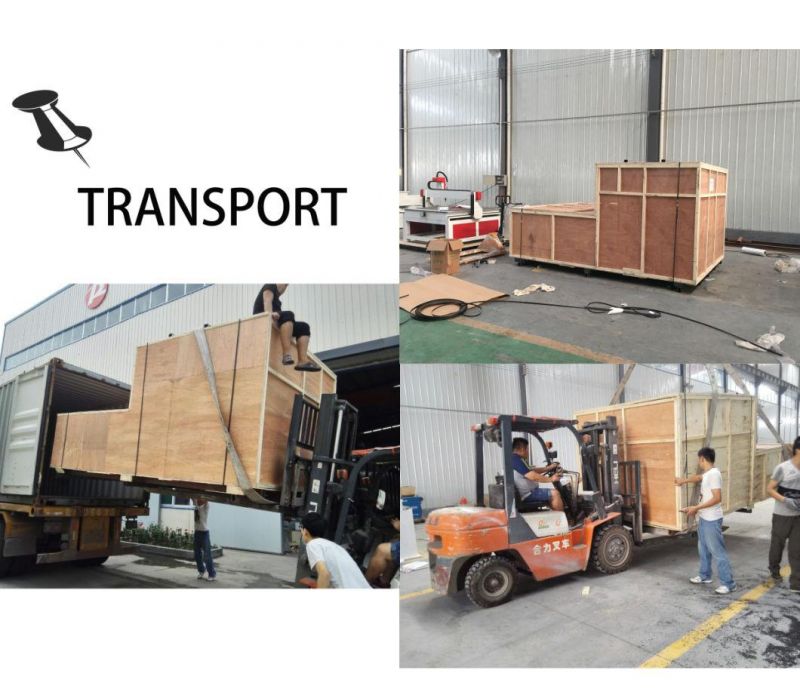

1325 Atc Woodworking CNC Router Cutter Oscillating Knife Cutting MachineTransport:
1325 Atc Woodworking CNC Router Cutter Oscillating Knife Cutting Machine1325 Atc Woodworking CNC Router Cutter Oscillating Knife Cutting Machine
Our factory:
1325 Atc Woodworking CNC Router Cutter Oscillating Knife Cutting Machine
1325 Atc Woodworking CNC Router Cutter Oscillating Knife Cutting Machine
