Wood Veneer 8FT Spindle Peeling Machine
Linyi Sin San Lin Smart Machinery Co., Ltd.- Certification:CE, ISO, FDA
- Voltage:380V
- Precision:High Precision
- Controlling Mode:CNC
- Processing Accessory:Chuck CNC Lathe
- Knife Clamp Way:Mechanical or Hydraulic
Base Info
- Model NO.:BXQ1826
- Transport Package:Container
- Specification:2.7M VENEER PEELING
- Trademark:METROMACH
- Origin:China
- HS Code:8465960000
- Production Capacity:500sets,Year
Description
Basic Info.
Model NO. BXQ1826 Transport Package Container Specification 2.7M VENEER PEELING Trademark METROMACH Origin China HS Code 8465960000 Production Capacity 500sets/YearProduct Description
Product DescriptionWood Veneer spindle Rotary Peeling Machine1.Main features:1. Spindle rotary peeling machine is the main machine for face veneer production, its maximum working diamter upto 700mm and final left diameter reach to 120mm.
2. Big motor drive and transmission to make the machine can peel minimum 0.1mm to maximum 2.6mm big range thickness range at the most suitable working speed.
3. Log hoisiting device on the top of the machine make the logs charging easily.
2.Main technical specifications:
Machine name | Spindle Rotary Peeling Machine For Face Veneer |
Machine model | BXQ1826 |
Max. working diameter | Φ1700mm |
Min. working diameter | Φ120mm |
Max. working length | 2600mm |
Veneer thickness range | 0.1-2.6mm |
Veneer peeling speed | 0-90m/min |
Main motor power | 30kw |
Total motor power | 42Kw |
Machine weight | 17000Kgs |

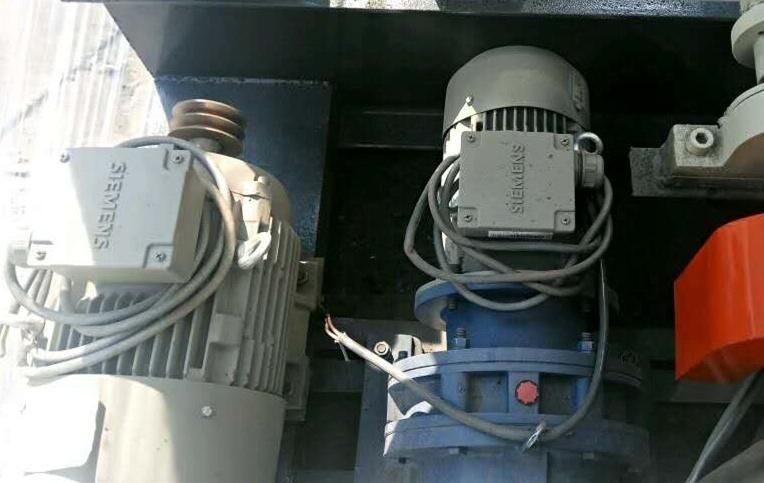

3.More Pictures
