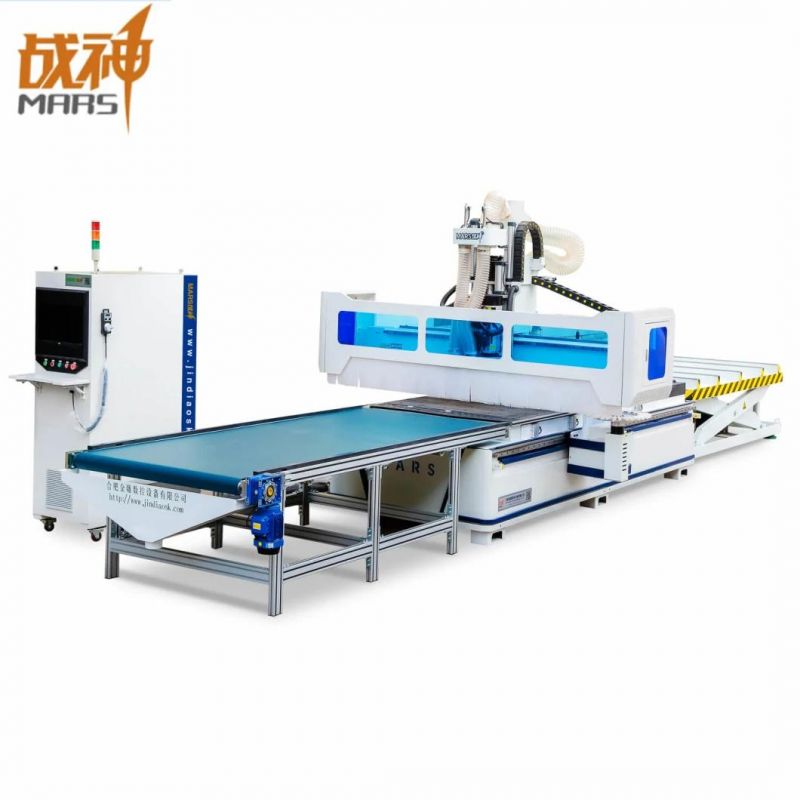

S300 9kw Spindle with CE Approved CNC Machine for Wood Panels
Hefei Aquila CNC Equipment Co., Ltd.- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：380V
- Control System：Syntec, Osai
- Lubrication System：Automatic
Base Info
- Model NO.：S300
- Guide Rail：Taiwan Hiwin Linear Rail
- Drive System：Yaskawa, Delta Servo Motor
- Transport Package：Plywood Case Package
- Specification：1230*2450*200mm
- Trademark：Mars
- Origin：China
- HS Code：84659900
- Production Capacity：300 Sets,Month
Description
Basic Info.
Model NO. S300 Guide Rail Taiwan Hiwin Linear Rail Drive System Yaskawa/ Delta Servo Motor Transport Package Plywood Case Package Specification 1230*2450*200mm Trademark Mars Origin China HS Code 84659900 Production Capacity 300 Sets/MonthProduct Description
S100 9KW Spindle with CE Approved CNC Machine for Wood Panels
Keywords: 15 years experience of productionISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
Technical Parameters:
| Model | S300 ATC Drilling and Cutting CNC Center |
| Working Stoke | 1230*2440*50mm |
| Body Structure | Heavy-duty thicken steel structure, w/ tempering |
| Spindle Power | HSD 9KW air cooling spindle |
| Spindle Speed | 0 ~ 24000 rpm/min |
| Drilling Head | Italy HSD 5+4 gang drill |
| Tool Magazine | Carousel, 8pcs |
| Control System | Syntec/ Osai |
| Drive System | Yaskawa/ Delta servo motor |
| Lubrication System | Automatic |
| Transmission | XY axis rack and pinion, Z axis ball screw |
| Guide Rail | Taiwan Hiwin linear rail |
| Transformer | 630VA |
| Vacuum Pump | 5.5KW |
| Max Travelling Speed | 50m/min |
| Max Processing Speed | 30m/min |

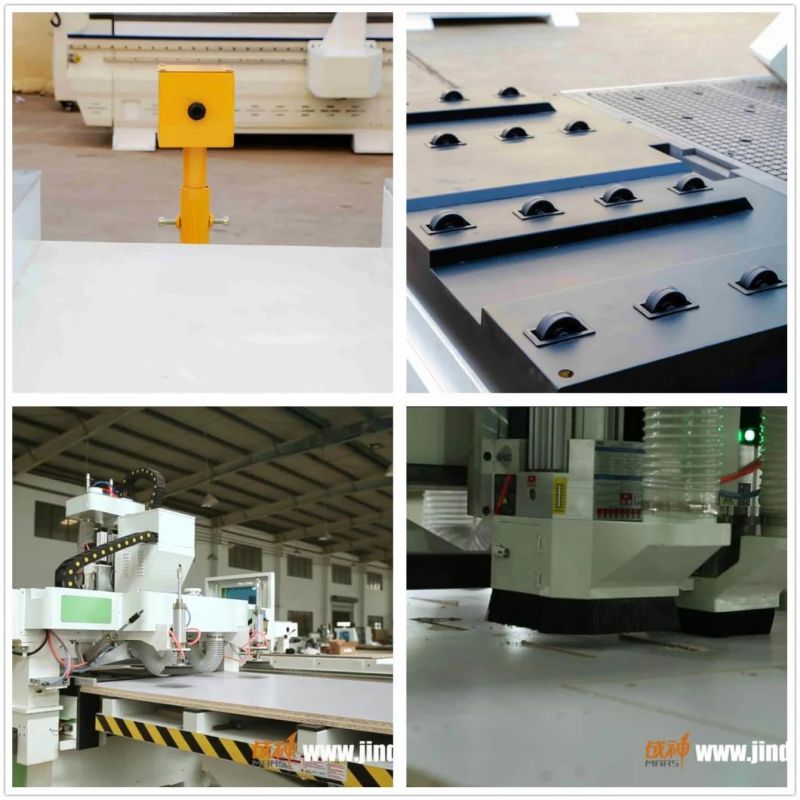

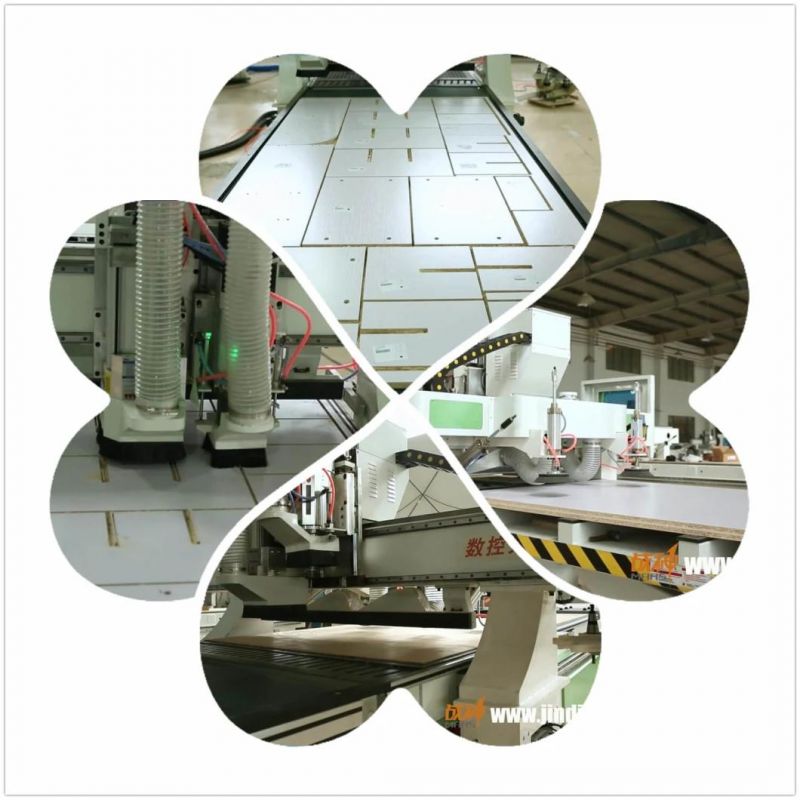

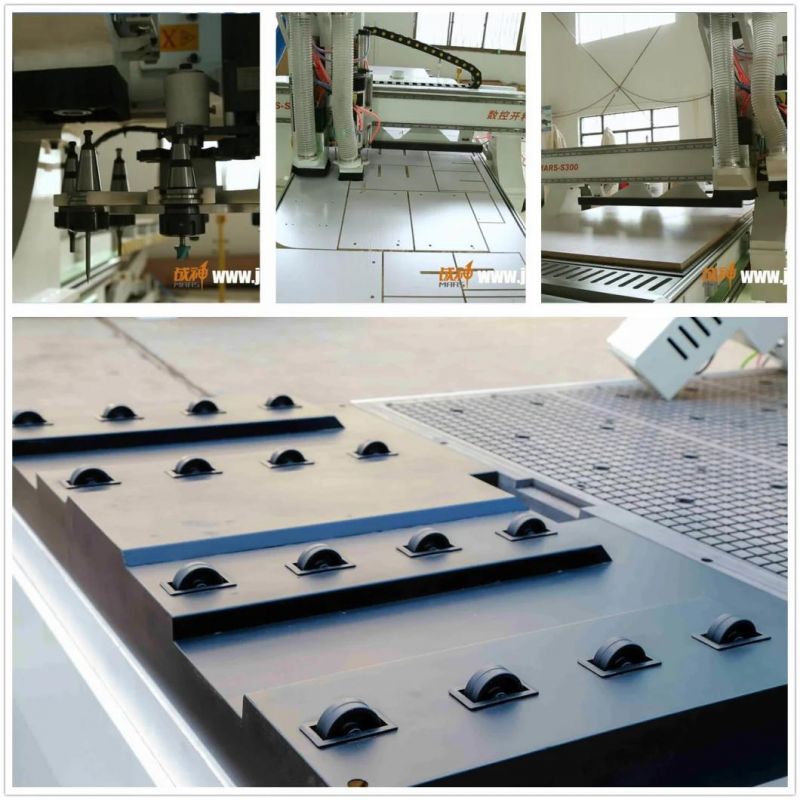

Main Parts:
Applicable Scope:
Be widely used for panel processing, panel furniture, computer desk, office furniture, wooden speaker, wooden kitchen ware, customized wardrobe, modern cabinets, and so on.
Sample:
