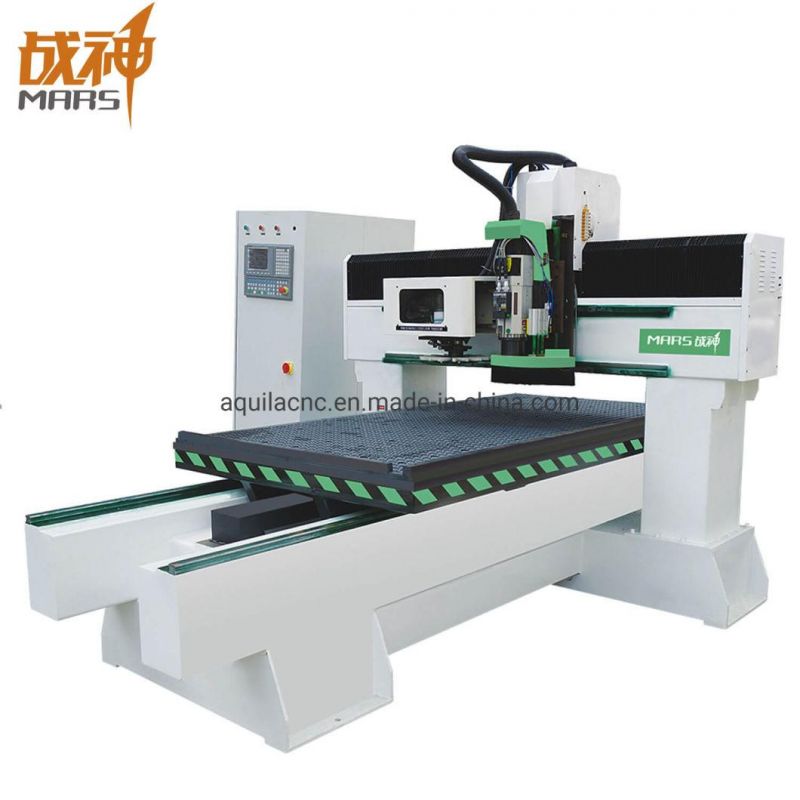

Three Axis Ball Screw 9kw CNC Router Machine Table Moving for Wood Processing

Hefei Aquila CNC Equipment Co., Ltd.
  • Condition:New
  • Certification:ISO, CE, Patent Certification
  • CNC or Not:CNC
  • Voltage:380V
  • Configuration:9kw Air Cooling Spindle + Circular Tool Change
  • Transport Package:Wrapped in Layers of Wrapping Film and Ponchos

Base Info

  • Model NO.:M200
  • Specification:2300*4000*2000mm
  • Trademark:Mars
  • Origin:China
  • HS Code:8465990000
  • Production Capacity:3000 Sets,Year

Description

Basic Info.

Model NO. M200 Specification 2300*4000*2000mm Trademark Mars Origin China HS Code 8465990000 Production Capacity 3000 Sets/Year

Product Description

Three Axis Ball Screw 9kw CNC Router Machine Table Moving for Wood Processing
 Keywords:15 years experience of production
                  ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                  Three Brand: Mars, Golden Eagle,Borio

Three Axis Ball Screw 9kw CNC Router Machine Table Moving for Wood Processing


Description:
Three Axis Ball Screw 9kw CNC Router Machine Table Moving for Wood Processing is a machine for cabinet doors,wooden doors,solid wood,panels,doors,windows,tables,chairs,folding screens,waved plate,large wall hangings,advertising boards,sign makings.Now it's popular in the market. Functions:
The functions of this machine include cutting,milling,drilling and slotting.
Three Axis Ball Screw 9kw CNC Router Machine Table Moving for Wood Processing

Applicable Materials:
Artificial stone,wood,bamboo,marble,c,color plates and other materials.

Application Scope:
1. Furniture Industry: wooden doors, cabinets, panel furniture, office furniture, solid wood furniture, windows, tables and chairs, custom furniture, etc.
2. Wood Products: stereo box, game cabinets, computer desks, sewing machines, musical instruments.
3. Panel Processing: insulation materials, plastic parts, chemical parts, PCB, inner body of motor car, bowling track, stairs, anti-Bethe plates, epoxy resin, ABS, PP, PE, etc. carbon mixed compound.
4. Decoration Industry: acrylic, PVC, MDF(density board), artificial stone, organic glass, and other soft-metal sheets made of aluminum or copper.
Three Axis Ball Screw 9kw CNC Router Machine Table Moving for Wood Processing

Parameters:
ModelThree Axis Ball Screw 9kw CNC Router Machine Table Moving for Wood Processing
Working Stoke1300*2500*100mm
Body StructureHeavy-duty thicken steel structure, with tempering
Spindle PowerHSD 9KW air cooling spindle
Spindle Speed0 ~ 24000 rpm/min
Tool MagazineCarousel, 8pcs
Control SystemSyntec/ Osai/ NC Studio
Drive SystemYaskawa/ Delta servo motor
Lubrication SystemAutomatic
TransmissionXY axis rack and pinion, Z axis ball screw
Guide RailTaiwan Hiwin linear rail
Vacuum Pump7.5KW
Max Travelling Speed50m/min
Max Processing Speed30m/min
Dictate FormatG code/ HPGL
Working Accuracy±0.02mm
Re-positioning Accuracy±0.05mm
Support SoftwareProfessional cutting optimization software
Working VoltageAC380/ 3PH/ 50HZ
Net Weight3100KG
Machine Size2300*4000*2000mm

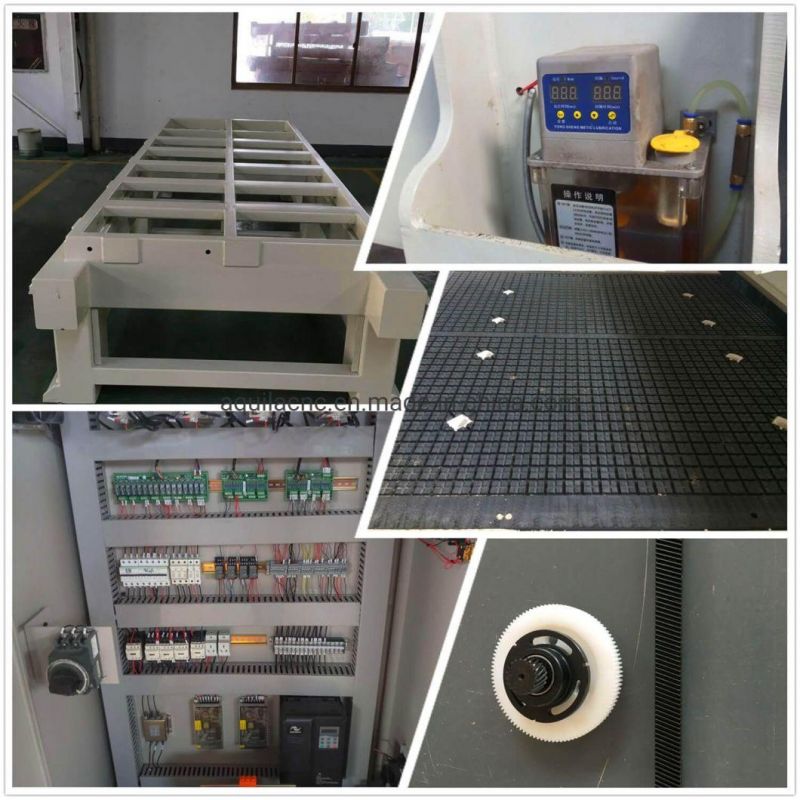

Accessories:
Three Axis Ball Screw 9kw CNC Router Machine Table Moving for Wood Processing

Performance Features:
1. Equipped with all the leading international brand components, with disc type tool magazines. Moving working table, with higher processing accuracy, much longer lifetime.
2. All 3 axis ball screw drive can achieve much higher precision.
3. High-power air-cooling spindle, Japan YASKAWA servo motor and driver.
4. Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.
5. Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.
6. Syntec CNC control system can automatically accomplish multi-layer 3D job, cutting, engraving, milling, all at ease. Offline operation can be realized.

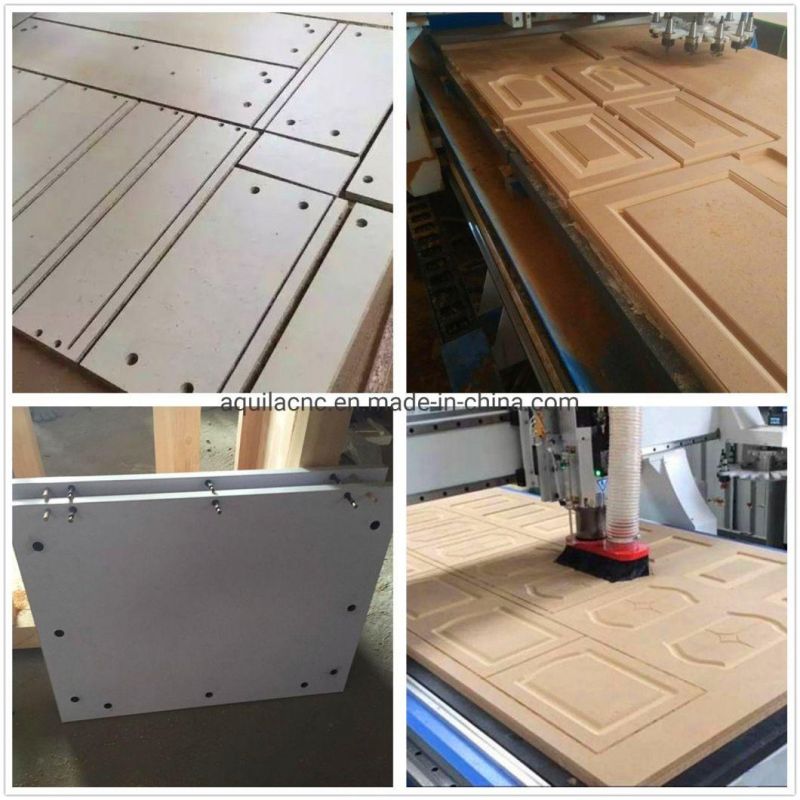

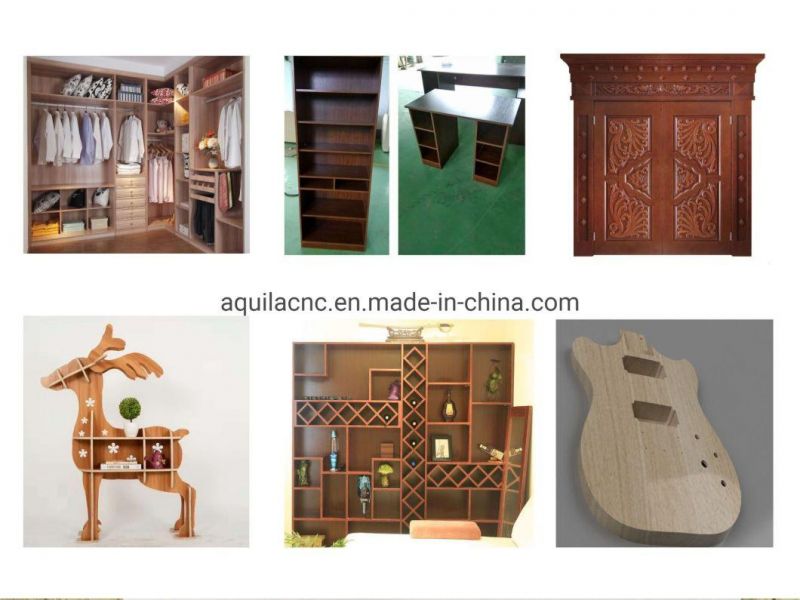

Samples:
Three Axis Ball Screw 9kw CNC Router Machine Table Moving for Wood Processing

 Pack and delivery:
Three Axis Ball Screw 9kw CNC Router Machine Table Moving for Wood Processing


Warranty Information:
1.Warranty and Service:
Guarantee:12 months for the whole machine.
Within 12 months under normal use and maintenance, if something is wrong with machine, you will get spare part for free.
Out of 12 months, you will get spare part at cost price.
Technical support: You will also get technical support and service all the lifetime
(1).Technical support by phone, email or Whatsapp/Skype around the clock.
(2).Friendly manual and operation video online.
(3).Engineer available to service machinery overseas.
2.After sales Services:
(1).Normal machine is properly adjusted before dispatch. You will be able to use the machines immediately.
(2).You will be able to get free training advice towards our machine in our factory.
(3).You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
3.Quality control:
(1).Skilled and Strict Quality Inspection Team is available during the material purchasing and production procedure according to ISO 9001:2015.
(2).All finished machine we shipped out are 100% strictly tested by our QC department and engineering department.

FAQ Before Ordering:
Q 1. I have no idea which machine can meet my need,what should I do?
A: Please tell the what's material you want to working on ?
     What's the MAX size of these material ?( length ? Width ? Thickness ?)
     Then I will recommend the most suitable machine for you.

Q 2. I do not know how to handling CNC Router,what should I do?
A: We will supply you a training video and English handbook to teach you how to operate.Or we will welcome you to arrive China to field-based learning .

Q 3. If my machine has some problems in the warranty period,what should I do?
A: If the machine part broken within warrantry time,we will send new part to you for free.

Q 4.How about your after-sales service ?
A: Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock. And we can arrange technician go to your company to solve problem if neeeded.

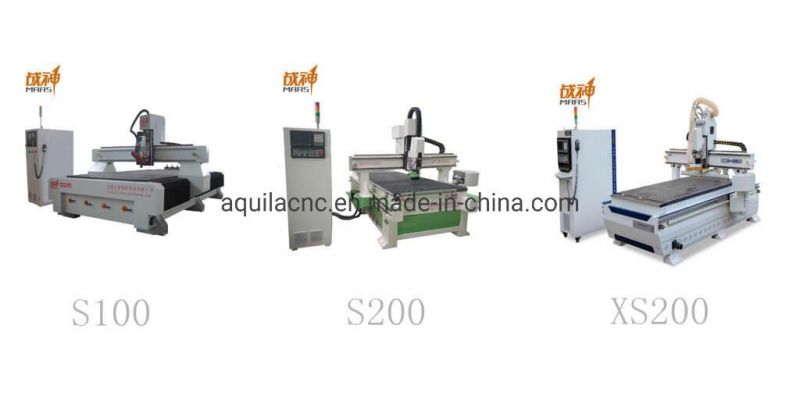

Similar products:
Three Axis Ball Screw 9kw CNC Router Machine Table Moving for Wood Processing


Our company:
Our company is 15 years professional manufacturers of panel furniture production line equipment, CNC cutting machine, five surface drilling, PTP machine, CNC machining center, wood carving machine, stone carving machine, jade carving machine, three-dimensional carving machine, mold machine.
Three Axis Ball Screw 9kw CNC Router Machine Table Moving for Wood ProcessingThree Axis Ball Screw 9kw CNC Router Machine Table Moving for Wood Processing

Our certifications:
Three Axis Ball Screw 9kw CNC Router Machine Table Moving for Wood ProcessingThree Axis Ball Screw 9kw CNC Router Machine Table Moving for Wood Processing

Why choose Hefei Aquila CNC Equipment Co., Ltd?

1.Our company has 15 years experience of production, and is a set research and development, manufacturing, sales,and has the national certification of  "High-tech enterprises."
2.With over 15 years experience and dozens of national patents, our company has passed the ISO9001:2008 Quality Management System and CE Certificate, and is also entitled as the AAA Level Enterprise which Honors Contract and Keeps Promise.
3.We have the professional R&D team and quality control system, to provide you with the most valuable products and services.
4. Our sales& service network has covered all dometic major cities and overseas markets, such as the USA, European, Southeast Asia, Middle East etc.Let you have the most perfect after-sales service.

Our Services:
1. Convenient: 24th Hours sales/After-sales Service online or on the phone.
2. Quality Assurance: We will discuss with you and supply you the best quality comfortable to your market.
3. Quick delivery: Time is money, we promise we always will deliver the goods quicker than others.
4. According to customers' drawing,customized specifications are welcomed.
5. Low MOQ,small orders can be accepted.

We are searching distributors all over the world. If you have any demands, welcome to contact us and visit our factory.
