• Model NO.：S100
• HS Code：8458110090
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. S100 HS Code 8458110090 Production Capacity 300 Sets/Month

Product Description

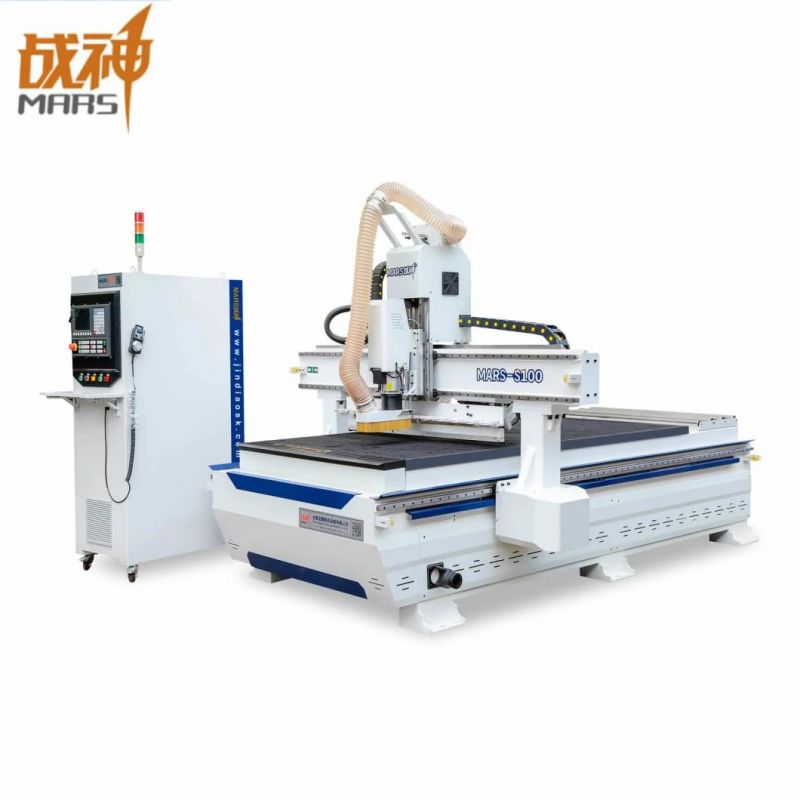

S100 Panel Wood Furniture CNC Cutting Machine/CNC Engraving Machine
 Keywords: 15 years experience of production
                          ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                          Three Brands: Mars, Golden Eagle, Boiro
                          Technicist who go abroad to offer after-sale service







Technical Parameters:


Model	S100 Linear Type ATC CNC Machining Center
Working Stoke	1300*2500*100mm
Body Structure	Thick-walled steel tube welded
Spindle Power	HSD 9KW air cooling spindle
Spindle Speed	0 ~ 24000 rpm/min
Control System	Syntec/ Osai
Drive System	Yaskawa/ Delta servo motor
Lubrication System	Automatic

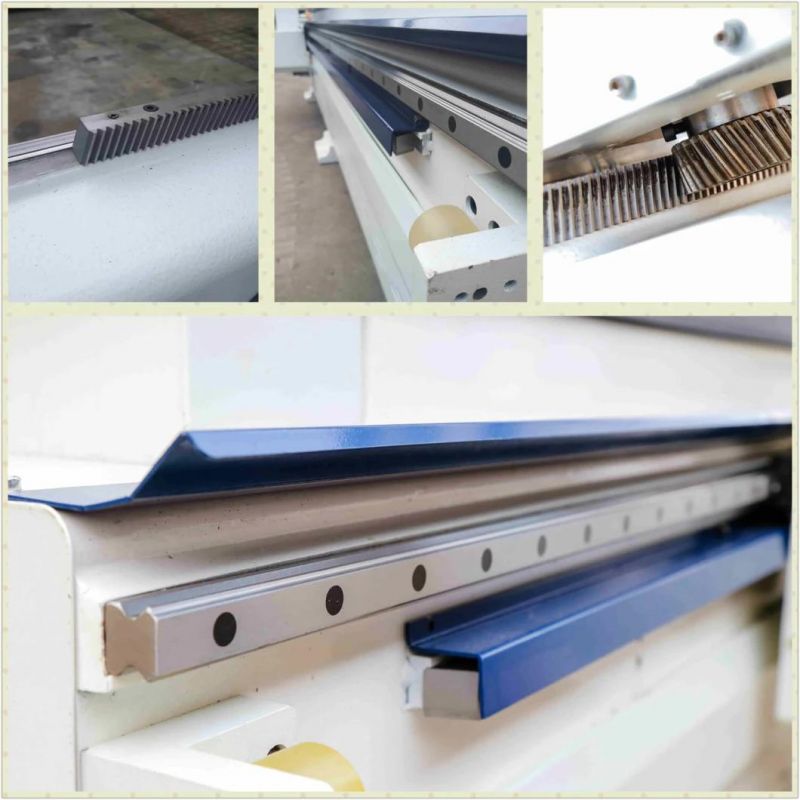

Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan Hiwin linear rail
Vacuum Pump	5.5KW
Max Travelling Speed	25m/min
Max Processing Speed	15m/min

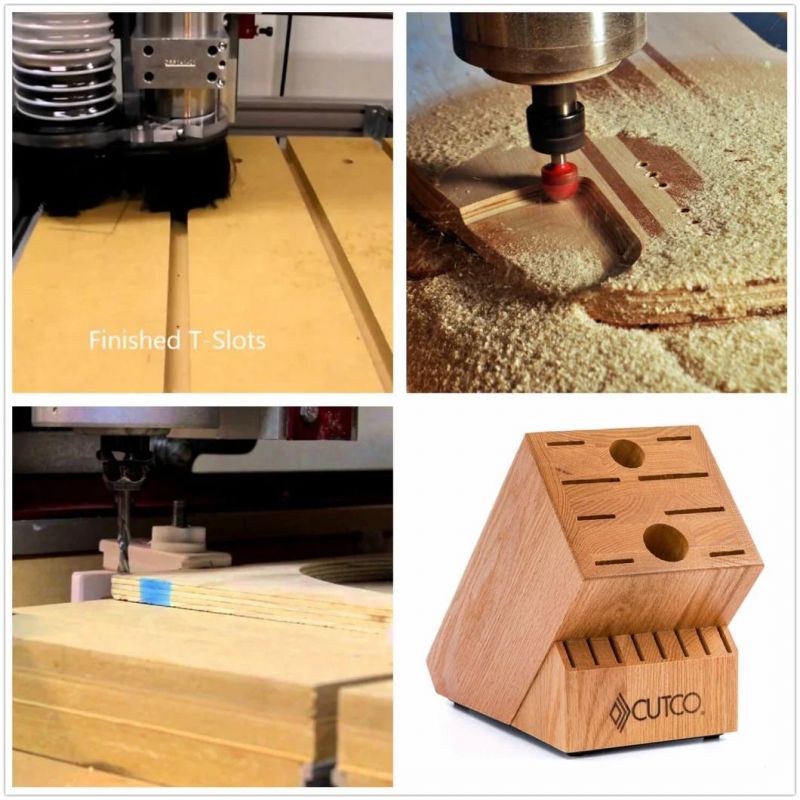

Functions:

The functions of this machine include cutting,milling,drilling and slotting.

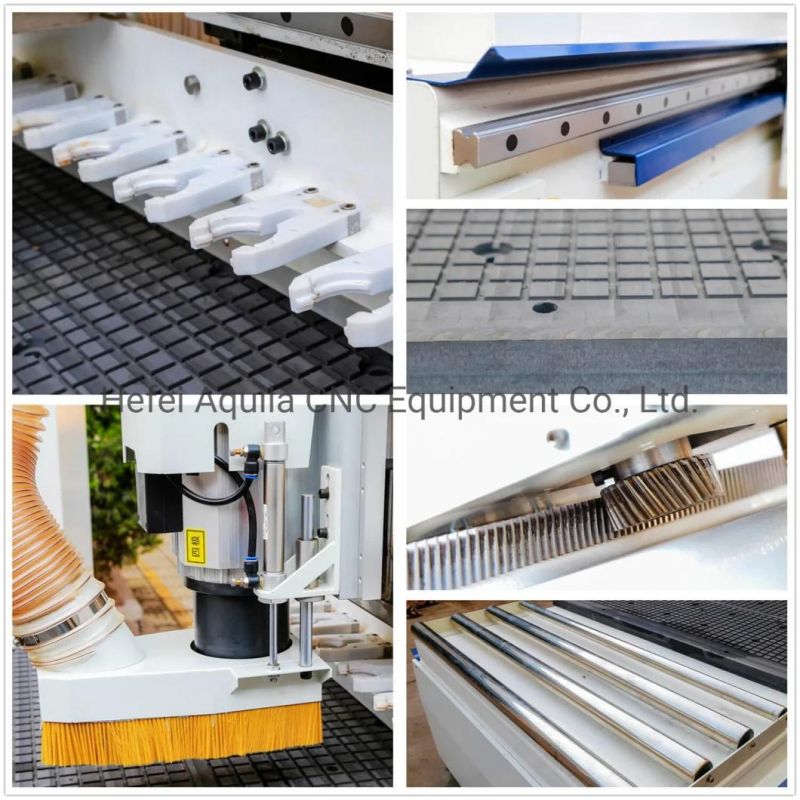

Machine Main Parts:




Applicable Scope:

Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings

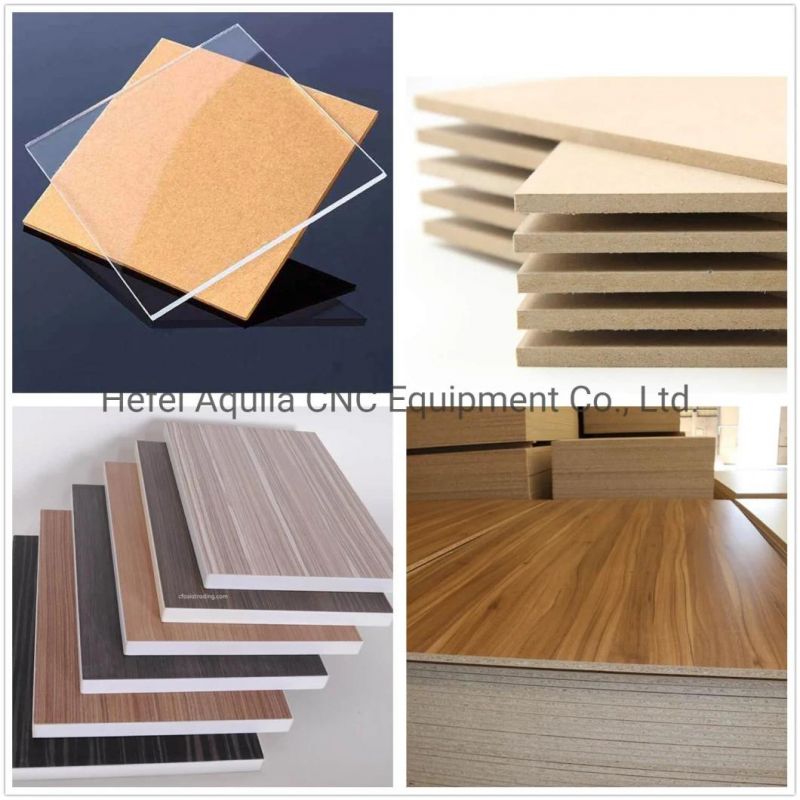

Applicable Materials:
Artificial stone, wood, bamboo, marble, organic board, color plates and other materials.

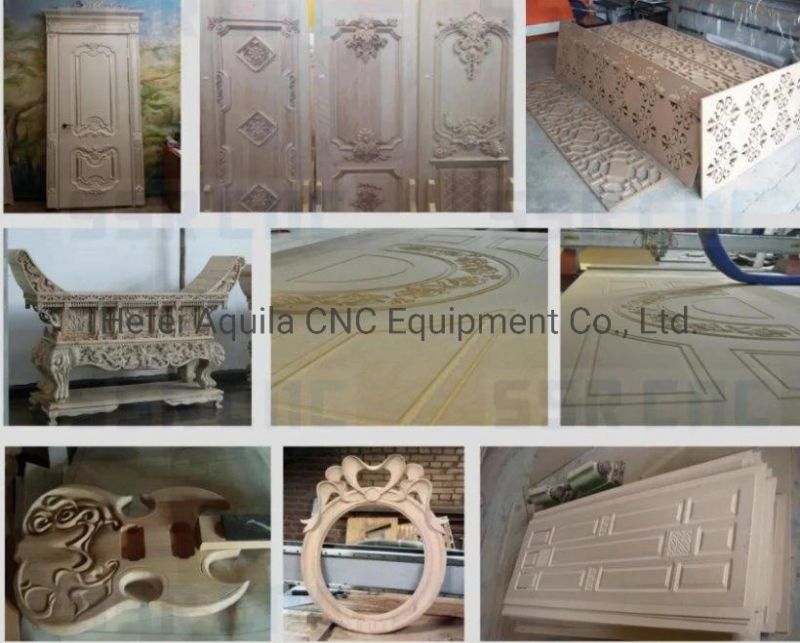

Samples:

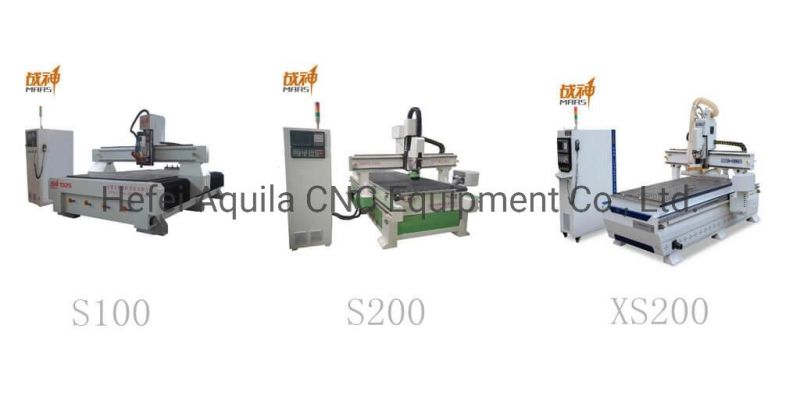

Similar Products:
