• Model NO.：S300
• Guide Rail：Taiwan Hiwin Linear Rail
• Drive System：Yaskawa, Delta Servo Motor
• Transport Package：Plywood Case Package
• Specification：1230*2450*200mm
• Trademark：Mars
• Origin：China
• HS Code：84659900
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. S300 Guide Rail Taiwan Hiwin Linear Rail Drive System Yaskawa/ Delta Servo Motor Transport Package Plywood Case Package Specification 1230*2450*200mm Trademark Mars Origin China HS Code 84659900 Production Capacity 300 Sets/Month

Product Description

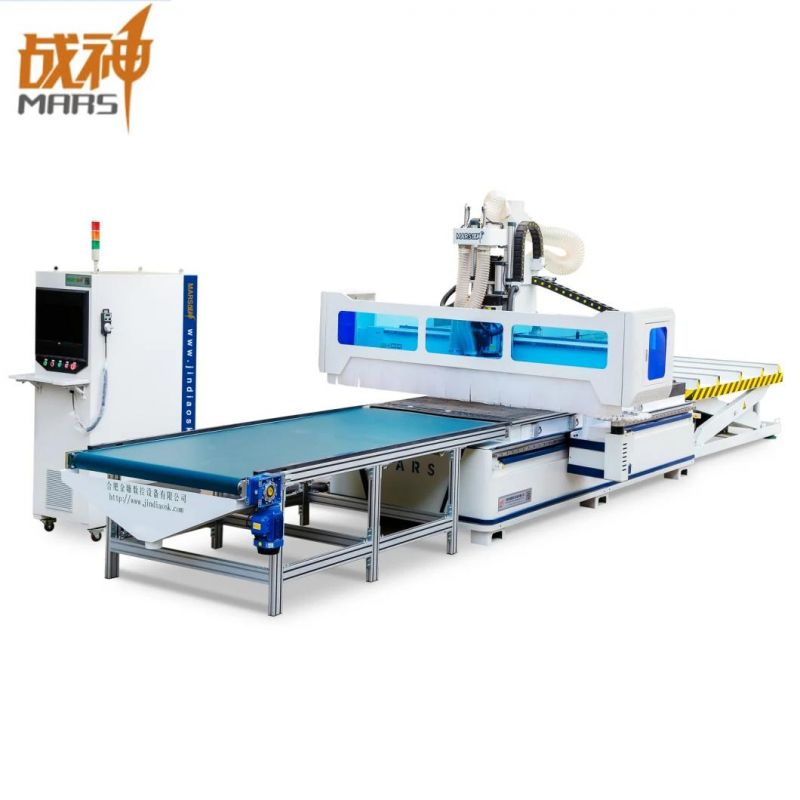

S300 Vacuum Table Qualified by CE Cutting Machine for Mahogany Furniture

Keywords:  15 years experience of production
                         ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                        Three Brand: Mars, Golden Eagle,Borio







Technical Parameters:


Model	S300 ATC Drilling and Cutting CNC Center
Working Stoke	1230*2440*50mm
Body Structure	Heavy-duty thicken steel structure, w/ tempering
Spindle Power	HSD 9KW air cooling spindle
Spindle Speed	0 ~ 24000 rpm/min
Drilling Head	Italy HSD 5+4 gang drill
Tool Magazine	Carousel, 8pcs
Control System	Syntec/ Osai
Drive System	Yaskawa/ Delta servo motor
Lubrication System	Automatic
Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan Hiwin linear rail
Transformer	630VA
Vacuum Pump	5.5KW
Max Travelling Speed	50m/min
Max Processing Speed	30m/min

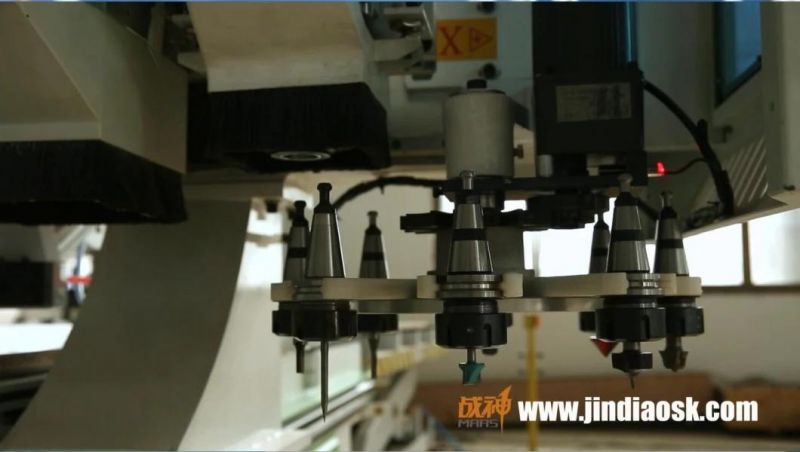

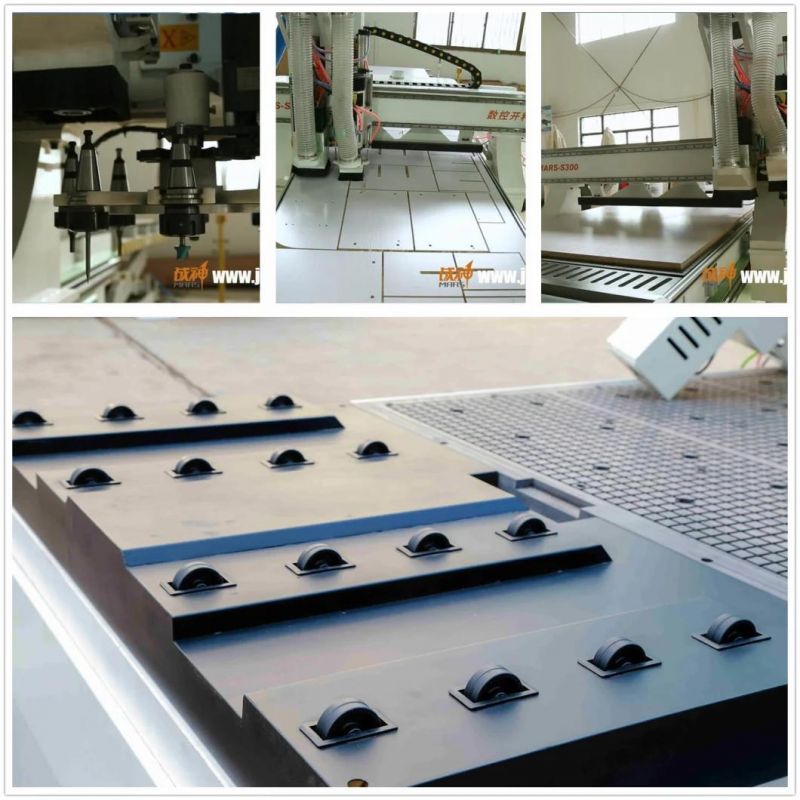

Main Parts:








Applicable Scope:

Be widely used for panel processing, panel furniture, computer desk, office furniture, wooden speaker, wooden kitchen ware, customized wardrobe, modern cabinets, and so on.






Sample:
