CNC Side Borer Automatic CNC 6-Sides Boring Machine Drawer Panel Automatic CNC Drilling Machine Industrial Machines Borings in China
Qingdao Xinlihui Machinery Co., Ltd.- Structure：Horizontal Boring Machine
- Precision：High Precision
- Controlling Mode：CNC
- Automation：Automatic
- Coordinate Boring Machine Location Type：Double Column Coordinate
- Coordinate Boring Machine Location Way：Photoelectric
Base Info
- Model NO.：SKH-690
- Diamond Boring Machine Layout：Multiple-Sided
- Diamond Boring Machine Spindle Configuration：Horizontal
- Diamond Boring Machine Spindle Number：Multiple-Spindle
- Certification：CE, ISO, FDA
- Machine Item：Drawer Panel Automatic CNC Drilling Machine
- Machine Painting Color：Be Made According to Your Need
- Package：Safe Wooden Box or Plastic Film Wrapping
- Price：Our Most Favorable Price for You
- Delivery Time：5-7 Days
- Warranty：Offer Free Spare Parts and Service Within 12 Month
- Working Experience：Twenty Years′ Experience
- Voltage：380V,50Hz 3phase Can Be Customized
- Main Spindle Speed：12000-24000
- Net Weight：4000 Kgs
- Transport Package：Standard Package, Be Made According Cutomer Need
- Specification：4800*2400*2600mm
- Trademark：XINLIHUI
- Origin：Qingdao City
- HS Code：84659100
- Production Capacity：100,Week
Description

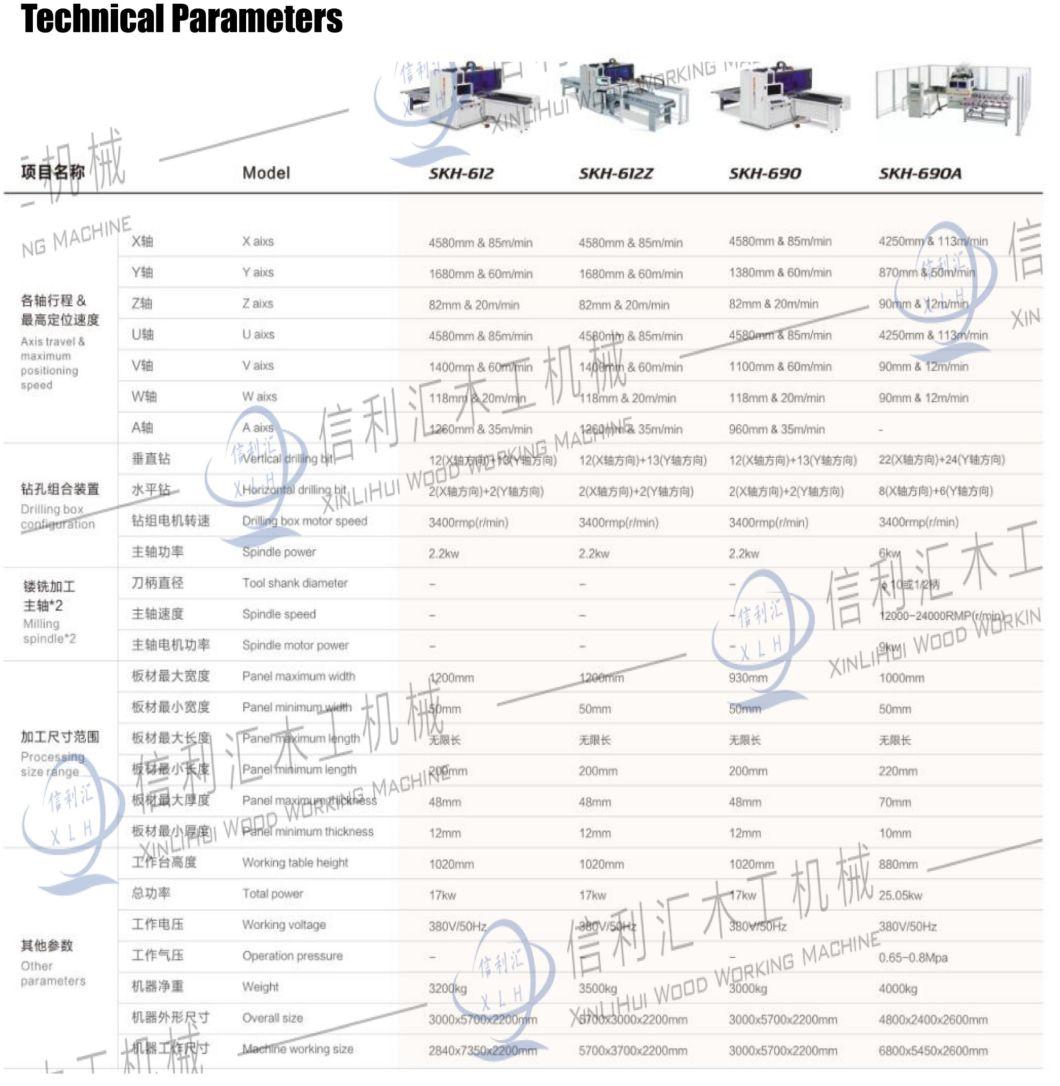

Model
SKI-690
Vertical spindle unit
12(X axis)+13(Y axis)
Horizontal spindel
2(X axis)+2(Y axis)
Milling Moter power
2.2kw
Min.width of work-piece
50mm
Max.width of work-piece
930mm
Min.length of work-piece
200mm
Max.length of work-piece
2400mm
Max.thickness of work-piece
48mm
Min.thickness of work-piece
12mm
X axis
2580mm 85m/min
Y axis
1380mm 60m/min
Z axis
82mm 20m/min
U axis
2580mm 85m/min
V axis
1100mm 60m/min
W axis
118mm 20m/min
A axis
960mm 35m/min
Working table height
1020mm
Total power
17kw
Weight
2600kg
Opetation eare size
2500*3000*2200mm
Overall dimensions
2500*3700*2200mm

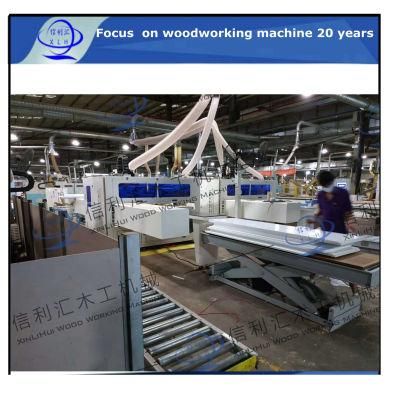

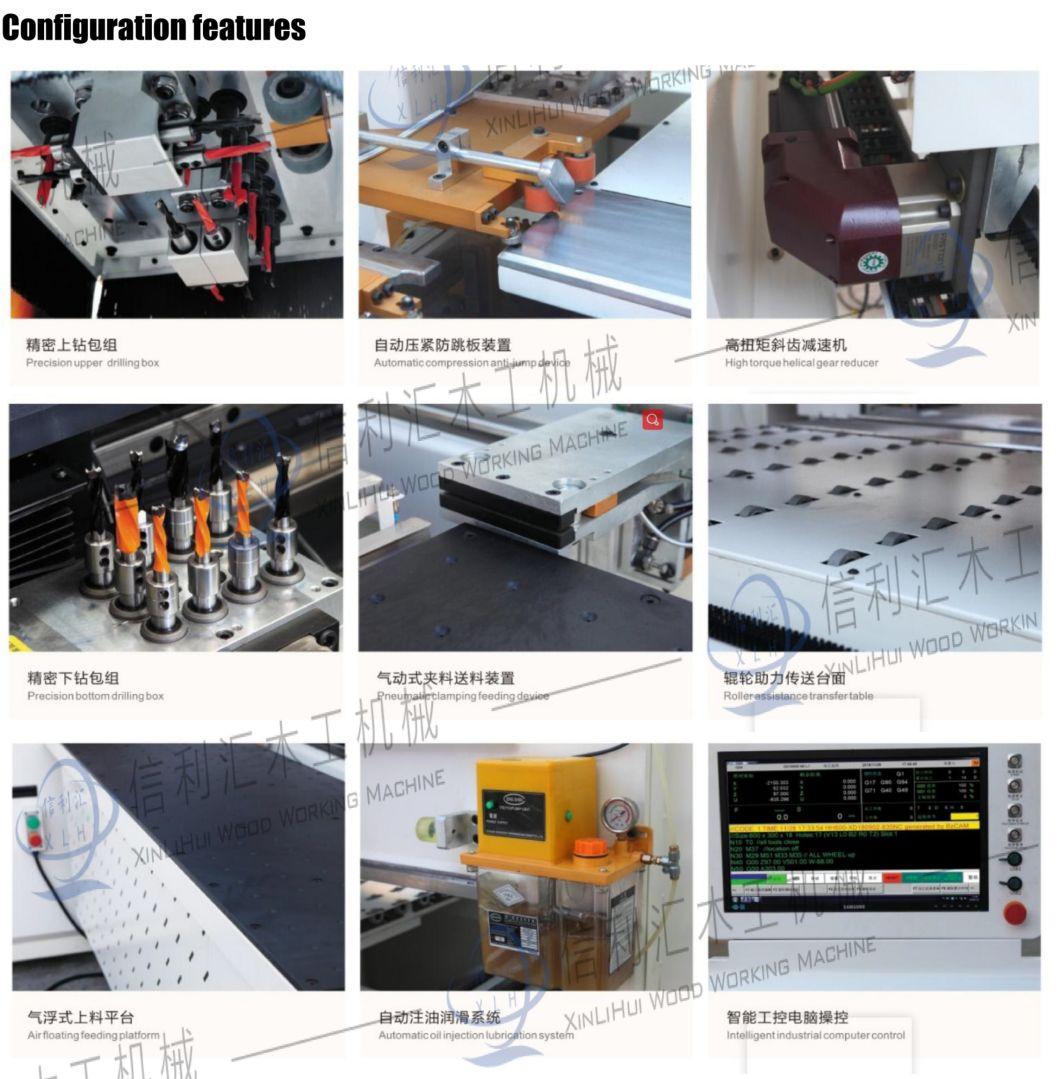

Detail machine pictures, all photoes are for 100% real shooting !
