• Model NO.：ck3020
• Trademark：CHANKE
• Origin：Shandong China
• HS Code：8456999900
• Production Capacity：50set Per Month

Basic Info.

Model NO. ck3020 Trademark CHANKE Origin Shandong China HS Code 8456999900 Production Capacity 50set Per Month

Product Description

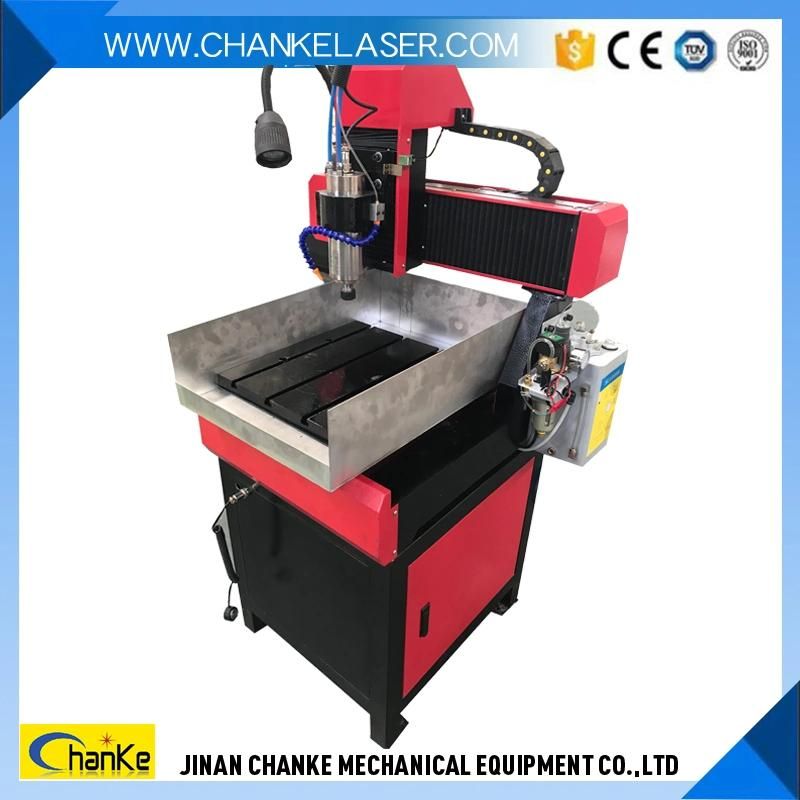

 Metal series ( Metal CNC Router) machines are not of imposing stature but are strong and capable for delicate engraving on small pieces. Small size brings grat convenience to home and office use.

Product features:

1.linear guide rails and German automatic anti-backlash double-nut screws ensure the high precision and perfect effect of metal engraving.

 2.High speed drive faster the speed by nearly two meters.

 3.Supporting with the international standard G code command is compatible with different engraving software at home and abroad.

 4.Breakpoint memory and save method of 9processed points at most ensures the continuity and convenience of work.

 5.Axis X adopts the popular dustproof,which ensures the good performance for long time.





Application:

Aluminum-plastic panel,light guide plate,copper,aluminum plate,stainless steel and other materials with no burr and no blade-stick while engraving or cutting in water.


Model	CK-3020/          CK-6090	Optional
Working area (X*Y*Z,mm)	300*300*80/600*900*100	customization is available
Machine structure	All cast aluminum
Working holding	By clamps
Overall dimension	750*750*1300/1300*950*1150
Precision(mm)	0.05
Position accuracy(mm)	0.02
Repeatability(mm)	0.02
Lding speed (mm/min)	5000
Working speed(mm/min)	3000

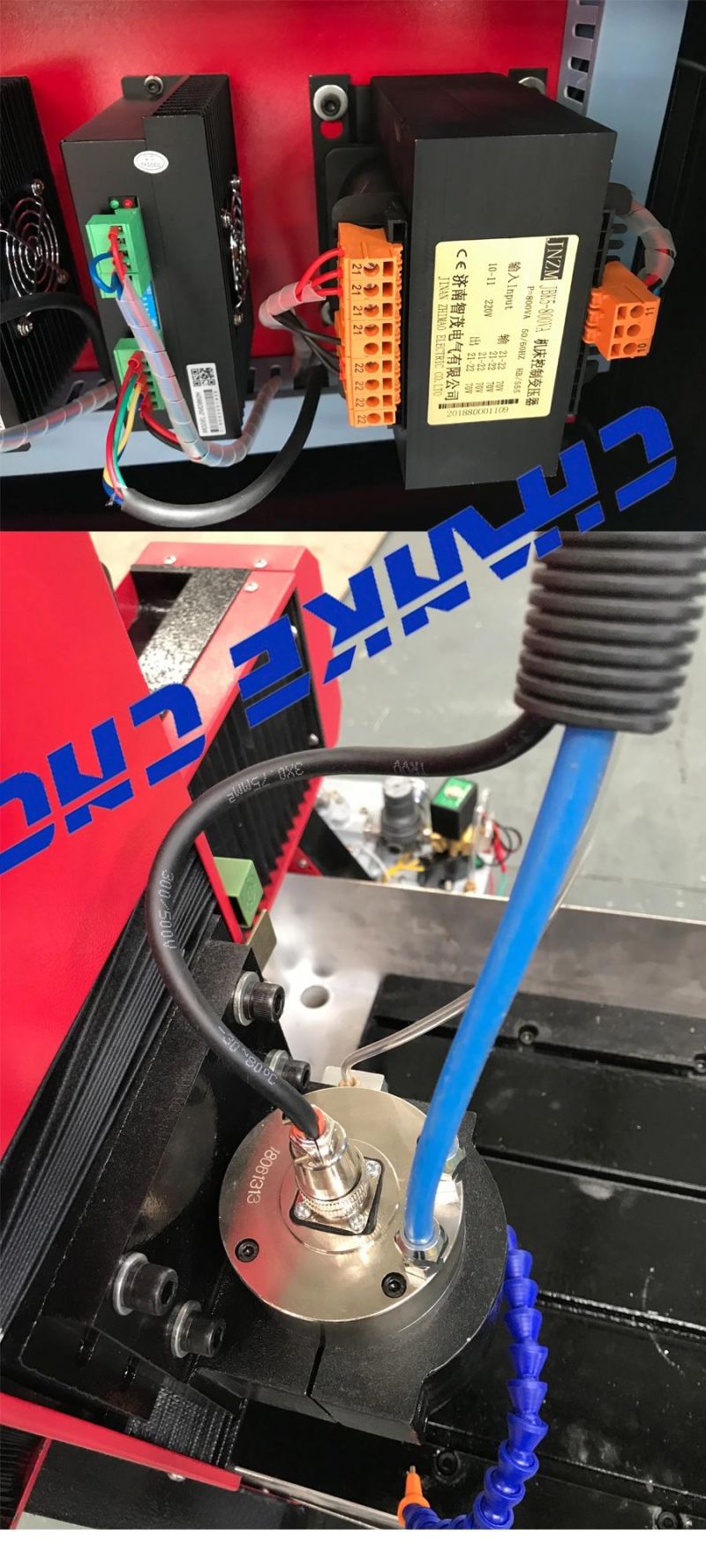

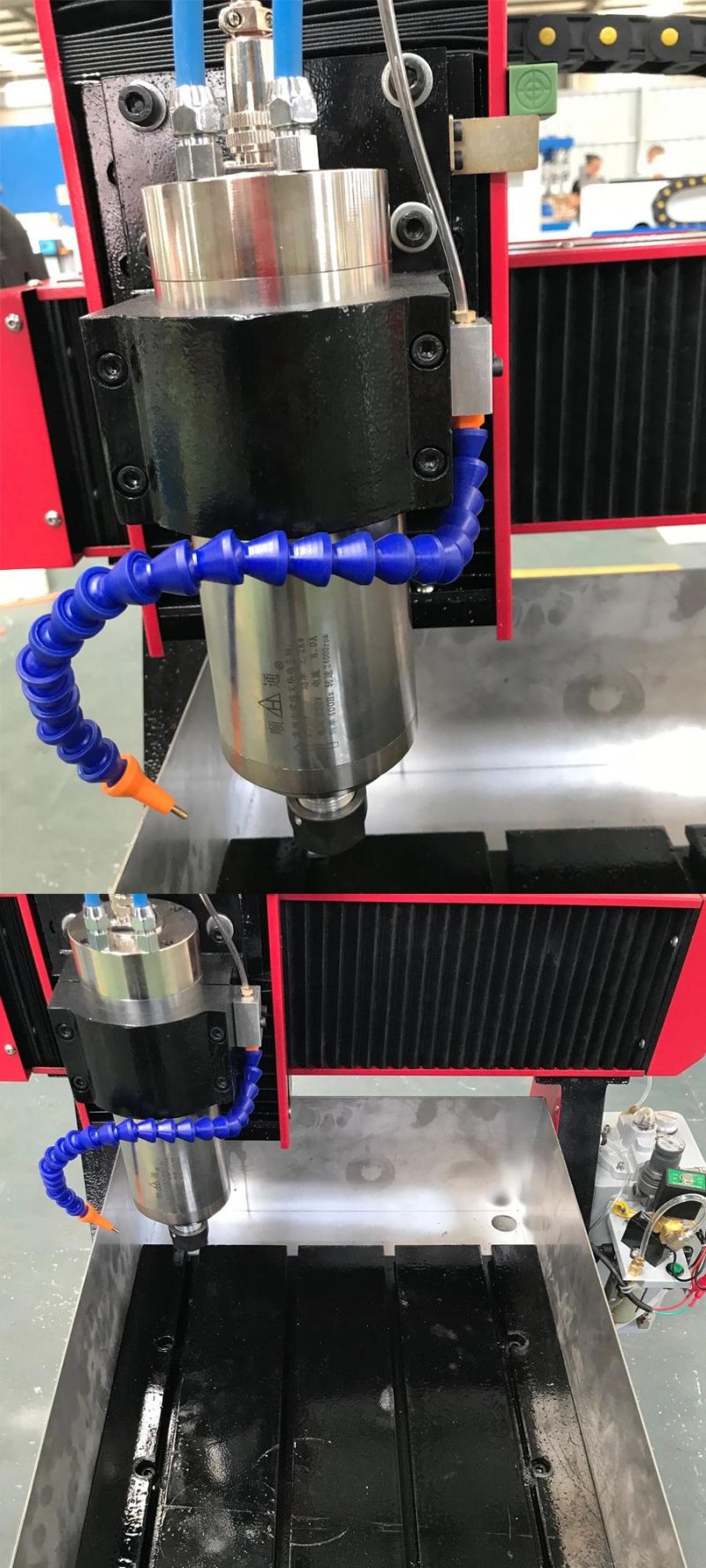

Spindle	0.8kw,water-coolin(0-24000rpm) /1.5KW	air-cooling(0-18000rpm),multi-head,specified power
Available tools(mm)	φ3.175~φ6	Automatic tool changer

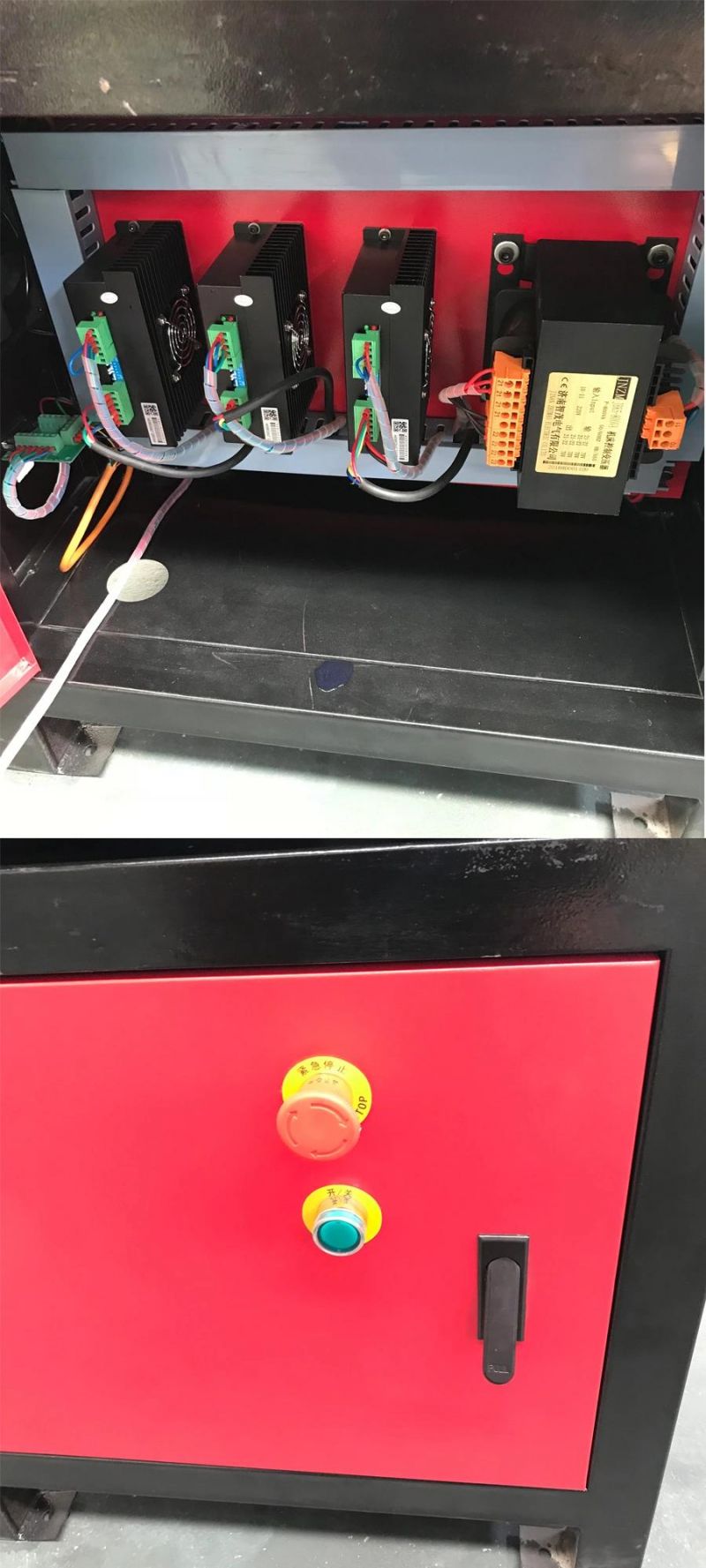

Drive system	Stepper motor	Servo motor
Working voltage	AC220V±30V,50HZ
Command code	G Code(*.nc,*.mmg,*.u00,etc),*.eng
Control system	NcStudio syetem
Compatible software	Window98/XP/7 G code
