CNC Router Styrofoam Foam Engraving Cutting Machine High Z Axis Mold Milling CNC Machine Price

Shandong Guandiao CNC Equipment Co., Ltd.
  • Condition:New
  • Certification:ISO, CE
  • CNC or Not:CNC
  • Voltage:380V
  • Warranty:12 Months
  • Power (Kw):4.5kw

Base Info

  • Range of Spindle Speed:1000 - 24000
  • Positioning Accuracy:0.05mm
  • No. of Spindles:Single
  • Travel (Y Axis)(mm):3000mm
  • Travel (X Axis)(mm):1800mm
  • Key Selling Points:Multifunctional
  • Spindle Motor Power:3.2kw
  • Relative Humidity:30%-75%
  • Running Temperature:0-45ºC
  • Control System:Nc Studio , DSP(Optional)
  • Packing Size:3.2*2*1.7m
  • Packing:Wooden Box
  • Weight:1000kg
  • Transport Package:Plywood Packing
  • Specification:3200*2400*1850mm
  • Trademark:Guandiao
  • Origin:Jinan
  • HS Code:8465990000
  • Production Capacity:10000

Description

Basic Info.

Range of Spindle Speed 1000 - 24000 Positioning Accuracy 0.05mm No. of Spindles Single Travel (Y Axis)(mm) 3000mm Travel (X Axis)(mm) 1800mm Key Selling Points Multifunctional Spindle Motor Power 3.2kw Relative Humidity 30%-75% Running Temperature 0-45ºC Control System Nc Studio / DSP(Optional) Packing Size 3.2*2*1.7m Packing Wooden Box Weight 1000kg Transport Package Plywood Packing Specification 3200*2400*1850mm Trademark Guandiao Origin Jinan HS Code 8465990000 Production Capacity 10000

Product Description

Product Description

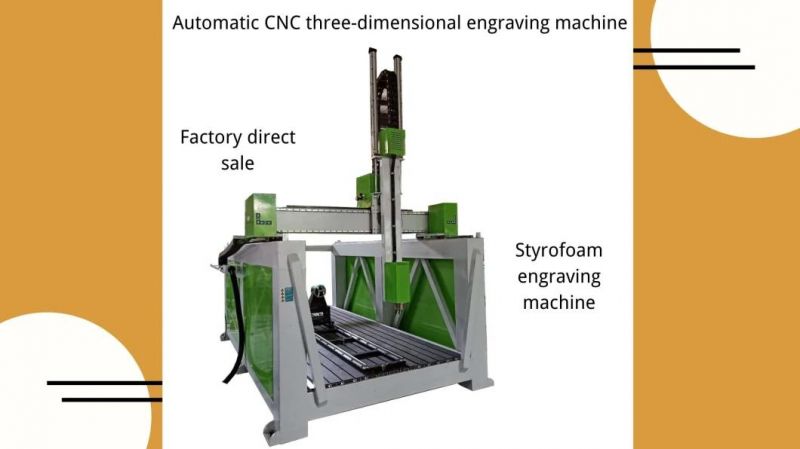

Styofoam CNC router cutting machine
CNC Router Styrofoam Foam Engraving Cutting Machine High Z Axis Mold Milling CNC Machine Price
Brief introduction

1.Imported four row steel ball bearing, wide linear guide, self-lubricating block. Engraving direction with equal force,ensuring the mechanical precision and itensity.
2.Z axis stroke size can be 1m.wide processing size,Suitable for greater&thicker materails.
3.Intelligent processing cross-border protection, Preventing body collision due to processing format reach out working size.
4.Mutlti -function contorlling, fot processing speed.travelling speed,and cutting speed.Improving much more quality and efficiency.


Styofoam CNC router technical parameters
ModelGD-1325                               GD-1830                            GD-2040
Working Area1300*2500*200 mm             1800*3000mm           4000*2000mm
Spindle power3.2 kw,/4.5kw /5.5kw/6kw/7.5kw(Optional)
Feeding height500-2000mm
Max processing speed30 m/ min
Spindle speed0-24000rpm
Resolution  precision±0.05mm
Software environmentwindows98/2000/xp
 SoftwareTYPE3/Artcam/Castmate/UG/CAD/CAMetc
DriverChina stepping motors and leadshin driver
CodeG Code, HPGL Code
Power SupplyAC380V/50Hz
Control SystemNC Studio / DSP(optional)
SoftwareJD/TYPE3/Artcam/Castmate/UG/CAD/CAM,etc
Software EnvironmentWindows98/2000/XP
Relative humidity30%-75%
Running Environment Temperature0-45ºC
PackingWooden Box
WeightNet weight:800 kg        Gross Weight:1000 kg
Packing size3.2*2*1.7m
Applicable Materialswood, PVC, acrylic, MDF, Plexiglass, and aluminum, copper,
aluminum composite panel, etc.
Stand accsssories5.5Kw air pump, USB line,
Tool box(Spanner,brush, etc).
cutting tools.
 Dust collector.
 Manual

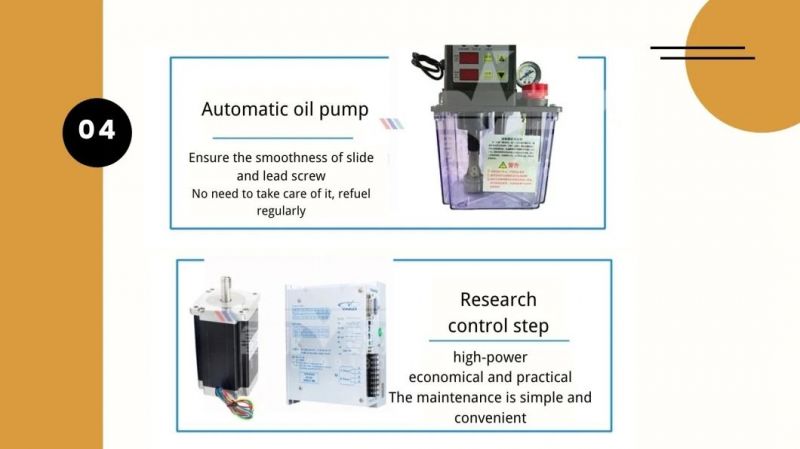

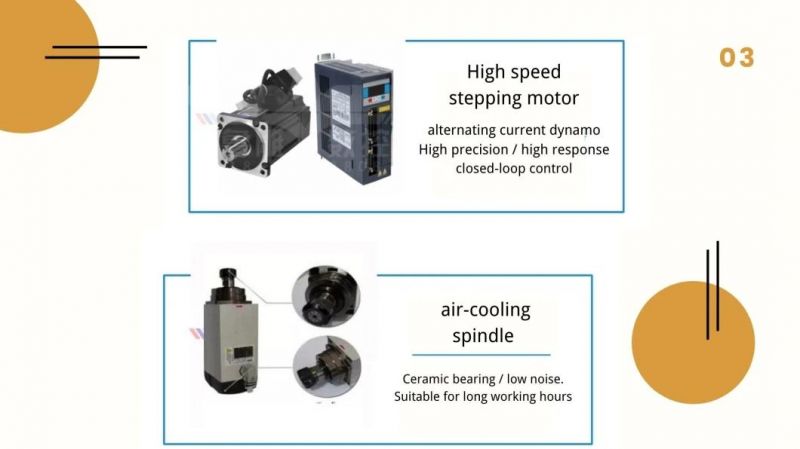

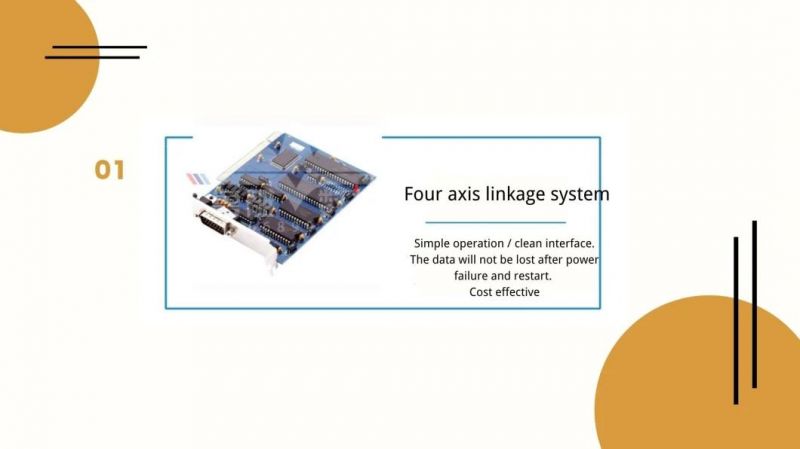

Styofoam CNC router details

CNC Router Styrofoam Foam Engraving Cutting Machine High Z Axis Mold Milling CNC Machine Price

CNC Router Styrofoam Foam Engraving Cutting Machine High Z Axis Mold Milling CNC Machine Price
CNC Router Styrofoam Foam Engraving Cutting Machine High Z Axis Mold Milling CNC Machine Price
CNC Router Styrofoam Foam Engraving Cutting Machine High Z Axis Mold Milling CNC Machine Price

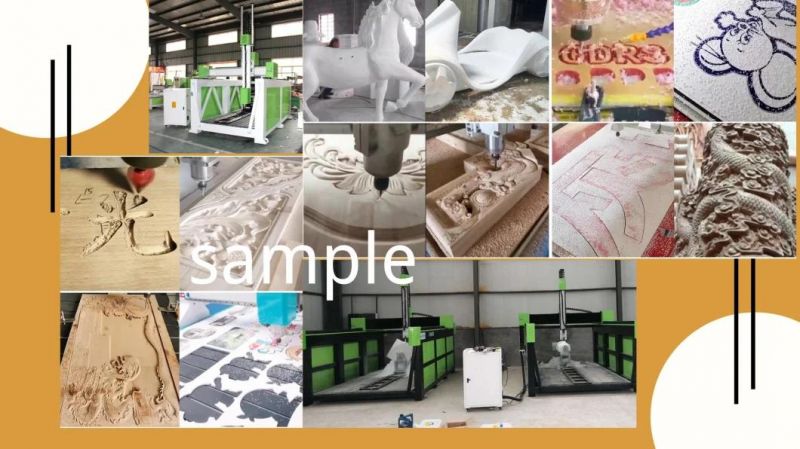

Styofoam CNC router samples
CNC Router Styrofoam Foam Engraving Cutting Machine High Z Axis Mold Milling CNC Machine Price

Our Services

1. Delivery and Lead time
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
Machine will be tidy and clean , with anti rusty oil brushed on mechanical parts to prevent rusty on sea transportation.
A series pictures and videos will provided as machine finished for help customer understand the performance of the machine.
2.Warranty:
Machine warranty is 12 months.  Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free.  Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided
24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone
Technical support by email, whatsapp, wechat,imo and skype available on time.4.After sale service:Normally the machine will sent on whole except the machine is over size to load container.  so the machine arrange in production immediately after get electricity (air and water some model needed).
The video for operation will provide.
Training at our workshop or on site is available.After sale-service5.We accept the ODM,OEM
  If you have other needs, please let me know
