• Model NO.：LT-2030
• Max. Feeding Height of Z Axis：200mm
• Machine Body：Welded Steel Tube, Cast Iron Vertical Shafts and S
• Spindle：3.0kw Water Cooling Spindle
• Collet：Er20
• Table Type：Vacuum Table with Vacuum Pump
• Guide Rail：Hiwin Square Guide Rail
• Transmission：X, Y Axis by Helicia Gear Rack, Z Axis by Tbi Ball
• Motor and Driver：Stepper Motor 86byg-450b and Leadshine Drivers Ma8
• Control System：Nc Studio,Mach3 with USB
• Inverter：Fuling
• Warranty：2 Years
• Other：Oiling System
• Transport Package：Plywood Case with Water-Proof Material
• Specification：3700x220x1750mm
• Trademark：LINTCNC
• Origin：China
• HS Code：8465990000
• Production Capacity：300 Pieces,Year

Basic Info.

Model NO. LT-2030 Max. Feeding Height of Z Axis 200mm Machine Body Welded Steel Tube, Cast Iron Vertical Shafts and S Spindle 3.0kw Water Cooling Spindle Collet Er20 Table Type Vacuum Table with Vacuum Pump Guide Rail Hiwin Square Guide Rail Transmission X, Y Axis by Helicia Gear Rack, Z Axis by Tbi Ball Motor and Driver Stepper Motor 86byg-450b and Leadshine Drivers Ma8 Control System Nc Studio/Mach3 with USB Inverter Fuling Warranty 2 Years Other Oiling System Transport Package Plywood Case with Water-Proof Material Specification 3700x220x1750mm Trademark LINTCNC Origin China HS Code 8465990000 Production Capacity 300 Pieces/Year

Product Description

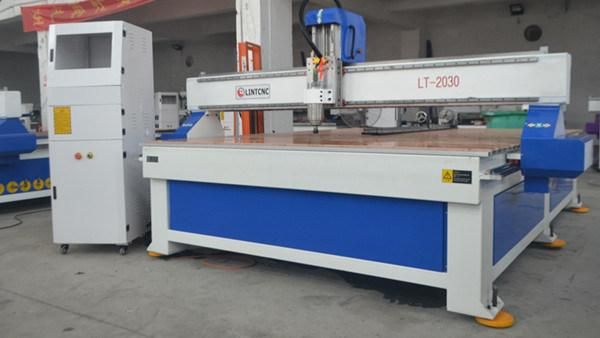

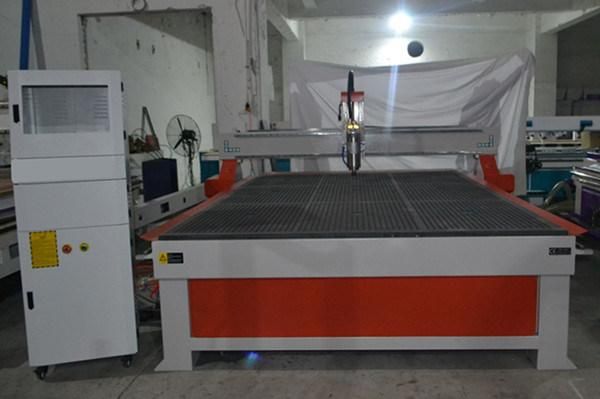

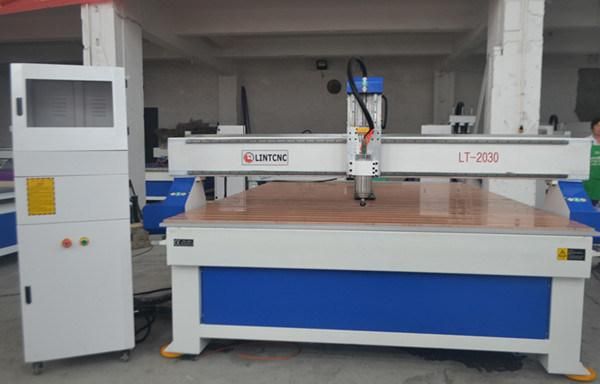

Woodworking cutting machine 2030 3d cnc router furniture carving machine




Standard LT-2030 Machine details:

1). Working area: 2000*3000*200mm Aluminum T-slot table with PVC;

2). Machine structure Cast-iron structure;

3). Guide rail: Hiwin linear square guide rail;

4). Driving method: X,Y axis by helicia gear rack, Z axis by TBI ball ;

5). Spindle: 3.0KW water cooling spindle(ER20)

6). Motors and drivers: 86BYG-450B stepper motors and MA860H Leadshine Driver;

7). Control system: NC studio control system

8). Software: Artcam;

9). Tool box;

10). Tool sensor;

Packing details: one plywood case with water-proof materials; 1600mm*1300mm*1730 mm; 400KGS ;

Optional:

1). Water tank(work for metal and stone), it can cooling tools, extand the tools lifetime

2). Rotary axis(engraver round wood): 80mm, 100mm and 150mm diameter.

3). Mach3 or DSP control system

Any other optional items, please let me know.


Parameter

Model No.	LT-2030 Wood CNC Router
Table Size	2000mm*3000mm
Max. feeding height of Z axis	200mm
Table Structure	Vacuum table with vacuum pump
Machine body	Cast-iron
X Y Z axis Transmission	X,Y axis by helicia gear rack, Z axis by TBI ball
X Y Z Guide rail	Hiwin linear square Guide Rail
Spindle Power	3.0kw water cooling spindle
Max.Spindle Speed	24000 rpm/min
Max. Traveling Speed	25000mm/min
Max. Working Speed	12000mm/min
Processing Accuracy	±0.025mm
Reposition Accuracy	≤0.025mm
Driving System	Stepper motor 86BYG-450B and Leadshine drivers MA860H
Command Language	HPGL, G Code
Control System	NCSTUDIO/MACH3/DSP
Working Voltage	AC110/220V, 50/60HZ
Net Weight/Gross Weight	1350KGS
Package Dimension	3300x1950x1950mm

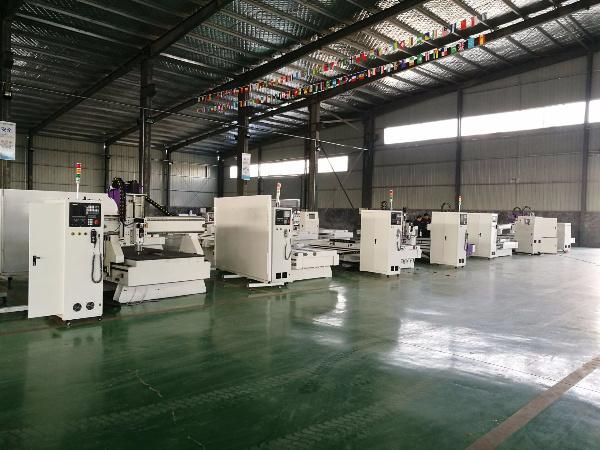

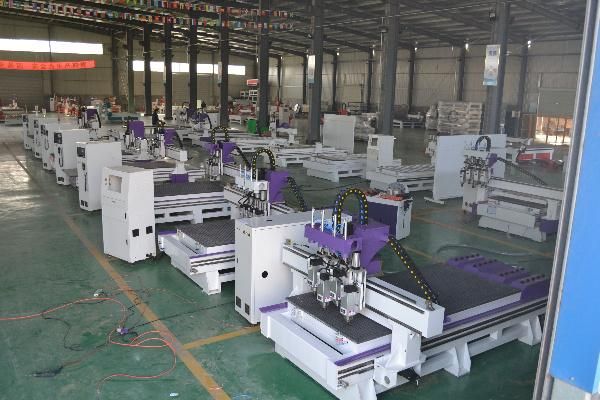

Our company
Shandong Lintianzhiyuan CNC Equipment Co., Ltd. is famous in CNC and laser equipment, located in Jinan, Shandong. Our company integrates the R&D, production, sale and maintenance services. We depend on high-tech and high-quality products to build the world brand.Our main products: large-scale (automatic tool change) CNC woodworking engraving machine, CNC advertising engraving machine, CNC marble engraving machine, CNC plasma cutting machine, CNC glass engraving machine, CNC jade engraving machine, CNC metal mold machine, laser cutting machine, laser cutting bed, laser seal engraving machine and computer cutting plotter product.

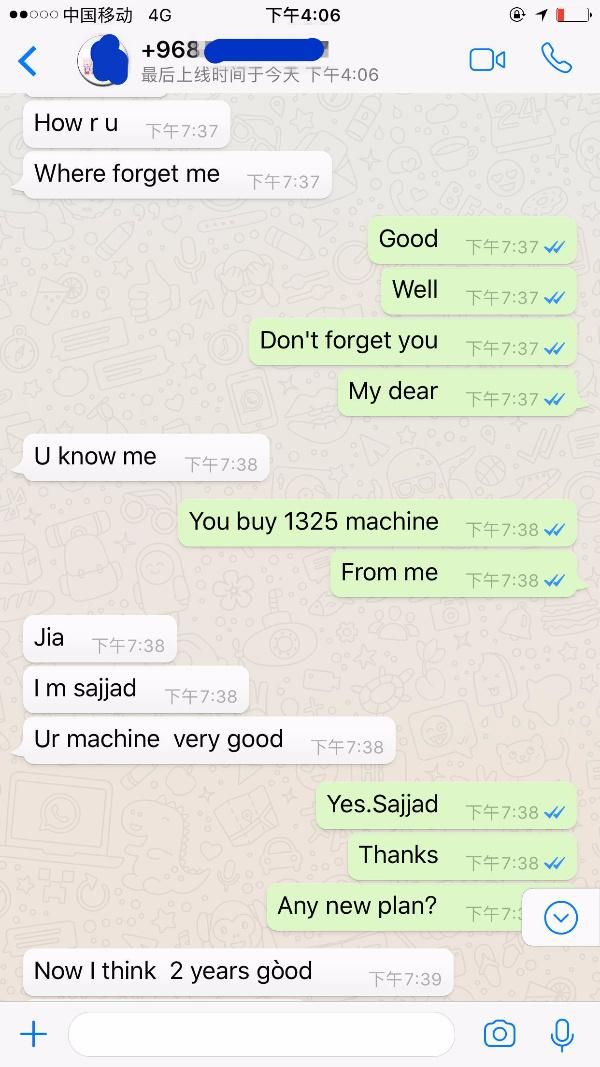

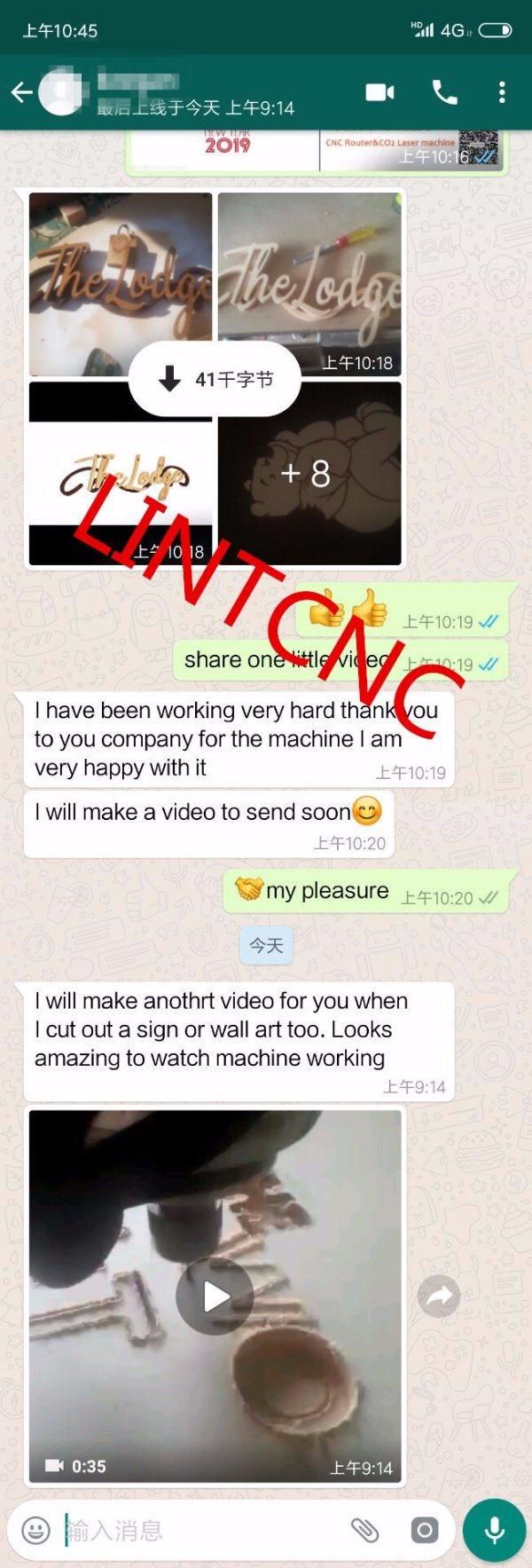

Good Feedback





FAQ
1) This is the first time I use this kind of machine, is it easy operate?

There is English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Skype.

2)Can you recommend a CNC ROUTER MACHINE to me,thanks?

Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting.
Then perfect suitable cnc router will be recommended

3) If machine have any problem after I ordered it, how could I do?

 Free parts send to you in machine warranty period if machine have any problem.
 Free after-sales service life for machine, please feel free contact us if your machine have
any problem.
we will give you 24hours service from phone and Skype.
