• Model NO.：JCT1530L
• Flat Working Size：1500mm X 3000mm X 500mm

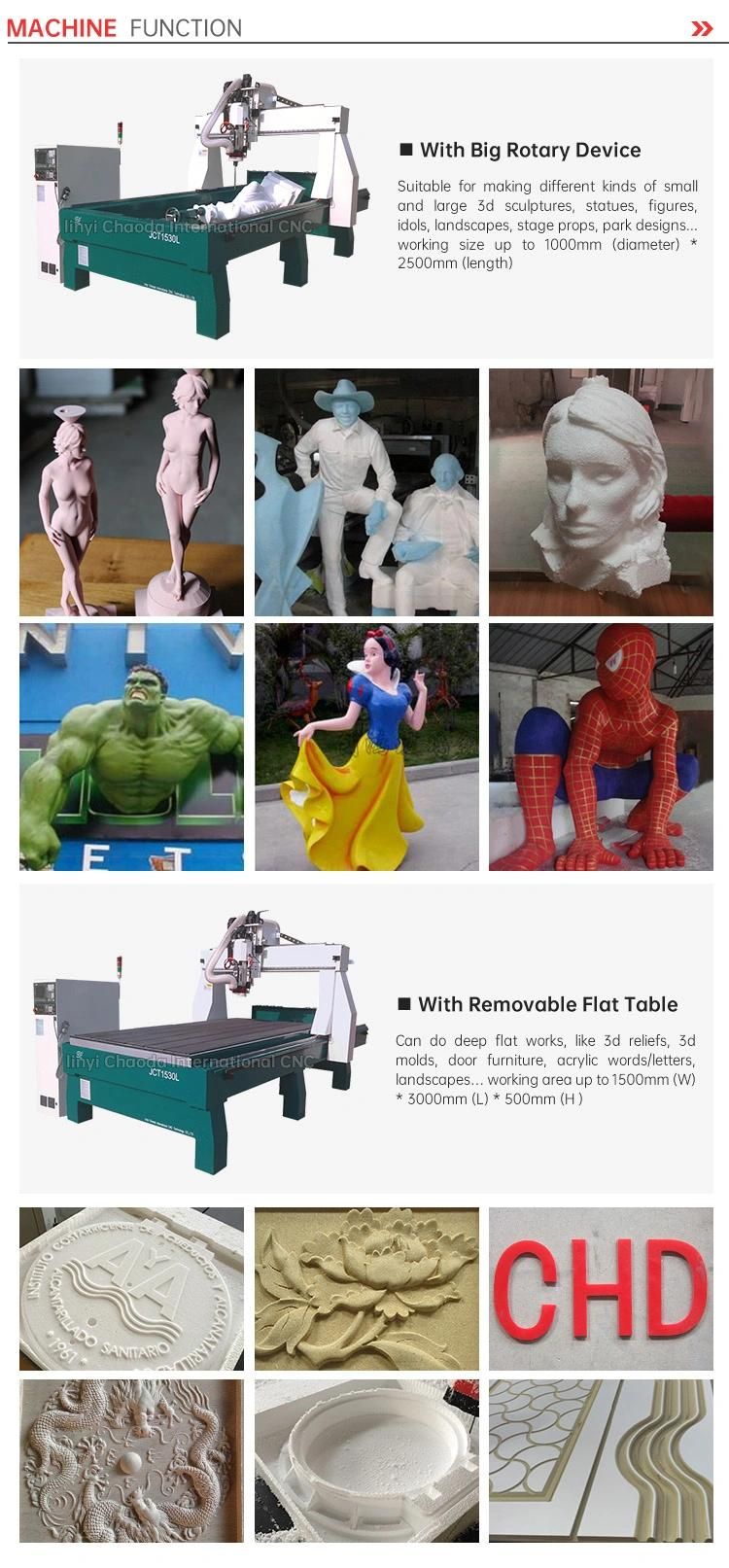

• Table：Removable Flat Table
• Rotating Spindle：0-180 Degree
• Spindle：6kw Air Cooling Spindle
• Motor and Driver：Japan Yaskawa Servo Motor and Driver
• Control System：4 Axis Ncstuidio (Weihong) with Screen
• Option 1：Atc
• Option 2：3D Scanner
• Specification：1500mm*3000mm
• Trademark：CHAODA
• Origin：Shandong, China
• Production Capacity：200 Set,Month

Model No.JCT1530L Flat working size1500*3000*500mmRotary working size1000mm diameter, 2500mm lengthLathe bed structureT-extrusion, Thick Steel frameTable Removable, T-slot with clampsX structure  Rack and pinion, linear square railY structureRack and pinion, linear square railZ structure Ball screw, linear square railReposition accuracy±0.02mmMax. travelling speed 0-55000mm/minMax. working speed0-25000mm/minSpindle6kw air cooling spindleDriving systemJapan YASKAWA servo motor and driverOperating system4 axis Ncstudio with ScreenOperation languageG codeWorking voltageAC380V, 3-phase, 50HzWorking materialsEps foam, Styrofoam, Woods, MDF, Composite boards, Alucobond, PVC, Rigid plastics, Polyester, Fiberglass, Acrylic, Organic glass, Aluminum, etc.













1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
