• Model NO.：FM1325
• Control System：DSP ,Nc-Studio , Syntec
• Spindle Power：2.2kw 3.0 Kw 4.5kw 6.0kw
• Table Surface：T-Slot Table (Optional Vacuum Table)
• Motor：Step Motor
• Guide Rail：Taiwan Hiwin Square Guide Rail
• Working Speed：8-15m, Min
• Transmission：Rack Gear
• Software：Ucancam , Artcam,Type3
• Inverter：Fuling Inverter
• Dust Collector：Included
• Transport Package：Stand Export Plywood Case
• Specification：1300mm*2500mm
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：100 Sets,Month

No.

Description

Parameter

1

X,Y,Z Working Area

1300mmx2500mmx200mm

2

Table Size

1450mm×2940mm

3

X,Y,Z Traveling Positioning Accuracy

±0.02/300mm

4

X,Y,Z Repositioning Accuracy

±0.02mm

5

Table Surface

Vacuum and T-slot table

6

Frame

Welded steel tube structure

7

Inverter:

Chinese Fuling Inverter/Taiwan Delta Inverter

8

Spindle

CS water colling spindle/

Italy HSD air cooling spindle

9

Limit switch

Japan Omron limit switch

10

Oil LubricationSystem

Manual

11

X, Y Structure

Rack and Pinion Drive, Hiwin Square Rail

12

Z Structure

Hiwin Square Rail and Ball Screw

13

Max. Power Consumption

5~7KW

14

Max. Rapid Travel Rate

33000mm/min

15

Max. Working Speed

25000mm/min

16

Spindle Power

3.5/4.5/5.5/6 KW

17

Spindle Speed

0-24000RPM

18

Motors

450B stepper/Yaskawa servo

19

Working Voltage

380V/220V

20

Command Language

G Code

21

Operating System

DSP/Nc-studio/Syntec

22

Computer Interface

USB

23

Flash Memory

128M(U Disk)

24

Collet

ER16/ER20

25

X,Y Resolution

<0.03mm

26

Software Compatibility

Artcam Software

(Option: Type3 Software)

27

Running Environment

Temperature

0 - 45 Centigrade

28

Relative Humidity

30% - 75%

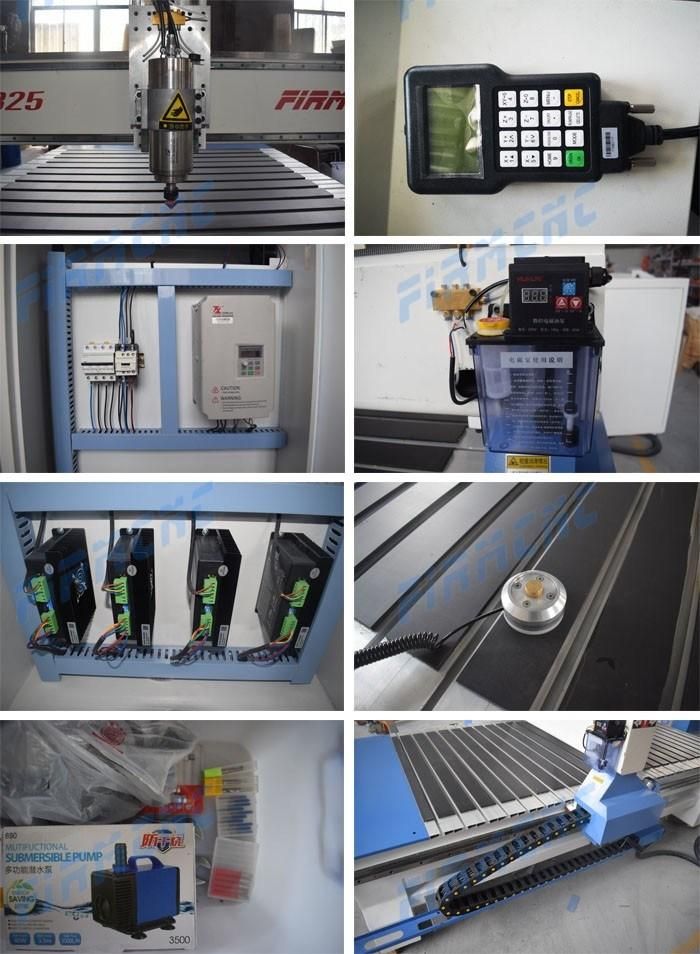

Details of woodworking cnc router

Chinese water cooling Spindle

T-slot table

Tool sensor

Lubrication system

French contactor and leakage protector

NK105 DSP controller

Mechanical limit,Taiwan Hiwin guide rail and German rack

Application Industry and Materials

Applicable materials: acrylic,wood, MDF,bamboo, organic glass, crystal, plastic,garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
Applicable industries: advertisement, gift, shoes, toys, sign making,computers, garments, model cutting, building, packaging, paper industry
Samples of china cnc wood router machine


Hot sale products

# Linear or Circular type ATC wood cnc router

# Pneumatic 4 head ATC cnc router

# Wood cnc router with air cooling spindle

# Wood cnc router with water cooling spindle

# Mini cnc router for wood advertising

# Double heads wood cnc router

Company Information

FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc router appliance manufacture.

We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on cnc router appliances.

Customer visit factory

Package of wood cnc router

1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.

2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.

3) fumigation-free

4)With shipping mark if you like.

5)Outside: Marked packing size, model, weight and other information

After sale service

1. 24 hour Technical support by phone, e-mail or MSN around the clock.

2. Friendly English version manual and operation video CD disk.

3.7-15 working days after down payment or full payment.

4. Machine will be adjusted before it is delivered; operation disk/CD was included.

5. Our technician can give you remote guide online (Skype or MSN) if you have any question.

6. Engineers available to service machinery overseas, seller and buyer discuss the charges.

FAQ

Customers often ask

1.Can you recommend a cnc router machine to me ?

Yes, In order to give you a suitable cnc router machine ,pls tell me the max working area, materials for processing and the thickness

for materials processing engraving or cutting. Then perfect suitable cnc machine will be recommended

2.Do you have operation manual and working video?

Yes, after we confirm order, operation manual will be send to you.

3.Does your company can processing my samples?

Yes, we can

4.If I bought machine, but don't know how to operation, what I can do?

Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .

5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?

6.Does your engineer do aftersale service at abroad? how much cost?
