• Model NO.：BXQ1814,38XD
• Main Motor：2X15kw Siemens Motor
• Servo Motor Power：11kw Mitsubishi Japan
• Body：Fine Cast Steel Body
• Auotmatic Hydraulic Knife Clamping Syste：N,Normal Mechanical Change Knife
• Double Roller Drive：by Gear
• Transport Package：Standard Export Sea-Worthy Packing
• Specification：Weight: 6800KGS
• Trademark：Metro
• Origin：China
• HS Code：8465960000
• Production Capacity：100set,Month

Basic Info.

Model NO. BXQ1814/38XD Main Motor 2X15kw Siemens Motor Servo Motor Power 11kw Mitsubishi Japan Body Fine Cast Steel Body Auotmatic Hydraulic Knife Clamping Syste N/Normal Mechanical Change Knife Double Roller Drive by Gear Transport Package Standard Export Sea-Worthy Packing Specification Weight: 6800KGS Trademark Metro Origin China HS Code 8465960000 Production Capacity 100set/Month

Product Description

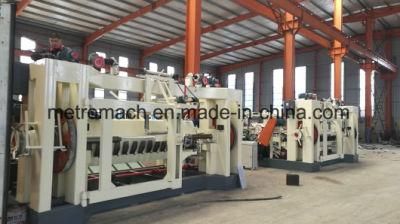

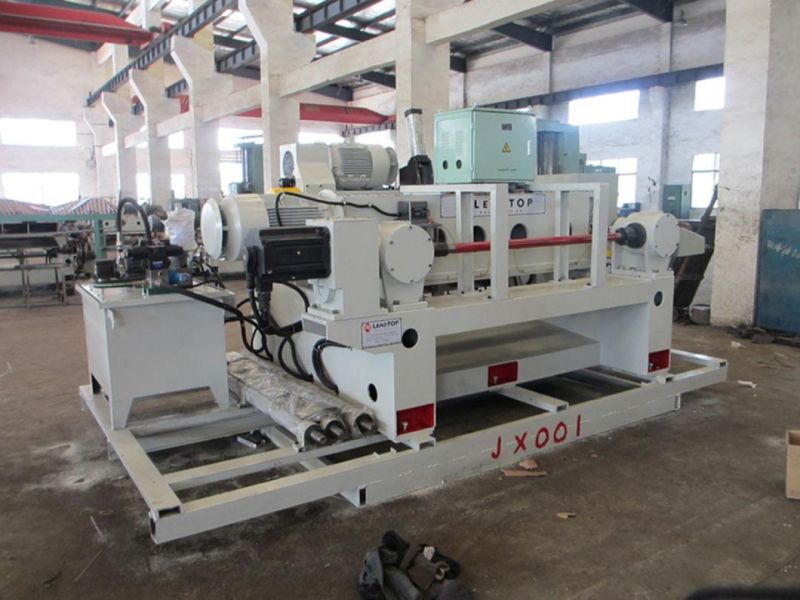

Top Grade CNC Spindleless Peeling Machine with Casting Frame

Features:
*With Cast Iron Body
*Automatic Hydraulic Knife Change system
*Japan Real Mitsubishi Servo System

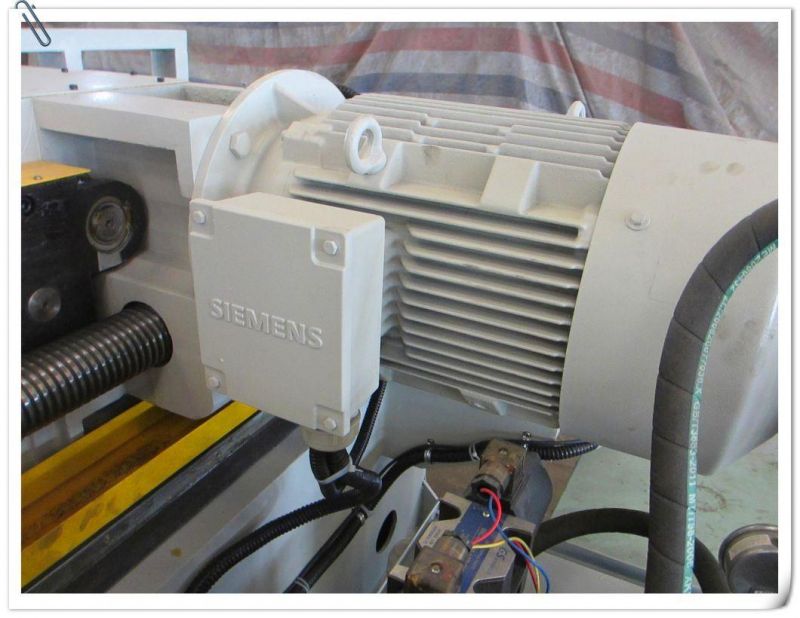

*Siemens Motor


This Spindleless veneer peeling lathe is a newly designed peeling machine,it mainly has the following features.

1.The peeling Speed can be changed automatically according the Program setting!

2.Automatic knife cutter peeling angle adjustment,the veneer surface finish is very smooth,

increase the quality of the veneer~.

3.CNC knife peeling angle control,the veneer thickness can be changed by touch screen~.

4.The after angle of knife cutter are designed to change with the log diameter~.

5.By using ball screw~

6.The worktable movement use Precision linear guide rail~!

7.Electric parts use Schneider~!

 Technical Parameters:

Item	Specifications	Remark
Machine model	BXQ1814/38XD
Max. peeling length	1400mm	Roller length 1500mm
Max. peeling diameter	Φ380mm	Max.opening Φ380mm
Min. peeling diameter	Φ32mm	Cross roller can be Φ 28mm
Peeling speed range	0-55m/min	Frequency adjustable speed
Veneer thickness range	0.5-3.6mm	Double sides smooth
Double rollers motor power	15Kw	Germany Siemens
Single rollers motor power	15Kw	Germany Siemens
Feeding motor power	11Kw	Japan Mitsubishi Servo motor
Double rollers speed reducer	Assembled gearbox	Working stable, free maintenance
Single rollers speed reducer	Assembled gearbox	Working stable, free maintenance
Feeding screw speed reducer	Assembled gearbox	Working stable, free maintenance

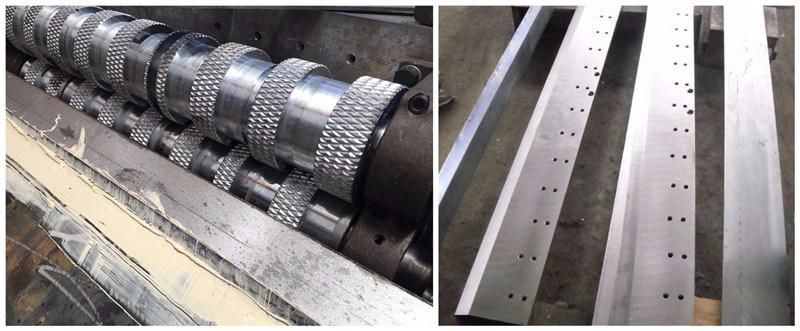

Rollers specification	Φ125mm diameter	High frequency quenching treat Two sections, thicker chroming.
Machine structure material	Q235B	40mm thickness steel plate
Peeling knife size	1500x180x16mm	Japan tech
Machine overall dimension	4500x1900x1500mm	Installation dimension
Machine weight	6800Kgs	Net weight

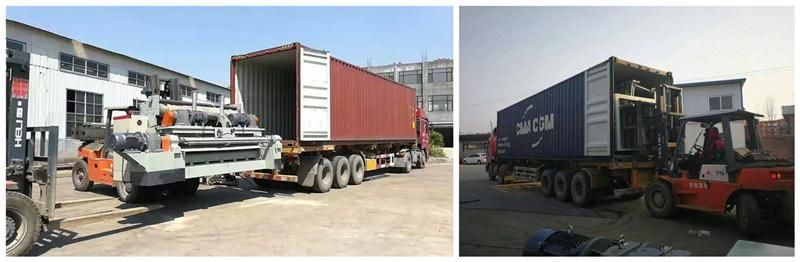

Packing and Delivery:


Customer Visit:



Client Satisfaction

It remains our prime aim to maintain offered machinery quality standards so as to garner multiple customers besides maintaining good terms with the old ones. Over the years we have been offering an unmatched quality product range and have successfully attained the trust and reliance of our esteemed clients.

Welcome to consult ~
