Automatic Plywood Woodworking Spindless Veneer Peeling Lathe Machine

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Certification：CE, ISO, FDA
  • Max Length of The Wood：1400mm
  • Working Speed：55m,Min
  • Max Diameter：500mm
  • Diameter of Left Wood：30mm
  • Thickness of Veneer：0.6-5mm

Base Info

  • Model NO.：BXQ1814,50HK
  • Transport Package：Standard Export Sea-Worthy Packing
  • Specification：Weight: 5500KGS
  • Trademark：Metro
  • Origin：China
  • HS Code：8465960000
  • Production Capacity：100set,Month

Description

Basic Info.

Model NO. BXQ1814/50HK Transport Package Standard Export Sea-Worthy Packing Specification Weight: 5500KGS Trademark Metro Origin China HS Code 8465960000 Production Capacity 100set/Month

Product Description

Automatic Plywood Woodworking Spindless Veneer Peeling Lathe Machine
1.Main features:
1.2018 all new generation research & design SPECIAL FOR HARD WOOD.
2.Fastest veneer peeling speed can reach to 100M/MIN.
3.Save 40% - 60% of power, reduce production cost.
4.Veneer double sides smooth and thickness evenness less than 0.05mm.
5.Double motors rollers, speed stable, overcome the unstable Indian voltage.
6.Bigger power inverter and English language PLC control system.
7.Clipper inbuilt design, peeling and clipping at same time.
8.Automatic electrical lubrication system for all important mechanical parts.
9.Automatic air cylinders dropper for final log to save production time.
10.R87 harden helical gear speed reducer and Japan NSK bearings.
11.Automatic final piece veneer holder device.
12.Full closure oil immersed screws, wear-resisting, maintenance -free.
13.Exclusive manufacturer adopt the full closure oil immersed guide bar(quenching process treatment), all working life free maintenance, promise the machines feeding at most stable Condition, so that can get the best quality veneer.


2.Technical Parameters:
Max working length1400mm
Knife size1500mm
Max working diameterΦ500mm
Min working diameterΦ30mm
Veneer thickness range0.6-5.0mm
Roller diameter125mm
Single roller motor5.5KWX2
Double roller motor11KW
Feed motor7.5KW
Cutting motor1.5KW
Conveyor motor1.5KW
Total power32.5KW
Peeling speed55~58m/min
Overall size3500mmx1800mmx1500mm
Weight5000KGS

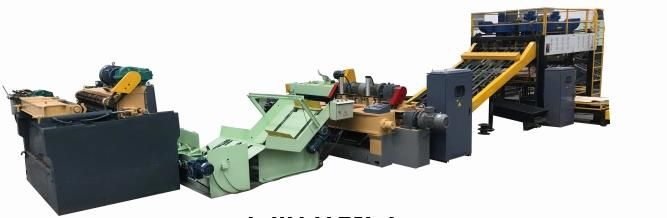

3.More Pictures:


Automatic Plywood Woodworking Spindless Veneer Peeling Lathe Machine




4.Packing and Delivery:
Automatic Plywood Woodworking Spindless Veneer Peeling Lathe Machine

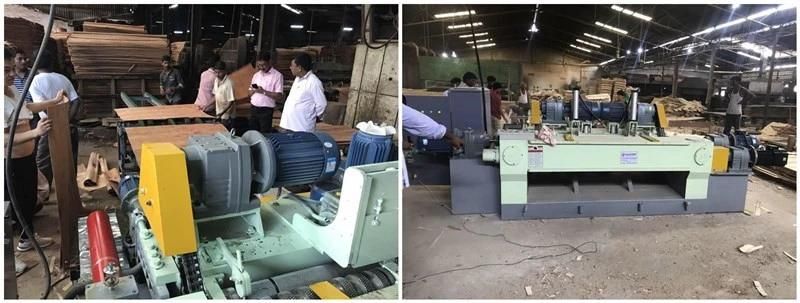

5.Working cases:
Automatic Plywood Woodworking Spindless Veneer Peeling Lathe Machine



6.Client Satisfaction

It remains our prime aim to maintain offered machinery quality standards so as to garner multiple customers besides maintaining good terms with the old ones. Over the years we have been offering an unmatched quality product range and have successfully attained the trust and reliance of our esteemed clients.

Welcome to consult ~
