• Model NO.：FM1325 4 axis
• Control System：Taiwan Syntec CNC Control System
• Spindle：Atc Italy Hsd 9.0kw Air Cooling Spindle
• Auto Tool Changer：Linear Auto Tool Changer 6 Tools
• Rotary Axis Diameter：400mm Rotary Axis
• Motor：Japan Yaskawa Servo Motor and Driver
• Guide Rail：Taiwan Hiwin Square Guide Rails
• Inverter：Taiwan Delta Inverter
• Table：Vacuum and T-Slot Table
• Transmission Way：Taiwan Tbi 3210 Ball Screw Transmission
• Transport Package：Standard Export Plywood Package
• Specification：2500*1300*400mm
• Trademark：FIRMCNC
• Origin：China, Shandong, Jinan
• HS Code：8465990000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. FM1325 4 axis Control System Taiwan Syntec CNC Control System Spindle Atc Italy Hsd 9.0kw Air Cooling Spindle Auto Tool Changer Linear Auto Tool Changer 6 Tools Rotary Axis Diameter 400mm Rotary Axis Motor Japan Yaskawa Servo Motor and Driver Guide Rail Taiwan Hiwin Square Guide Rails Inverter Taiwan Delta Inverter Table Vacuum and T-Slot Table Transmission Way Taiwan Tbi 3210 Ball Screw Transmission Transport Package Standard Export Plywood Package Specification 2500*1300*400mm Trademark FIRMCNC Origin China, Shandong, Jinan HS Code 8465990000 Production Capacity 100 Sets/Month

Product Description

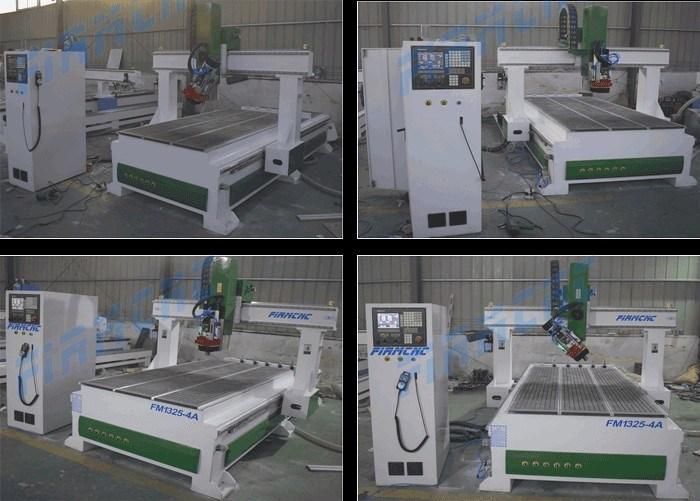

New cnc router 4 axis atc automatic tool changer wood engraving machine

Brief Introduction of 4 axis cnc router
♦ The spindle can rotated 180 degree, specially designed for curve surface cabinet,doors and indoor decoration. and also for some mold prcessing.
♦ It can be used for mass-processing with Vacuum holding way and dust collector.

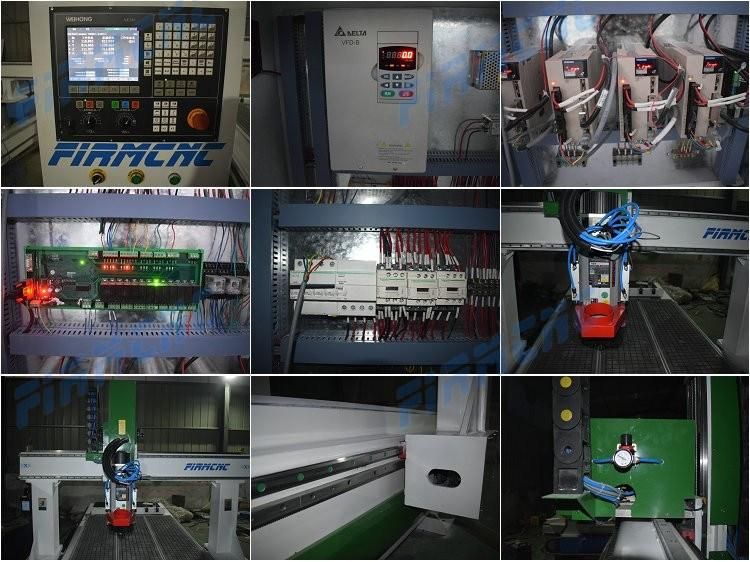

♦ Equipped with top quality components for the machine, such as HSD ATC spindle, and the spindle Yaskawa servo motor & Taiwan Delta Inverter, Becker Vacuum pump,
Hiwin linear square guide rails, SYNTEC control system and so on, to keep the machine in the best condition even after working for many years.


Technical parameters of 4 axis cnc router

Description	Parameter
X,Y,Z axis working area	2500* 1300*400mm
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z Repositioning Accuracy	±0.03mm
Table surface	Vacuum Combined T-slot
Frame	Big steel tube structure
Control system	Taiwan Syntec control system
Spindle Power	9.0KW HSD air cooled spindle
spindle rotating speed	24000r/min
Tool type	Linear type
Guide rail	HIWIN square guide rail
Motor	AC Yaskawa servo motor
Max. Power Consumption	(Without Spindle) 4.5Kw
Max. Rapid Travel Rate	50000mm/min
Max. Working Speed	30000mm/min
working voltage	AC380V/3PH/50HZ
Command Language	G Code
Computer Interface	USB
Operational System Software	Type 3/Artcam
Gross Weight	1900KG

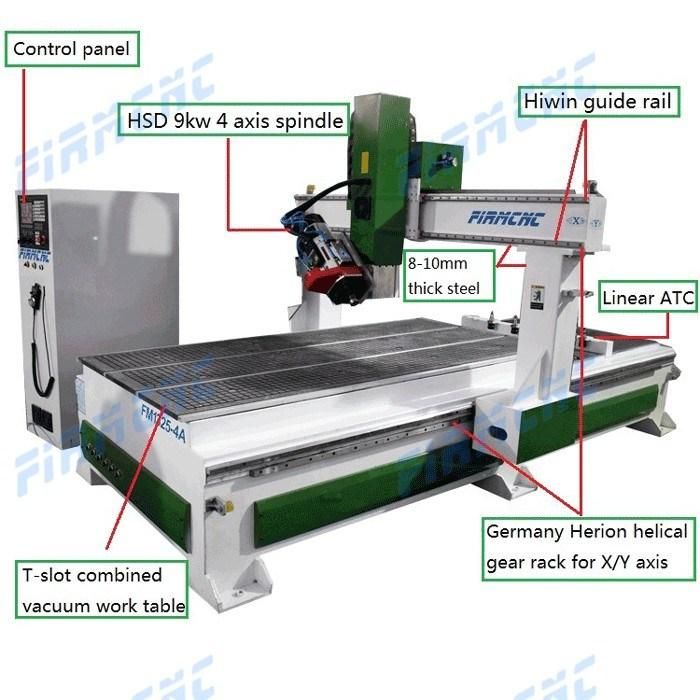

4 Axis CNC Router Configuration
#Working area: 2500*1300*400mm, optional FM1325 model
#CE standard
#Italian HSD 9.0KW(12HP) Electrospindle with 6-position Automatic Tool Changer(ISO30)
#15mm Heavy duty body
#Active safety system
#Helical rack and pinion drivers on X and Y axis, Z axis Taiwan TBI ball screw transmission
#25mm Heavy-duty Hiwin HG Series linear bearing
#Vacuum table with pump
#Taiwan Syntec 6MB
#Japan Yaskawa servo motor and drivers system
#Delta brand VFD-B variable frenquency drive
#6 Position Automatic Tool Changer (options: 8,10,12,14,16 position)
#Tool Cone Holder-for east bit changing
#Solid State limit switches
#2 Years Warranty

Optional
#Airtech pro dust collector: our new deaign to vacuum, and it is very clean to absorb wood dust.
#Vacuum pump: Oil free pump 5.5Kw/Air pump 5.5Kw
#CAM Software: VCarve/VCarve Pro/ArtCAM/UcanCAM,etc.
#CW3000 water chiller: dedicated to water-cooled spindles


Appliation industry and materials
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

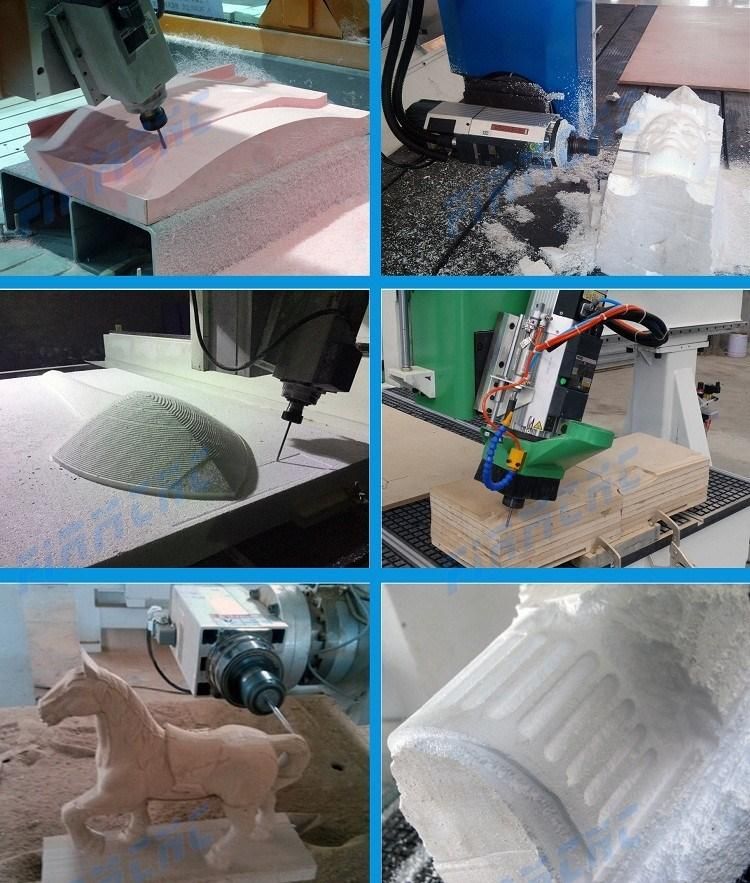

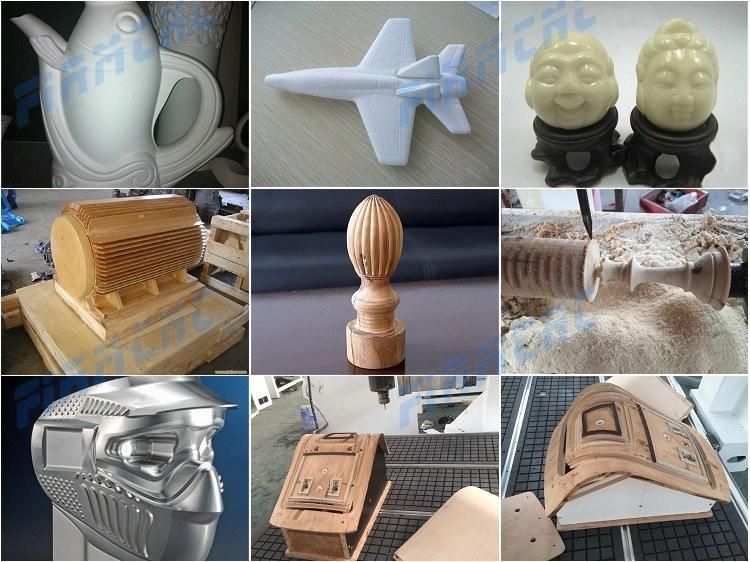

Samples of 4 axis cnc router



Company Information
The machines we are manufacturing and supplying:
cnc router, big watts fiber laser machine,
wood cnc machine, wood lathe,laser engraving
machine, fiber laser marking machine,
plasma cutting machine, oscilating machine,
stone carving machine
And besides good quality machines above, CO2 laser source, CO2 glass laser tube, water chiller, Air pump, fan, lens and mirror, laser cutting head etc.
Thanks to your correspondence reply, we can give you best quotation accordingly,
Thanks in advance
Woodrouter, cnc router, edge banding machine, woodlathe, woodturning lathe, cnc machine, fresatrici wood cnc, cnc router machine, wood cnc router, wood lathes for sale, laser cutting machine, carpentry machines, jinan equipment leather processing, cnc otherpowertools, oscillating tangential knife, drechselbank, cnc engraving machine, cnc router 1325, fiber laser cutting machine, metal mold engraving machine, shandong machinery, wood tools, woodworking tools, plasma cutting machine, punching


Other type wood cnc router machines for your refence
# Linear or Circular type ATC wood cnc router
# Pneumatic 4 head ATC cnc router
# Wood cnc router with air cooling spindle
# Wood cnc router with water cooling spindle
# Mini cnc router for wood advertising
# Double heads wood cnc router

Packaging & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information

Perfect after Services
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
After sale:
We would provide English Version working manual.

If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is two years.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.

Customer visit factory



FAQ
Q1: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Q2: How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Q3: Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Q4: How about Guarantee & After Sales Service?
1) The machine guarantee is 24 months.
2) 24 hours technical support by phone, email or msn, skype etc.
Q5: If some problems happened to this machine during warranty period,what should i do?
We will supply free parts in machine warranty period if machine have some problem.While we also supply free after-service forever, so any doubts,just let us know, we will give you solutions in 24 hours.
Q6: What is the MOQ?
MOQ for our products is 1 set machine,we could send it to your country port  if you tell detail information about your country port.

If you want to purchase wood cnc router machine, please feel free to contact me.
