• Model NO.：XC400
• Trademark：Mars
• Origin：China
• HS Code：84659900
• Production Capacity：300sets,Month

Basic Info.

Model NO. XC400 Trademark Mars Origin China HS Code 84659900 Production Capacity 300sets/Month

Product Description

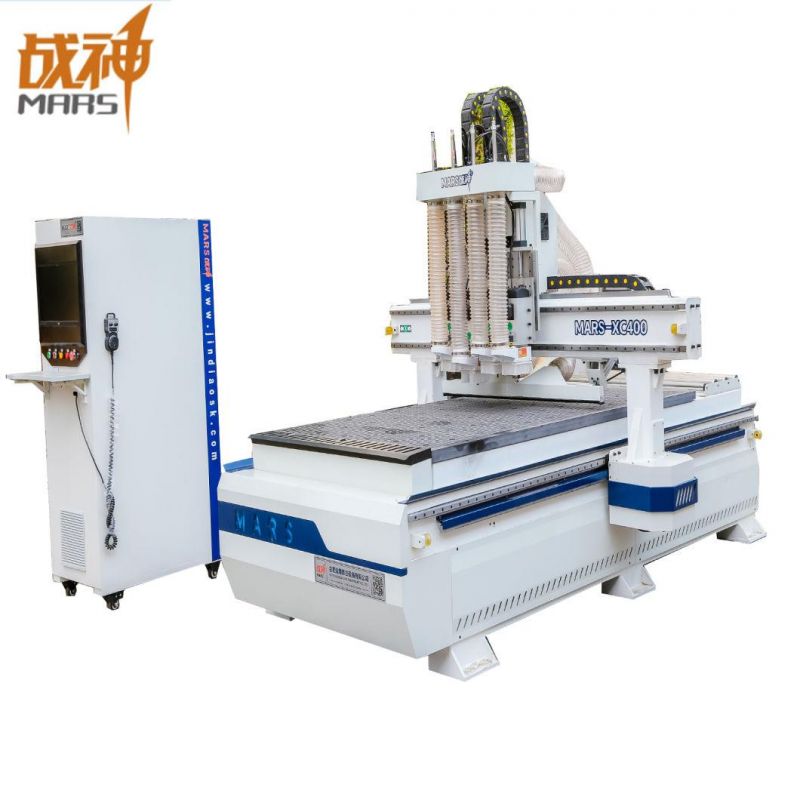

XC400 Panel Furniture CNC Engraving Machine/Woodworking CNC Router Machine

Keywords: 15 years experience of production
                        ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                        Three Brand: Mars, Golden Eagle,Borio




Parameters:


Model	XC400 Woodworking CNC Router Machine/Wood CNC Router Machine
Working Stoke	1300*2500*300mm
Body Structure	Thick-walled steel tube welded, w/ tempering
Spindle Power	HQD 6KW+4.5KW+4.5KW+4.5KW air cooling spindle
Spindle Speed	0 ~ 24000 rpm/min
Control System	Syntec /ShanLong
Drive System	Yaskawa servo motor
Lubrication System	Automatic
Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan Hiwin linear rail
Transforme	630VA
Vacuum Pump	7.5KW
Max Travelling Speed	25m/min
Max Processing Speed	15m/min
Dictate Format	G code/ HPGL
Engraving Tool	¢3.175/ 4/ 6/ 12.7mm
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Support Software	Professional cutting optimization software
Working Voltage	AC380/ 3PH/ 50H
Net Weight	1900KG
Machine Size	2300*3600*1800mm

Description:
XC400 Four Processes CNC Machining Center is MARS featured machine for processing wooden doors,cabinets,wood panels,office furniture,tables&chairs,doors&windows,wooden speakers,game cabinets,computer desks,sewing machines,musical instruments and etc..Now popular in the market, it's economic machining center of woodworking cutting machine.

Functions:
The functions of this machine include milling,drilling,cutting and other processing.




Applicable Materials:
Stone,graphite,acrylic,PVC,MDF,artifical stone,plexiglass,plastic,copper and aluminum.

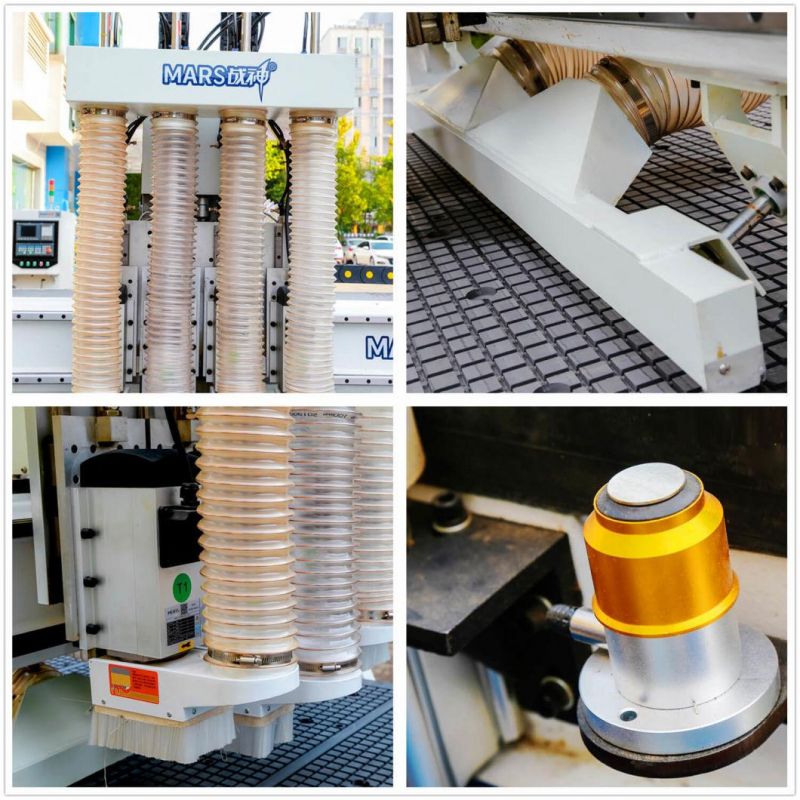

Accessories:




Performance Features:
1. Industrial thick square steel tube welded frame, with tempering aging treatment, to ensure strong, durable, without any deformation.
2. Imported precision ball screw, high speed, high precision, long service life.
3. With break-point and power-off memory function, ensure continuous processing after an accident of tool breaking or power-off.
4. Advanced CNC system, simple operation, easy maintenance, user-friendly design to meet the diverse needs of customers.
5. Compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JDPaint/ Wentai, etc..

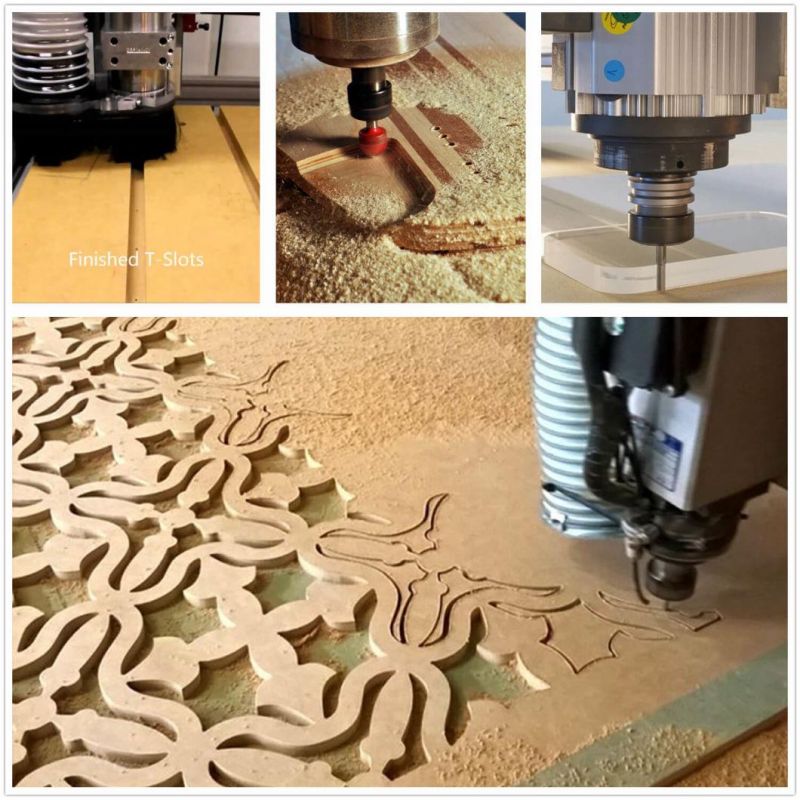

Samples:
