China Wood CNC Rouer 1212 Engraving Machine Wood Design CNC Machine Price
Jinan Blue Elephant CNC Machinery Co., Ltd.- Type：Vertical Uniaxial Wood Router
- Spindle Layout：Spindle Over
- Spindle Number：Single-Spindle
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE, ISO, SGS BV TUV
Base Info
- Model NO.：ELECNC-1212
- Customized：Customized
- Condition：New
- Color：Customized
- Control System：DSP A11 Control System
- Spindle：Italy Hsd Air Cooling Spindle
- Spindle Power：3kw
- Spindle Speed：0-18000rpm
- Motor：FL118 Stepper Motors
- Driver：Yako 2608 Drivers
- Inverter：3.7kw Taiwan Delta Inverter
- Table Surface：T-Slot and Vacuum Working Table
- Rail：Sweden Abba 20# Linear Square Guide
- Power(W)：4.5kw
- Transport Package：: Standard Marine Export Plywood Case
- Specification：1200*1200*200mm
- Trademark：BLUE ELEPHANT
- Origin：Shandong Province
- Production Capacity：200 Set,Sets Per Month
Description
Description
Parameter
X,Y,Z Working Area
1200x1200x200mm
Structure
New type thicker and bigger heavy duty welded frame and gantry
Working voltage
400V, 3PH, 50HZ (220V, 380V for optional)
Table Surface
T-slot & vacuum working table
Spindle
3kw HSD air cooling spindle
Spindle speed
0-18000rpm
X, Y Structure
20# Sweden ABBA Linear guide and helical rack
Z Structure
Taiwan TBI Ball screw and 20# Sweden ABBA Linear guide
Motor and driver
FL118 stepper motors and YAKO 2608 stepper drivers
Inverter
3.7kw Taiwan Delta Inverter
Command Language
G Code
Control System
DSP A11 control system
Control box
Inner box
Lubrication system
Automatic lubrication system
Tool sensor
Manual tool sensor calibration
Vacuum pump
5.5kw water circlulation vacuum pump
Collet
ER25
X,Y Resolution
<0.01mm
Software Compatibility
Artcam Software
Running Environment Temperature
0 - 45 Centigrade
Relative Humidity
30% - 75%
Optional
High flexible towline, fire-proof double-sheathed cable.
Japan Omron limit switch.
France Schneider safe handlePS:All the working area and specifications can be customized according to your requests.
Product Details of cnc wood cutting machine:
Applications:
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

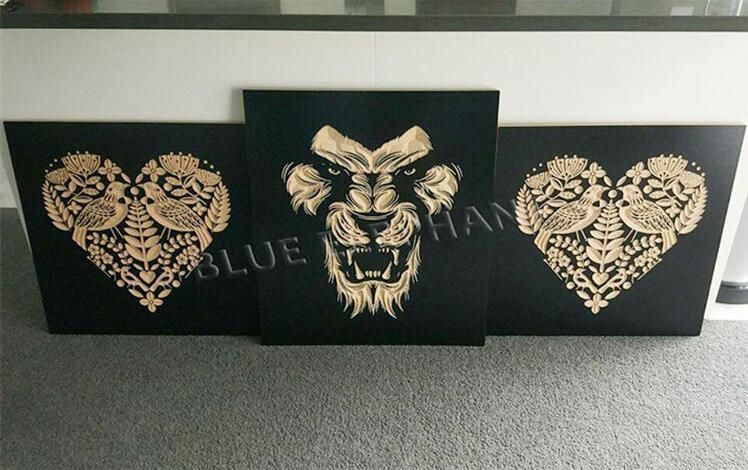

4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Packaging & Delivery:
Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.
Delivery Detail: Shipped in 15 working days after payment.
Our Service:
1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

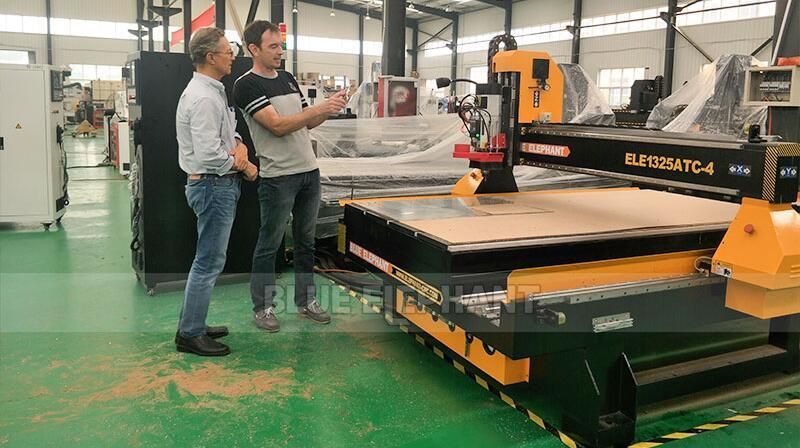

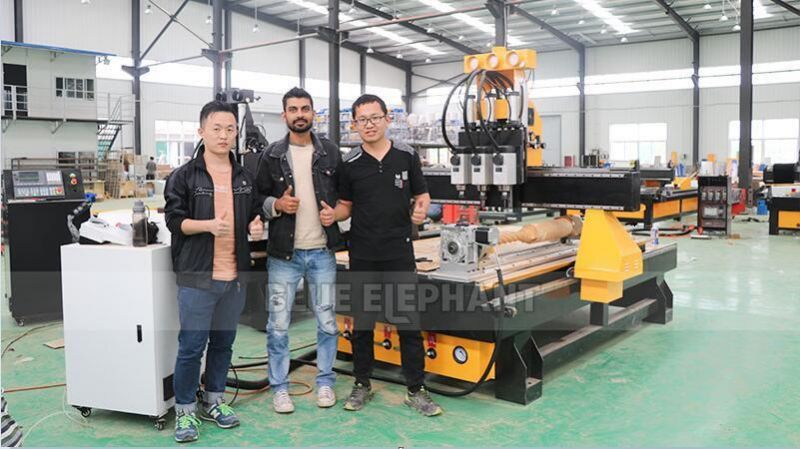

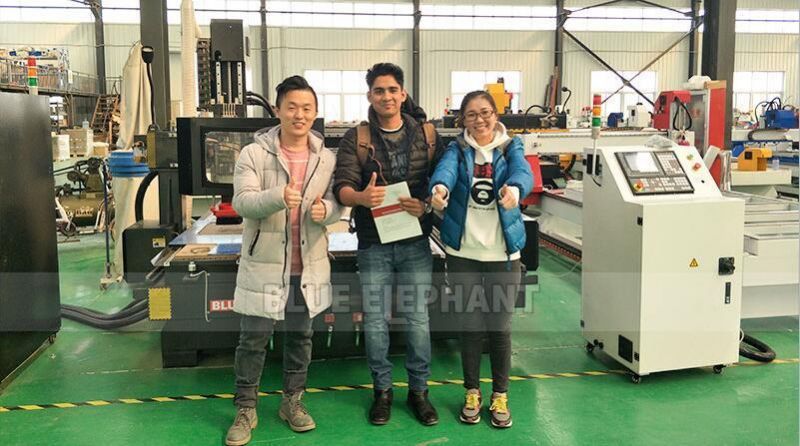

Welcome to our factory:
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- We have our R & D department, Quality control department, and after sale & service department.
- Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
- We had got CE and ISO9001 certification always offer best quality machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
- Just looking forward to service every customer, like you.
