• Model NO.：YF550
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：Installation and Technical Support, Drawings
• Power Source：Diesel Engine & Motor
• Material：Carbon Steel
• Power：75kw
• Certificate：ISO9001,Ce
• Dimension：2300*1000*2050mm
• Weight：2200kg
• Diameter：2.5-20mm
• Transport Package：Export Standard Packing by Wooden Case
• Specification：1000-1200KG,H
• Trademark：YUFCHINA
• Origin：China
• HS Code：8474802000
• Production Capacity：10 Sets Per Month

Basic Info.

Model NO. YF550 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Installation and Technical Support, Drawings Power Source Diesel Engine & Motor Material Carbon Steel Power 75kw Certificate ISO9001/Ce Dimension 2300*1000*2050mm Weight 2200kg Diameter 2.5-20mm Transport Package Export Standard Packing by Wooden Case Specification 1000-1200KG/H Trademark YUFCHINA Origin China HS Code 8474802000 Production Capacity 10 Sets Per Month

Product Description

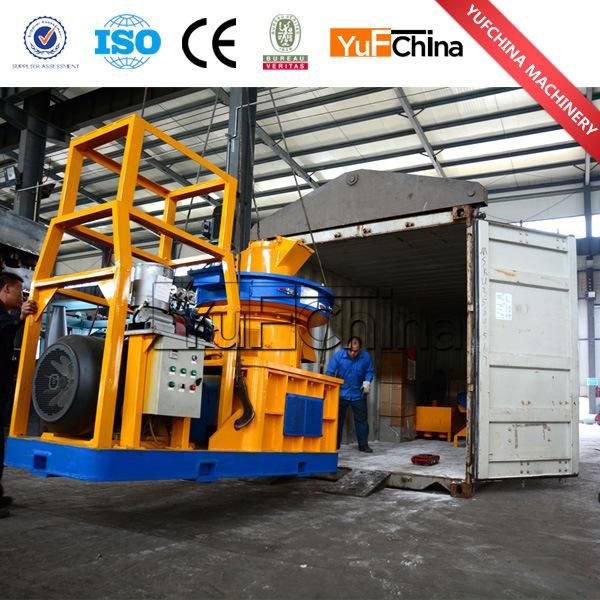

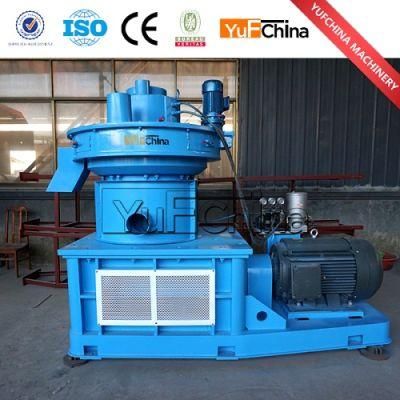

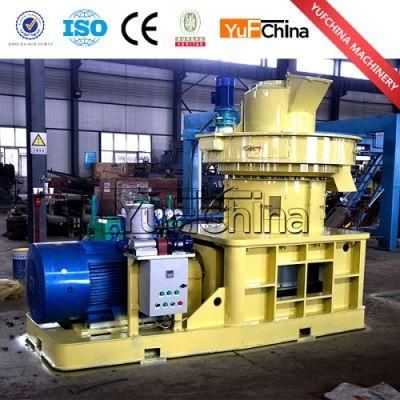

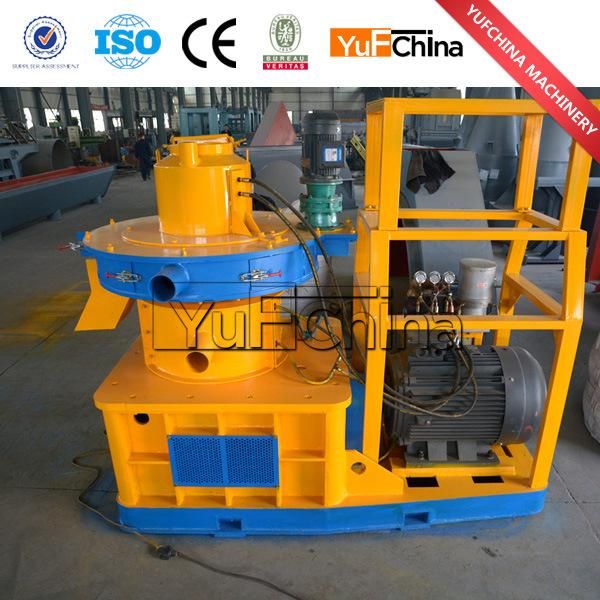

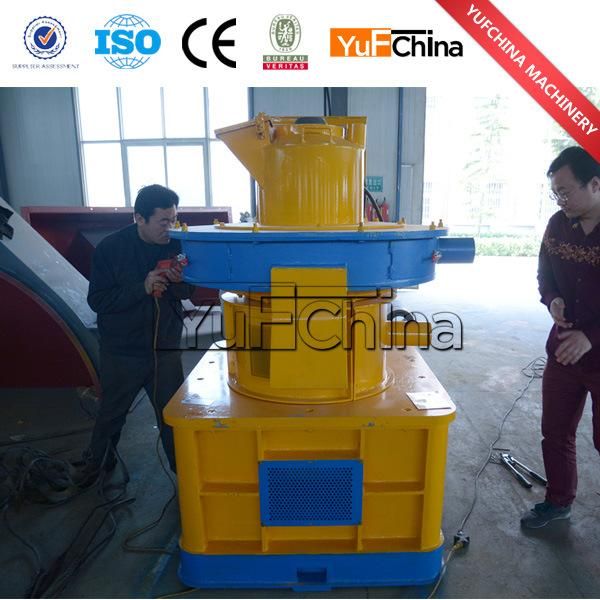

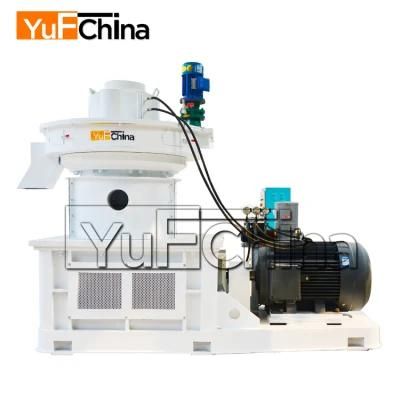

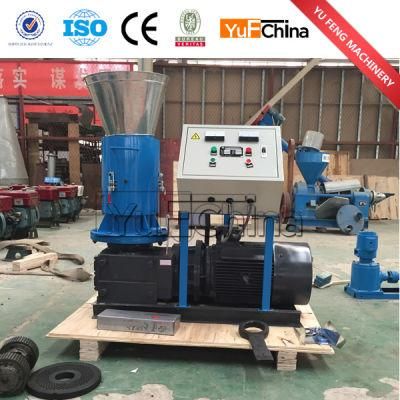

YF550 biomass flat die wood pellet machine





1.Product Information

1)  Raw materials are such as corn,bran,grass,corn,maize stalk,rice straw,etc
2)  Stable performance, high output, and low consumption. Easy for maintenance, easy operation.
3)  The whole body with strong structure,the flat die and rollers is Wear-resisting, heat-resistant, alloy steel.
4) High molding rate, big density.
5) The diameter is from 2.5-8mm, can make according to customers' requirement.
6) The machine is made up of gear box (gear drive or reducer drive,reducer drive with more strength and pressure), flat die, rollers, lubricating system(With or not).








2.Main Parameters


model	Power(kw)	Pellet size(mm)	inner dia(mm)	Production(t/h)	Dimension(mm)	Weight(t)
YFK450	55	Φ4-Φ12	450	0.3-1	2200x900x1600	3
YFK550	75	Φ4-Φ12	550	0.7-1	2300x1000x1780	4.8
YFK560	90	Φ4-Φ12	560	1-1.5	2600x1300x2300	5.8
YFK580	160	Φ4-Φ12	580	1.5-2	2900x1300x2400	6.5
YFK680	160	Φ4-Φ12	680	2-2.5	3200x1400x2400	8.5
YFK850	220	Φ4-Φ12	850	2-3	3750x1650x3250	12.6
YFK880	315	Φ4-Φ12	880	3-4	4300x1900x3600	14.5

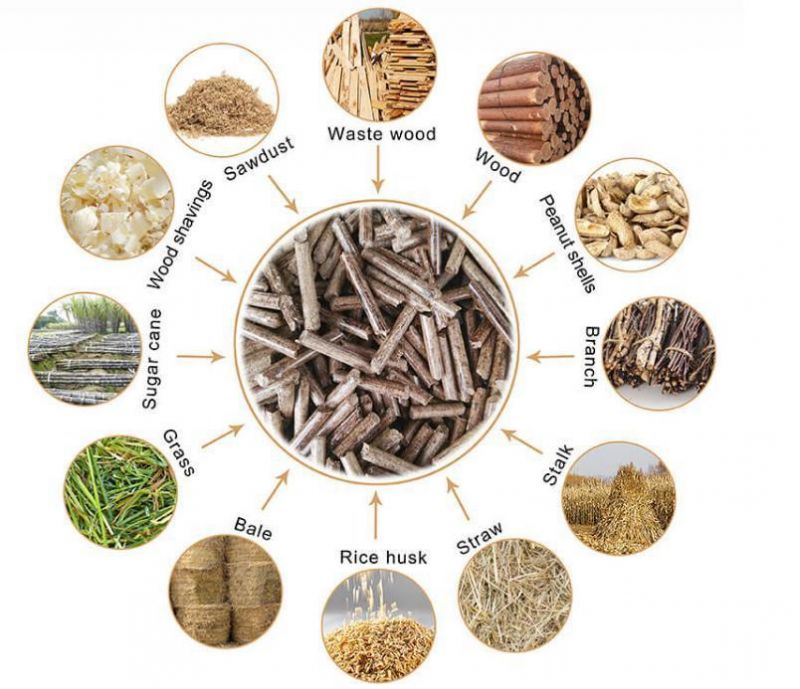

3.Raw materials of biomass pellet machine

--Wood log:First use wood chipper convert wood log to wood chips ,if wood chips moisture >15%,We should add a dryer to dry the wood chip until moisture <15% .
--Wood chips: Wood chips with moisture >15%,We should add one dryer to dry wood chips until <15%. If Wood chips are dry ,moisture <15%,it can be crushed by hammer mill directly,then it comes out as sawdust ,sawdust can make pellet directly;
--Sawdust: Moisture >15%,need dry until moisture <15%,if sawdust size <8mm,then make pellet directly.
--Palm fiber and EFB:Further crushed until size <8mm,dried until moisture <15%.
--Rice husk :Without hammer mill,when moisture <15% can make pellet directly.
--Straw:Need further crushed by hammer mill

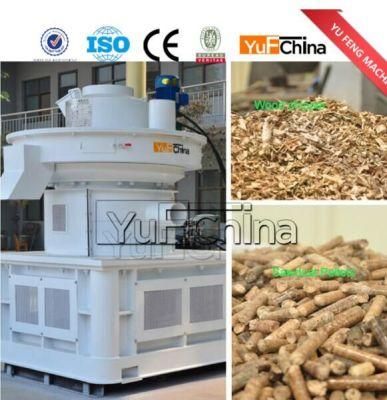

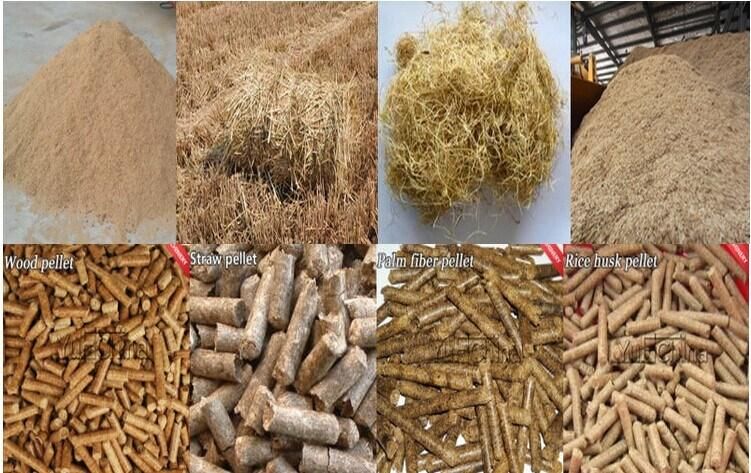

4.Photos of pellet






5.Our service

Pre-sale
Depending on customer's requirement, we insist on "making profit at lowest investment" and gives best solution as per the customer's special demand.

During-sale
 Manufacturing products strictly on contract while customer constructing.
 Production progress report each week with detailed description and photos, including with raw materials tables, process and deep process record, testing data sheet, etc.
3. Testing all the equipment by witness of the customer ex-work, delivery, customer acceptance.

After-sale
3. Regularly return visit to the customers.
Within 1 year warranty period, we take charge of every ting if any quality problems. After the warranty period, we still focus on the plant running and services.
Response customer's questions within 1 working day, give effective solutions within 3 working days, go into action with 5 working day.

That's our promise, as we know quickly and service both important for long-terms development and cooperation.
