• Model NO.：XS300
• Spindle：9kw Spindle
• Tool Magazing：Tracking Mode Circular Tools Change
• Drilling Bank：5+4 Drilling Bank
• Working Area：1230*2450*200mm
• Transmission：X,Y Axis Rack and Pinion,Z Ball Screw
• Table Structure：Thickened Vaccumm Adsorption Table
• Drive&Servo Motor：Yaskawa ,Delta
• Max Traveling Speed：80m,Min
• Max Working Speed：30m,Min
• Spindle Rotary Speed：0-24000r,Min
• Control System：Syntec,Delta
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：Working Area: 1230*2450*200mm
• Trademark：Mars
• Origin：China
• HS Code：84659900
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. XS300 Spindle 9kw Spindle Tool Magazing Tracking Mode Circular Tools Change Drilling Bank 5+4 Drilling Bank Working Area 1230*2450*200mm Transmission X/Y Axis Rack and Pinion,Z Ball Screw Table Structure Thickened Vaccumm Adsorption Table Drive&Servo Motor Yaskawa /Delta Max Traveling Speed 80m/Min Max Working Speed 30m/Min Spindle Rotary Speed 0-24000r/Min Control System Syntec/Delta Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification Working Area: 1230*2450*200mm Trademark Mars Origin China HS Code 84659900 Production Capacity 300 Sets/Month

Product Description

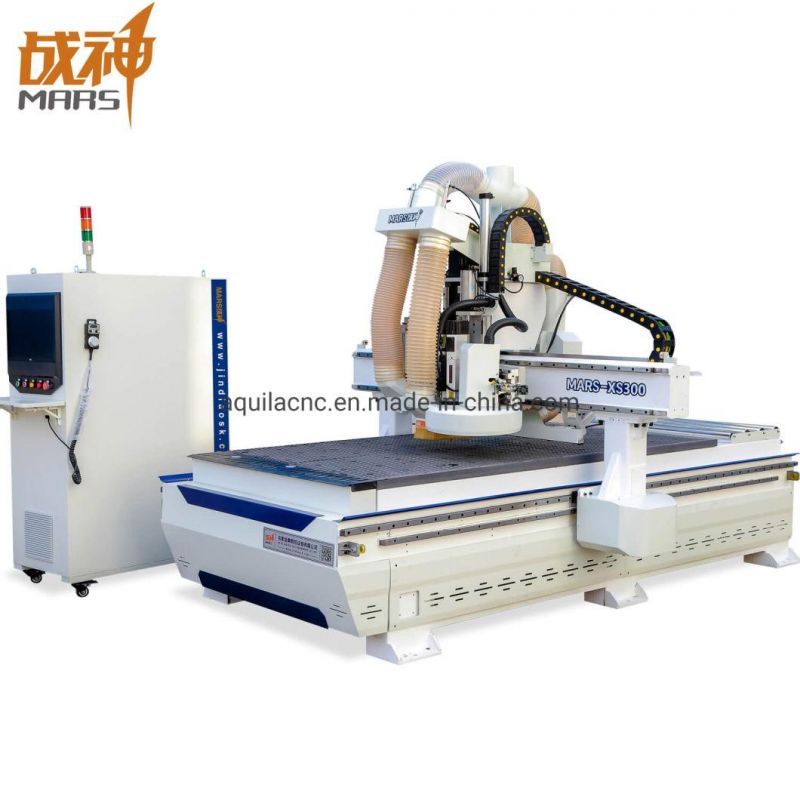

XS300 Automatic Tools Change Approved with ISO9001 Acrylic Board CNC Machine for Wood Panels

Keywords: 15 years experience of production
                        ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                        Three Brand: Mars, Golden Eagle,Borio


Parameters:


Spindle Power	9KW Spindle+Tracking Mode Circular Tools Change+(5+4) Drilling Bank
Spindle Speed	0 ~ 24000 rpm/min
Control System	Syntec/Delta
Drive System	Stepper motor for all 3 axis
Lubrication System	Manual/ Automatic
Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan rectangular linear rail
Max Travelling Speed	80m/min
Max Working Speed	30m/min
Engraving Tool	¢3.175/ 4/ 6/ 12.7mm
Dictate Format	G code/ HPGL
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm

 Description:

Wood CNC Router Machine for Cutting and Engraving MDF PVC is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.


Functions:
The functions of this machine include cutting,milling,drilling and slotting.






Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.

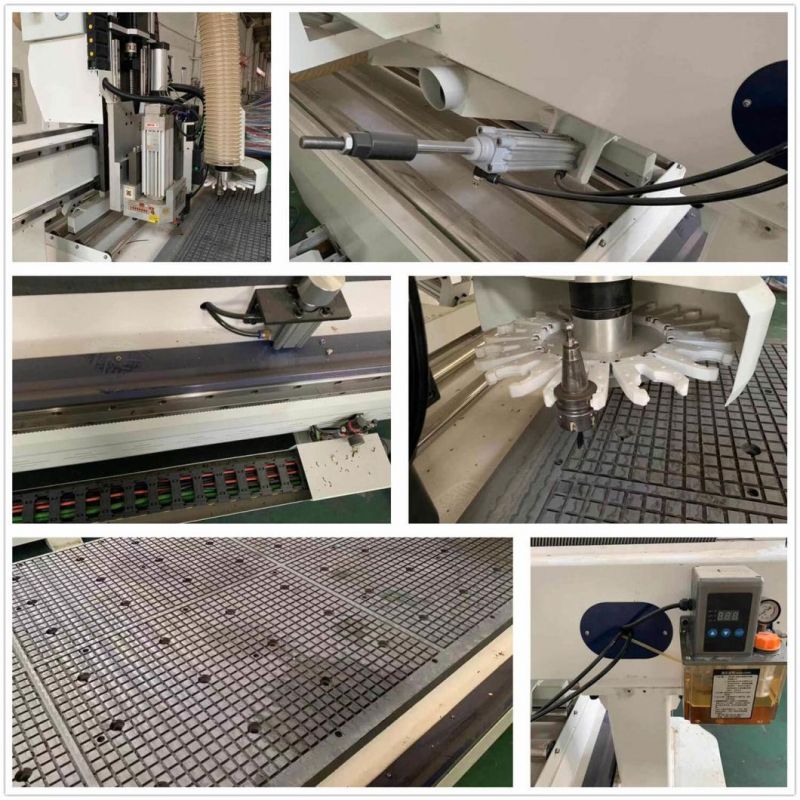

  Accessories:





Performance Features:
1. Equipped with all the leading international brand components, Taiwan Syntec control system, Japan Yaskawa servo motor and driver.
2. Carousel type tool magazines support automatic tool changer, improve processing efficiency.
3. Italy 9KW high-power air-cooling spindle can withstand high-speed, heavy loading, low noise characteristics.
4. Machine body structure is made of welded thick-walled square steel tube, with five-sided tempering, to ensure the body never deformation.
5. Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.
6. Taiwan-made guide rail and ball screw, high precision, long service life, good stability.
7. Taiwan Syntec control system, easy to operation,fully support automatic production
8. Taiwan planetary reducer, with small volume, large torque, high transmission efficiency, wide range of deceleration.
9. Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.


Samples:
