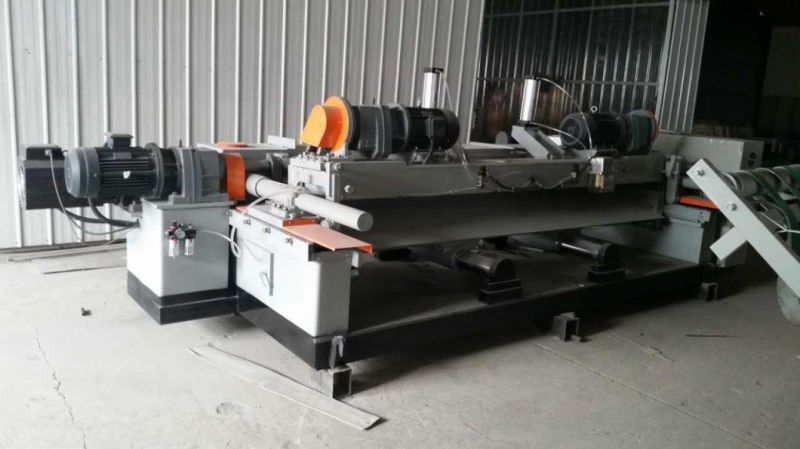

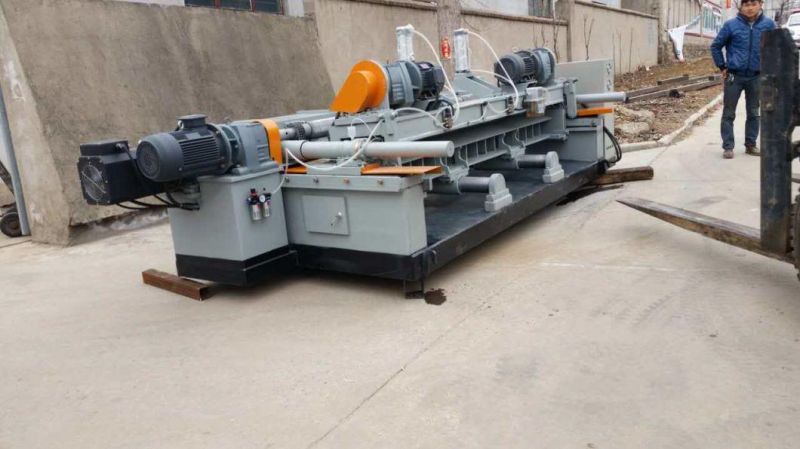

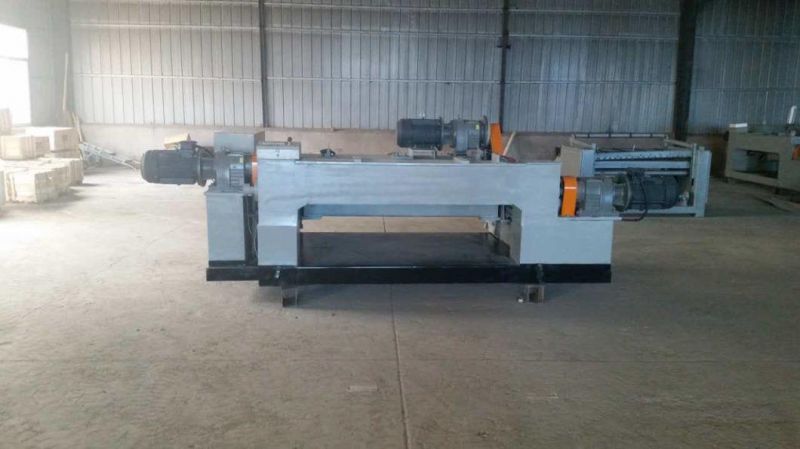

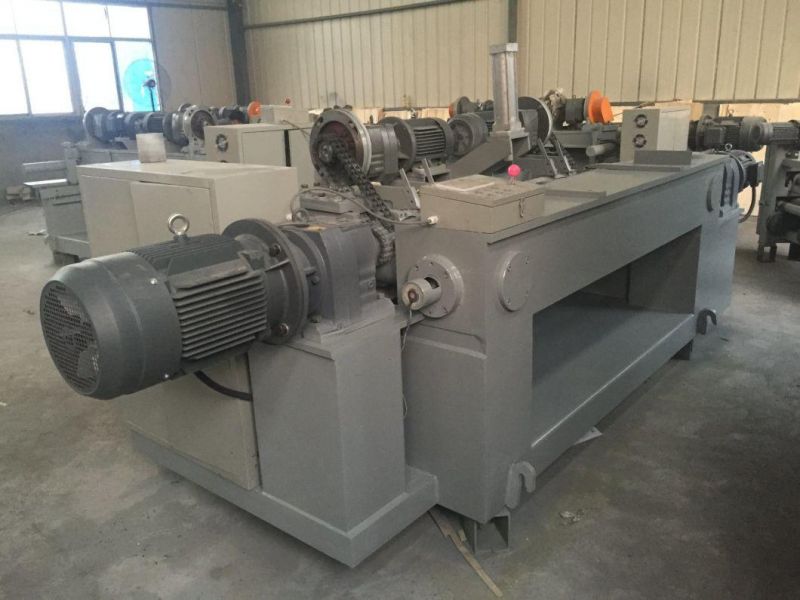

Woodworking 8 Feet Log Veneer Peeling Peeler Machine
Qingdao Haozhonghao Woodworking Machinery Co., Ltd.- After-sales Service：Online Service
- Warranty：1 Year
- Type：Veneer Peeling Machine
- Automatic：Semi-Automatic
- Certification：CE, ISO
- Transport Package：Plastic Film
Base Info
- Model NO.：XQJQ2705
- Specification：ISO9001
- Trademark：HZH
- Origin：Qingdao, China
- HS Code：84659600
- Production Capacity：18-30pieces,Min
Description
| Model | XQJ2705 | XQJQ1504 |
| Max.cutting length | 2700mm | 1400mm |
| Max cutting diameter | Φ500mm | Φ400mm |
| Final wood core diameter | Φ30mm | Φ24mm |
| Thickness range of veneer | 0.3-4.0mm | 1-4mm |
| Roller diameter | Φ 125mm*2,Φ100mm*1 | Φ 120mm*3 |
| Main motor power of rollers | 11kw*1, 7.5kw*1 | 7.5kw+5.5kw |
| Feed motor power | 11kw | 5.5kw |
| Veneer cutting motor power | -- | 1.5kw |
| Veneer feed-out line speed | 45m/min | 45m/min |
| Weight | 8000kg | 3600kg |
