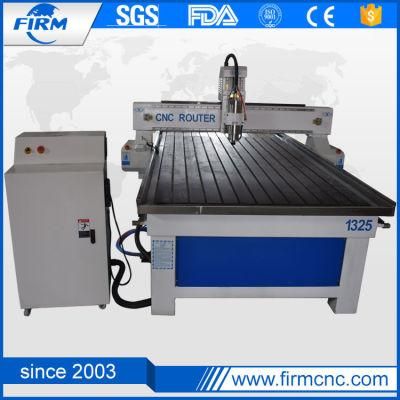

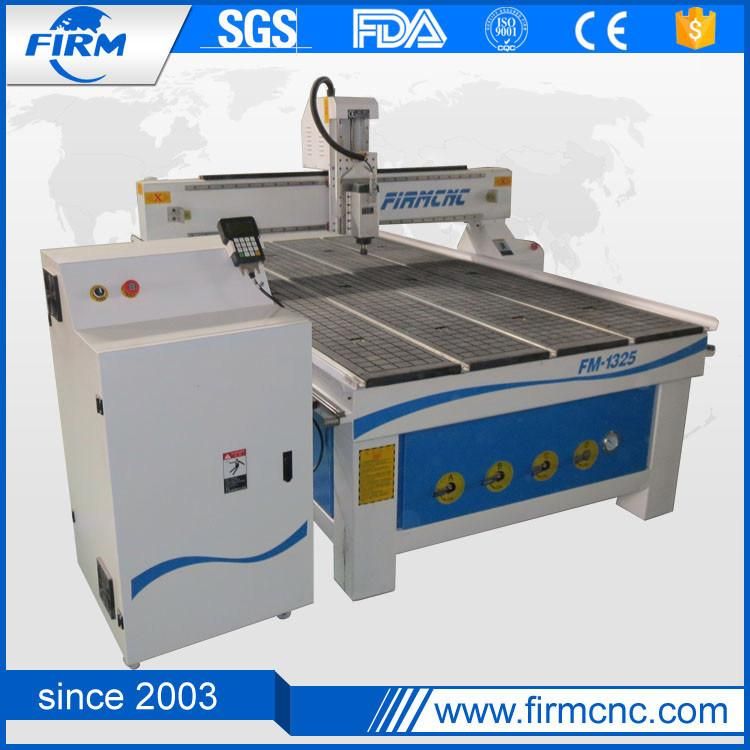

Window Boards Relief Woodworking CNC Cutting Engraving Carving Engraver
Jinan Firm CNC Equipment Co., Ltd.- Type：Wooden Mold Router
- Spindle Layout：Spindle Over
- Spindle Number：Single-Spindle
- Feed Mode：Manual
- Controlling Mode：CNC
- Certification：CE
Base Info
- Model NO.：FM1325
- Customized：Customized
- Condition：New
- Color：Customized
- Key Word：Woodworking CNC Router
- Engraving Area：1300*2500*200
- Spindle Power：3.0kw Water Cooling Spindle
- Control System：Nc-Studio or Choose DSP
- Working Speed：8-15m , Min
- Guide Rail：Taiwan Hiwin Square Guide Rail
- Motor：Step , Servo Motor
- Table Structure：Vacuum and T-Slot Table
- Transmission Way：Rack Gear
- Software：Artcam , Type3
- Transport Package：Wooden Box
- Specification：CE SGS ISO
- Trademark：FIRMCNC
- Origin：Jinan Shandong China
- HS Code：8465990000
- Production Capacity：30 Sets,Month
Description
Basic Info.
Model NO. FM1325 Customized Customized Condition New Color Customized Key Word Woodworking CNC Router Engraving Area 1300*2500*200 Spindle Power 3.0kw Water Cooling Spindle Control System Nc-Studio or Choose DSP Working Speed 8-15m / Min Guide Rail Taiwan Hiwin Square Guide Rail Motor Step / Servo Motor Table Structure Vacuum and T-Slot Table Transmission Way Rack Gear Software Artcam / Type3 Transport Package Wooden Box Specification CE SGS ISO Trademark FIRMCNC Origin Jinan Shandong China HS Code 8465990000 Production Capacity 30 Sets/MonthProduct Description
Window Boards Relief Woodworking CNC Cutting Engraving Carving EngraverFM-1325 is the main products of Jinan Firm CNC Equipment Co., Ltd and widely used in furniture, industrial equipment parts, decoration, building models, advertisement...It can cutting and engraving materials including MDF, wood to make the cabinet door, solid wooden door, computer desk, assembling desk, it also can engrave on the HDF, wood board, acrylic, plan cutting, 3D embossment...
Feature
1. Lathe bed is of high quality by cast steel, after re-treatment, much stronger and more stable.
2. Powerful stepper motor driver, Imported linear guide rails, running smoothly, high accuracy, long time service.
3. Gear wheel/ rack transmission, high precision, could engrave 1mm letter clearly.
4. Water cooling spindle (24000rpm), apply to long time processing of wood products.
5. The advanced professional control system compatible with many instruction format, may achieve process
function in interruption of power supply, breakpoint and next day which is more convenient and save labor.
6. All the spare parts are provided by most famous brand, with stable high quality.
7. It can do three-dimensional processing fast, smoothly, engraving or cutting.
8. Our software is compatible with type3/artcam/castmate/weitai and so on.
9. Through the CE quality authentication
Technical specification
| Brand | Firm |
| Model | FM-1325 |
| Machine Size (mm)(W*L*thickness) | 1900*3100*1800 |
| Table size(mm) | 1600*3100 |
| Engraving area (W*L*thickness)(mm) | 1300*2500*200 |
| Working Form | Full-automatic |
| Spindle Power | 3.0KW water cooling spindle |
| Spindle Rotate(rpm) | 6000~24000 |
| Motor Driver | Stepper motor (Chinese servo motor or imported servo motor is optional) |
| Tool Diameter(mm) | Ø3.175,Ø4,Ø6, Ø12.7mm |
| Machine Structure | Industry square tube structure |
| Transmission System | Imported ball screw or high accuracy gear rack |
| X,Y,Z Rail | Imported square rail |
| Mechanical Accuracy | <0.03/300mm |
| Engraving Speed(mm/min) | 8000~12000mm/min |
| Feeding Speed | manual |
| Data Transmission | PC connect |
| Support Format | G code or HPGL |
| Working Voltage | AC220V/50Hz or 380V/50Hz |
| Support Format | G Code or HPGL |
| Range of Application | Woodworking relief engrave ,Cutting , Hollow |
| Machine Net Weight | 1200Kg |

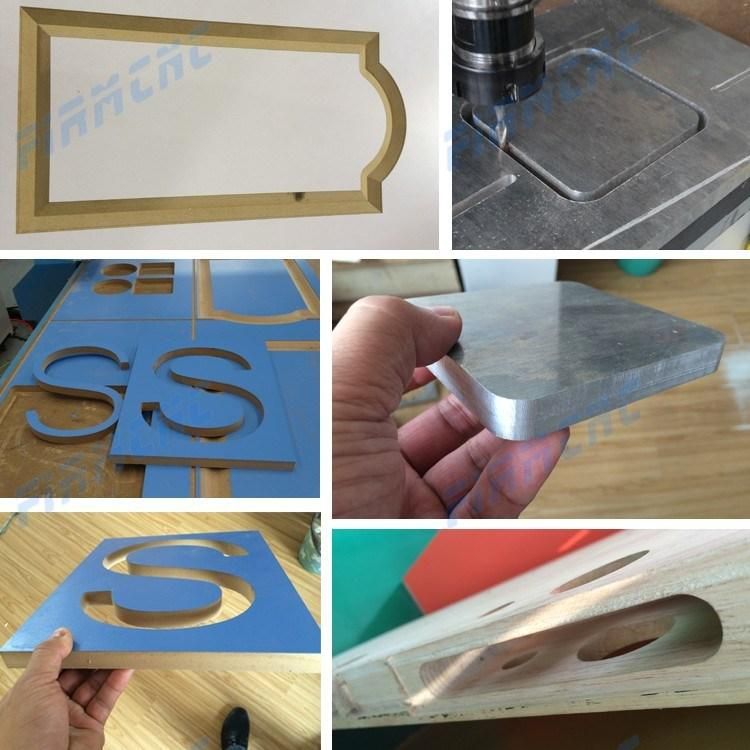

Samples
