• Model NO.：1325
• Certification：CE
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：Lifetime
• Table Size：1300*2500
• Drive Mode：Stepper
• Guild Rail：PMI , Hiwin
• Operating System：Nc Studio
• Spindle：Air Cooling or Water Cooling as Your Require
• Transport Package：Plywood Case
• Specification：CE
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. 1325 Certification CE Customized Customized Condition New Color Customized After-sales Service Lifetime Table Size 1300*2500 Drive Mode Stepper Guild Rail PMI / Hiwin Operating System Nc Studio Spindle Air Cooling or Water Cooling as Your Require Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per Month

Product Description

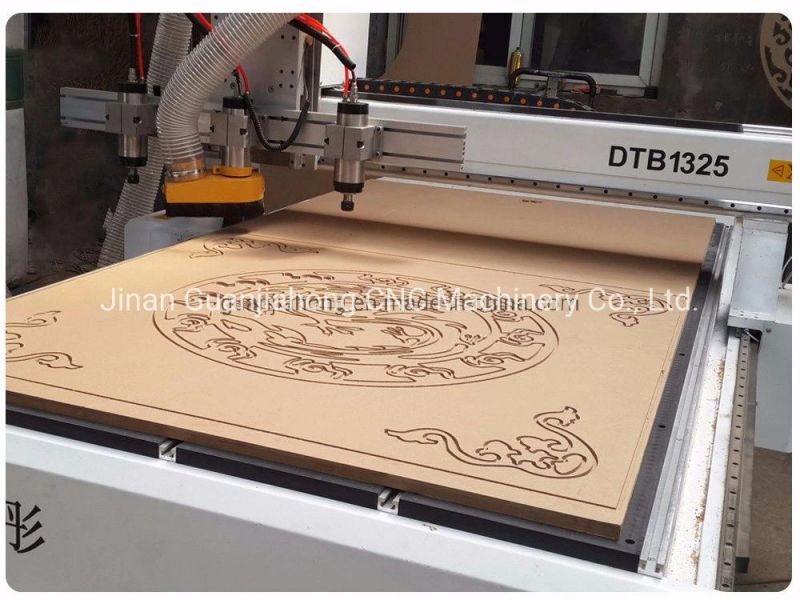

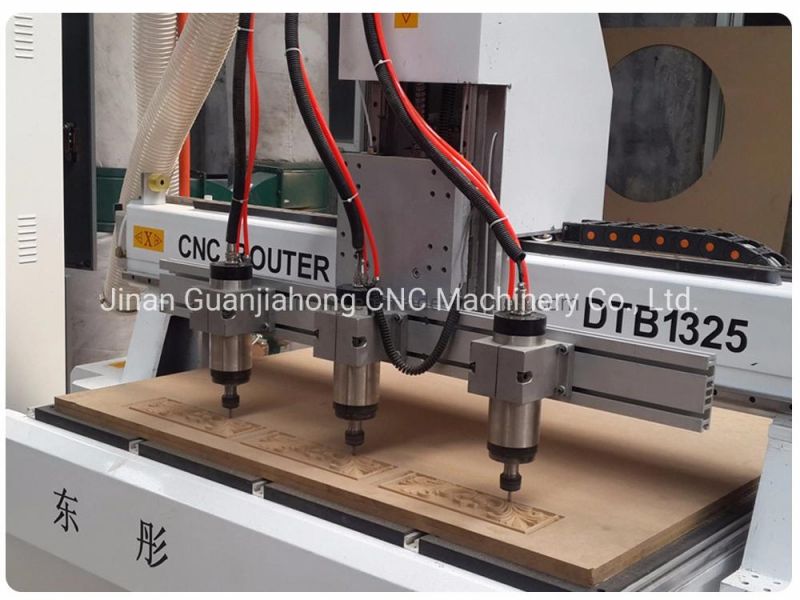

1325-3 multi spindle CNC router machine
 Wood, MDF, Acrylic, EPS, Plastic, Soft Metal CNC Engraving Machine,
 from professional cnc router machine manufacturer.

 Machine Feature:

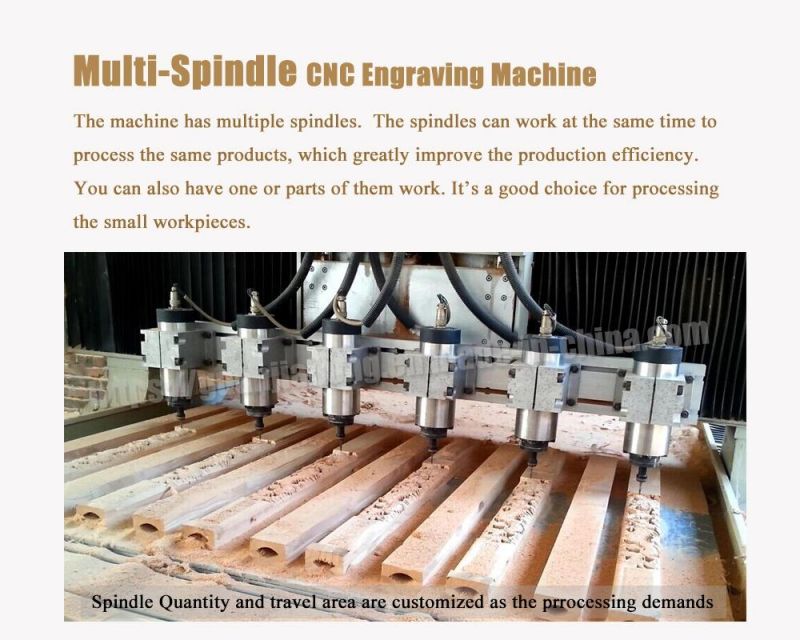

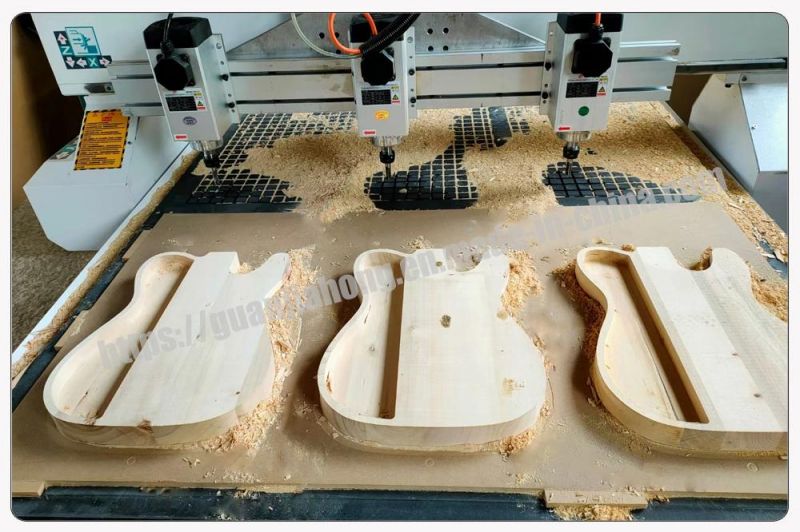

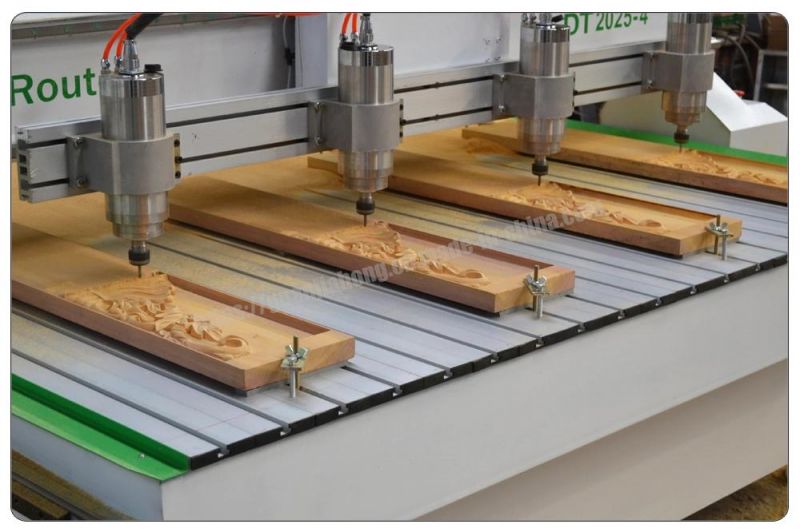

1. Multi spindles CNC Router is specially designed for multi-process simutaneously.
2. Spindle works in turn, change tools easily.
3. Advanced control system: Taiwan SYNTEC or NC STUDIO
4. Compatible with software such as:   TYPE3/ARTCAM/UG/PRO-E/UCANCAM/AUTOCAD/MASTERCAM
5. Functions of power-off recovery, continuation on break point, time anticipation.
6 .Excellent components: HIWIN guild rail and ball screws,  low noise spindle
7. Welding steel structure and 10mm gantry
8. Powerful vacuum table divided to 6 zones, can adsorb different size materials











 Technical Parameter:

NO	Performance index	Performance index	Parameter	Optional
1	Working area	X	1300mm
		Y	2500mm
		Z	200mm
2	Table size		1300mm*2500mm	2200mm*3000mm
3	Accuracy	Working precision	0.05mm
		Repositioning precision	0.05mm
4	Drive mode	X axis	Linear guide and rack pinion
		Y axis	Linear guide and rack pinion
		Z axis	Ball screw
5	Speed	Max motion speed	30000mm/min
		Max engraving speed	20000mm/min
6	Spindle(water-cooling)	Spindle power	3KW	1.5KW_5.5KW
		Spindle speed	0-24000r/min
7	Drive mode		Stepper
8	Operating voltage		AC220V/50HZ
9	Command code		G code
10	Operating system		NC STUDIO
11	Net weight		1520KG










Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer  should pay the fee.
After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support and service by email/fax/ tel and lifetime technical support

Customization is available.
Multi spindle, Wood engraving machine, CNC wood router,

If you have specific requirement  , please contact with us
