• Model NO.：1325-3-3
• Customized：Customized
• Condition：New
• Color：Customized
• Table Type：Vacuum Table
• Control System：Nc Studio
• Guild Rail：Hiwin Square Rail
• Ball Screw：PMI, Taiwan
• Transport Package：Plywood Case
• Specification：CE
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. 1325-3-3 Customized Customized Condition New Color Customized Table Type Vacuum Table Control System Nc Studio Guild Rail Hiwin Square Rail Ball Screw PMI, Taiwan Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 100 PCS/Month

Product Description

1325 multi spindle, three work stage ATC woodworking CNC router,
from professional cnc router manufacturer in China.


1. Advanced control system: Taiwan SYNTEC or NC STUDIO
2. Compatible with software such as:TYPE3/ARTCAM/UG/PRO- E/UCANCAM/AUTOCAD/MASTERCAM
3. Functions of power-off recovery, continuation on break point, time anticipation.
4. Excellent components: HIWIN guild rail and ball screws, low noise spindle
5. Welding steel structure and 10mm gantry
6. Powerful vacuum table divided to 6 zones, can adsorb different size materials.
7. 3 spindles work in turn as request,  save time of changinge tools
8. Two motors for Y axis, running steadily

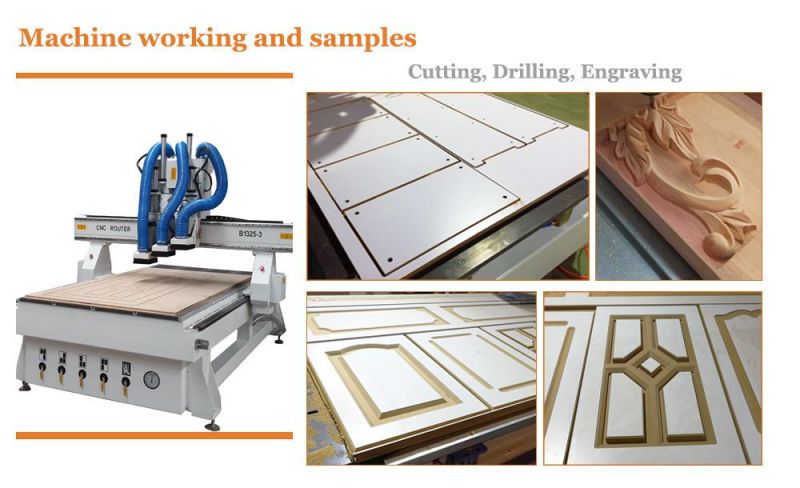

Woodworking industry: Processing all kinds of door, window, cabinet, craft wood door, paint-free door, screen, wave boards

NO	Performance index	Performance index	Parameter
1	Working area	X axis	1300mm
		Y axis	2500mm
		Z axis	200mm
2	Table size		1300mm*2500mm
3	Accuracy	Engraving accuracy	0.05mm
		Repositioning accuracy	0.05mm
4	Drive mode	X axis	Helical rack and pinion
		Y axis	Helical rack and pinion
		Z axis	Ball Screws
5	Speed	Max travel speed	30000mm/min
		Max engraving speed	15000mm/min
6	Spindle ( air-cooling)	Spindle power	5.5KW *3
		Spindle speed	0_24000r/min
7	Drive motor		Servo
8	Working voltage		AC220V/50HZ
9	Command code		G code
10	Operating system		NC STUDIO
11	Table type		Vacuum table

Configuration can be made as customer's request
















Technical support
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.

After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. Free training advice towards our machine in our factory.
4. Free suggestion and consulting, technical support and service by email/fax/ tel and lifetime technical support



Multi spindle, wood door, cabinet, wardrobe cnc router machine
Customization is available,
If you have special requirement, please contact with us.
