• Model NO.：GD-MJ45
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• Product Name：CNC Panel Saw
• Power：5.5kw
• Feature：Eco-Friendly
• Model：Gd-Mj45
• Max Cutting Length：Unlimited
• Cutting Material：Wood
• Gross Cut Capacity：3000mm
• Spindle Diameter：30mm
• Tilling Saw Blade：0-45°
• Scoring Saw Blade：120mm
• Net Weight：1000kg
• Overall Dimensions：3050×3150×900mm
• Dimensions Sliding Table：3100×360mm
• Saw Blade φ：300mmφ250-φ300
• Height of Cut φ300mm：70mm
• Transport Package：Woodcase
• Specification：200kg
• Trademark：Guandiao
• Origin：Jinan, China
• Production Capacity：50000pieces,Year

Dimensions sliding table

3100×360mm

Gross cut capacity

3000mm

Width of cut between saw blade and rip fence

1250mm

Saw blade φ

300mmφ250-φ300

Height of cut φ300mm

70mm

Height of cut with saw blade φ300mm at 45°

55mm

Speed of main saw blade

4000/6000rpm

Spindle diameter

30mm

Tilling saw blade

0-45°

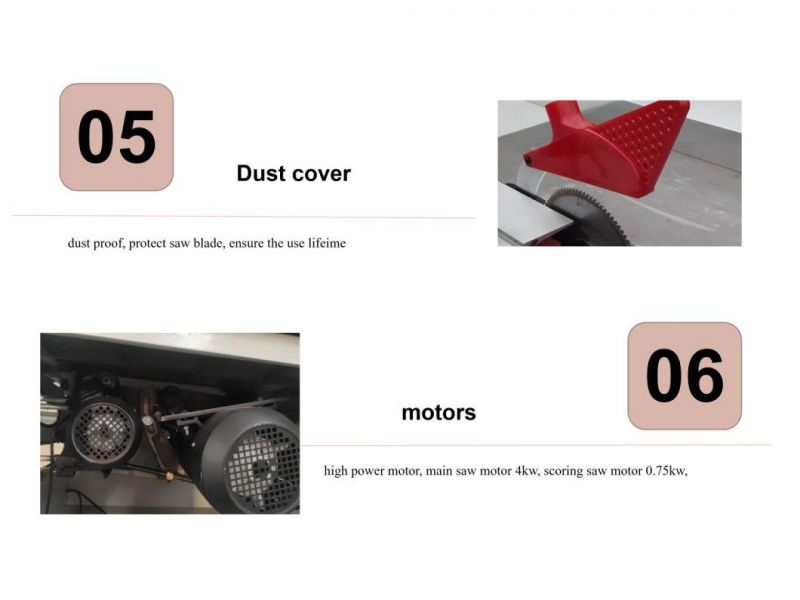

Main motor

5.5kw

Scoring saw blade

120mm

Speed of scoring saw blade

8000r/min

Spindle of scoring saw

20mm

Motor

0.75kw

Net weight

1000kg

Gross weight (wooden packing case)

1050kg

Overall dimensions

3050×3150×900mm

Features

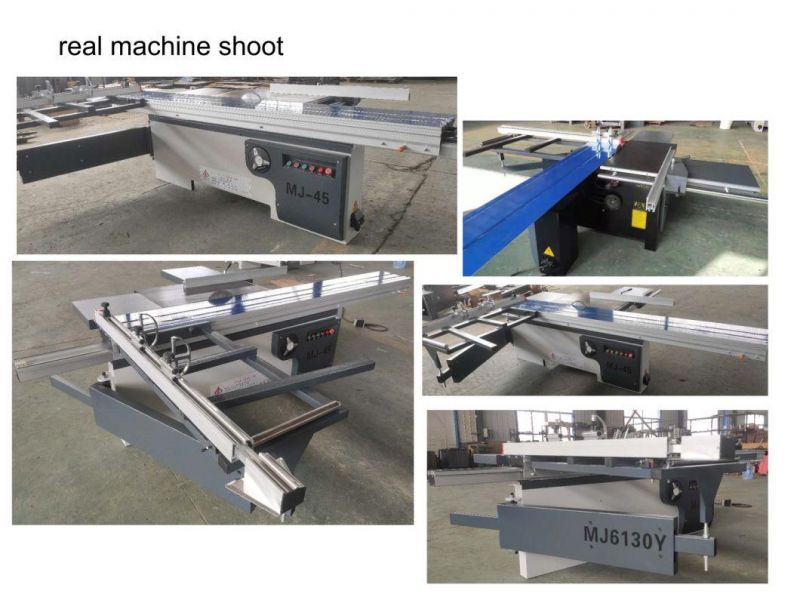

1. Precision panel saw GD-45

2. The spare parts are made from imported machining ceters with leading precision in the domestic

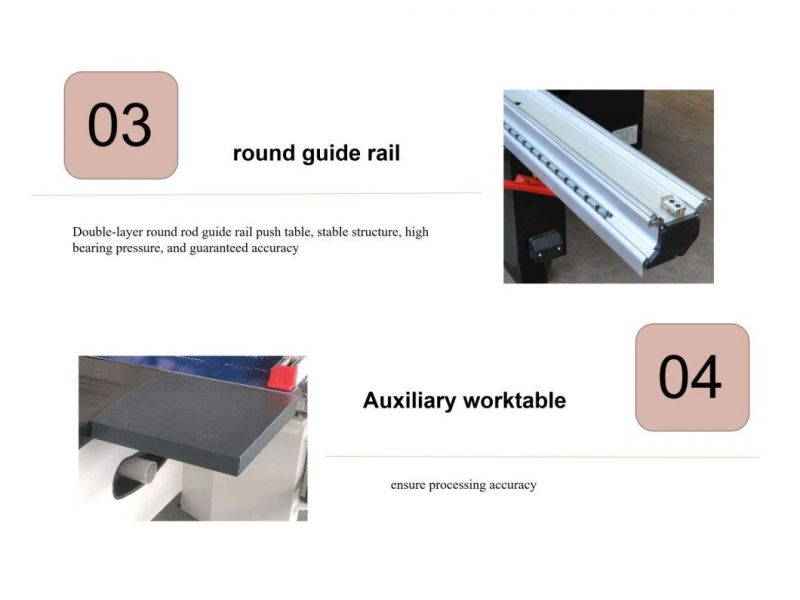

3. The sliding table is made from imported precision cylindrical guide, higher accuracy and longer life

4. It is using spray outside, laser cutting and weliding, so it with more stable and reliable performance

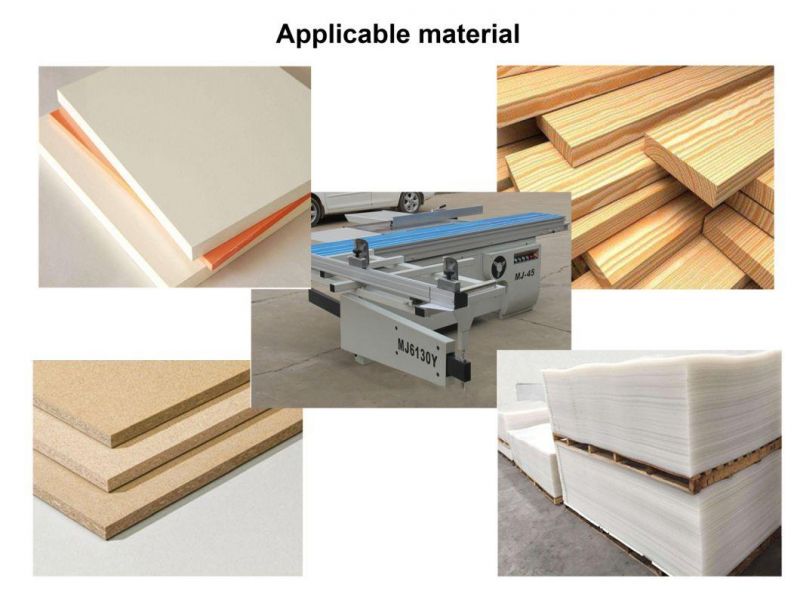

5. Used for all kinds of MDF chipboard, man-made board, ABS board, PVC board, organic glass sheet, solid wood with similar hardness

6. High precision sliding table guide rail

7. The sliding table is made of high strength extruded aluminum alloy, with th echaracteristics of high strength and without deformation

8. The sliding table is beautiful and enduring

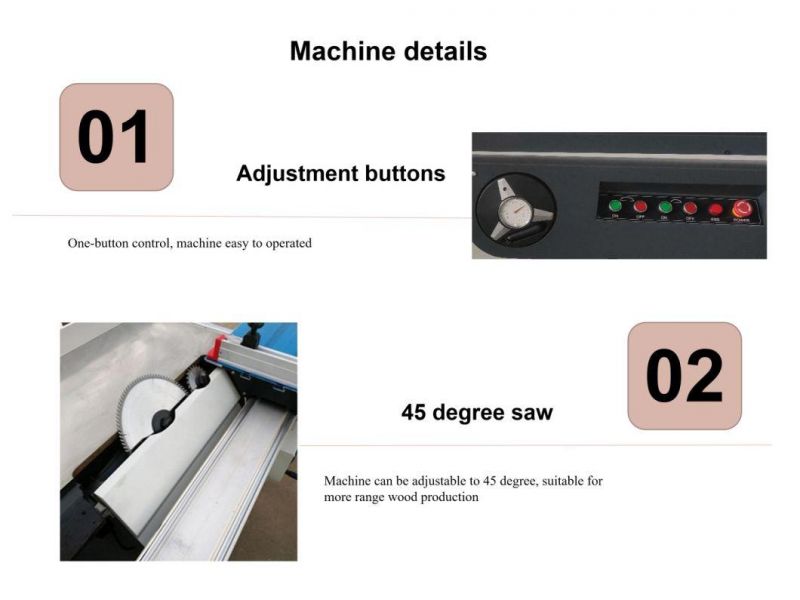

9. Tilting saw blade:45-90°

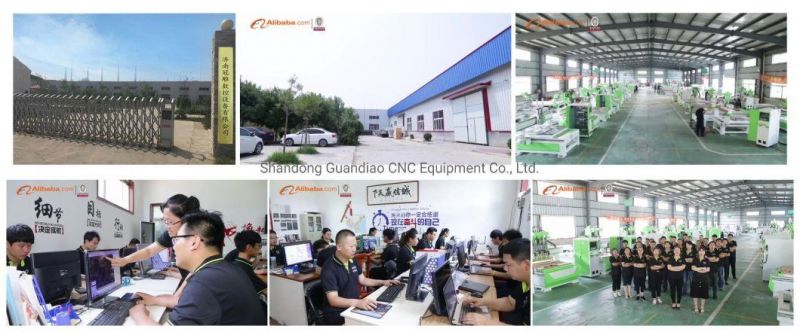

Company informationGuandiaoThe company has a factory building of 6,000 square meters and an office area of 1,500 square meters. The application is reasonable. The production area is constructed in strict accordance with the national safety and environmental protection policies to ensure a reasonable delivery period.
We have a well-established sales and marketing team, technical research and development team, and after-sales service team to meet the needs of the market and customers.

Packing & shipping


Our service
1. 1 years quality guaranty, the machine with main parts(excluding the consumables)  shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an cost price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
If you have any questions about us, please contact me with no hesitate.
FAQ
1. This is the first time I buy the machine, is it easy to operate?
A: We provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer" online, with telephone or Skype explain.
2. Are you a factory or trading company?
A: We are a factory.
3. Can I visit your factory?
A: Yes! We greatly welcome you to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set. We could send machine to your country port directly, please tell us your port name.The we can give you a freight for your reference.
