• Model NO.：FM1325
• Customized：Customized
• Condition：New
• Color：Customized
• Machine Name：FM1325 Wood Craft Machine
• Table Size(Mm)：1300*2500
• Engraving Area：1300*2500*200
• Spindle Power：3.0kw Water Cooling Spindle
• Control System：DSP
• Software：Artcam
• Motor：Stepper Motor
• Drive：Taida Inverter
• Transmission：Ball Screw and Rack
• Rail：Taiwan Hiwin Square Rail
• Transport Package：Playwooden Case
• Specification：CE, ISO, SGS
• Trademark：FIRM
• Origin：Shandong, Jinan
• HS Code：84659900
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. FM1325 Customized Customized Condition New Color Customized Machine Name FM1325 Wood Craft Machine Table Size(Mm) 1300*2500 Engraving Area 1300*2500*200 Spindle Power 3.0kw Water Cooling Spindle Control System DSP Software Artcam Motor Stepper Motor Drive Taida Inverter Transmission Ball Screw and Rack Rail Taiwan Hiwin Square Rail Transport Package Playwooden Case Specification CE, ISO, SGS Trademark FIRM Origin Shandong, Jinan HS Code 84659900 Production Capacity 5000 Sets/Year

Product Description

1300*2500mm CNC Router Wood Craft Machine 1325

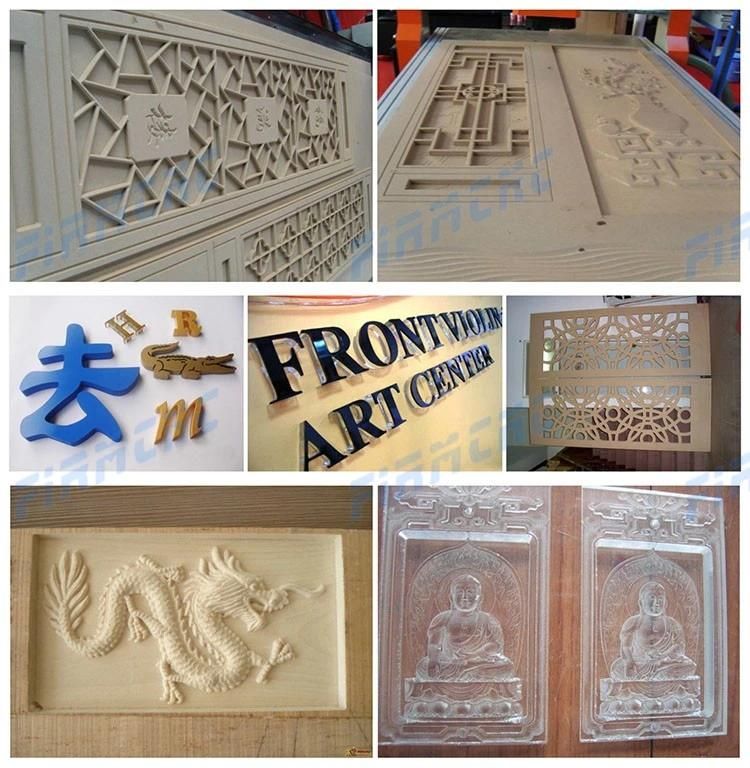

1. Applicable Industry
(1) Woodworking industry:
Engraving machine can be used for carving wood carving, wood jewelry boxes, decorative products
and jewelry carved and so on.
(2) Advertising industry:
Engraving machine can be used for carving a variety of signs, logos, badges, panels, craft and decorating,
home decoration.
(3) Other industries:
Also can be used for portraits, landscapes, calligraphy, seals and other graphic art and sculpture
reliefs and other production.

2. Detail configuration:

Item

Configuration

FM1325

CNC Router FM-1325: u Working Area 1300*2500*200mm    u 3KW CS Water cooling Spindle u Chinese Fuling Inverter u Big power 118 stepper Drivers u Leadshine drivers u 20 Hiwin Square rails for XYZ axis u DSP Control system u Welded steel tube structure u X,Y axis with helical rack and pinion transmission, and Z axis with Taiwan  TBI ball screw  u Vacuum and T-slot combined table u Automatic lubrication u France Schneider contactor and leakage protector u Tool sensor

3. Specification:

Description	Parameter
X,Y,Z working area	1300x2500x200mm
Table size (mm)	1450×2940mm
Resolution	±0.03/300mm
Repeatability	±0.03mm
Table Structure	T-slot and Vacuum combined
Lathe Structure	Welding steel structure
X,Y structure	Rack pinion, Hiwin linear rails
Z structure	Ball screw, Hiwin square rails
Rated power	3Kw (without spindle)
Max. rapid	33000mm/min
Max. Working speed	25000mm/min
Spindle power	4.5Kw HSD spindle
Spindle speed	0-18000RPM
Working mode	Stepper or servo
Working voltage	AC380V/50/60Hz,3Ph(Option 220V,3Ph)
Command code	G code
Operating system	DSP system (Ncstudio Syntec, Mach3)
Interface	USB
Memory	128M
Tool holder	ER25
X,Y working accuracy	<0.03mm
Software	Type3 UcancameV9, Artcam
Working temperature	Temperature:0 degree-45 degree Humidity:30%-75% (No Condensation)
Packing size	3300X2100X2300mm
Net weight	1750KG
Gross weight	1980KG
Optional Spare Parts	Domestic water cooling spindle
	Double bag dust collection,vacuum pump
	rotary

4. Process Technology
1.After powder coating(not just painting), the table is leveled by using the level and the adjustment feet.
2.The surface of square rail and rack are polished by whetstone to remove burrs.
3.After drilling on the square rail, the indicator and levelling ruler to adjust the parallelism and the flatness,
by which the accuracy is up to 0.1mm.
4.After install the rack, to test and make sure the accuracy of the straightness is up to 0.1mm.
5.The installment of gantry' rack and rack is the same as the table.
6.The parallelism of the head's screw and square rail is up to 0.05mm.
7.When debugging the diagonal lines, the Fang Gun is required, and the accuracy should be 0.3mm.

5. Packing & shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

6. Our service
# Two years warranty for the machine
# Replacing all parts for free during warranty
# If nessessary, provide door to door service to your country
# 12 hours on line service
# Replying your email and offer tecnical service within 24 hours

7. FAQ:
Q1: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines
according to client s specific requirements, it would be 15 to 30 days.

Q2: How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal

Q3: Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price,
clients need to arrange shipment by themselves or their agents.

Q4: How about Guarantee & After Sales Service?
1) The machine guarantee is 12 months.
2) 24 hours technical support by phone, email or msn, skype etc.

Q5: If some problems happened to this machine during warranty period,what should i do?
We will supply free parts in machine warranty period if machine have some problem.While
we also supply free after-service forever, so any doubts,just let us know, we will give you solutions in 24 hours.

Q6: What is the MOQ?
MOQ for our products is 1 set machine,we could send it to your country port  if you tell
